Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

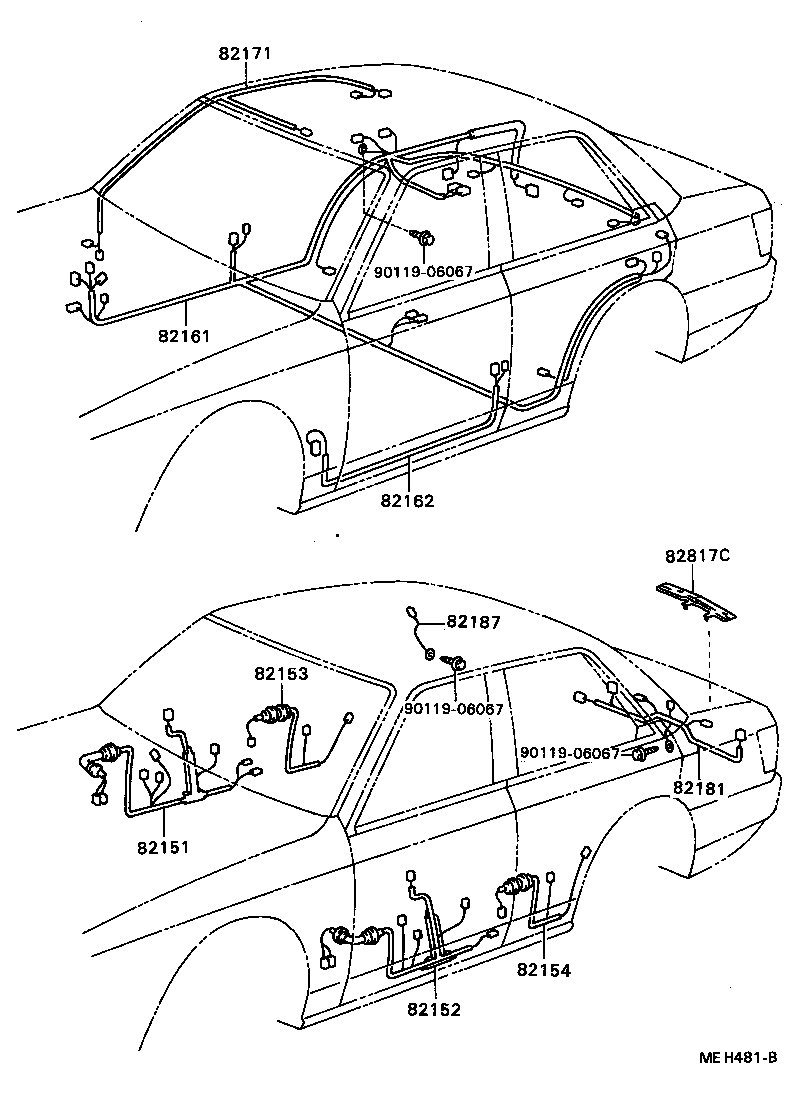

Exploded illustration MEH481B 82171 — WIRE, ROOF, NO.1 (13 parts) 9011906067 — not listed in this catalogue 82161 — WIRE, FLOOR (25 parts) 82162 — WIRE, FLOOR, NO.2 (7 parts) 82817C — PROTECTOR, WIRING HARNESS, NO.4 (2 parts) 82187 — WIRE, REAR WINDOW, NO.2 (4 parts) 82153 — WIRE, REAR DOOR, NO.1 (7 parts) 9011906067 — not listed in this catalogue 9011906067 — not listed in this catalogue 82181 — WIRE, LUGGAGE ROOM, NO.1 (6 parts) 82151 — WIRE, FRONT DOOR, RH (29 parts) 82154 — WIRE, REAR DOOR, NO.2 (7 parts) 82152 — WIRE, FRONT DOOR, LH (23 parts)
MEH481B · 10 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
123 parts on this figure
Part number Description Fitment Price
82151 — Wire, Front Door, RH
82151-32200 Wire, Front Door, RH
1986-08 → 1987-10 ended
CV20,SV20 SED (VL,XT) ¥4,100
82151-32200 Wire, Front Door, RH
1987-10 → 1988-08 ended
CV20,SV20,25 SED (VL,XT) ¥4,100
82151-32210 Wire, Front Door, RH
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) ¥13,000
82151-32210 note Wire, Front Door, RH
1987-10 → 1988-08 ended
CV20,SV20 SED VL ¥13,000
82151-32210 Wire, Front Door, RH
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) ¥13,000
82151-32210 note Wire, Front Door, RH
1987-08 → 1987-10 ended
CV20,SV20 SED VL ¥13,000
82151-32230 Wire, Front Door, RH
1986-08 → 1987-10 ended
SV2# SED (GT,VR,VX,ZE,ZX) ¥12,000
82151-32230 Wire, Front Door, RH
1987-10 → 1988-08 ended
SV2# SED (GT,VR,VX,ZE,ZX) ¥12,000
82151-32340 note Wire, Front Door, RH
1987-10 → 1988-08 ended
CV20,SV20,25 SED (VL,XT) ¥3,680
82151-32340 note Wire, Front Door, RH
1986-08 → 1987-10 ended
CV20,SV20 SED (VL,XT) ¥3,680
82151-32350 Wire, Front Door, RH
1986-08 → 1987-10 ended
SV20 HT VL ¥4,100
82151-32350 Wire, Front Door, RH
1987-10 → 1988-08 ended
SV20,25 HT VL ¥4,100
82151-32360 note Wire, Front Door, RH
1987-08 → 1987-10 ended
SV20 HT VL ¥9,400
82151-32360 note Wire, Front Door, RH
1986-08 → 1987-10 ended
SV2# HT (GT,VR,VX) ¥9,400
82151-32360 Wire, Front Door, RH
1986-08 → 1987-10 ended
SV2# HT VE ¥9,400
82151-32360 Wire, Front Door, RH
1987-10 → 1988-08 ended
SV20,21 HT VE ¥9,400
82151-32360 note Wire, Front Door, RH
1987-10 → 1988-08 ended
SV20 HT VL ¥9,400
82151-32360 note Wire, Front Door, RH
1987-10 → 1988-08 ended
SV2# HT (GT,VR,VX) ¥9,400
82151-32370 note Wire, Front Door, RH
1987-08 → 1987-10 ended
CV20,SV20 SED VL ¥13,000
82151-32370 note Wire, Front Door, RH
1987-10 → 1988-08 ended
CV20,SV20 SED VL ¥13,000
82151-32370 note Wire, Front Door, RH
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) ¥13,000
82151-32370 note Wire, Front Door, RH
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) ¥13,000
82151-32380 note Wire, Front Door, RH
1986-08 → 1987-10 ended
SV2# SED (GT,VR,VX,ZE,ZX) ¥13,000
82151-32380 note Wire, Front Door, RH
1987-10 → 1988-08 ended
SV2# SED (GT,VR,VX,ZE,ZX) ¥13,000
82151-32390 Wire, Front Door, RH
1986-08 → 1988-08 ended
SV2# HT (GT,VR,VX) ¥9,400
82151-32400 Wire, Front Door, RH
1987-04 → 1988-08 ended
VZV20 ¥14,600
82151-32410 note Wire, Front Door, RH
1987-10 → 1988-08 ended
VZV20 ¥13,000
82151-32410 note Wire, Front Door, RH
1987-04 → 1987-10 ended
VZV20 ¥13,000
82151-32500 note Wire, Front Door, RH
1987-12 → 1988-08 ended
CV20,SV20,21 ZT ¥10,900
82152 — Wire, Front Door, LH
82152-32190 Wire, Front Door, LH
1986-08 → 1987-10 ended
CV20,SV20 SED (VL,XT) ¥3,200
82152-32190 Wire, Front Door, LH
1987-10 → 1988-08 ended
CV20,SV20,25 SED (VL,XT) ¥3,200
82152-32200 Wire, Front Door, LH
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) ¥3,200
82152-32200 note Wire, Front Door, LH
1987-10 → 1988-08 ended
CV20,SV20 SED VL ¥3,200
82152-32200 Wire, Front Door, LH
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) ¥3,200
82152-32220 Wire, Front Door, LH
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥9,400
82152-32220 Wire, Front Door, LH
1987-10 → 1988-08 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥9,400
82152-32220 note Wire, Front Door, LH
1987-08 → 1987-10 ended
CV20,SV20 SED VL ¥9,400
82152-32330 Wire, Front Door, LH
1986-08 → 1987-10 ended
SV20 HT VL ¥2,770
82152-32330 Wire, Front Door, LH
1987-10 → 1988-08 ended
SV20,25 HT VL ¥2,770
82152-32340 note Wire, Front Door, LH
1987-08 → 1987-10 ended
SV20 HT VL ¥6,800
82152-32340 note Wire, Front Door, LH
1986-08 → 1987-10 ended
SV2# HT (GT,VR,VX) ¥6,800
82152-32340 Wire, Front Door, LH
1986-08 → 1987-10 ended
SV2# HT VE ¥6,800
82152-32340 Wire, Front Door, LH
1987-10 → 1988-08 ended
SV20,21 HT VE ¥6,800
82152-32340 note Wire, Front Door, LH
1987-10 → 1988-08 ended
SV20 HT VL ¥6,800
82152-32340 note Wire, Front Door, LH
1987-10 → 1988-08 ended
SV2# HT (GT,VR,VX) ¥6,800
82152-32350 note Wire, Front Door, LH
1987-08 → 1987-10 ended
CV20,SV20 SED VL ¥9,400
82152-32350 note Wire, Front Door, LH
1986-08 → 1987-10 ended
CV20,SV2# SED (VE,ZT) ¥9,400
82152-32350 note Wire, Front Door, LH
1987-10 → 1988-08 ended
CV20,SV20,21 SED (VE,ZT) ¥9,400
82152-32350 note Wire, Front Door, LH
1987-10 → 1988-08 ended
CV20,SV20 SED VL ¥9,400
82152-32360 note Wire, Front Door, LH
1986-08 → 1987-10 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥9,400
82152-32360 note Wire, Front Door, LH
1987-10 → 1988-08 ended
SV2#,VZV20 SED (GT,PRO,VR,VX,ZE,ZX) ¥9,400
82152-32370 Wire, Front Door, LH
1986-08 → 1988-08 ended
SV2# HT (GT,VR,VX) ¥9,400
82153 — Wire, Rear Door, NO.1
82153-32070 note Wire, Rear Door, NO.1
1987-08 → 1987-10 ended
CV20,SV20 SED VL ¥6,000
82153-32070 Wire, Rear Door, NO.1
1986-08 → 1988-08 ended
CV20,SV2#,VZV20 SED (GT,PRO,VE,VR,VX,ZE,ZT,ZX) ¥6,000
82153-32070 note Wire, Rear Door, NO.1
1987-10 → 1988-08 ended
CV20,SV20 SED VL ¥6,000
82153-32100 Wire, Rear Door, NO.1
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥6,000
82153-32100 note Wire, Rear Door, NO.1
1987-08 → 1987-10 ended
SV20 HT VL ¥6,000
82153-32100 Wire, Rear Door, NO.1
1987-10 → 1988-08 ended
SV2# HT (GT,VE,VR,VX) ¥6,000
82153-32100 note Wire, Rear Door, NO.1
1987-10 → 1988-08 ended
SV20 HT VL ¥6,000
82154 — Wire, Rear Door, NO.2
82153-32070 note Wire, Rear Door, NO.2
1987-08 → 1987-10 ended
CV20,SV20 SED VL ¥6,000
82153-32070 Wire, Rear Door, NO.2
1986-08 → 1988-08 ended
CV20,SV2#,VZV20 SED (GT,PRO,VE,VR,VX,ZE,ZT,ZX) ¥6,000
82153-32070 note Wire, Rear Door, NO.2
1987-10 → 1988-08 ended
CV20,SV20 SED VL ¥6,000
82154-32090 note Wire, Rear Door, NO.2
1987-10 → 1988-08 ended
SV20 HT VL ¥6,000
82154-32090 note Wire, Rear Door, NO.2
1987-08 → 1987-10 ended
SV20 HT VL ¥6,000
82154-32090 Wire, Rear Door, NO.2
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥6,000
82154-32090 Wire, Rear Door, NO.2
1987-10 → 1988-08 ended
SV2# HT (GT,VE,VR,VX) ¥6,000
82161 — Wire, Floor
82161-32090 Wire, Floor
1986-08 → 1987-10 ended
CV20,SV2# SED (GT,VE,VR,VX,ZE,ZT,ZX) ¥52,600
82161-32090 note Wire, Floor
1987-10 → 1988-08 ended
CV20,SV20 SED VL ¥52,600
82161-32090 Wire, Floor
1987-10 → 1988-08 ended
CV20,SV20,21 SED (GT,VE,VR,VX,ZE,ZT,ZX) ¥52,600
82161-32090 note Wire, Floor
1987-08 → 1987-10 ended
CV20,SV20 SED VL ¥52,600
82161-32100 note Wire, Floor
1987-10 → 1988-08 ended
SV21 SED GT ¥70,900
82161-32100 note Wire, Floor
1987-04 → 1987-10 ended
SV21 SED GT ¥70,900
82161-32450 Wire, Floor
1986-08 → 1988-08 ended
SV20 HT VL ¥40,900
82161-32460 note Wire, Floor
1987-08 → 1987-10 ended
SV20 HT VL ¥52,600
82161-32460 Wire, Floor
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥52,600
82161-32460 note Wire, Floor
1987-10 → 1988-08 ended
SV20 HT VL ¥52,600
82161-32460 Wire, Floor
1987-10 → 1988-08 ended
SV20,21 HT (GT,VE,VR,VX) ¥52,600
82161-32470 note Wire, Floor
1987-04 → 1987-10 ended
SV21 HT GT ¥70,900
82161-32470 note Wire, Floor
1987-10 → 1988-08 ended
SV21 HT GT ¥70,900
82161-32510 note Wire, Floor
1987-10 → 1988-08 ended
SV21 HT GT ¥63,000
82161-32510 note Wire, Floor
1986-08 → 1987-10 ended
SV21 HT GT ¥63,000
82161-32520 Wire, Floor
1986-08 → 1988-08 ended
CV20,SV20 SED (LT,VC,VL,XT) ¥35,000
82161-32530 Wire, Floor
1987-04 → 1988-08 ended
VZV20 ¥52,600
82161-32540 note Wire, Floor
1987-04 → 1987-10 ended
VZV20 ¥70,900
82161-32540 note Wire, Floor
1987-10 → 1988-08 ended
VZV20 ¥70,900
82161-32570 Wire, Floor
1987-10 → 1988-08 ended
SV25 HT VL ¥38,900
82161-32580 Wire, Floor
1987-10 → 1988-08 ended
SV25 HT VR ¥45,500
82161-32590 note Wire, Floor
1987-10 → 1988-08 ended
SV25 HT ¥70,200
82161-32600 Wire, Floor
1987-10 → 1988-08 ended
SV25 SED (VL,XT) ¥38,900
82161-32610 Wire, Floor
1987-10 → 1988-08 ended
SV25 SED (VR,ZE) ¥59,100
82161-32620 note Wire, Floor
1987-10 → 1988-08 ended
SV25 SED ¥79,100
82162 — Wire, Floor, NO.2
82162-32060 note Wire, Floor, NO.2
1987-08 → 1987-10 ended
CV20,SV20 VL ¥5,300
82162-32060 note Wire, Floor, NO.2
1987-10 → 1988-08 ended
CV20,SV20 SED VL ¥5,300
82162-32060 note Wire, Floor, NO.2
1987-10 → 1988-08 ended
SV20 HT VL ¥5,300
82162-32060 Wire, Floor, NO.2
1987-10 → 1988-08 ended
SV25 SED (VL,XT) ¥5,300
82162-32060 Wire, Floor, NO.2
1986-08 → 1987-06 ended
CV20,SV2#,VZV20 SED (GT,PRO,VE,VR,VX,ZE,ZT,ZX) ¥5,300
82162-32060 Wire, Floor, NO.2
1987-06 → 1988-08 ended
CV20,SV2#,VZV20 GT,PRO,VE,VR,VX,ZE,ZT,ZX ¥5,300
82162-32420 Wire, Floor, NO.2
1986-08 → 1987-06 ended
SV2# HT (GT,VE,VR,VX) —
82171 — Wire, Roof, NO.1
82171-32040 Wire, Roof, NO.1
1986-08 → 1987-10 ended
CV20,SV20 SED (LT,VC,VL,XT) ¥2,760
82171-32040 Wire, Roof, NO.1
1987-10 → 1988-08 ended
CV20,SV20,25 SED (LT,VC,VL,XT) ¥2,760
82171-32050 Wire, Roof, NO.1
1986-08 → 1987-10 ended
CV20,SV2# SED (GT,VE,VR,VX,ZE,ZT,ZX) ¥4,090
82171-32050 Wire, Roof, NO.1
1987-10 → 1988-08 ended
CV20,SV2# SED (GT,VE,VR,VX,ZE,ZT,ZX) ¥4,090
82171-32060 note Wire, Roof, NO.1
1986-08 → 1987-10 ended
CV20,SV2# SED (GT,VE,VR,VX,ZE,ZT,ZX) ¥6,000
82171-32060 note Wire, Roof, NO.1
1987-10 → 1988-08 ended
CV20,SV2# SED (GT,VE,VR,VX,ZE,ZT,ZX) ¥6,000
82171-32130 Wire, Roof, NO.1
1986-08 → 1987-10 ended
SV20 HT VL ¥2,320
82171-32130 Wire, Roof, NO.1
1987-10 → 1988-08 ended
SV20,25 HT VL ¥2,320
82171-32140 Wire, Roof, NO.1
1987-10 → 1988-08 ended
SV2# HT (GT,VE,VR,VX) ¥4,100
82171-32140 Wire, Roof, NO.1
1986-08 → 1987-10 ended
SV2# HT (GT,VE,VR,VX) ¥4,100
82171-32150 Wire, Roof, NO.1
1987-04 → 1988-08 ended
VZV20 ¥4,100
82171-32160 note Wire, Roof, NO.1
1987-04 → 1987-10 ended
VZV20 ¥6,000
82171-32160 note Wire, Roof, NO.1
1987-10 → 1988-08 ended
VZV20 ¥6,000
82181 — Wire, Luggage Room, NO.1
82181-32030 Wire, Luggage Room, NO.1
1986-08 → 1987-10 ended
CV20,SV2#,VZV20 SED ¥3,680
82181-32030 Wire, Luggage Room, NO.1
1987-10 → 1988-08 ended
CV20,SV20,21,VZV20 SED ¥3,680
82181-32060 Wire, Luggage Room, NO.1
1986-08 → 1987-10 ended
SV2# HT ¥4,590
82181-32060 Wire, Luggage Room, NO.1
1987-10 → 1988-08 ended
SV20,21 HT ¥4,590
82181-32210 Wire, Luggage Room, NO.1
1987-10 → 1988-08 ended
SV25 SED ¥4,100
82181-32240 Wire, Luggage Room, NO.1
1987-10 → 1988-08 ended
SV25 HT ¥4,550
82187 — Wire, Rear Window, NO.2
82187-32020 Wire, Rear Window, NO.2
1986-08 → 1987-10 ended
CV20,SV20 SED (LT,VC,VL,XT) ¥520
82187-32020 Wire, Rear Window, NO.2
1987-10 → 1988-08 ended
CV20,SV20,25 SED (LT,VC,VL,XT) ¥520
82187-32040 Wire, Rear Window, NO.2
1986-08 → 1987-10 ended
SV20 HT VL ¥520
82187-32040 Wire, Rear Window, NO.2
1987-10 → 1988-08 ended
SV20,25 HT VL ¥520
82817C — Protector, Wiring Harness, NO.4
82817-32510 Protector, Wiring Harness, NO.4
1987-10 → 1988-02 ended
SV25 ¥2,090
82817-32511 Protector, Wiring Harness, NO.4
1988-02 → 1988-08 ended
SV25 ¥2,080
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
