Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

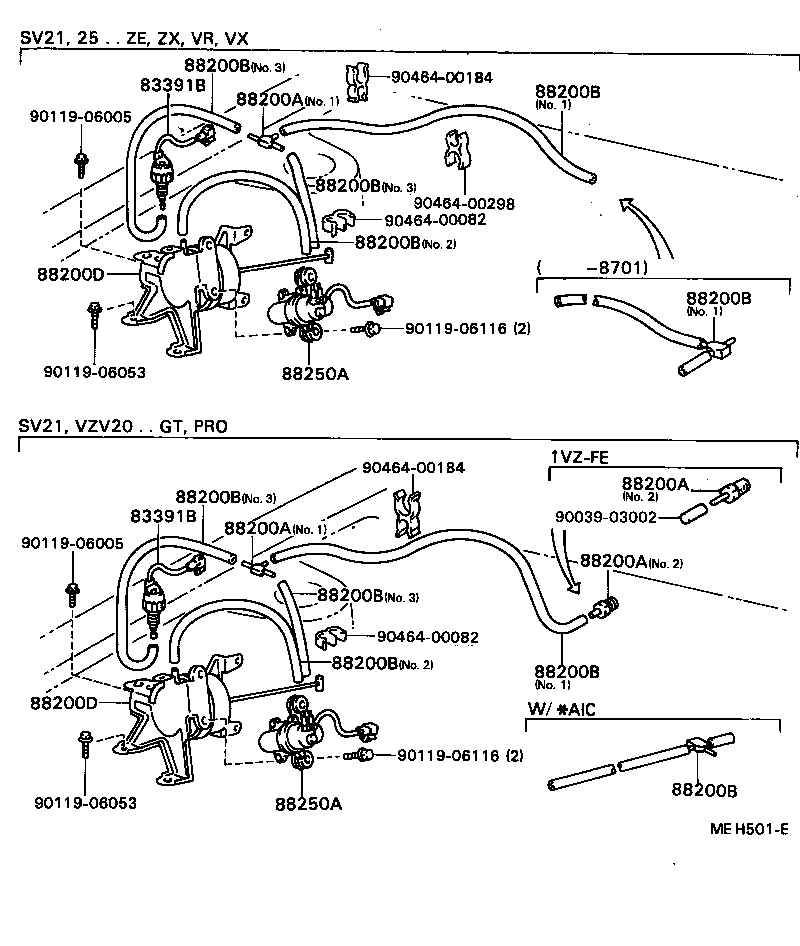

Exploded illustration MEH501E 88200B — HOSE, CRUISE CONTROL VACUUM (26 parts) 9046400184 — not listed in this catalogue 83391B — SWITCH, AUTO DRIVE VACUUM (7 parts) 88200B — HOSE, CRUISE CONTROL VACUUM (26 parts) 88200A — UNION OR WAY, CRUISE CONTROL VACUUM (8 parts) 9011906005 — not listed in this catalogue 88200B — HOSE, CRUISE CONTROL VACUUM (26 parts) 9046400298 — not listed in this catalogue 9046400082 — not listed in this catalogue 88200B — HOSE, CRUISE CONTROL VACUUM (26 parts) 88200D — ACTUATOR ASSY, CRUISE CONTROL (12 parts) 88200B — HOSE, CRUISE CONTROL VACUUM (26 parts) 9011906116 — not listed in this catalogue 9011906053 — not listed in this catalogue 88250A — PUMP ASSY, CRUISE CONTROL (7 parts) 9046400184 — not listed in this catalogue 88200A — UNION OR WAY, CRUISE CONTROL VACUUM (8 parts) 88200B — HOSE, CRUISE CONTROL VACUUM (26 parts) 83391B — SWITCH, AUTO DRIVE VACUUM (7 parts) 9003903002 — not listed in this catalogue 88200A — UNION OR WAY, CRUISE CONTROL VACUUM (8 parts) 9011906005 — not listed in this catalogue 88200A — UNION OR WAY, CRUISE CONTROL VACUUM (8 parts) 88200B — HOSE, CRUISE CONTROL VACUUM (26 parts) 9046400082 — not listed in this catalogue 88200B — HOSE, CRUISE CONTROL VACUUM (26 parts) 88200B — HOSE, CRUISE CONTROL VACUUM (26 parts) 88200D — ACTUATOR ASSY, CRUISE CONTROL (12 parts) 9011906116 — not listed in this catalogue 88200B — HOSE, CRUISE CONTROL VACUUM (26 parts) 9011906053 — not listed in this catalogue 88250A — PUMP ASSY, CRUISE CONTROL (7 parts)
MEH501E · 20 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
83391B — Switch, Auto Drive Vacuum
83391-14090 Switch, Auto Drive Vacuum
1986-08 → 1986-11 ended
SV2# GT,VR,VX,ZE,ZX ¥4,730
83391-20040 note Switch, Auto Drive Vacuum
1987-04 → 1987-10 ended
SV21,VZV20 GT,PRO ¥4,710
83391-20040 note Switch, Auto Drive Vacuum
1987-10 → 1988-08 ended
VZV20 ¥4,710
83391-20040 note Switch, Auto Drive Vacuum
1987-10 → 1988-08 ended
SV21,25 GT,VR,ZE ¥4,710
83391-32040 Switch, Auto Drive Vacuum
1986-11 → 1987-10 ended
SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥4,710
83391-32040 Switch, Auto Drive Vacuum
1987-10 → 1988-08 ended
VZV20 ¥4,710
83391-32040 Switch, Auto Drive Vacuum
1987-10 → 1988-08 ended
SV2# GT,VR,VX,ZE,ZX ¥4,710
88200A — Union OR Way, Cruise Control Vacuum
90404-51010 note Union OR Way, Cruise Control Vacuum
1987-10 → 1988-08 ended
SV21 GT ¥250
90404-51010 note Union OR Way, Cruise Control Vacuum
1988-02 → 1988-08 ended
VZV20 ¥250
90404-51010 note Union OR Way, Cruise Control Vacuum
1986-08 → 1987-10 ended
SV21 GT ¥250
90404-51093 note Union OR Way, Cruise Control Vacuum
1987-04 → 1987-10 ended
VZV20 —
90404-51093 note Union OR Way, Cruise Control Vacuum
1987-10 → 1988-02 ended
VZV20 —
90413-04005 note Union OR Way, Cruise Control Vacuum
1987-10 → 1988-08 ended
VZV20 ¥190
90413-04005 note Union OR Way, Cruise Control Vacuum
1987-10 → 1988-08 ended
SV2# GT,VR,VX,ZE,ZX ¥190
90413-04005 note Union OR Way, Cruise Control Vacuum
1986-08 → 1987-10 ended
SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥190
88200B — Hose, Cruise Control Vacuum
88283-32020 note Hose, Cruise Control Vacuum
1986-08 → 1987-10 ended
SV20 VR,ZE ¥1,650
88283-32020 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
SV20 VR,ZE ¥1,650
88283-32040 note Hose, Cruise Control Vacuum
1986-08 → 1987-01 ended
SV21 VX,ZX —
88283-32050 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
SV21,25 GT,VR,ZE ¥1,120
88283-32050 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
VZV20 ¥1,120
88283-32050 note Hose, Cruise Control Vacuum
1987-04 → 1987-10 ended
SV21,VZV20 GT,PRO ¥1,120
88283-32060 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
SV21,25 GT,VR,ZE ¥680
88283-32060 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
VZV20 ¥680
88283-32060 note Hose, Cruise Control Vacuum
1987-04 → 1987-10 ended
SV21,VZV20 GT,PRO ¥680
90999-92003 note Hose, Cruise Control Vacuum
1988-03 → 1988-08 ended
VZV20 ¥520
95411-10060 note Hose, Cruise Control Vacuum
1987-04 → 1987-10 ended
SV21 GT ¥910
95411-10060 note Hose, Cruise Control Vacuum
1988-03 → 1988-08 ended
VZV20 ¥910
95411-10060 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
SV21 GT ¥910
95411-10060 note Hose, Cruise Control Vacuum
1987-04 → 1988-03 ended
VZV20 ¥910
95411-10095 note Hose, Cruise Control Vacuum
1986-08 → 1987-10 ended
SV21 GT ¥1,540
95411-10095 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
SV21 GT ¥1,540
95411-10095 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
SV21 VX,ZX ¥1,540
95411-10095 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
SV25 VR,ZE ¥1,540
95411-10095 note Hose, Cruise Control Vacuum
1987-03 → 1987-10 ended
SV21 VX,ZX ¥1,540
95411-19930 note Hose, Cruise Control Vacuum
1986-08 → 1987-10 ended
SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥530
95411-19930 note Hose, Cruise Control Vacuum
1986-08 → 1987-10 ended
SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥530
95411-19930 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
VZV20 ¥530
95411-19930 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
SV2# GT,VR,VX,ZE,ZX ¥530
95411-19930 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
VZV20 ¥530
95411-19930 note Hose, Cruise Control Vacuum
1987-10 → 1988-08 ended
SV2# GT,VR,VX,ZE,ZX ¥530
95411-19995 note Hose, Cruise Control Vacuum
1987-01 → 1987-03 ended
SV21 VX,ZX ¥1,540
88200D — Actuator Assy, Cruise Control
88200-32070 Actuator Assy, Cruise Control
1986-08 → 1987-03 ended
SV2# GT,VR,VX,ZE,ZX ¥53,700
88200-32071 Actuator Assy, Cruise Control
1987-10 → 1988-04 ended
VZV20 ¥53,700
88200-32071 Actuator Assy, Cruise Control
1987-10 → 1988-04 ended
SV21 GT,VX,ZX ¥53,700
88200-32071 Actuator Assy, Cruise Control
1987-10 → 1988-04 ended
SV20,25 VR,ZE ¥53,700
88200-32071 Actuator Assy, Cruise Control
1987-03 → 1987-10 ended
SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥53,700
88200-32072 Actuator Assy, Cruise Control
1988-04 → 1988-08 ended
VZV20 ¥53,800
88200-32072 Actuator Assy, Cruise Control
1988-04 → 1988-08 ended
SV2# GT,VR,VX,ZE,ZX ¥53,800
88200-32080 note Actuator Assy, Cruise Control
1987-04 → 1987-10 ended
SV21,VZV20 GT,PRO ¥53,700
88200-32080 note Actuator Assy, Cruise Control
1987-10 → 1988-04 ended
VZV20 ¥53,700
88200-32080 note Actuator Assy, Cruise Control
1987-10 → 1988-04 ended
SV21,25 GT,VR,ZE ¥53,700
88200-32081 note Actuator Assy, Cruise Control
1988-04 → 1988-08 ended
VZV20 ¥53,900
88200-32081 note Actuator Assy, Cruise Control
1988-04 → 1988-08 ended
SV21,25 GT,VR,ZE ¥53,900
88250A — Pump Assy, Cruise Control
88251-32060 note Pump Assy, Cruise Control
1987-04 → 1987-10 ended
SV21,VZV20 GT,PRO ¥34,800
88251-32060 note Pump Assy, Cruise Control
1987-10 → 1988-08 ended
VZV20 ¥34,800
88251-32060 note Pump Assy, Cruise Control
1987-10 → 1988-08 ended
SV21,25 GT,VR,ZE ¥34,800
88251-32070 Pump Assy, Cruise Control
1986-08 → 1987-03 ended
SV2# GT,VR,VX,ZE,ZX ¥34,600
88251-32071 Pump Assy, Cruise Control
1987-03 → 1987-10 ended
SV2#,VZV20 GT,PRO,VR,VX,ZE,ZX ¥34,700
88251-32071 Pump Assy, Cruise Control
1987-10 → 1988-08 ended
VZV20 ¥34,700
88251-32071 Pump Assy, Cruise Control
1987-10 → 1988-08 ended
SV2# GT,VR,VX,ZE,ZX ¥34,700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
