Toyota Camry/Vista
1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan
Discontinued model
Data version 1989-04

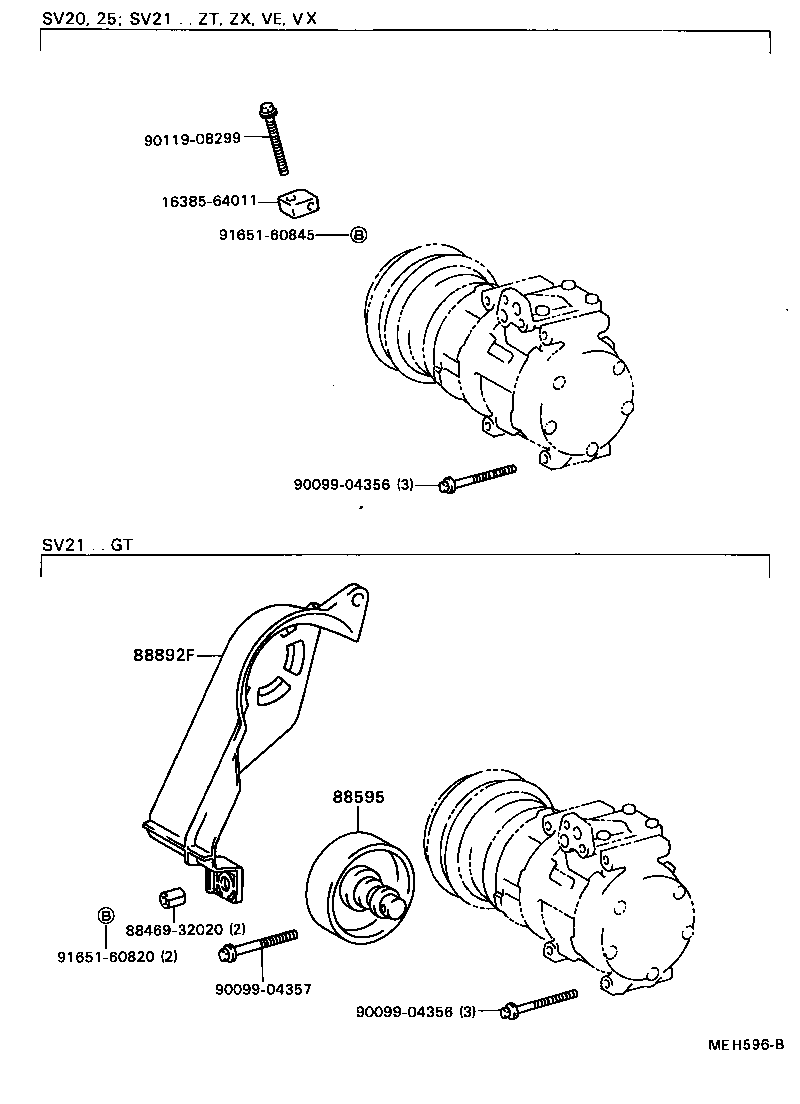

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88595 — Pulley, Cooler Compressor Idle | ||||
| 88440-20110 |
Pulley, Cooler Compressor Idle
1987-02 → 1988-08
ended
|
SV21 GT | ¥5,400 | |
| 88440-20120 |
Pulley, Cooler Compressor Idle
1986-08 → 1987-02
ended
|
SV21 GT | ¥6,300 | |
| 88892F — Cover, Cooler Compressor | ||||
| 88892-32050 |
Cover, Cooler Compressor
1986-08 → 1987-04
ended
|
SV21 GT | — | |
| 88892-32051 |
Cover, Cooler Compressor
1987-04 → 1988-08
ended
|
SV21 GT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
