Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

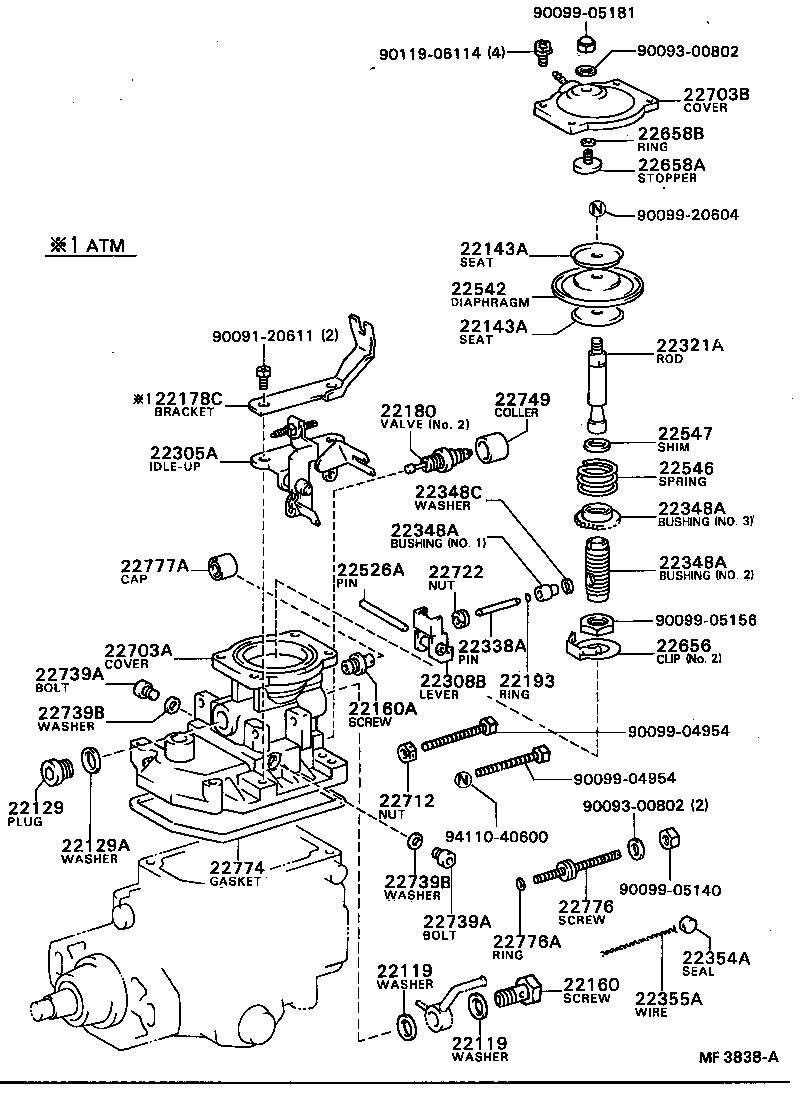

Exploded illustration MF3838A 9009905181 — not listed in this catalogue 9009300802 — not listed in this catalogue 9011906114 — not listed in this catalogue 22703B — COVER, GOVERNOR (1 parts) 22658B — RING, O(FOR TIMER SLIDE STOPPER) (1 parts) 22658A — STOPPER, TIMER SLIDE (1 parts) 9009920604 — not listed in this catalogue 22143A — SEAT, SPRING UPPER, NO.2 (1 parts) 22542 — DIAPHRAGM(FOR BOOST COMPENSATOR) (1 parts) 22143A — SEAT, SPRING UPPER, NO.2 (1 parts) 9009120611 — not listed in this catalogue 22321A — ROD, PUSH (1 parts) 22178C — BRACKET(FOR THROTTLE CABLE) (1 parts) 22749 — COLLAR, SMOKE SET ADJUSTING (3 parts) 22180 — VALVE SUB-ASSY, REGULATOR (6 parts) 22547 — SHIM, BOOST COMPENSATOR (24 parts) 22305A — IDLE-UP SUB-ASSY (2 parts) 22546 — SPRING, BOOST COMPENSATOR (1 parts) 22348C — WASHER(FOR GUIDE BUSHING) (1 parts) 22348A — BUSHING, GUIDE (6 parts) 22348A — BUSHING, GUIDE (6 parts) 22348A — BUSHING, GUIDE (6 parts) 22777A — CAP, RUBBER(FOR ALTITUDE COMPENSATING TIMER ADVANCER) (1 parts) 22526A — PIN, LEVER SUPPORT (1 parts) 22722 — NUT, GOVERNOR SHAFT ROCK (1 parts) 9009905156 — not listed in this catalogue 22338A — PIN, LEVER CONNECTING (1 parts) 22656 — CLIP, TIMER (4 parts) 22703A — COVER SUB-ASSY, GOVERNOR (3 parts) 22739A — BOLT, GOVERNOR LINK SUPPORT NO.2 (1 parts) 22308B — LEVER SUB-ASSY, CONTROL (2 parts) 22193 — RING, O(FOR LEVER CONNECTING PIN) (1 parts) 22160A — SCREW SUB-ASSY, OVER FLOW, NO.2 (1 parts) 22739B — WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) (1 parts) 9009904954 — not listed in this catalogue 9009904954 — not listed in this catalogue 22712 — NUT, ROCK (1 parts) 9009300802 — not listed in this catalogue 22129 — PLUG, SCREW (1 parts) 9411040600 — not listed in this catalogue 22129A — WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG) (2 parts) 22774 — GASKET, GOVERNOR COVER (1 parts) 22739B — WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) (1 parts) 9009905140 — not listed in this catalogue 22776 — SCREW, SMOKE SET ADJUSTING (1 parts) 22739A — BOLT, GOVERNOR LINK SUPPORT NO.2 (1 parts) 22776A — RING, O(FOR SMOKE SET SCREW) (1 parts) 22354A — SEAL, ROD (1 parts) 22119 — WASHER, AIR BLEEDER NIPPLE (4 parts) 22160 — SCREW SUB-ASSY, OVERFLOW (1 parts) 22355A — WIRE, GOVERNOR HOUSING SEAL (1 parts) 22119 — WASHER, AIR BLEEDER NIPPLE (4 parts)
MF3838A · 41 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
81 parts on this figure
Part number Description Fitment Price
22119 — Washer, Air Bleeder Nipple
22119-77020 Washer, Air Bleeder Nipple
1986-08 → 1987-05 ended
2CT CV20 —
90201-12109 Washer, Air Bleeder Nipple
1987-05 → 1987-10 ended
2CT CV20 ¥200
90201-12109 Washer, Air Bleeder Nipple
1987-10 → 1988-08 ended
2CT CV20 5F ¥200
90201-12109 Washer, Air Bleeder Nipple
1987-10 → 1988-08 ended
2CT CV20 4FC ¥200
22129 — Plug, Screw
22129-54120 Plug, Screw
1986-08 → 1988-08 ended
2CT CV20 ¥0
22129A — Washer, Air Bleeder Nipple(FOR SCREW PLUG)
22119-77020 Washer, Air Bleeder Nipple(FOR SCREW PLUG)
1986-08 → 1987-05 ended
2CT CV20 —
90201-12109 Washer, Air Bleeder Nipple(FOR SCREW PLUG)
1987-05 → 1988-08 ended
2CT CV20 ¥200
22143A — Seat, Spring Upper, NO.2
22143-54260 Seat, Spring Upper, NO.2
1986-08 → 1988-08 ended
2CT CV20 —
22160 — Screw Sub-assy, Overflow
22160-64010 Screw Sub-assy, Overflow
1986-08 → 1988-08 ended
2CT CV20 —
22160A — Screw Sub-assy, Over Flow, NO.2
22160-64360 Screw Sub-assy, Over Flow, NO.2
1986-08 → 1988-08 ended
2CT CV20 —
22178C — Bracket(FOR THROTTLE CABLE)
22178-64650 Bracket(FOR THROTTLE CABLE)
1986-08 → 1988-08 ended
2CT CV20 4FC —
22180 — Valve Sub-assy, Regulator
22180-54010 note Valve Sub-assy, Regulator
1986-08 → 1987-10 ended
2CT CV20 —
22180-54010 note Valve Sub-assy, Regulator
1987-10 → 1988-08 ended
2CT CV20 5F —
22180-54010 note Valve Sub-assy, Regulator
1987-10 → 1988-08 ended
2CT CV20 4FC —
22180-64850 note Valve Sub-assy, Regulator
1986-08 → 1986-12 ended
2CT CV20 5F —
22180-64851 note Valve Sub-assy, Regulator
1986-12 → 1987-10 ended
2CT CV20 5F —
22180-64851 note Valve Sub-assy, Regulator
1987-10 → 1988-08 ended
2CT CV20 5F —
22193 — Ring, O(FOR LEVER CONNECTING PIN)
22193-54121 Ring, O(FOR LEVER CONNECTING PIN)
1986-08 → 1988-08 ended
2CT CV20 —
22305A — Idle-up Sub-assy
22305-64020 Idle-up Sub-assy
1986-08 → 1988-08 ended
2CT CV20 5F —
22305-6A250 Idle-up Sub-assy
1986-08 → 1988-08 ended
2CT CV20 4FC —
22308B — Lever Sub-assy, Control
22308-54120 Lever Sub-assy, Control
1986-08 → 1988-08 ended
2CT CV20 4FC —
22308-54140 Lever Sub-assy, Control
1986-08 → 1988-08 ended
2CT CV20 5F —
22321A — Rod, Push
22321-6A220 Rod, Push
1986-08 → 1988-08 ended
2CT CV20 —
22338A — Pin, Lever Connecting
22338-54120 Pin, Lever Connecting
1986-08 → 1988-08 ended
2CT CV20 —
22348A — Bushing, Guide
22348-54121 note Bushing, Guide
1987-10 → 1988-08 ended
2CT CV20 —
22348-54121 note Bushing, Guide
1986-08 → 1987-10 ended
2CT CV20 —
22348-54490 note Bushing, Guide
1986-08 → 1987-10 ended
2CT CV20 —
22348-54490 note Bushing, Guide
1987-10 → 1988-08 ended
2CT CV20 —
22348-64360 note Bushing, Guide
1986-08 → 1987-10 ended
2CT CV20 —
22348-64360 note Bushing, Guide
1987-10 → 1988-08 ended
2CT CV20 —
22348C — Washer(FOR GUIDE BUSHING)
90099-01473 Washer(FOR GUIDE BUSHING)
1986-08 → 1988-08 ended
2CT CV20 —
22354A — Seal, Rod
22354-77050 Seal, Rod
1986-08 → 1988-08 ended
2CT CV20 —
22355A — Wire, Governor Housing Seal
22355-78030 Wire, Governor Housing Seal
1986-08 → 1988-08 ended
2CT CV20 ¥170
22526A — Pin, Lever Support
22526-54120 Pin, Lever Support
1986-08 → 1988-08 ended
2CT CV20 —
22542 — Diaphragm(FOR BOOST COMPENSATOR)
22542-54260 Diaphragm(FOR BOOST COMPENSATOR)
1986-08 → 1988-08 ended
2CT CV20 —
22546 — Spring, Boost Compensator
22546-54491 note Spring, Boost Compensator
1986-08 → 1988-08 ended
2CT CV20 —
22547 — Shim, Boost Compensator
22547-54260 note Shim, Boost Compensator
1986-08 → 1987-10 ended
2CT CV20 —
22547-54260 note Shim, Boost Compensator
1987-10 → 1988-08 ended
2CT CV20 —
22547-54261 note Shim, Boost Compensator
1986-08 → 1987-10 ended
2CT CV20 —
22547-54261 note Shim, Boost Compensator
1987-10 → 1988-08 ended
2CT CV20 —
22547-54262 note Shim, Boost Compensator
1986-08 → 1987-10 ended
2CT CV20 —
22547-54262 note Shim, Boost Compensator
1987-10 → 1988-08 ended
2CT CV20 —
22547-54263 note Shim, Boost Compensator
1986-08 → 1987-10 ended
2CT CV20 —
22547-54263 note Shim, Boost Compensator
1987-10 → 1988-08 ended
2CT CV20 —
22547-54264 note Shim, Boost Compensator
1986-08 → 1987-10 ended
2CT CV20 —
22547-54264 note Shim, Boost Compensator
1987-10 → 1988-08 ended
2CT CV20 —
22547-54265 note Shim, Boost Compensator
1986-08 → 1987-10 ended
2CT CV20 —
22547-54265 note Shim, Boost Compensator
1987-10 → 1988-08 ended
2CT CV20 —
22547-54266 note Shim, Boost Compensator
1986-08 → 1987-10 ended
2CT CV20 —
22547-54266 note Shim, Boost Compensator
1987-10 → 1988-08 ended
2CT CV20 —
22547-54267 note Shim, Boost Compensator
1986-08 → 1987-10 ended
2CT CV20 —
22547-54267 note Shim, Boost Compensator
1987-10 → 1988-08 ended
2CT CV20 —
22547-54268 note Shim, Boost Compensator
1986-08 → 1987-10 ended
2CT CV20 —
22547-54268 note Shim, Boost Compensator
1987-10 → 1988-08 ended
2CT CV20 —
22547-54490 note Shim, Boost Compensator
1986-08 → 1987-10 ended
2CT CV20 —
22547-54490 note Shim, Boost Compensator
1987-10 → 1988-08 ended
2CT CV20 —
22547-64360 note Shim, Boost Compensator
1986-08 → 1987-10 ended
2CT CV20 —
22547-64360 note Shim, Boost Compensator
1987-10 → 1988-08 ended
2CT CV20 —
22547-64361 note Shim, Boost Compensator
1986-08 → 1987-10 ended
2CT CV20 —
22547-64361 note Shim, Boost Compensator
1987-10 → 1988-08 ended
2CT CV20 —
22656 — Clip, Timer
22656-54010 note Clip, Timer
1986-08 → 1987-10 ended
2CT CV20 —
22656-54010 note Clip, Timer
1987-10 → 1988-08 ended
2CT CV20 —
22656-54490 note Clip, Timer
1987-10 → 1988-08 ended
2CT CV20 —
22656-54490 note Clip, Timer
1986-08 → 1987-10 ended
2CT CV20 —
22658A — Stopper, Timer Slide
22658-64510 Stopper, Timer Slide
1986-08 → 1988-08 ended
2CT CV20 —
22658B — Ring, O(FOR TIMER SLIDE STOPPER)
22193-54561 Ring, O(FOR TIMER SLIDE STOPPER)
1986-08 → 1988-08 ended
2CT CV20 —
22703A — Cover Sub-assy, Governor
22703-64360 Cover Sub-assy, Governor
1986-08 → 1988-02 ended
2CT CV20 4FC —
22703-64361 Cover Sub-assy, Governor
1988-02 → 1988-08 ended
2CT CV20 4FC —
22703-64850 Cover Sub-assy, Governor
1986-08 → 1988-08 ended
2CT CV20 5F —
22703B — Cover, Governor
22703-6A220 Cover, Governor
1986-08 → 1988-08 ended
2CT CV20 —
22712 — Nut, Rock
22775-77121 Nut, Rock
1986-08 → 1988-08 ended
2CT CV20 —
22722 — Nut, Governor Shaft Rock
22722-54120 Nut, Governor Shaft Rock
1986-08 → 1988-08 ended
2CT CV20 —
22739A — Bolt, Governor Link Support NO.2
22739-54120 Bolt, Governor Link Support NO.2
1986-08 → 1988-08 ended
2CT CV20 —
22739B — Washer(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22113-77090 Washer(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
1986-08 → 1988-08 ended
2CT CV20 —
22749 — Collar, Smoke Set Adjusting
22749-55050 Collar, Smoke Set Adjusting
1986-12 → 1988-08 ended
2CT CV20 5F —
22749-64850 Collar, Smoke Set Adjusting
1986-08 → 1986-12 ended
2CT CV20 5F —
22749-64850 note Collar, Smoke Set Adjusting
1987-10 → 1988-08 ended
2CT CV20 5F —
22774 — Gasket, Governor Cover
22774-54010 Gasket, Governor Cover
1986-08 → 1988-08 ended
2CT CV20 —
22776 — Screw, Smoke Set Adjusting
22776-54110 Screw, Smoke Set Adjusting
1986-08 → 1988-08 ended
2CT CV20 —
22776A — Ring, O(FOR SMOKE SET SCREW)
90099-14047 Ring, O(FOR SMOKE SET SCREW)
1986-08 → 1988-08 ended
2CT CV20 —
22777A — Cap, Rubber(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
22777-64360 Cap, Rubber(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
1986-08 → 1988-08 ended
2CT CV20 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
