Toyota Camry/Vista
1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan
Discontinued model
Data version 1989-04

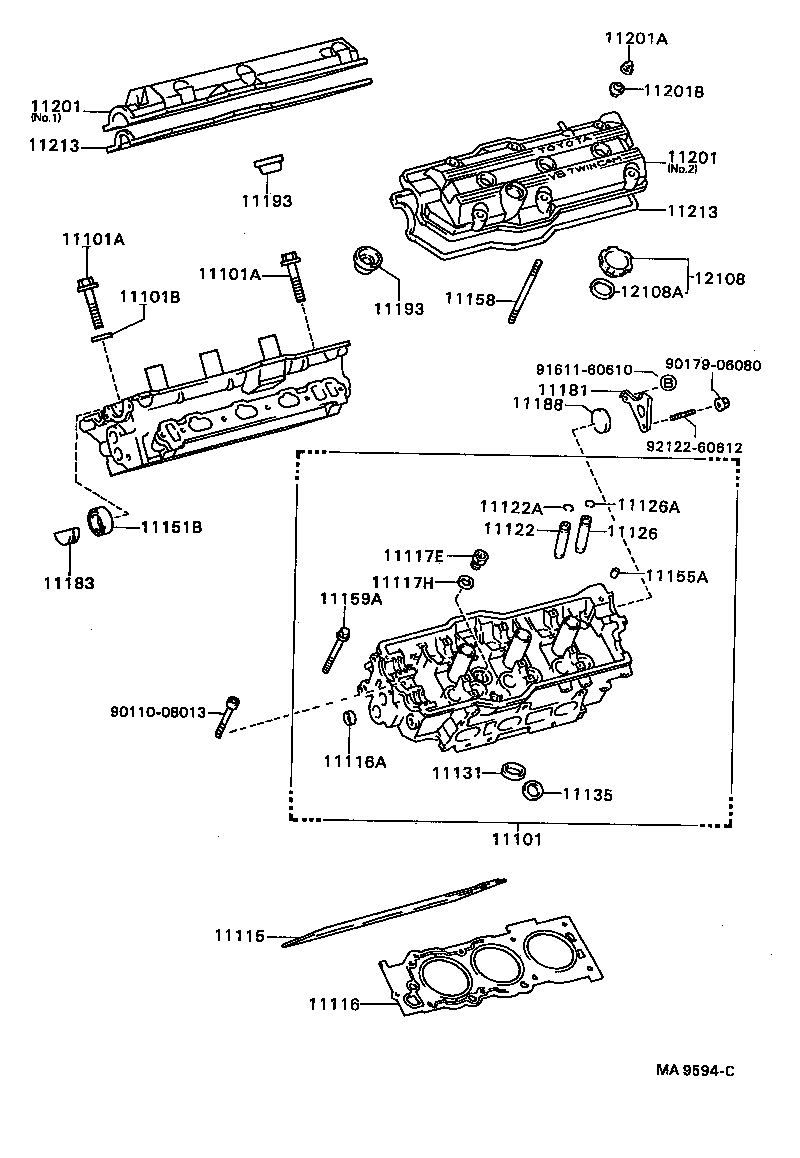

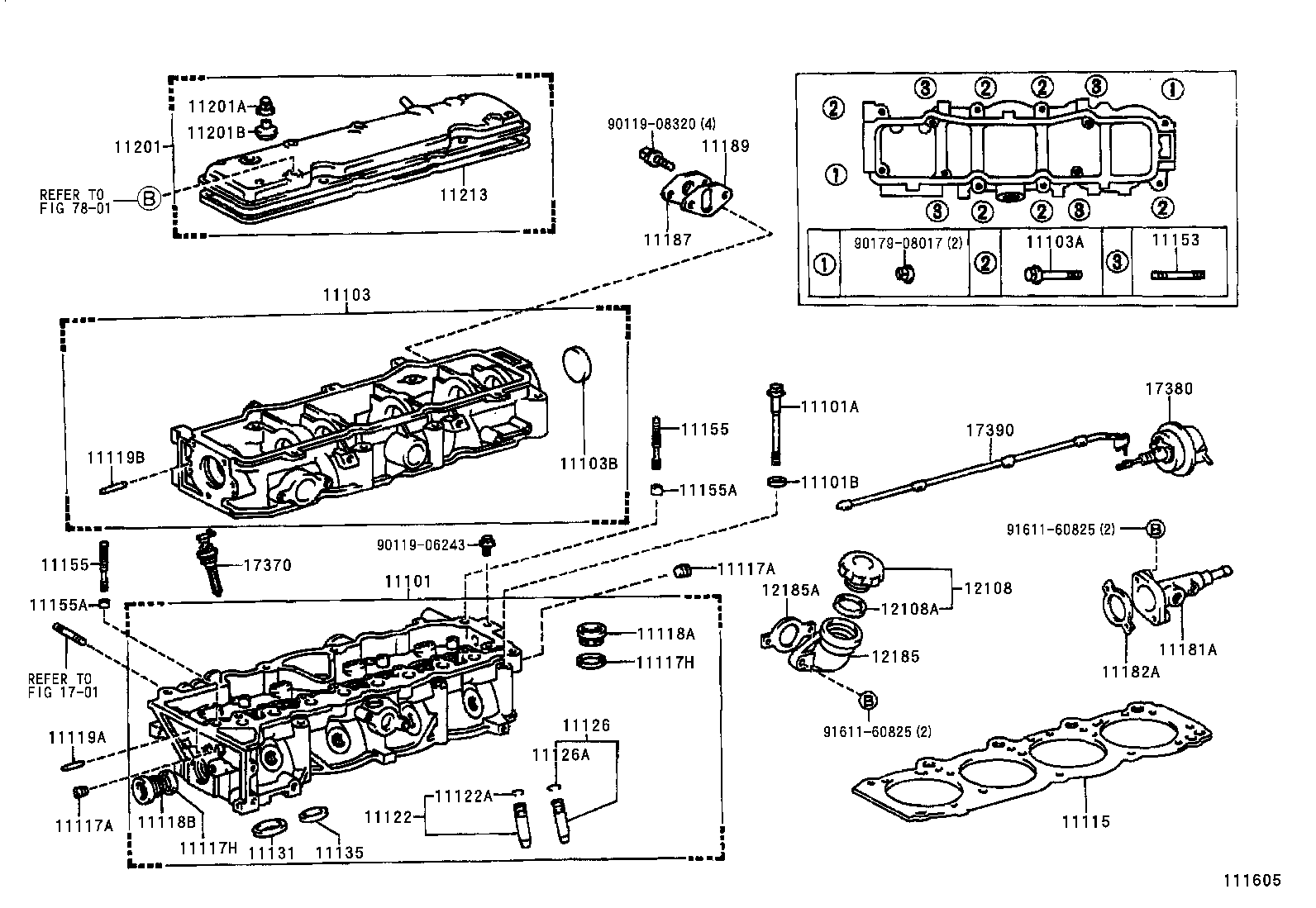

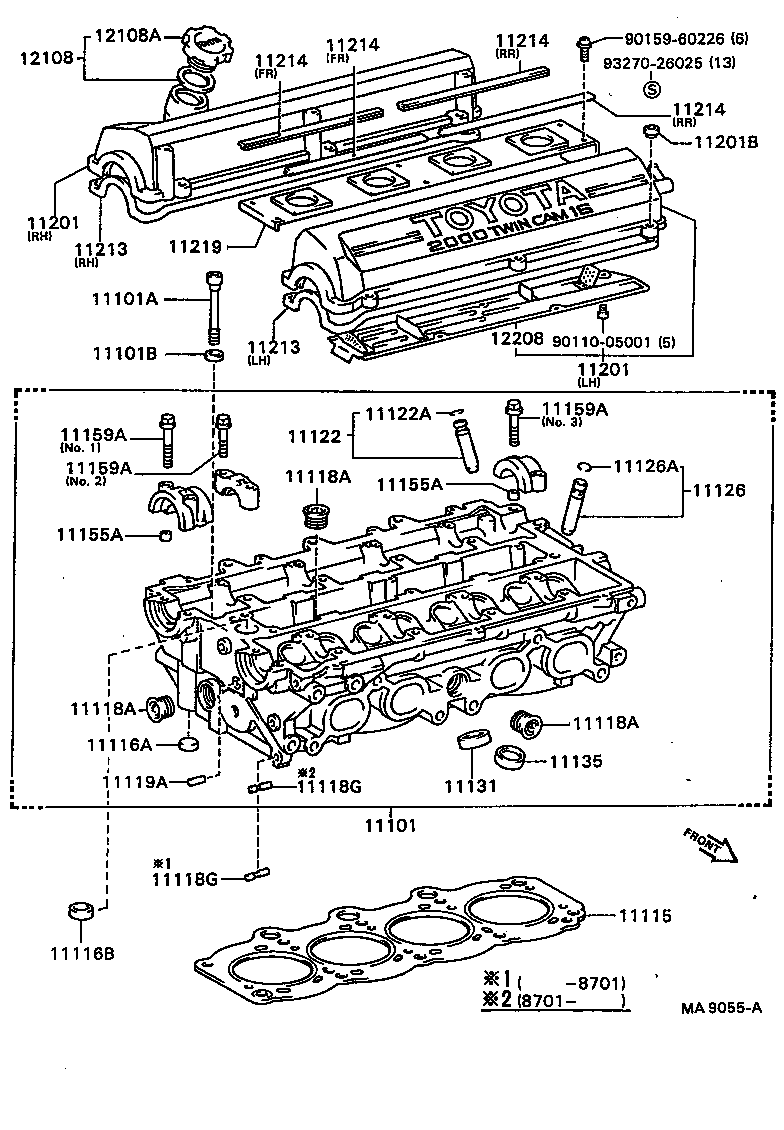

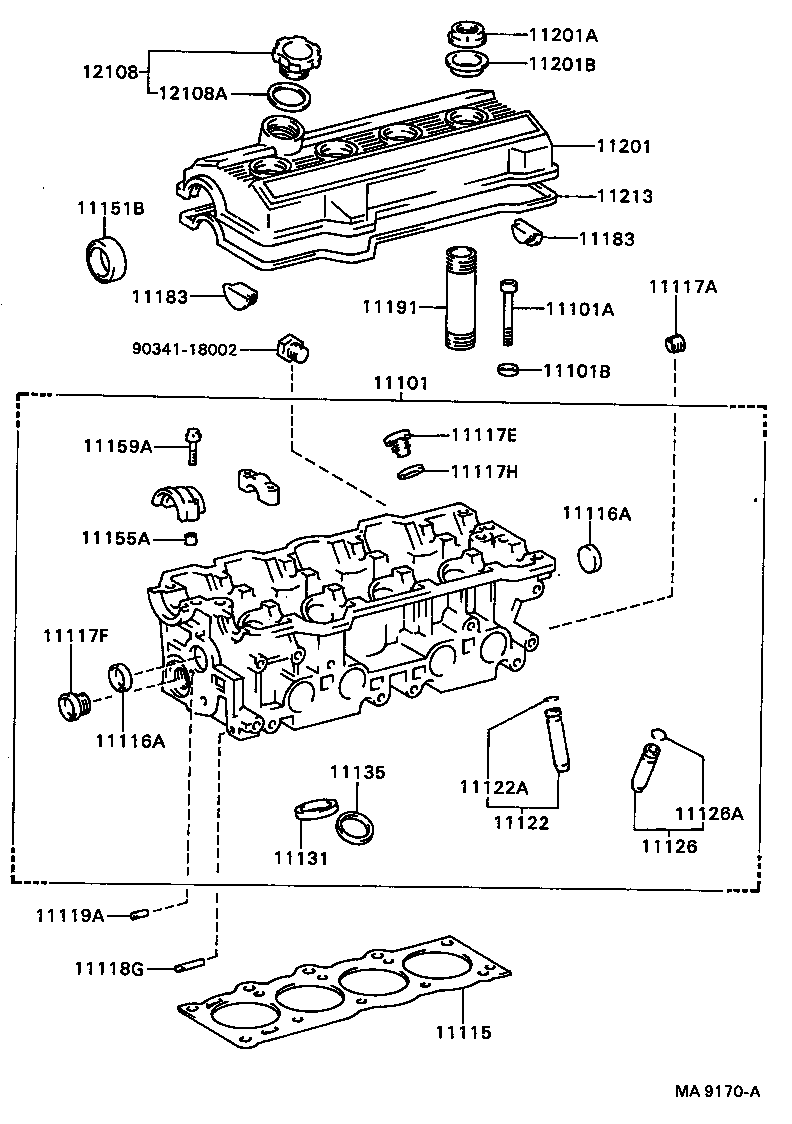

Cylinder Head
58 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101D | Bolt, Stud(FOR WATER OUTLET) |
| 11103 | Housing Sub-assy, Camshaft |
| 11103A | Bolt(FOR CAMSHAFT HOUSING SET) |
| 11103B | Plug, Tight, NO.1(FOR CAM HOUSING) |
| 11115 | Gasket, Cylinder Head |
| 11116 | Gasket, Cylinder Head, NO.2 |
| 11116A | Plug, Tight, NO.1 |
| 11116B | Plug, Tight, NO.2 |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117F | Plug, W/Head Straight Screw, NO.2 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11118A | Plug, Straight, NO.1 |
| 11118B | Plug, Straight, NO.2 |
| 11118C | Plug, Straight, NO.3 |
| 11118G | Pin, Slotted Spring, NO.1 |
| 11119A | Pin, Straight, NO.1 |
| 11119B | Pin, Straight, NO.2 |
| 11122 | Bush, Intake Valve Guide |
| 11122A | Ring, Shaft Snap (FOR VALVE GUIDE BUSH) |
| 11126 | Bush, Exhaust Valve Guide |
| 11126A | Ring, Shaft Snap(FOR VALVE GUIDE BUSH) |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11151B | Seal, Oil(FOR CAMSHAFT SETTING) |
| 11153 | Bolt, Stud(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER) |
| 11155 | Bolt, Stud(FOR HEAD TO CAMSHAFT HOUSING) |
| 11155A | Pin, Ring W/Head |
| 11158 | Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER) |
| 11159 | Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11181 | Plate, Cylinder Head, Rear |
| 11181A | Cover, Cylinder Head, Rear |
| 11182 | Gasket, Cylinder Head Rear Plate |
| 11182A | Gasket, Cylinder Head Rear Cover |
| 11183 | Plug, Semicircular |
| 11187 | Cover, Camshaft Housing, Rear |
| 11188 | Plug, Camshaft Housing |
| 11189 | Gasket, Camshaft Housing Rear Cover |
| 11191 | Tube, Spark Plug |
| 11193 | Gasket, Spark Plug Tube |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201A | Nut, Cap(FOR CYLINDER HEAD COVER) |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11219 | Cover, Cylinder Head, NO.3 |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12185 | Housing, Oil Filler Cap |
| 12185A | Gasket, Oil Filler Cap Housing |
| 12208 | Plate Sub-assy, Ventilation Baffle |
| 17370 | Valve Assy, Swirl Control |
| 17380 | Actuator Assy, Swirl Control |
| 17390 | Link Assy, Swirl Control |
