Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

19 part groups · 5 illustrations

Illustrations

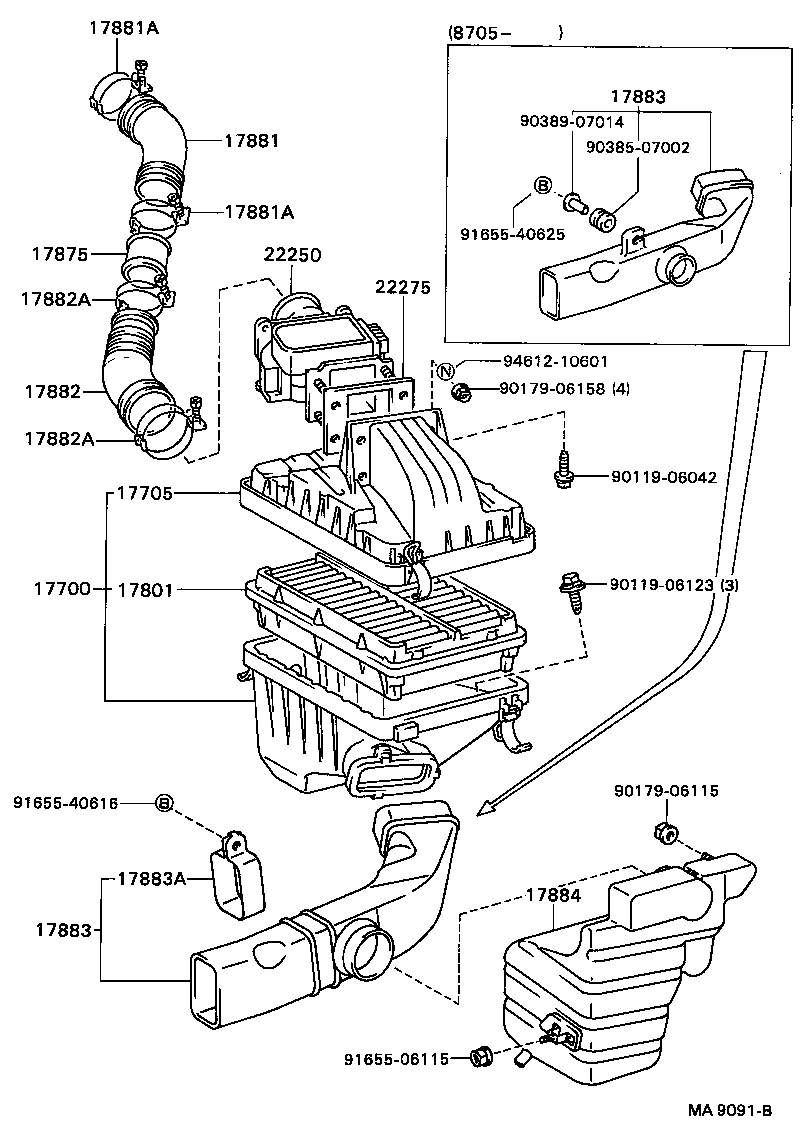

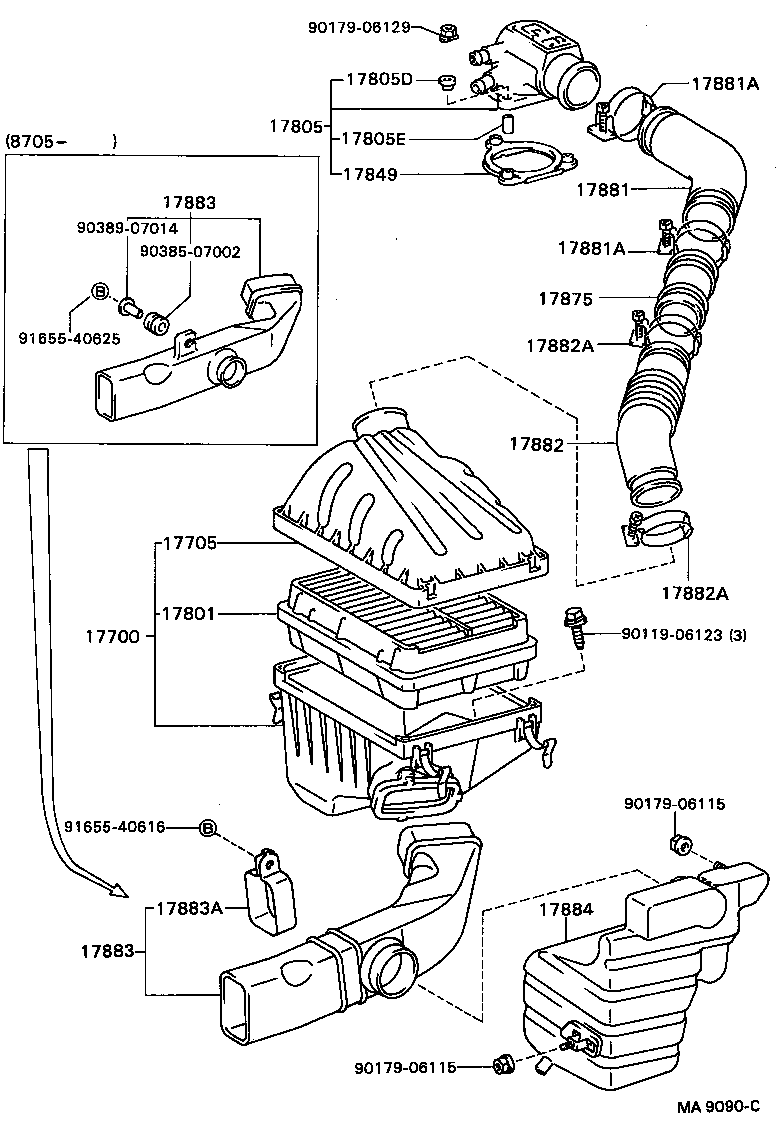

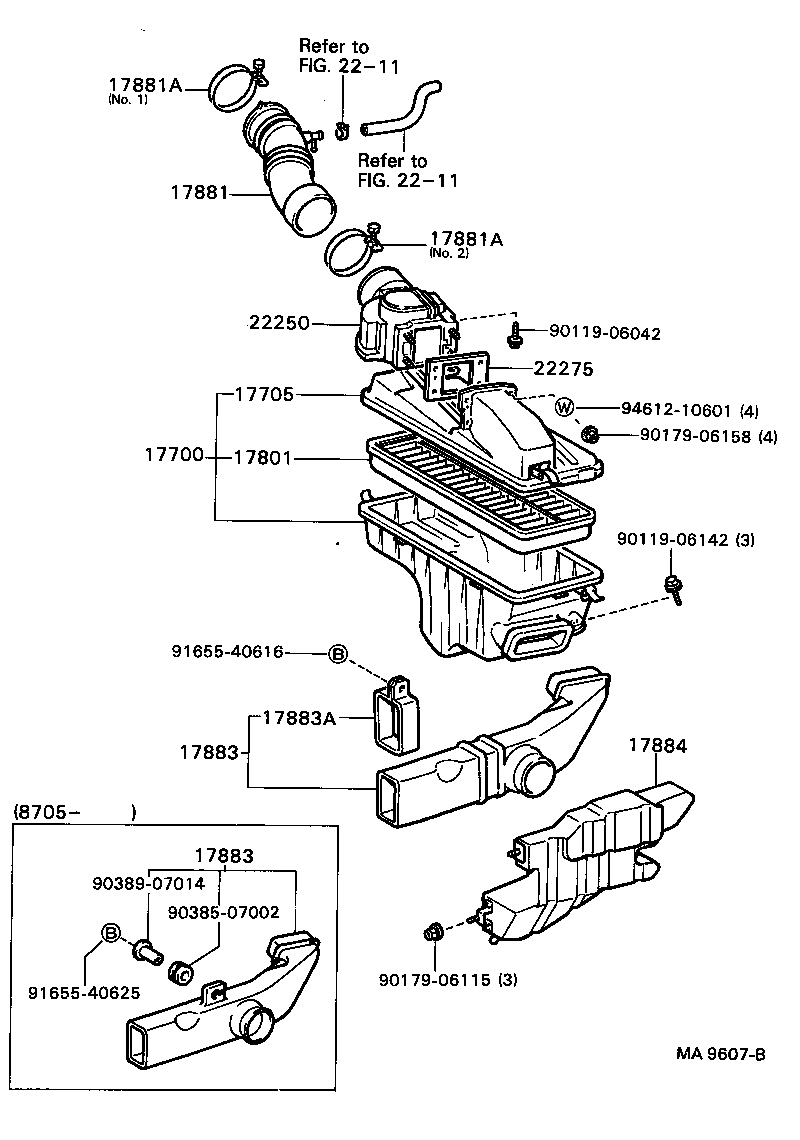

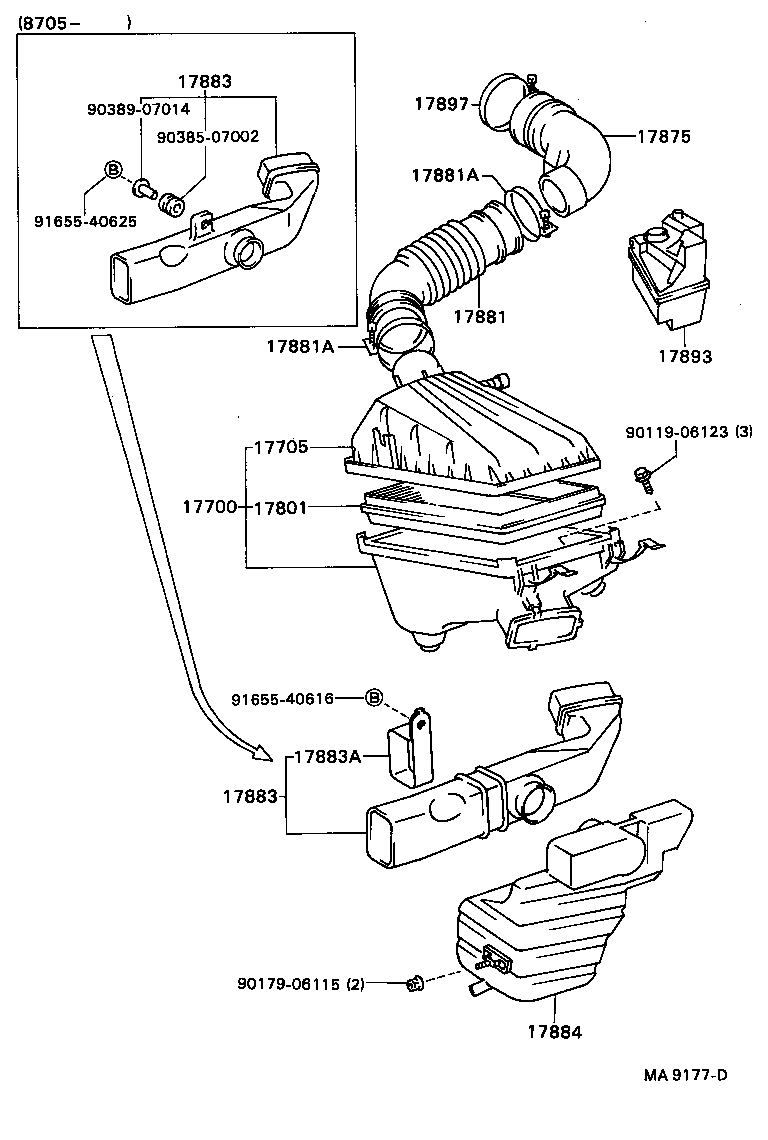

Figure MA9079B MA9079B 1986-08 → — Figure MA9090C MA9090C 1986-08 → — Figure MA9091B MA9091B 1986-08 → — Figure MA9177D MA9177D 1986-08 → — Figure MA9607B MA9607B 1987-04 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805E Collar(FOR INTAKE AIR CONNECTOR)
17849 Gasket, Intake Air Connector
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17893 Resonator, Intake Air
17897 Clamp, Hose(FOR AIR CLEANER)
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
