Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 8 illustrations

Illustrations

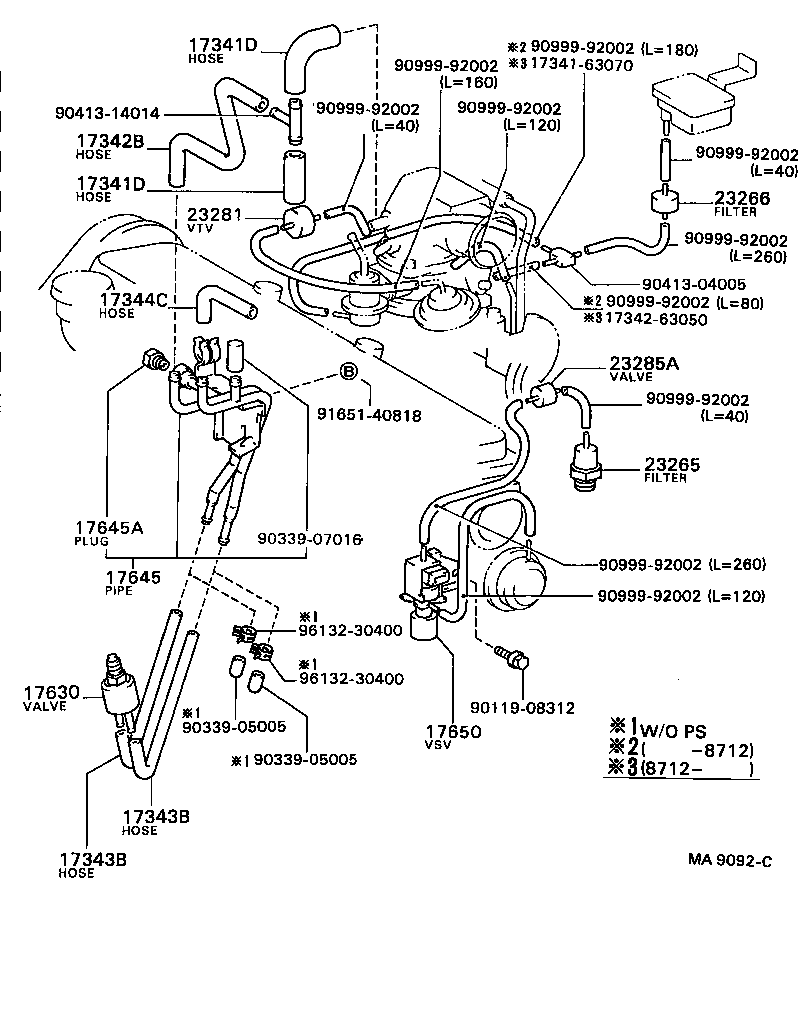

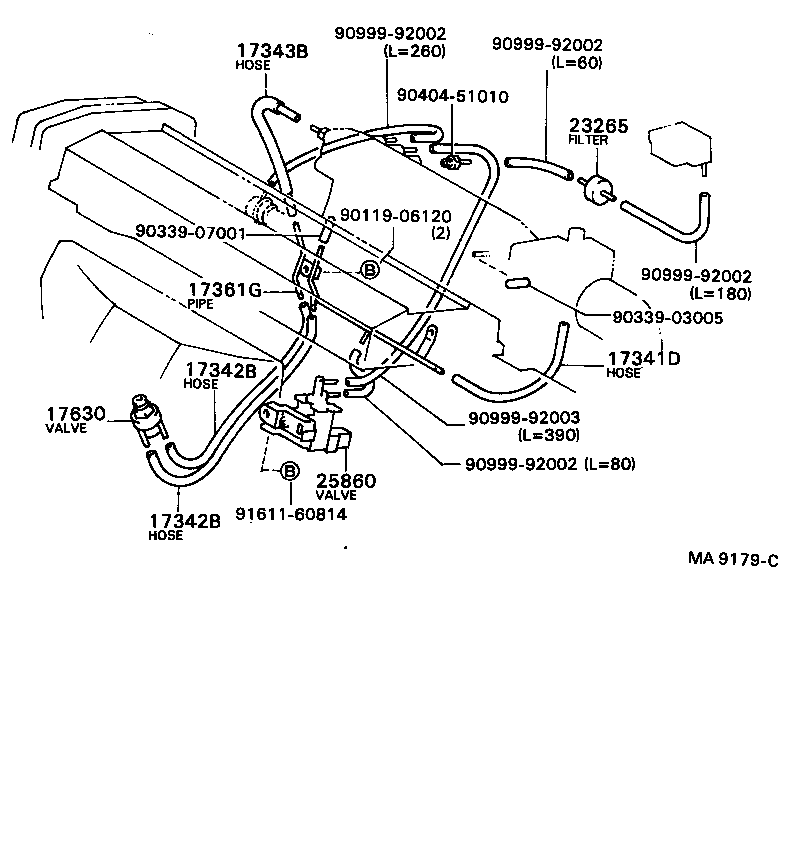

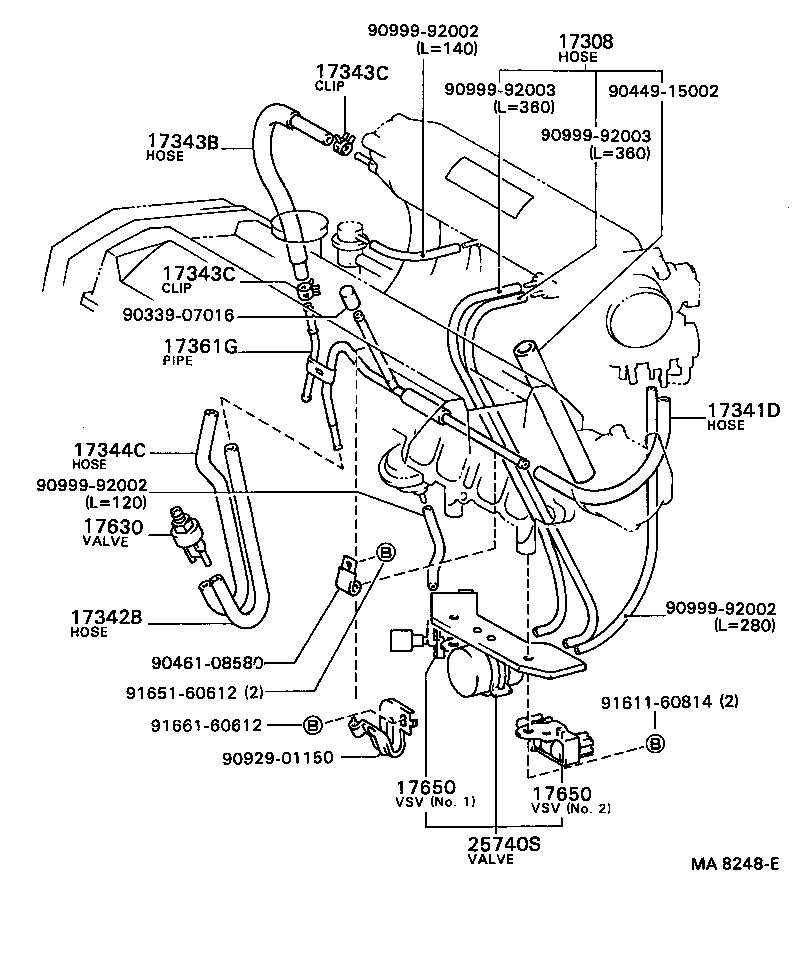

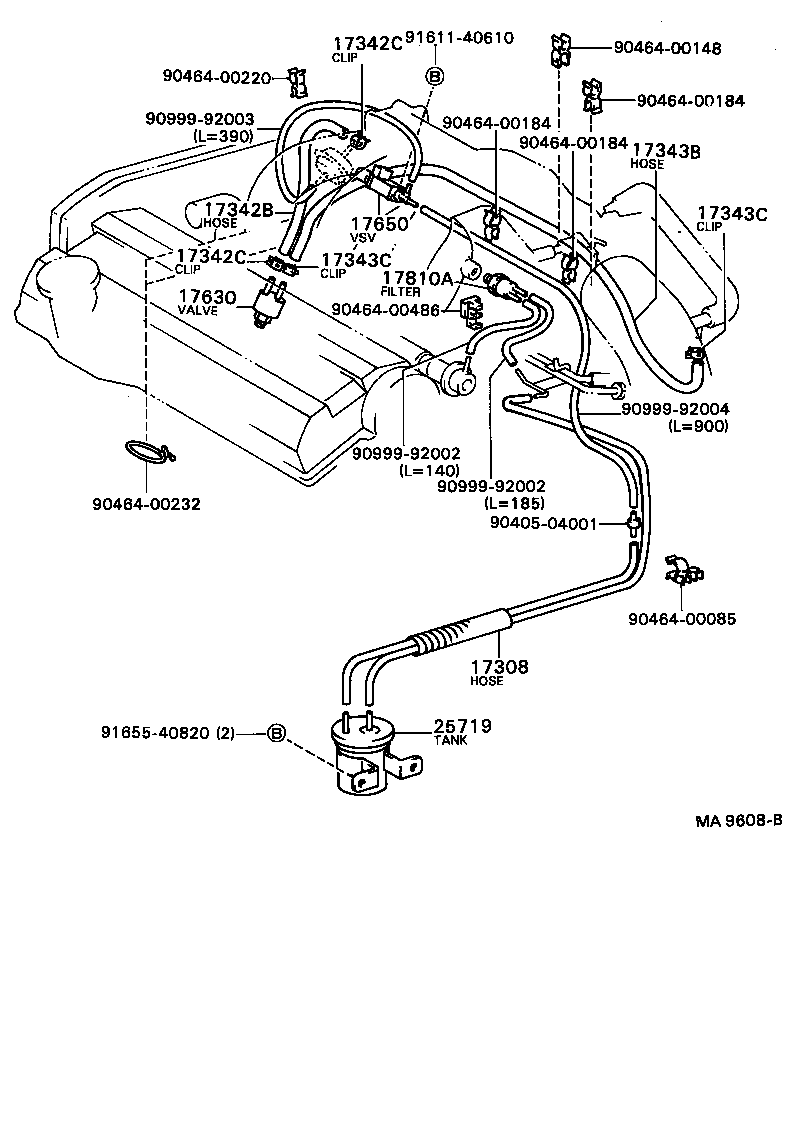

Figure MA9503A MA9503A 1986-08 → — Figure MA9080A MA9080A 1986-08 → — Figure MA9503A MA9503A 1986-08 → — Figure MA9092C MA9092C 1986-08 → — Figure MA8248E MA8248E 1986-08 → — Figure MA9179C MA9179C 1986-08 → — Figure MA9503A MA9503A 1986-08 → — Figure MA9608B MA9608B 1987-04 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17645 Pipe, Idle UP
17645A Plug(FOR IDLE UP PIPE)
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25719 Tank, Vacuum Surge
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
