Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

132 part groups · 8 illustrations

Illustrations

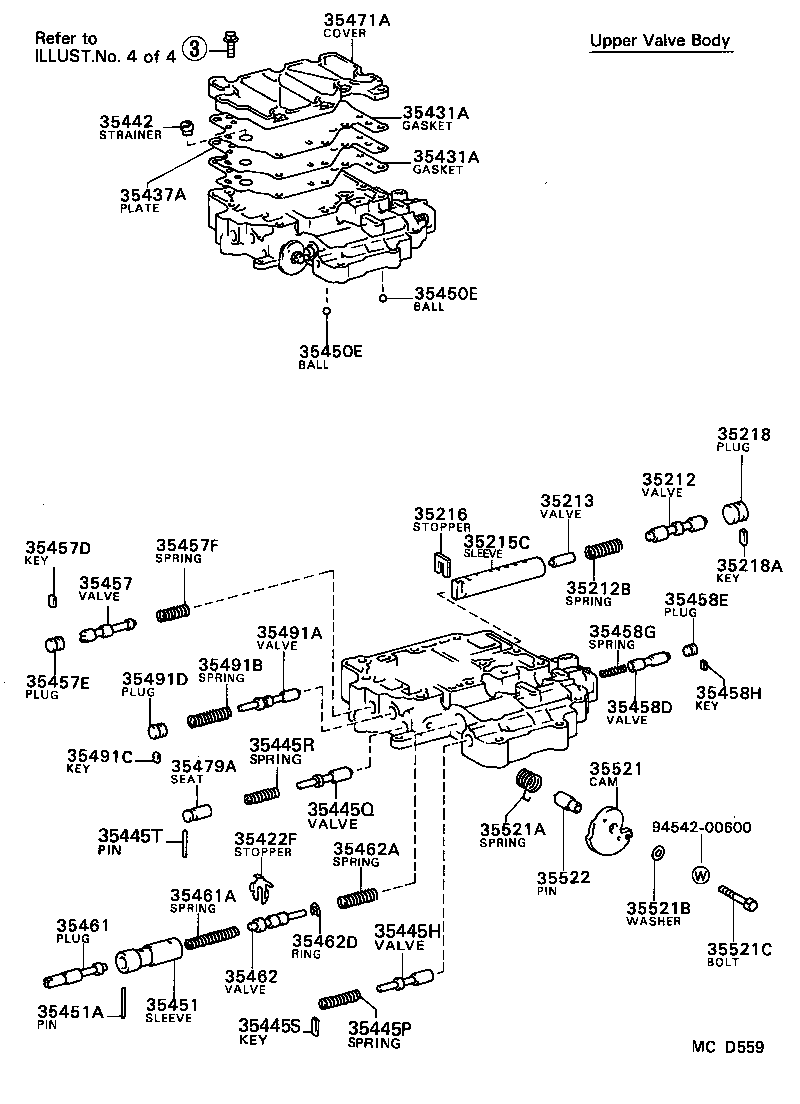

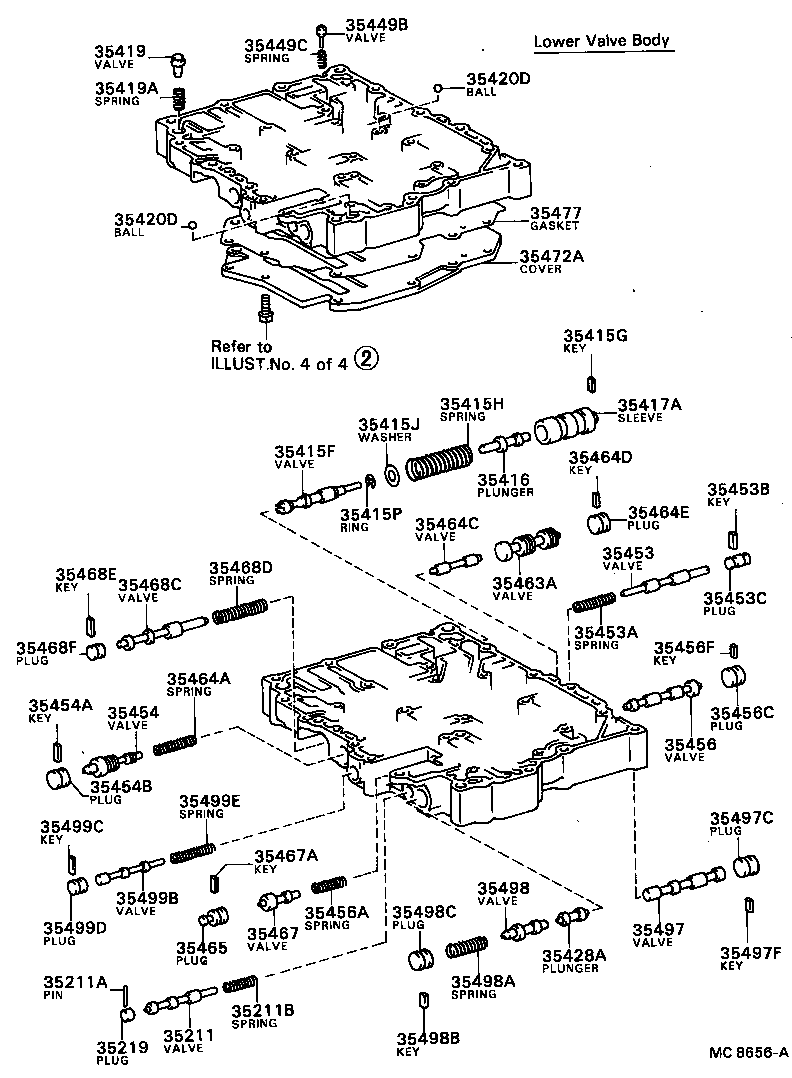

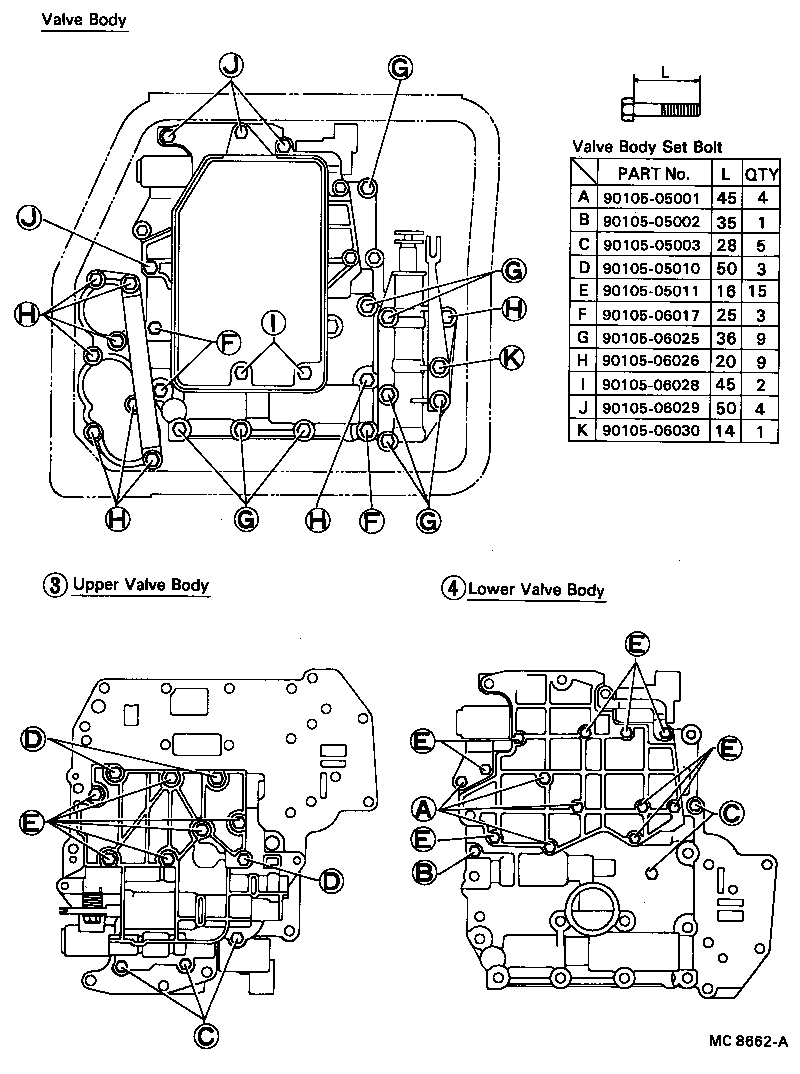

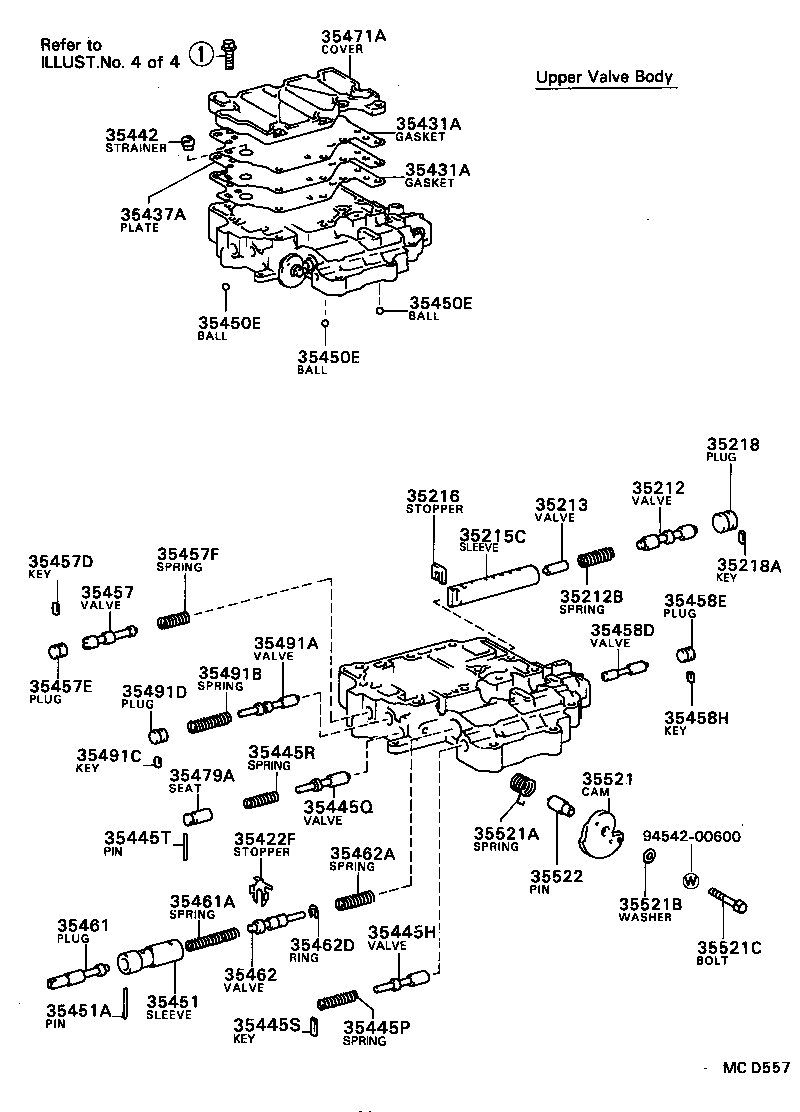

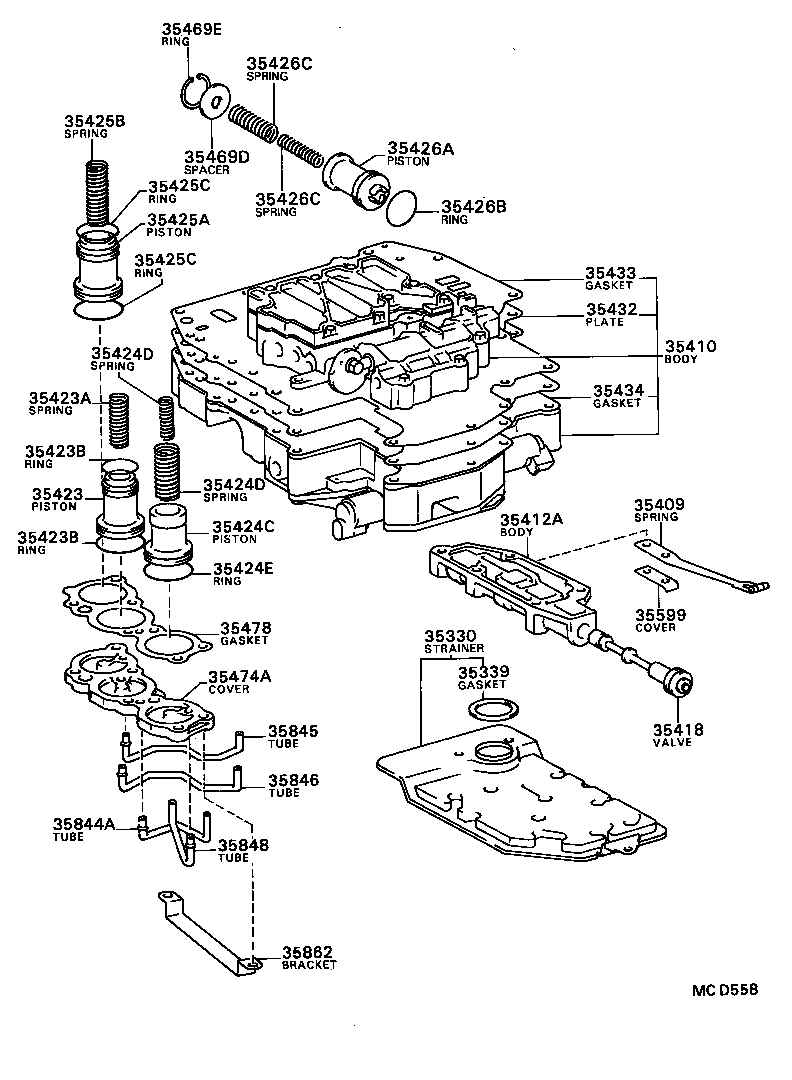

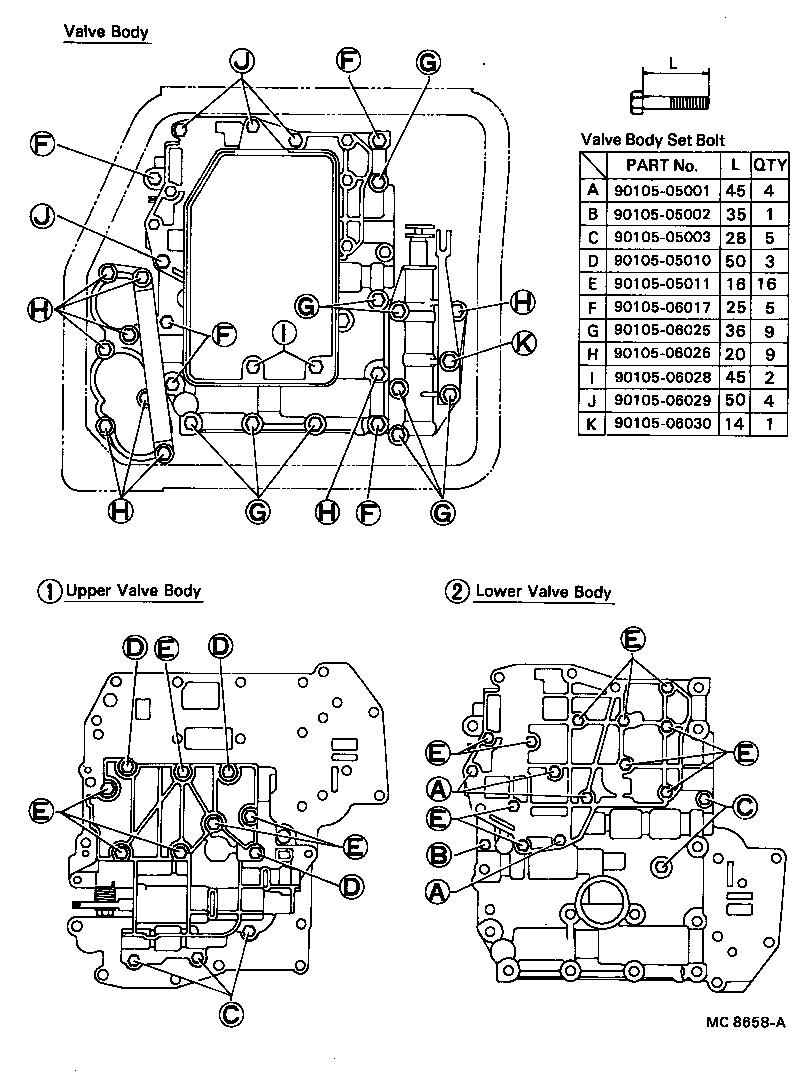

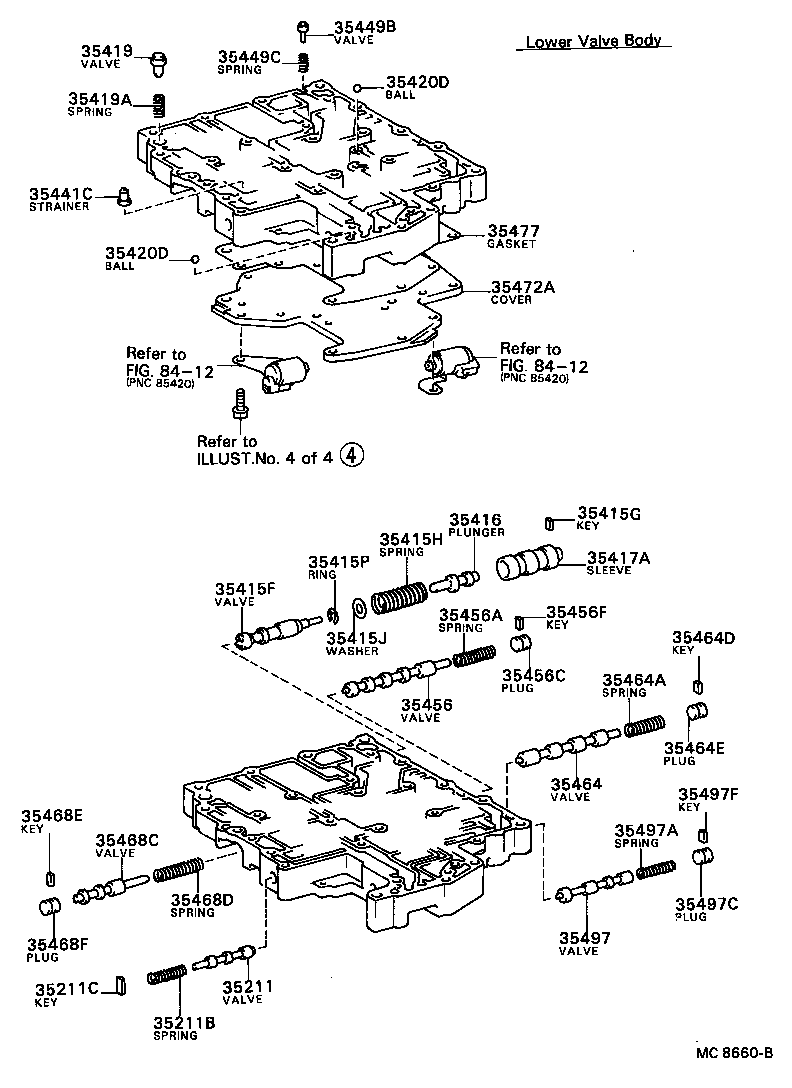

Figure MCD556 MCD556 1986-08 → — Figure MCD557 MCD557 1986-08 → — Figure MC8656A MC8656A 1986-08 → — Figure MC8658A MC8658A 1986-08 → — Figure MCD558 MCD558 1986-08 → — Figure MCD559 MCD559 1986-08 → — Figure MC8660B MC8660B 1986-08 → — Figure MC8662A MC8662A 1986-08 → —

Part groups

PNCDescription
35211 Valve, Lock UP Signal
35211A Pin, Straight (FOR LOCK UP SIGNAL VALVE)
35211B Spring, Compression (FOR LOCK UP SIGNAL VALVE)
35211C Key, Straight (FOR LOCK UP SIGNAL VALVE)
35212 Valve, Lock UP Relay
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213 Valve, Lock UP Relay Control
35215 Sleeve, Lock UP Relay Valve
35216 Stopper, Valve Sleeve
35218 Plug, Lock UP Relay Valve
35218A Key, Straight (FOR LOCK UP RELAY VALVE PLUG)
35219 Plug, Lock UP Signal Valve
35330 Strainer Assy, Valve Body Oil
35339 Gasket, Oil Strainer
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35412A Body, Manual Valve
35415F Valve, Primary Regulator
35415G Key, Straight (FOR PRIMARY REGULATOR VALVE)
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35415P Ring, E (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417A Sleeve, Primary Regulator Valve
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35420D Ball (FOR LOWER VALVE BODY)
35422F Stopper, Valve Vibrating
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C Piston, C-1 Accumulator
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A Piston, C-0 Accumulator
35426B Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35428A Plunger, 3-4 Shift
35431A Gasket, Upper Valve Body Cover
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35437A Plate, Upper Valve Body Cover
35441C Strainer, Solenoid Oil
35442 Strainer, Throttle Modulator Oil
35445H Valve, 2ND Coast Modulator
35445P Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445S Key, Straight (FOR 2ND COAST MODULATOR VALVE)
35445T Pin, Straight (FOR LOW COAST MODULATOR VALVE)
35449B Valve, Pressure Relief
35449C Spring, Compression (FOR VALVE PRESSURE RELIEF)
35450E Ball (FOR UPPER VALVE BODY)
35451 Sleeve, Throttle Valve
35451A Pin, Straight (FOR THROTTLE VALVE SLEEVE)
35453 Valve, Detent Regulator
35453A Spring, Compression (FOR DETENT REGULATOR VALVE)
35453B Key, Straight (FOR DETENT REGULATOR VALVE)
35453C Plug (FOR DETENT REGULATOR VALVE)
35454 Valve, Low Coast Shift
35454A Key, Straight (FOR LOW COAST SHIFT VALVE)
35454B Plug (FOR LOW COAST SHIFT VALVE)
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456F Key, Straight (FOR 2-3 SHIFT VALVE)
35457 Valve, Throttle Modulator
35457D Key, Straight (FOR THROTTLE MODULATOR VALVE)
35457E Plug (FOR THROTTLE MODULATOR VALVE)
35457F Spring, Compression (FOR THROTTLE MODULATOR VALVE)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35458G Spring, Compression (FOR CUT BACK VALVE)
35458H Key, Straight (FOR CUT BACK VALVE)
35461 Plug, Down Shift
35461A Spring, Compression (FOR DOWN SHIFT PLUG)
35462 Valve, Throttle
35462A Spring, Compression (FOR THROTTLE VALVE)
35462D Ring, E (FOR THROTTLE VALVE)
35463A Valve, 1-2 Shift, Lower
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464C Valve, 1-2 Shift, Upper
35464D Key, Straight (FOR 1-2 SHIFT VALVE)
35464E Plug (FOR 1-2 SHIFT VALVE)
35465 Plug, Intermediate Shift Valve
35467 Valve, Intermediate Shift
35467A Key, Straight (FOR INTERMEDIATE SHIFT VALVE)
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35469D Spacer (FOR C-0 ACCUMULATOR PISTON)
35469E Ring, Snap (FOR C-0 ACCUMULATOR PISTON SPACER)
35471A Cover, Upper Valve Body
35472A Cover, Lower Valve Body
35474A Cover, Accumulator
35477 Gasket, Valve Body Cover
35478 Gasket, Accumulator Cover
35479A Seat, Low Modulator Valve Spring
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497F Key, Straight (FOR 3-4 SHIFT VALVE)
35498 Valve, 3-4 Coast Shift
35498A Spring, Compression (FOR 3-4 COAST SHIFT VALVE)
35498B Key, Straight (FOR 3-4 COAST SHIFT VALVE)
35498C Plug (FOR 3-4 COAST SHIFT VALVE)
35499B Valve, Overdrive Sequence
35499C Key, Straight (FOR OVERDRIVE SEQUENCE VALVE)
35499D Plug (FOR OVERDRIVE SEQUENCE VALVE)
35499E Spring, Compression (FOR OVERDRIVE SEQUENCE VALVE)
35521 Cam, Throttle Valve
35521A Spring (FOR THROTTLE VALVE CAM RETURN)
35521B Washer (FOR THROTTLE VALVE CAM SET)
35521C Bolt (FOR THROTTLE VALVE CAM SET)
35522 Pin, Throttle Valve Cam
35599 Cover, Manual Detent Spring
35844A Tube, Accumulator Back Pressure, NO.1
35845 Tube, RR Clutch Accumulator
35846 Tube, Brake Accumulator
35848 Tube, Forward Clutch Accumulator
35862 Bracket, Accumulator Apply Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
