Toyota Camry/Vista
1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan
Discontinued model
Data version 1989-04

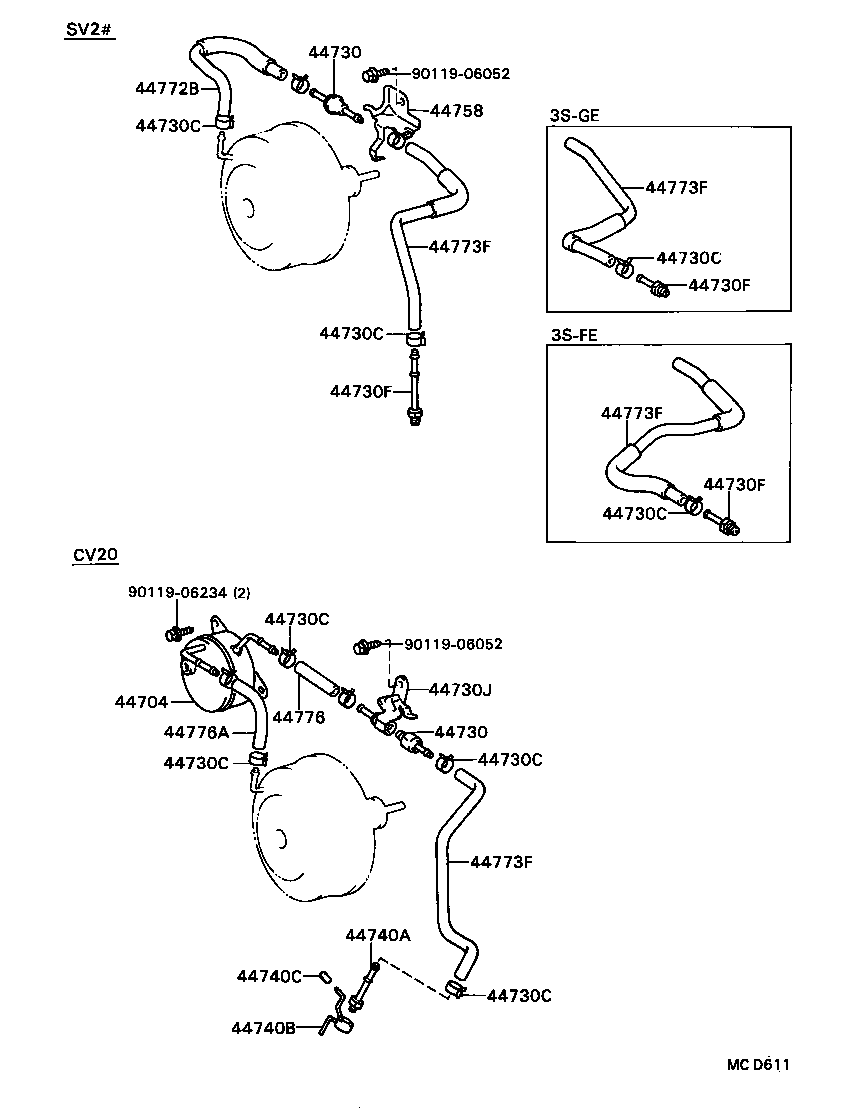

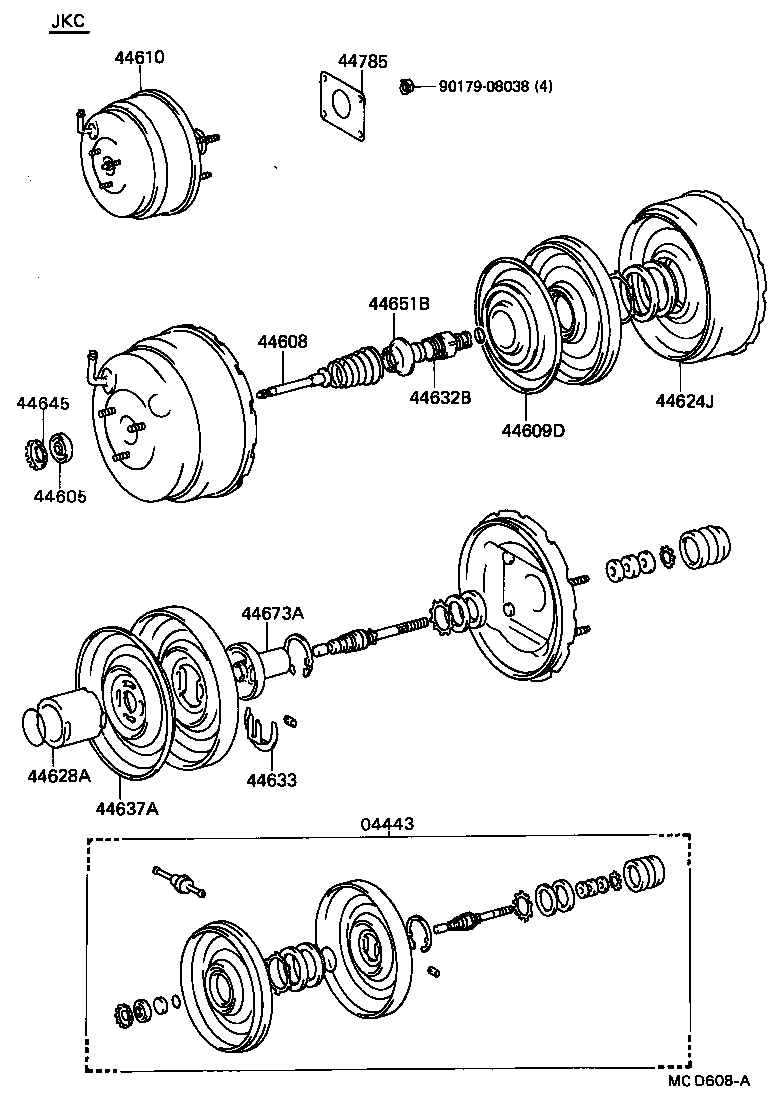

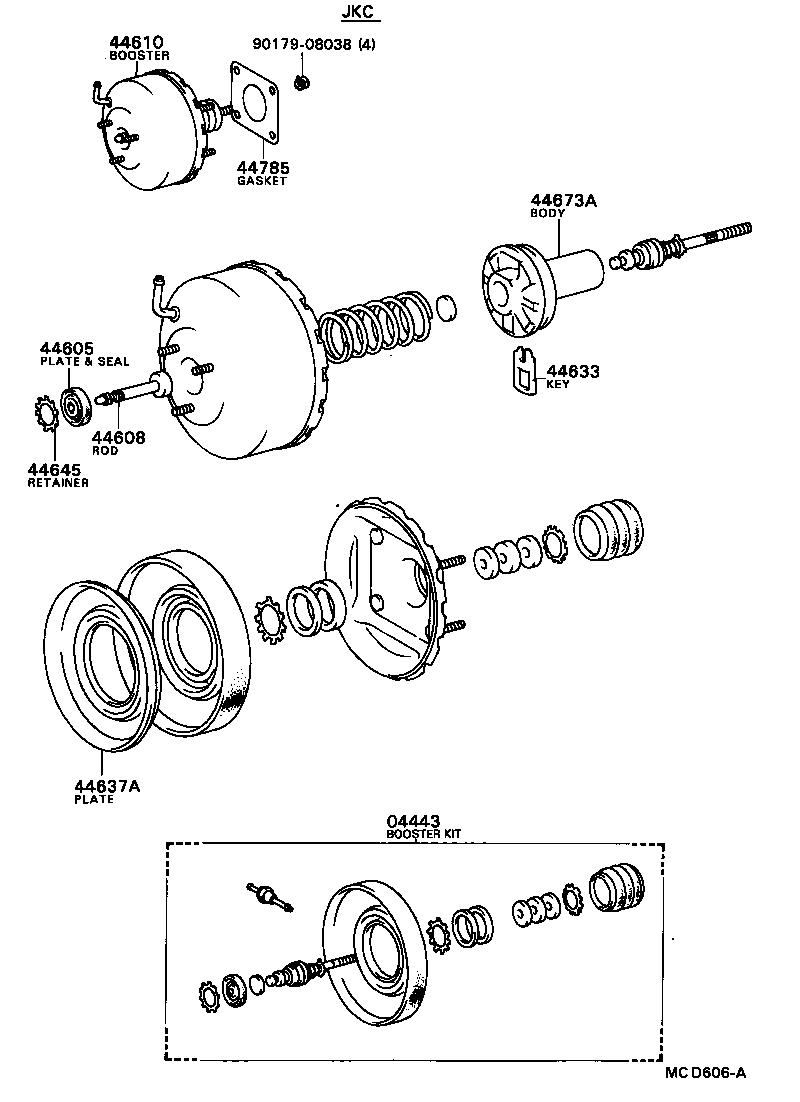

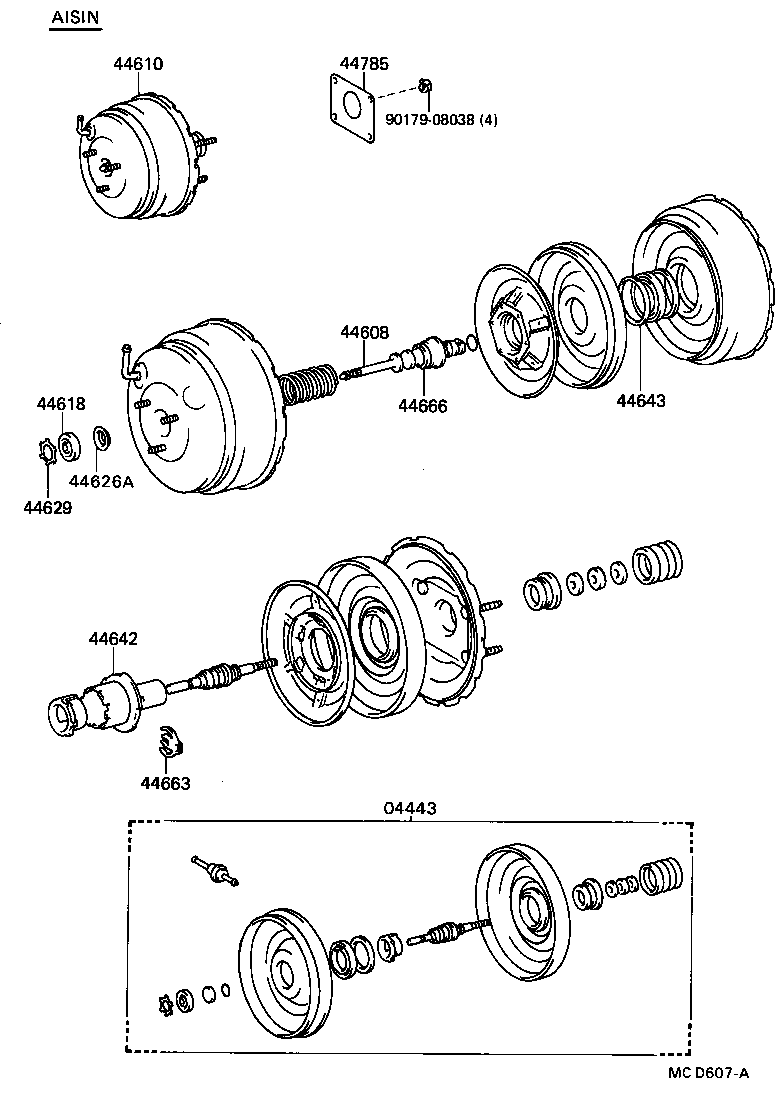

Brake Booster & Vacuum Tube
36 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 04443 | Booster Kit, Brake |
| 44605 | Plate & Seal Sub-assy, Booster |
| 44608 | Push Rod Sub-assy, Booster |
| 44609D | Plate & Retainer Sub-assy, Booster |
| 44610 | Booster Assy, Brake |
| 44618 | Seal, Booster Body |
| 44624J | Plate, Booster Center |
| 44626A | Retainer, Booster Body Seal |
| 44628A | Body, Booster Center |
| 44629 | Ring, Circular Internal |
| 44632B | Hub, Booster Reaction Disk |
| 44633 | Key, Booster Valve Plunger |
| 44637A | Plate, Booster Diaphragm |
| 44642 | Piston, Brake Booster |
| 44643 | Retainer, Diaphragm |
| 44645 | Retainer, Booster Push Rod Seal |
| 44651B | Nut, Booster |
| 44663 | Key, Valve Stopper |
| 44666 | Case, Reaction Disc |
| 44673A | Body, Booster Valve |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730C | Clip(FOR VACUUM HOSE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44730J | Way(FOR BOOSTER VACUUM) |
| 44730R | Bolt, Union(FOR VACUUM HOSE UNION) |
| 44730S | Gasket(FOR VACUUM HOSE UNION) |
| 44740A | Union, NO.1(FOR VACUUM PUMP) |
| 44740B | Union, NO.2(FOR VACUUM PUMP) |
| 44740C | Plug(FOR UNION) |
| 44758 | Bracket, Vacuum Check Valve |
| 44772B | Hose, Check Valve TO Brake Booster |
| 44773F | Hose, Union TO Check Valve |
| 44776 | Hose, Brake Booster |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
