Toyota Camry/Vista
1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan
Discontinued model
Data version 1989-04

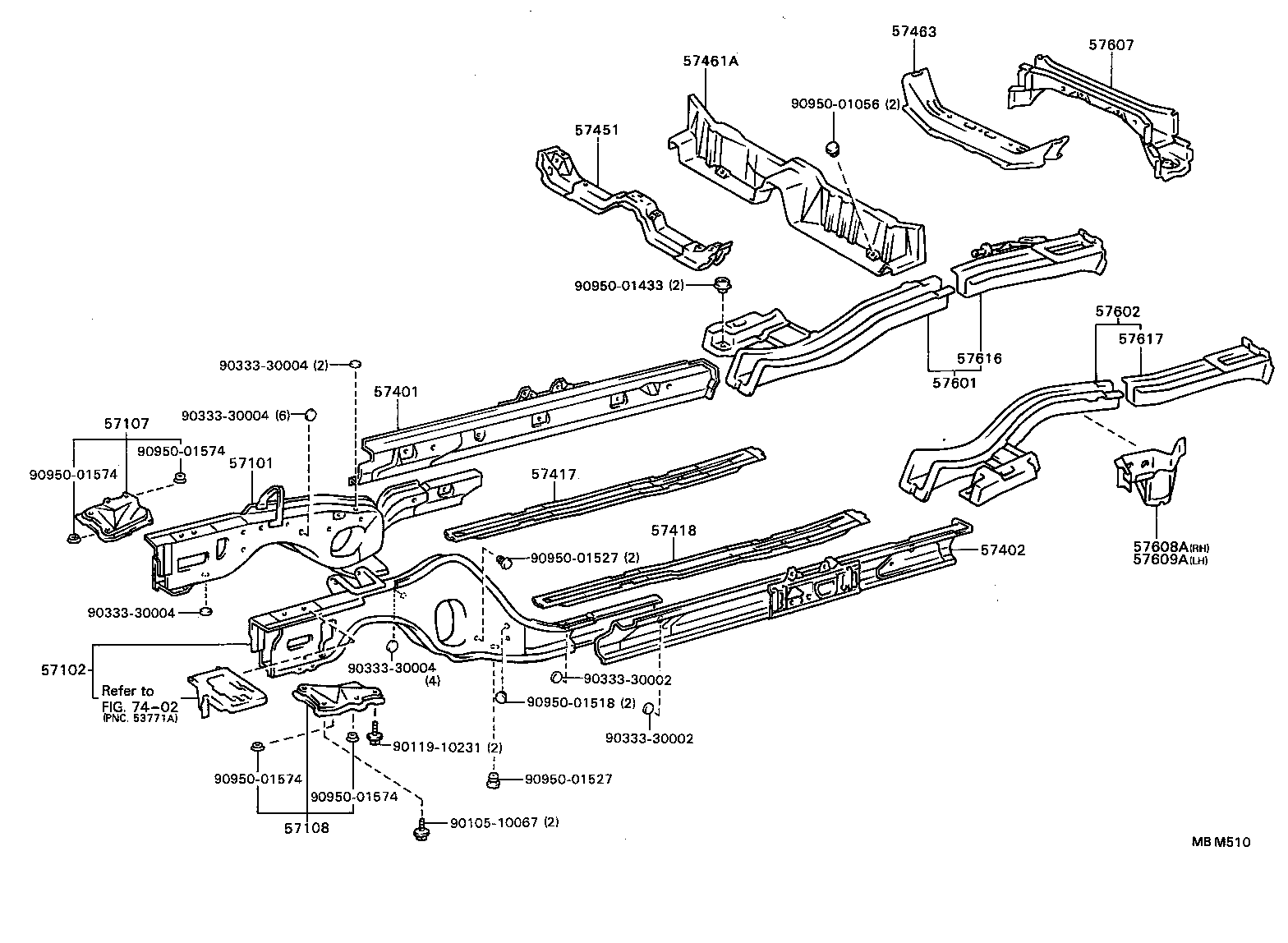

Floor Side Member
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 57101 | Member Sub-assy, Front Side, RH |
| 57102 | Member Sub-assy, Front Side, LH |
| 57107 | Bracket Sub-assy, Strut Bar, RH |
| 57108 | Bracket Sub-assy, Strut Bar, LH |
| 57401 | Member Sub-assy, Main Floor Side, RH |
| 57402 | Member Sub-assy, Main Floor Side, LH |
| 57417 | Reinforcement, Front Floor Under, RH |
| 57418 | Reinforcement, Front Floor Under, LH |
| 57451 | Member, Front Floor Cross |
| 57461A | Member, Center Floor Cross |
| 57463 | Member, Center Floor Cross, NO.3 |
| 57601 | Member Sub-assy, Rear Floor Side, RH |
| 57602 | Member Sub-assy, Rear Floor Side, LH |
| 57607 | Crossmember Sub-assy, Rear Floor, NO.1 |
| 57608 | Crossmember Sub-assy, Rear Floor, NO.2 |
| 57608A | Member Sub-assy, Rear Floor Cross, NO.4 |
| 57609A | Member Sub-assy, Rear Floor Cross, NO.5 |
| 57616 | Member, Rear Floor Side, Rear RH |
| 57617 | Member, Rear Floor Side, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
