Toyota Camry/Vista
1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan
Discontinued model
Data version 1989-04

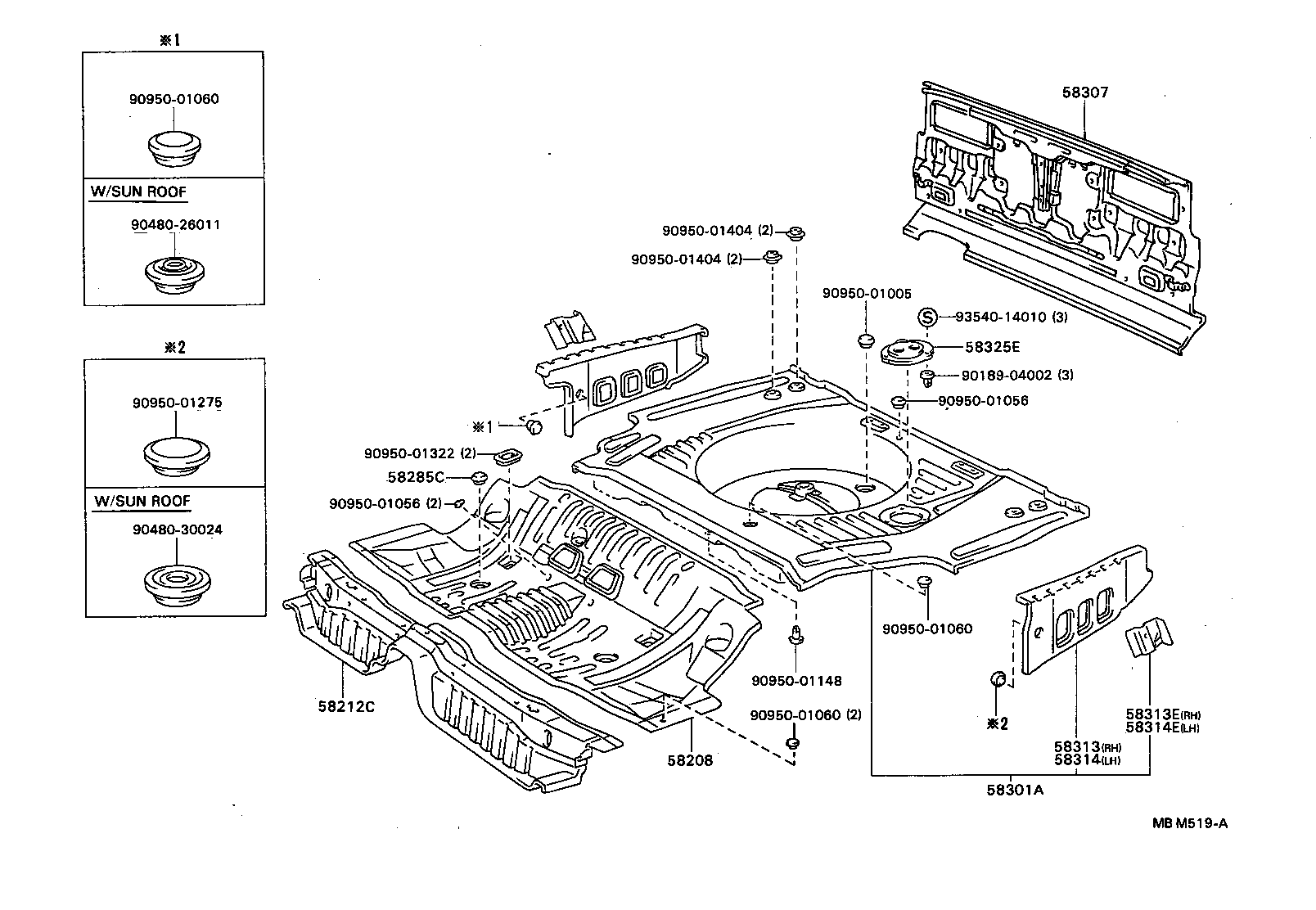

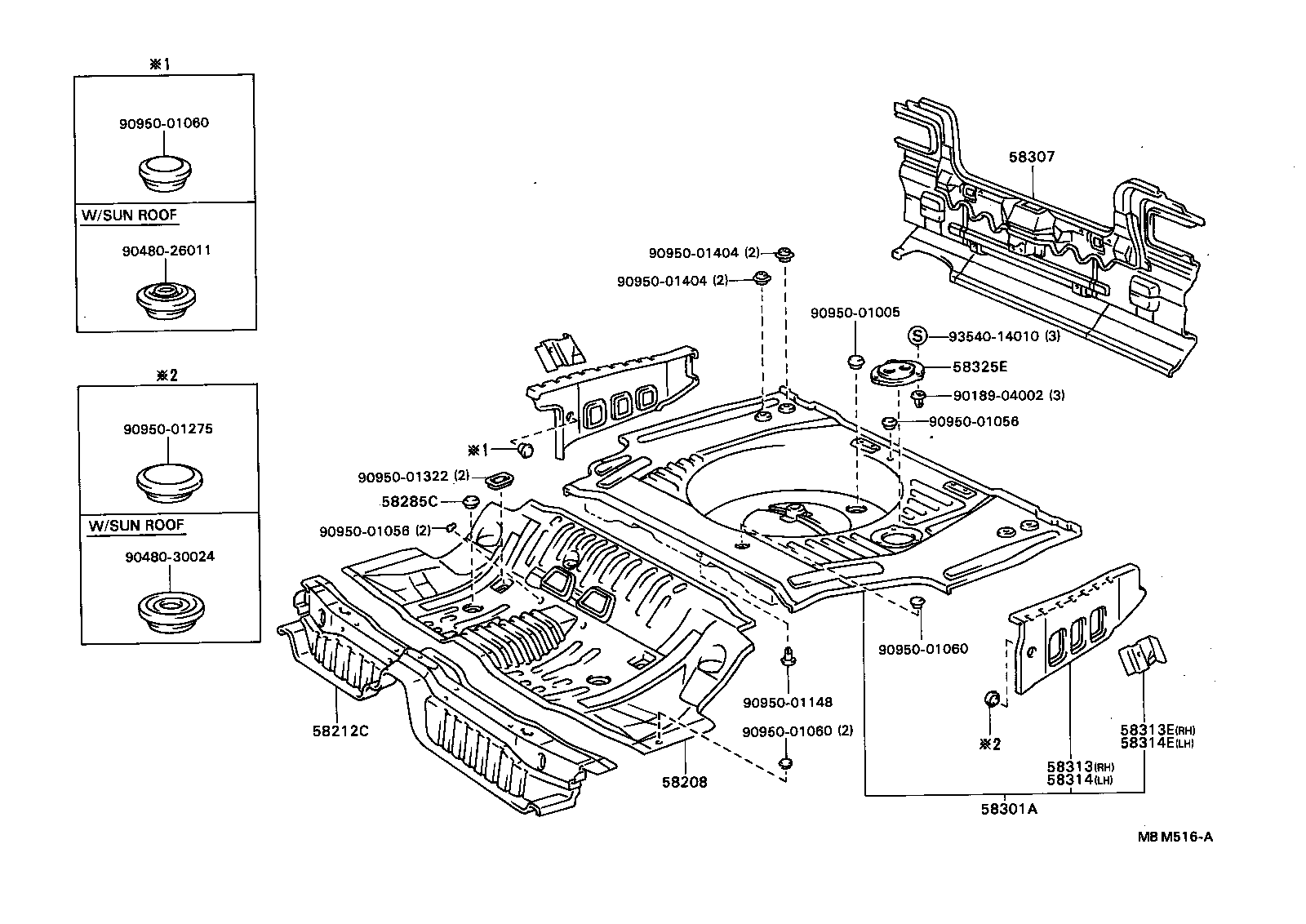

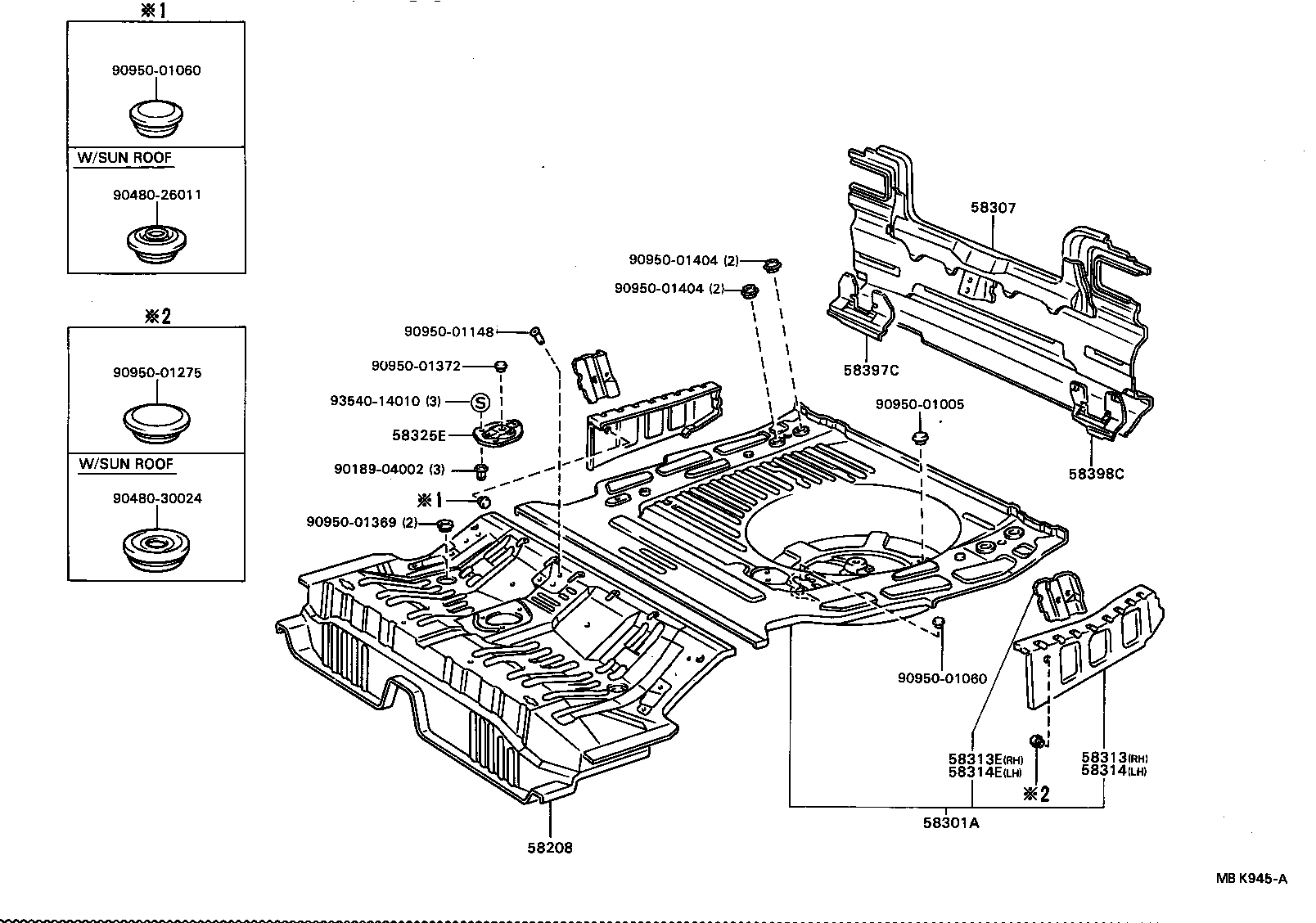

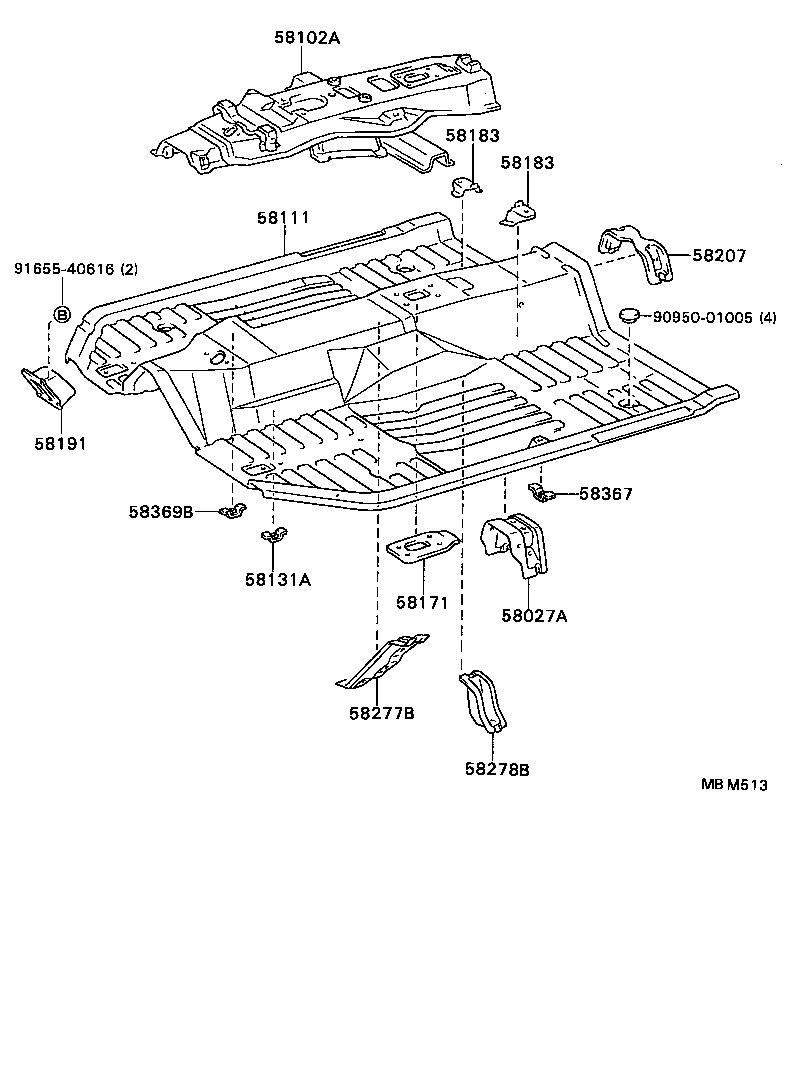

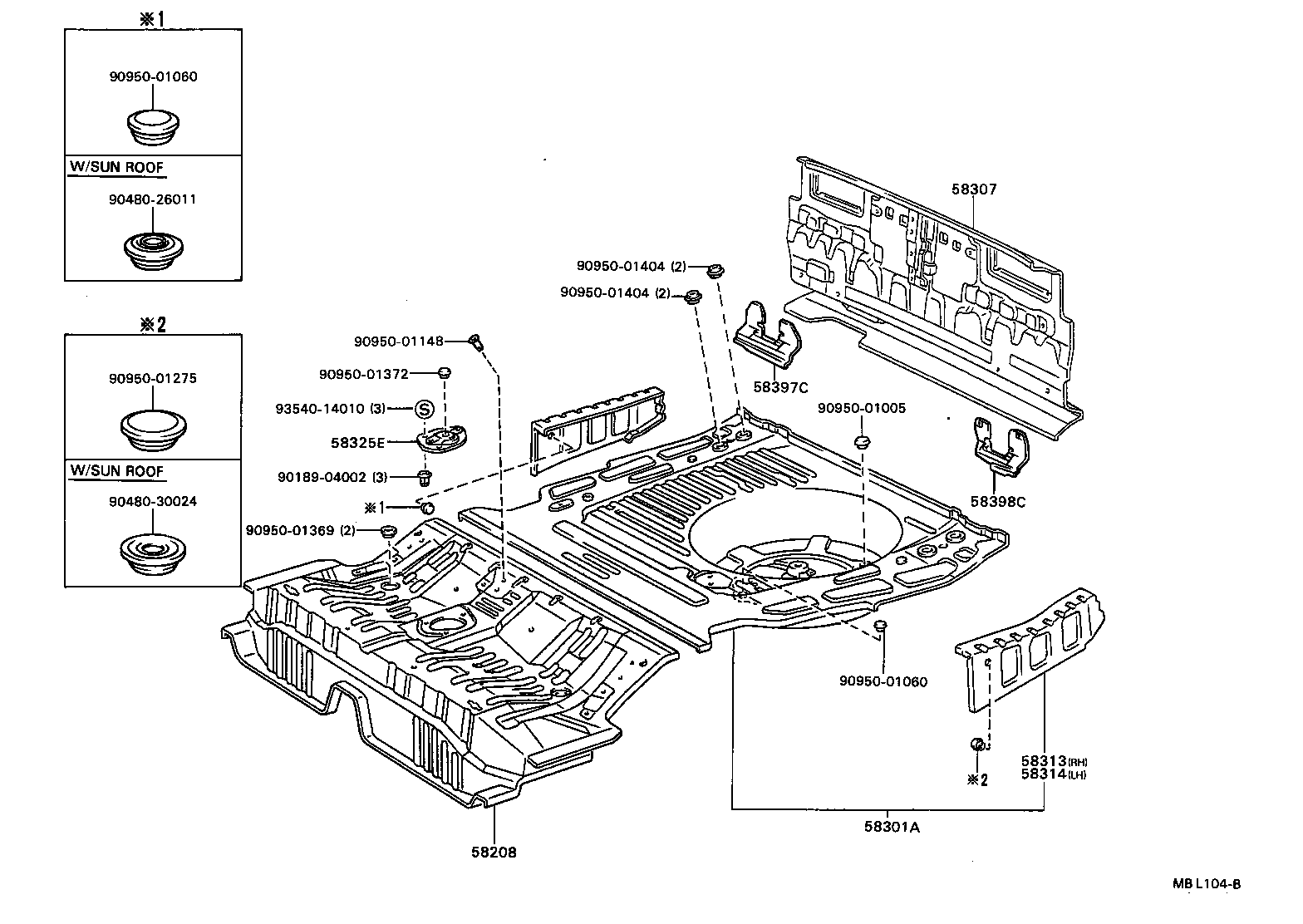

Floor Pan & Lower Back Panel
26 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 57206A | Member Sub-assy, Front Floor Cross, NO.2 |
| 58027A | Reinforce Sub-assy, Seat Belt Anchor |
| 58102A | Reinforcement Sub-assy, Front Floor |
| 58111 | Pan, Front Floor |
| 58131A | Bracket, Front Floor Heat Insulator, NO.1 |
| 58171 | Reinforcement, Parking Brake Base |
| 58183 | Bracket, Front Seat Mounting, Inner |
| 58191 | Footrest, Front Floor |
| 58207 | Bracket Sub-assy, Parking Brake Cable, NO.1 |
| 58208 | Pan, Center Floor |
| 58212C | Pan, Center Floor, Front |
| 58277B | Reinforcement, Drive Shaft Center Support |
| 58278B | Reinforce, Drive Shaft Center Support, NO.2 |
| 58285C | Cover, Rear Floor Hole |
| 58301A | Panel Sub-assy, Rear Floor |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58313 | Panel, Rear Floor Side, RH |
| 58313E | Extension, Rear Floor Side Panel, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58314E | Extension, Rear Floor Side Panel, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58367 | Bracket, Fuel Tube Clamp |
| 58369B | Bracket, Fuel Tube, NO.3 |
| 58396A | Bracket, Wire Harness Clamp |
| 58397C | Cover, Body Lower Back, RH |
| 58398C | Cover, Body Lower Back, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
