Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

20 part groups · 2 illustrations

Illustrations

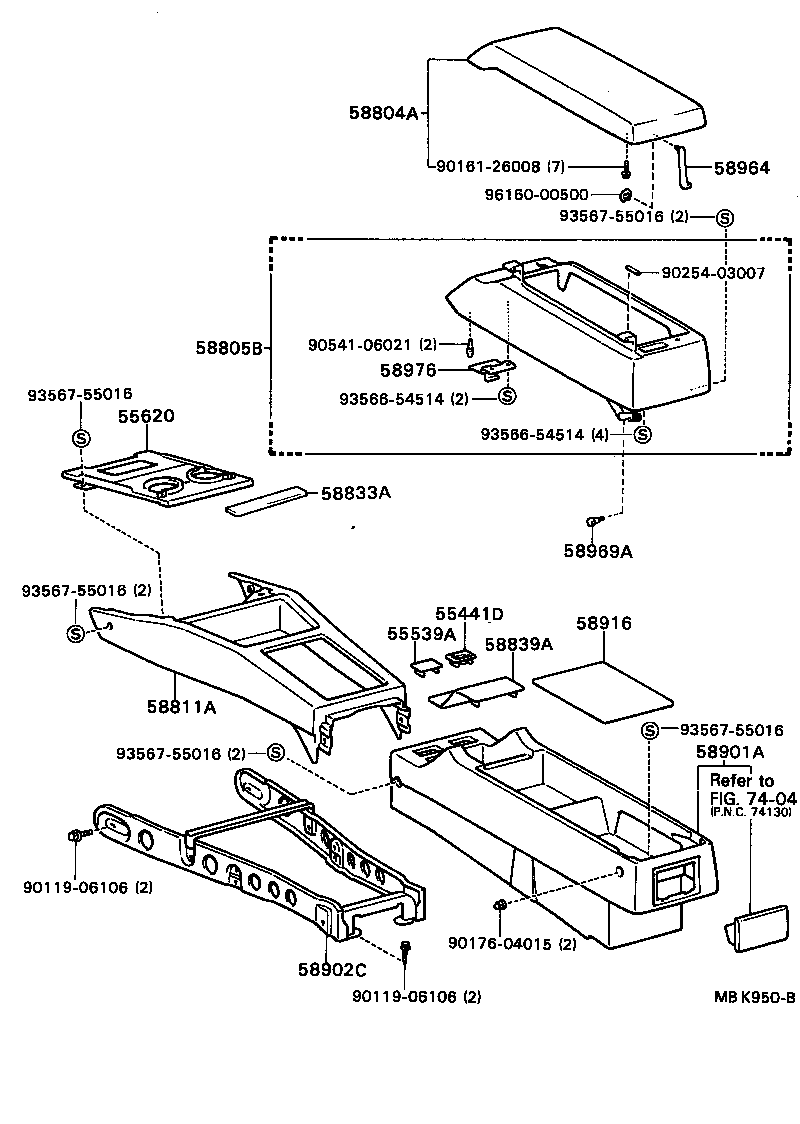

Figure MBK949C MBK949C 1986-08 → — Figure MBK950B MBK950B 1986-08 → —

Part groups

PNCDescription
55441D Box, Instrument Panel Coin
55539A Cover, Spare Switch Hole
55620 Holder Assy, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58805B Panel Sub-assy, Console, Lower
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58833A Cover, Console, Upper
58839A Cover, Console Box Hole
58901A Box Sub-assy, Console, Rear
58902C Bracket Sub-assy, Console Box Mounting
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58916 Mat, Box Bottom
58919B Plate, Console Box
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58969A Retainer, Console Compartment Door Stopper
58976 Striker, Console Compartment Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
