Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

24 part groups · 2 illustrations

Illustrations

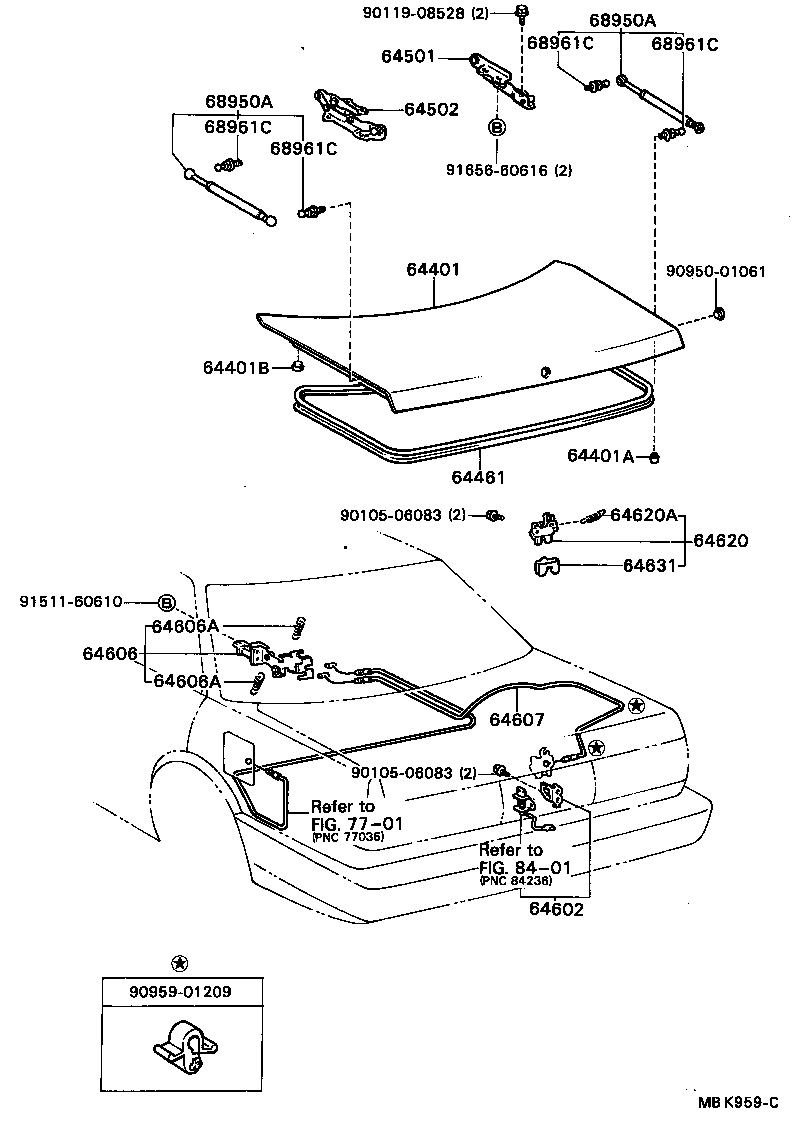

Figure MBK958C MBK958C 1986-08 → — Figure MBK959C MBK959C 1986-08 → —

Part groups

PNCDescription
64401 Panel Sub-assy, Luggage Compartment Door
64401A Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64401B Plug, Hole(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461 Weatherstrip, Luggage Compartment Door
64501 Hinge Sub-assy, Luggage Compartment Door, RH
64502 Hinge Sub-assy, Luggage Compartment Door, LH
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64511 Support, Luggage Compartment Door Hinge, RH
64512 Support, Luggage Compartment Door Hinge, LH
64529 Spacer, Luggage Compartment Door Hinge
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64559 Pin, Luggage Door Hinge
64571 Cover, Luggage Compartment Door Hinge
64602 Striker Sub-assy, Luggage Compartment Door Lock
64606 Lever Sub-assy, Luggage Door Lock Open
64606A Spring, Tension(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607 Cable Sub-assy, Luggage Door Lock Control
64620 Lock Assy, Luggage Compartment Door
64620A Spring, Tension(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64631 Protector, Luggage Door Lock
68950A Stay Assy, Luggage Door
68961C Bolt, Luggage Door Stay
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
