Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

16 part groups · 2 illustrations

Illustrations

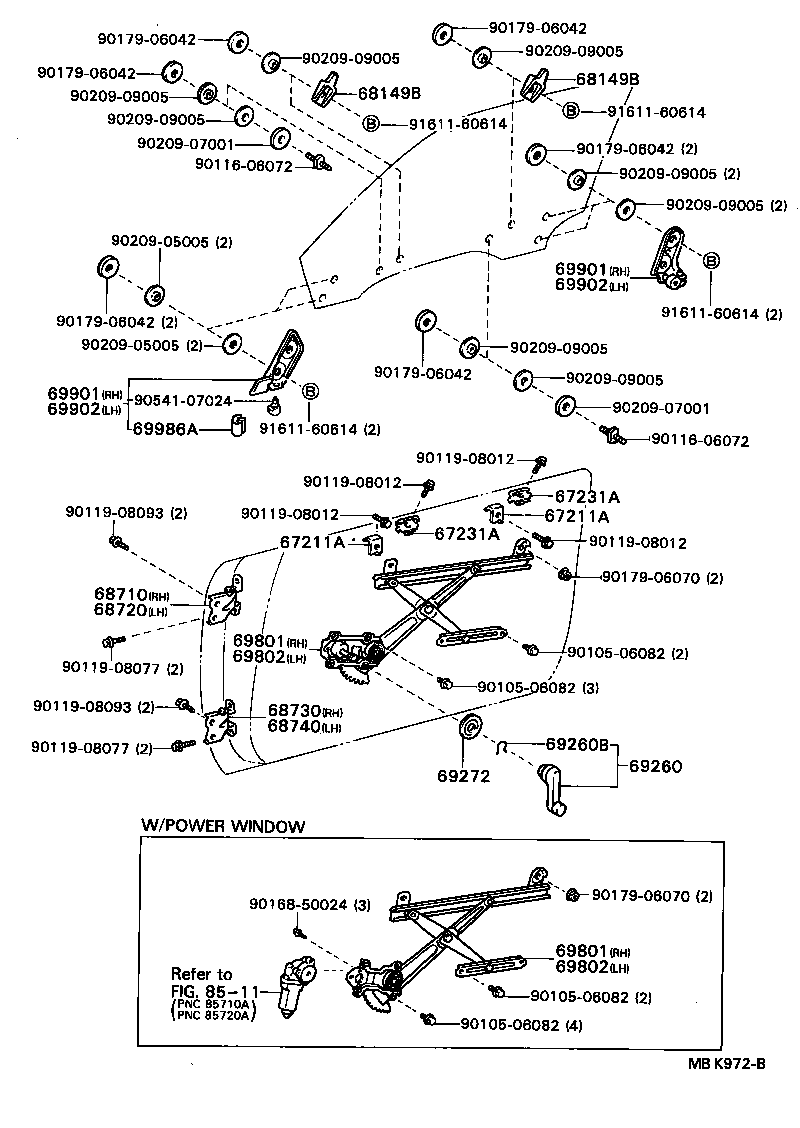

Figure MBK971 MBK971 1986-08 → — Figure MBK972B MBK972B 1986-08 → —

Part groups

PNCDescription
67211A Stop, Front Door Window, Upper
67216A Stopper, Front Door Glass, Upper NO.2
67231A Support, Front Door Trim
68149B Stabilizer, Front Door Glass Male
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69260 Handle Assy, Front Door Window Regulator
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272 Plate, Front Door Regulator Inside Handle
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69901 Channel Sub-assy, Front Door Glass, RH
69902 Channel Sub-assy, Front Door Glass, LH
69986A Piece, Front Door Glass Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
