Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

15 part groups · 2 illustrations

Illustrations

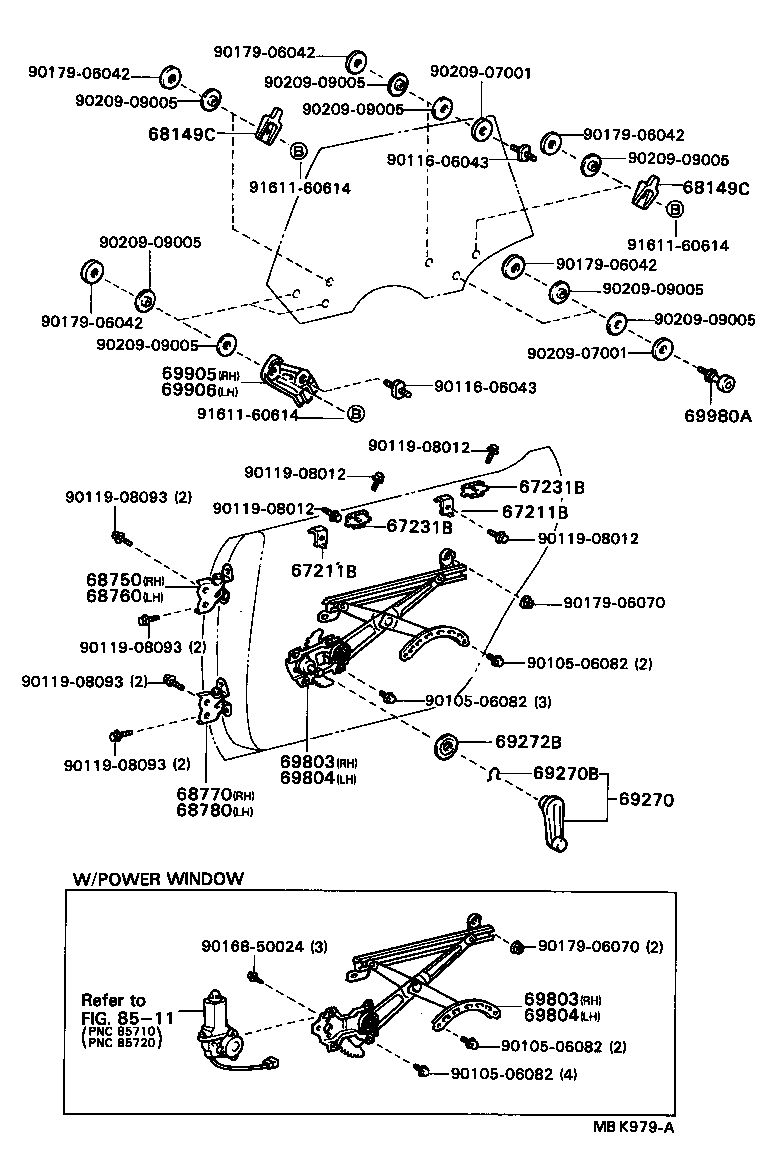

Figure MBK978 MBK978 1986-08 → — Figure MBK979A MBK979A 1986-08 → —

Part groups

PNCDescription
67211B Stop, Rear Door Window, Upper
67231B Support, Rear Door Trim
68149C Stabilizer, Rear Door Glass Male
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
68770 Hinge Assy, Rear Door, Lower RH
68780 Hinge Assy, Rear Door, Lower LH
69270 Handle Assy, Rear Door Window Regulator
69270B Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69272B Plate, Rear Door Regulator Inside Handle
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
69905 Bracket Sub-assy, Rear Door Glass, RH
69906 Bracket Sub-assy, Rear Door Glass, LH
69980A Roller Assy, Rear Door Glass Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
