Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

12 part groups · 2 illustrations

Illustrations

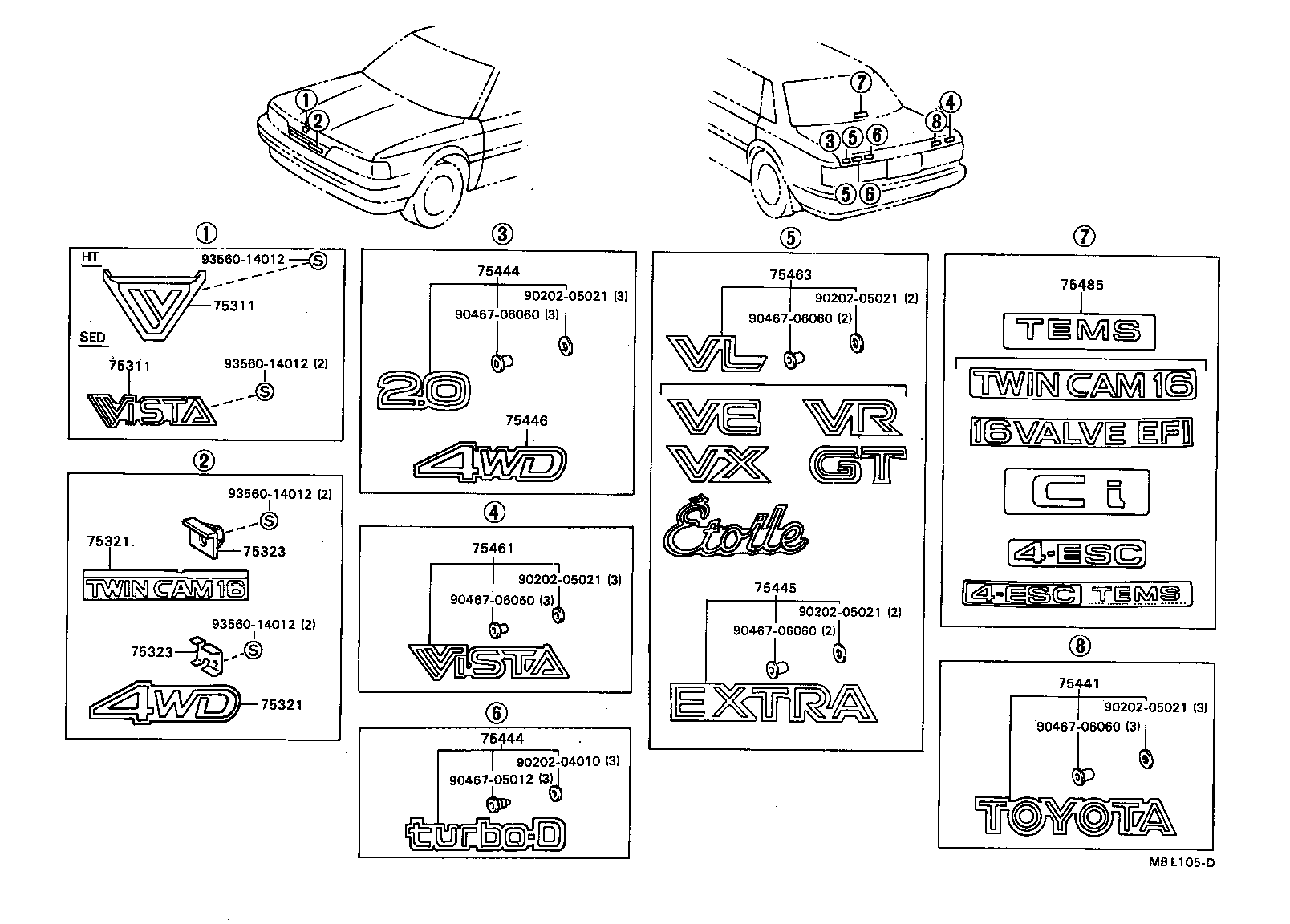

Figure MBK993E MBK993E 1986-08 → — Figure MBL105D MBL105D 1986-08 → —

Part groups

PNCDescription
75305 Emblem, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75323 Retainer, Radiator Grille
75365 Emblem, Front Fender
75441 Plate, Rear Name, NO.1
75444 Plate, Luggage Compartment Door, NO.4
75445 Plate, Luggage Compartment Door Name, NO.5
75446 Plate, Luggage Compartment Door Name, NO.6
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
