Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

6 part groups · 3 illustrations

Illustrations

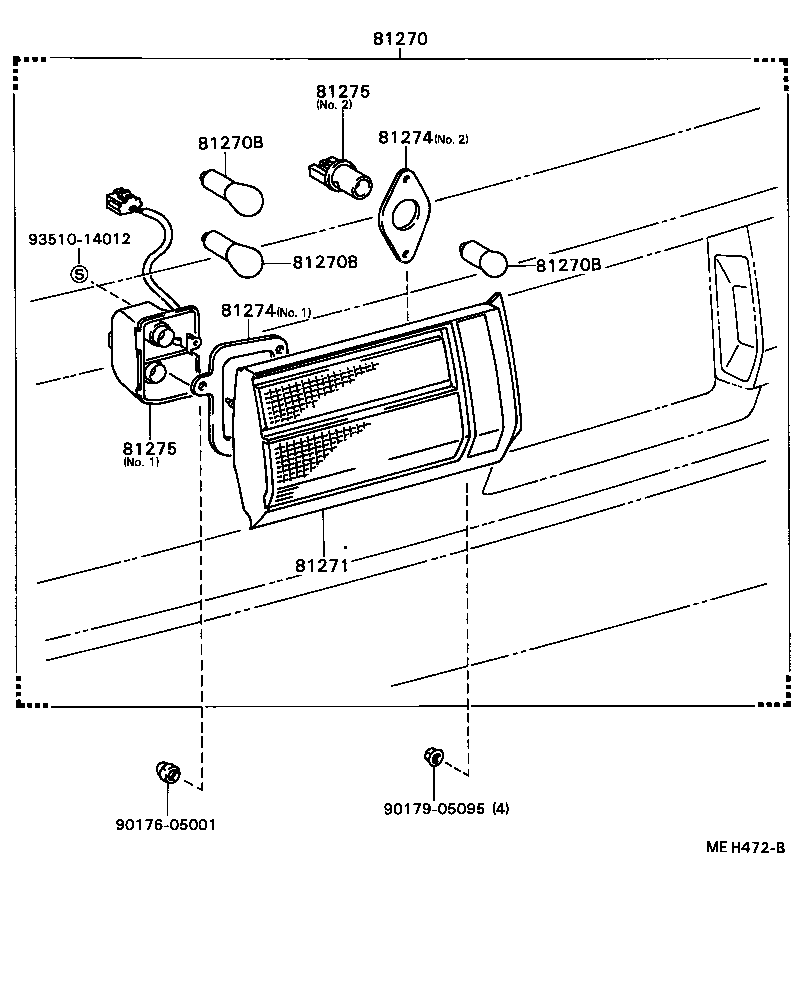

Figure MEH471A MEH471A 1986-08 → — Figure MEH472B MEH472B 1986-08 → — Figure MEH473 MEH473 1986-08 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81274 Gasket, License Plate Lamp Body
81275 Socket And Wire, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
