Toyota Camry/Vista
1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan
Discontinued model
Data version 1989-04
Abs & Vsc

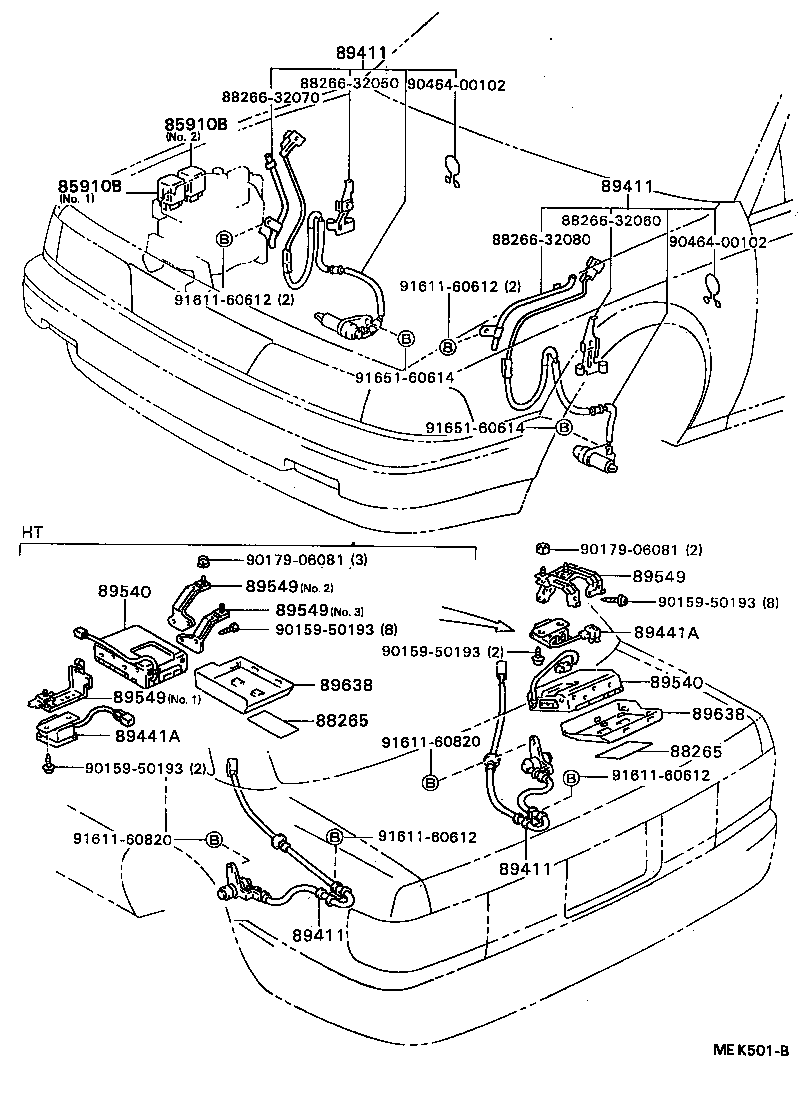

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85910B | Relay Assy, Circuit Opening (FOR ESC) |
| 88265 | Label, Skid Control Caution |
| 89411 | Sensor, Speed |
| 89441A | Sensor, Deceleration |
| 89540 | Computer Assy, Skid Control |
| 89549 | Bracket, Skid Control Computer |
| 89638 | Cover, Brake Control Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
