Toyota Camry/Vista

1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 5 illustrations

Illustrations

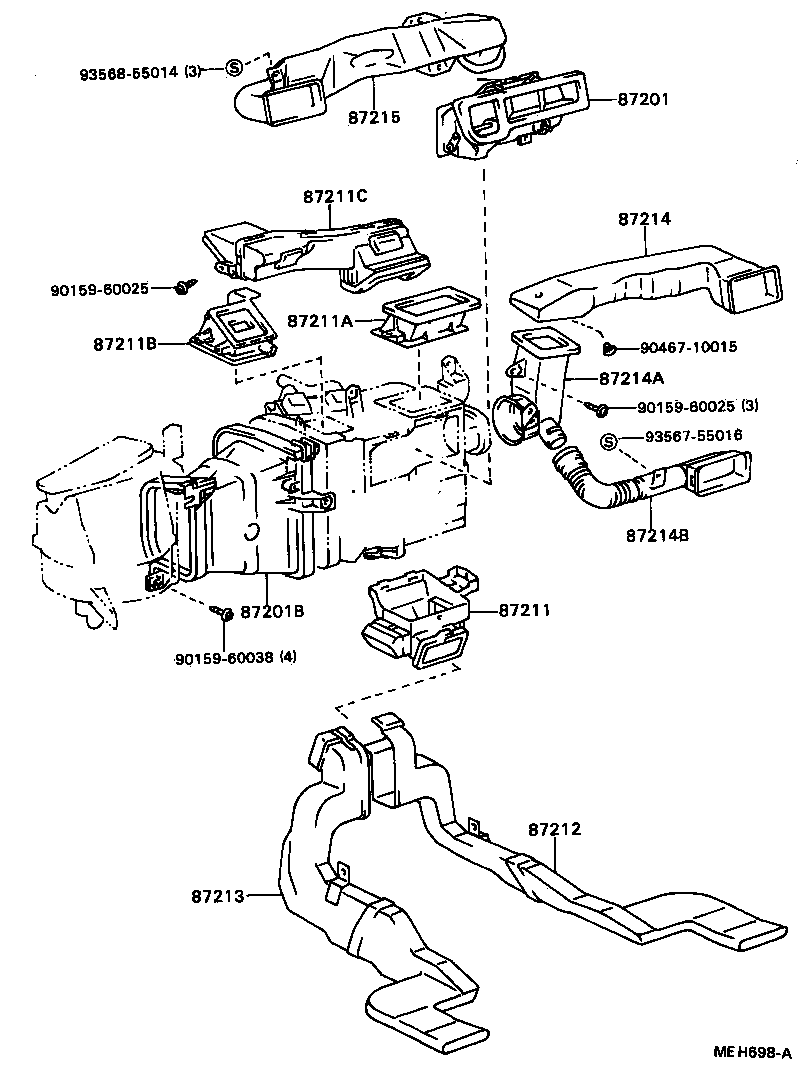

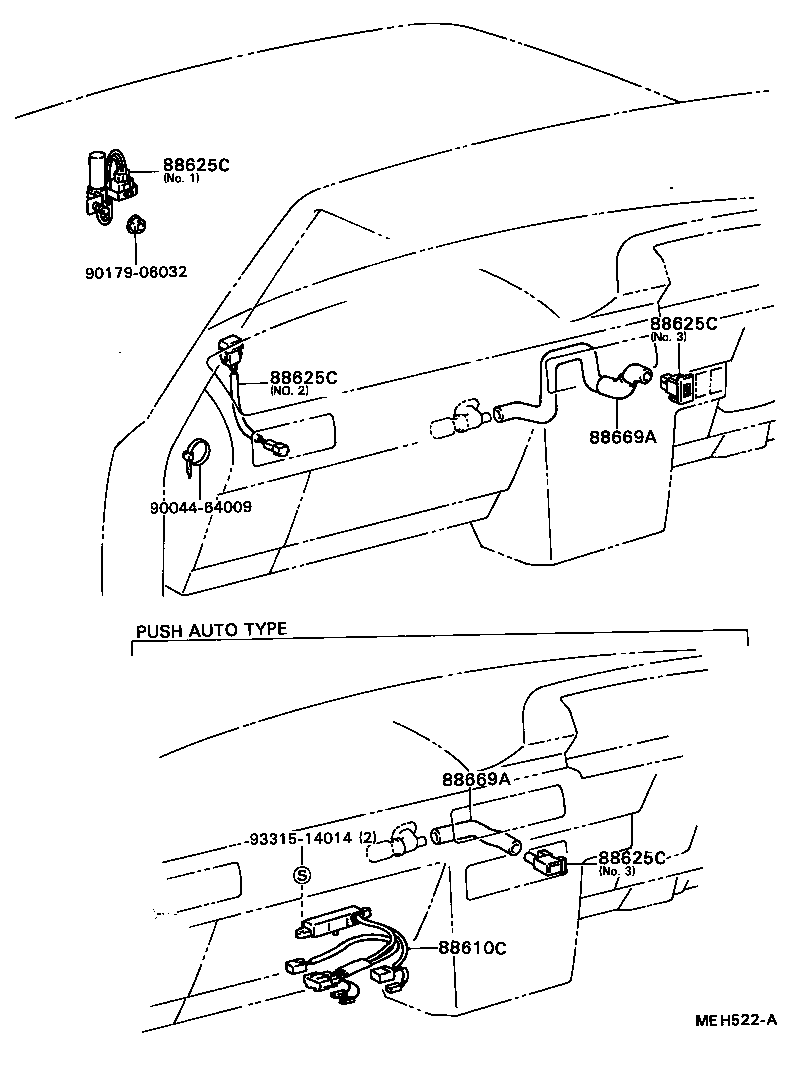

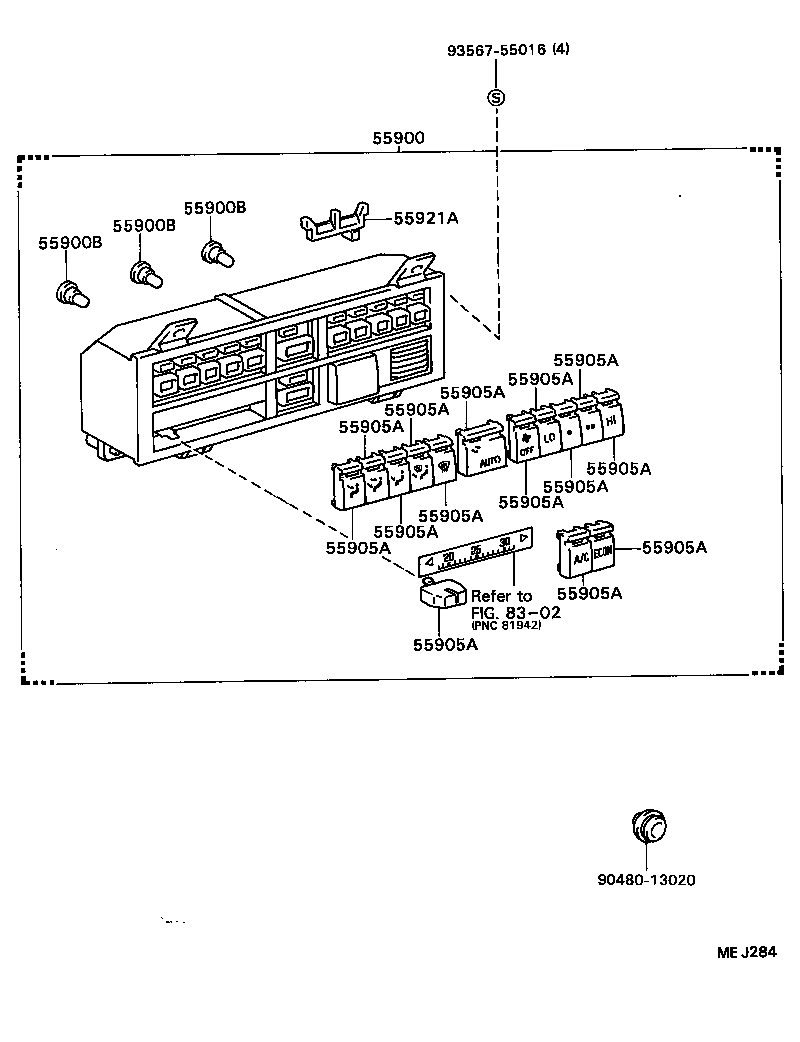

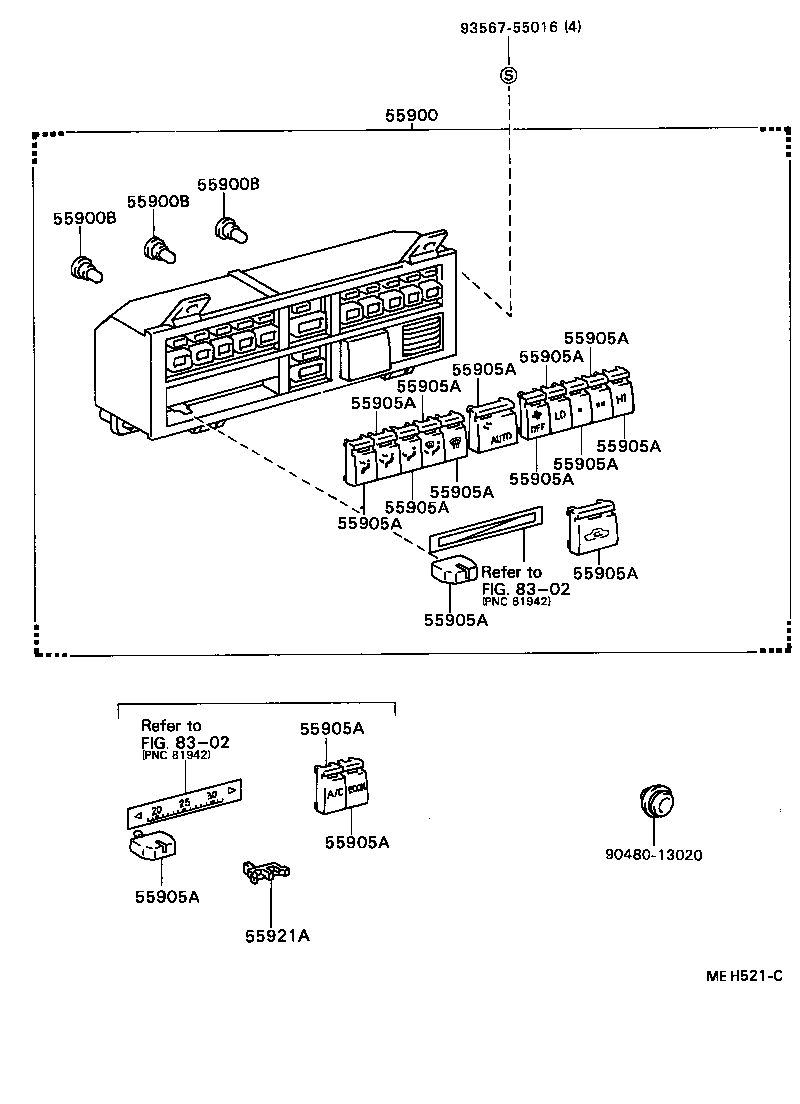

Figure MEH520B MEH520B 1986-08 → — Figure MEH521C MEH521C 1986-08 → — Figure MEJ284 MEJ284 1987-04 → — Figure MEH698A MEH698A 1986-08 → — Figure MEH522A MEH522A 1986-08 → —

Part groups

PNCDescription
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55917A Lever, Temperature Damper Control
55921A Retainer, Heater Control
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87214B Duct, Air, Side NO.3 RH
87215 Duct, Air, Side NO.1 LH
87284 Resistor Sub-assy, Variable
88610C Switch Assy, Cooler Control
88625C Thermistor, Cooler
88669A Hose (FOR COOLER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
