Toyota Camry/Vista
1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan
Discontinued model
Data version 1989-04
Heating & Air Conditioning - Cooler Piping
30 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88454A | Shroud, Fan |

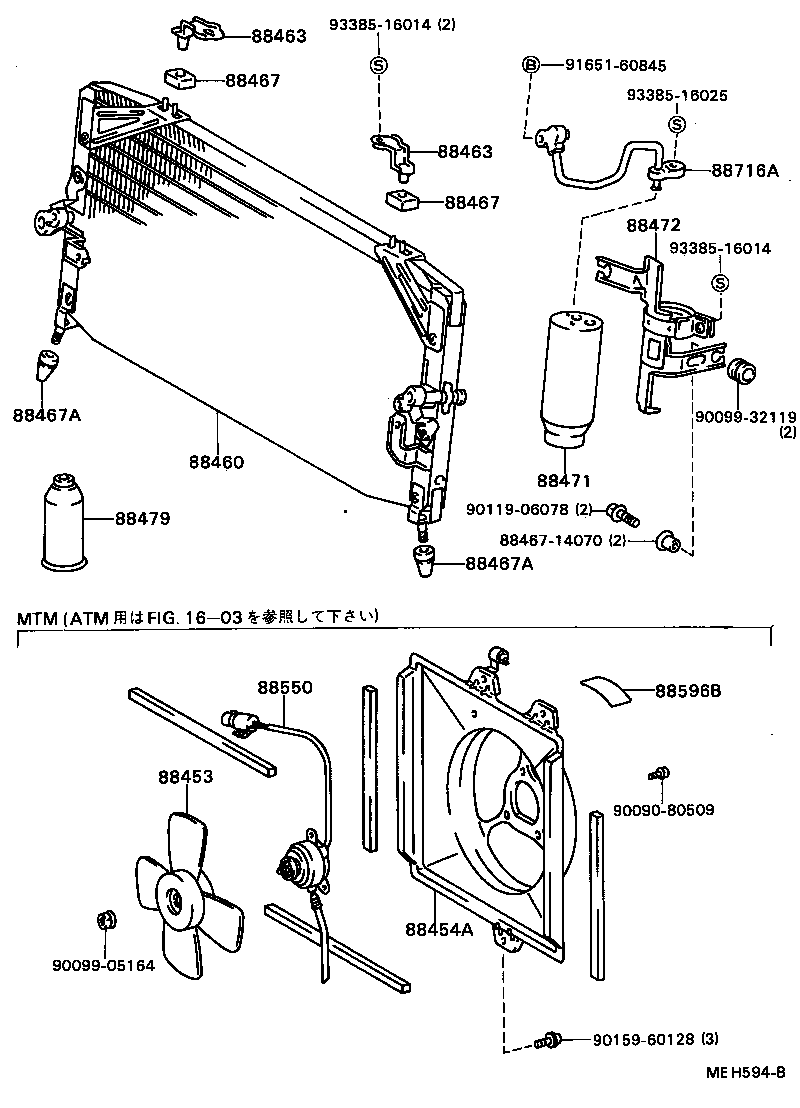

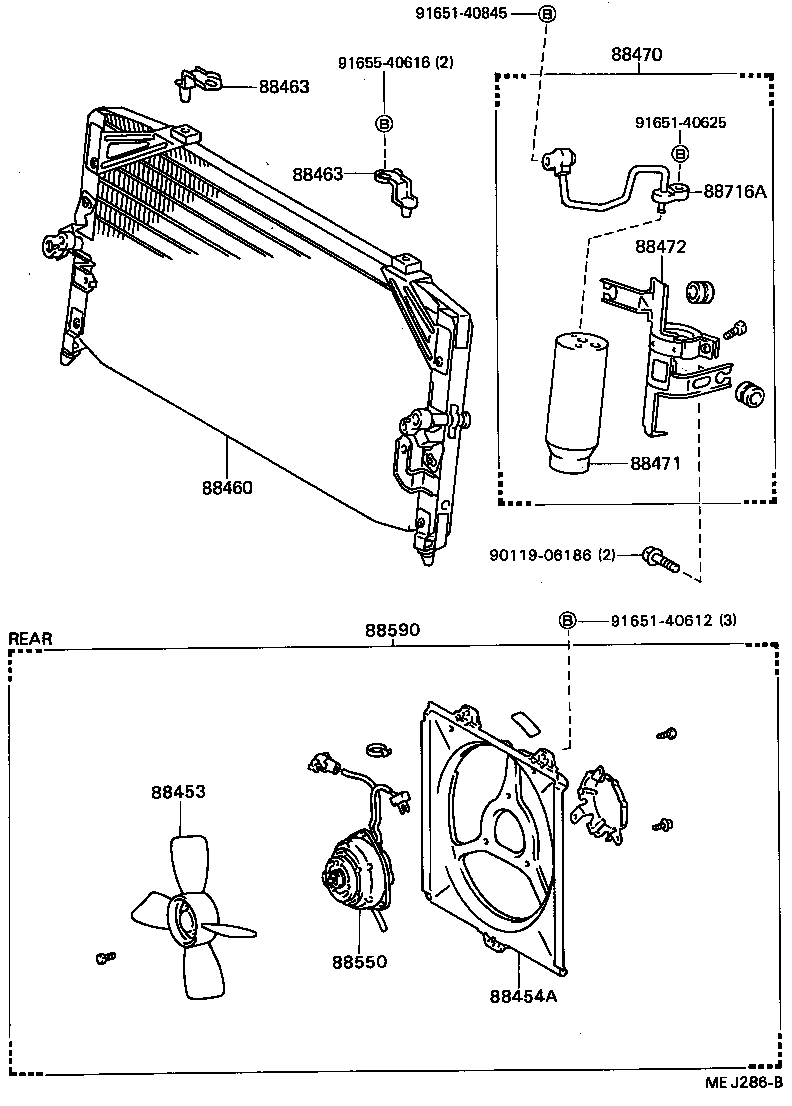

| 88460 | Condenser Assy, Cooler |
| 88463 | Bracket, Cooler Condenser, NO.1 |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88467A | Cushion, Cooler Condenser, NO.2 |
| 88467D | Cushion, Cooler Refrigerant Pipe Clamp |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88470B | Bolt, Fuse |
| 88471 | Tank, Receiver Air Conditioner |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88590 | Blower Assy, W/Shroud |
| 88596B | Plate, Caution, NO.1 |
| 88645H | Switch, Pressure NO.1 |
| 88688E | Bracket, Cooler Refrigerant Hose, NO.1 |

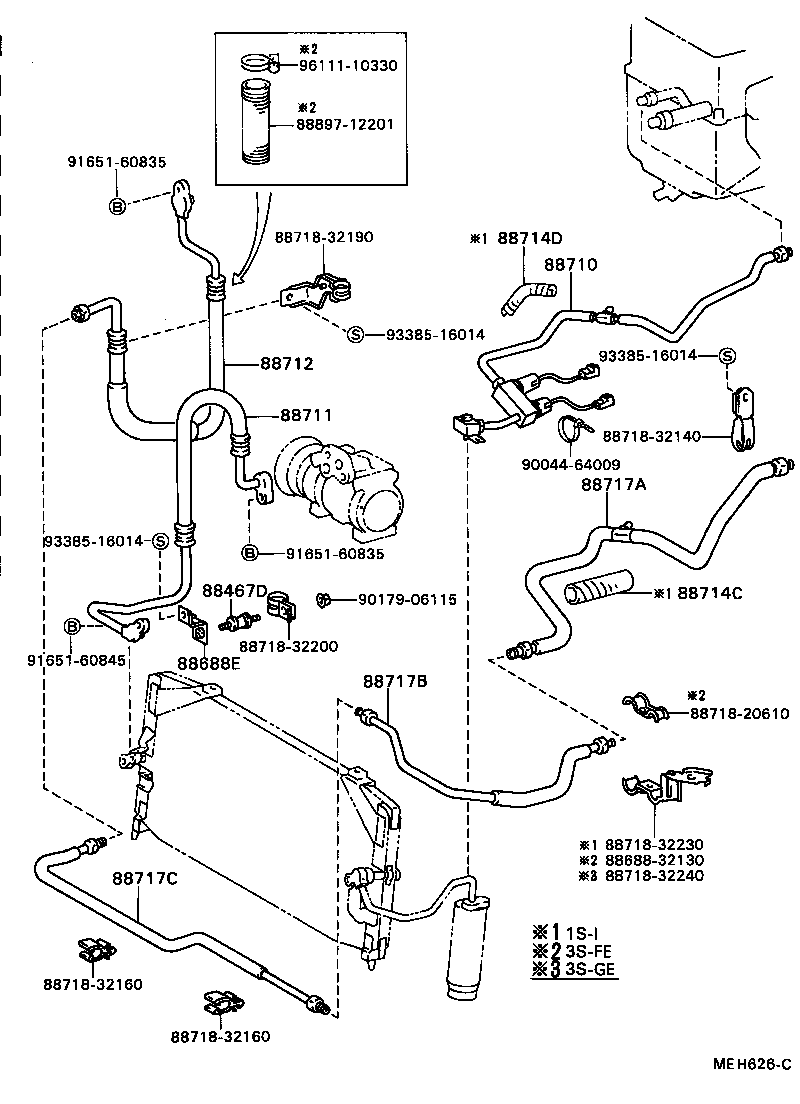

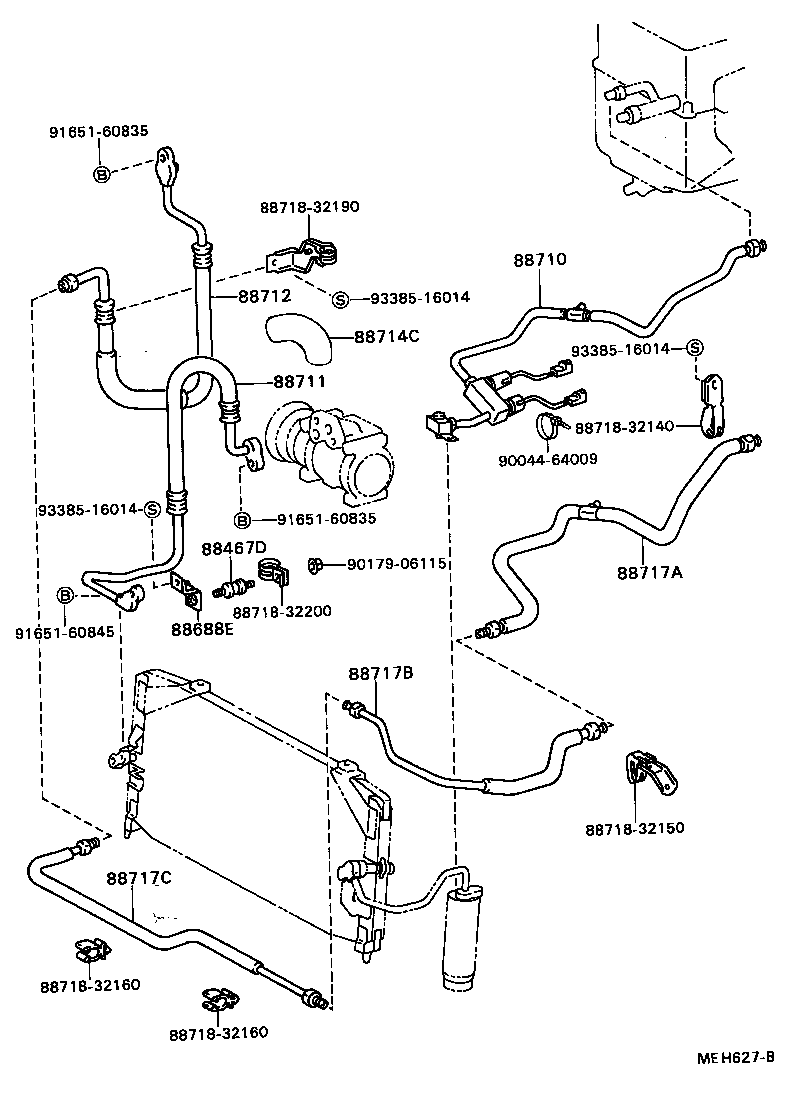

| 88710 | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88714C | Insulator, Cooler Refrigerant Hose, NO.1 |
| 88714D | Insulator, Cooler Refrigerant Hose, NO.2 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88717C | Pipe, Cooler Refrigerant Suction, C |

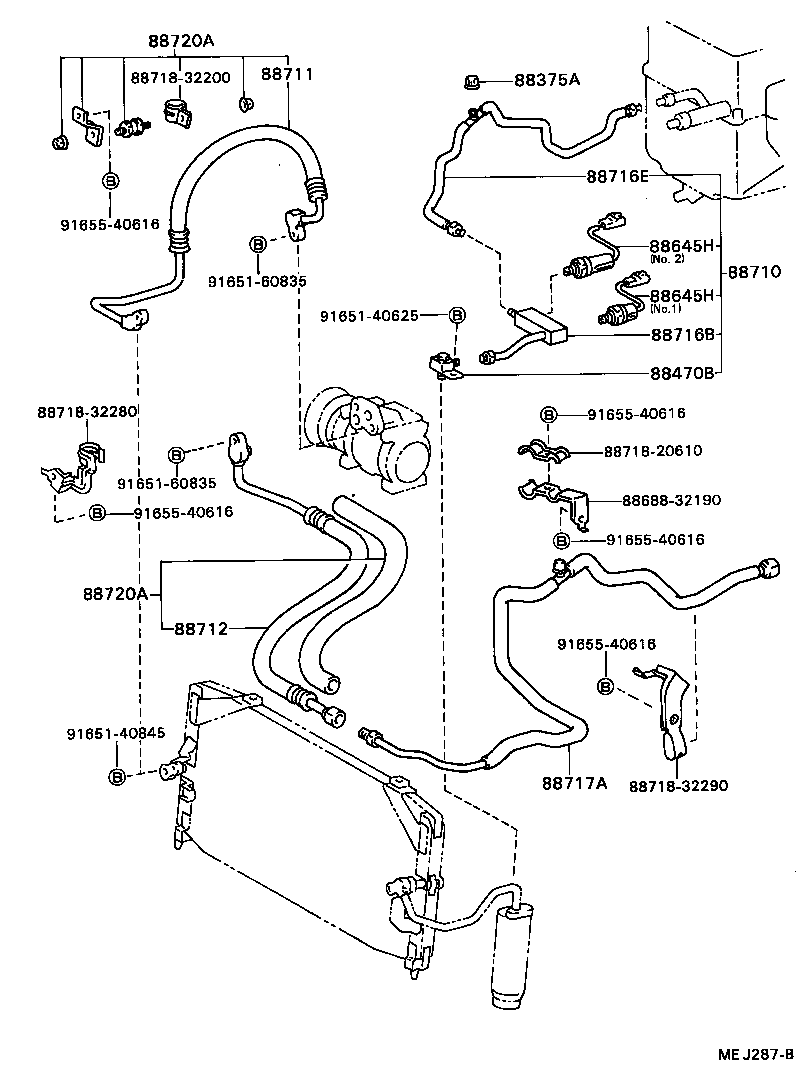

| 88720A | Hose & Accessory, Air Conditioner |
