Toyota Camry/Vista
1986-08 → 1988-08 · chassis SV2#,VZV20,CV20 · catalogue 281130 · Japan
Discontinued model
Data version 1989-04

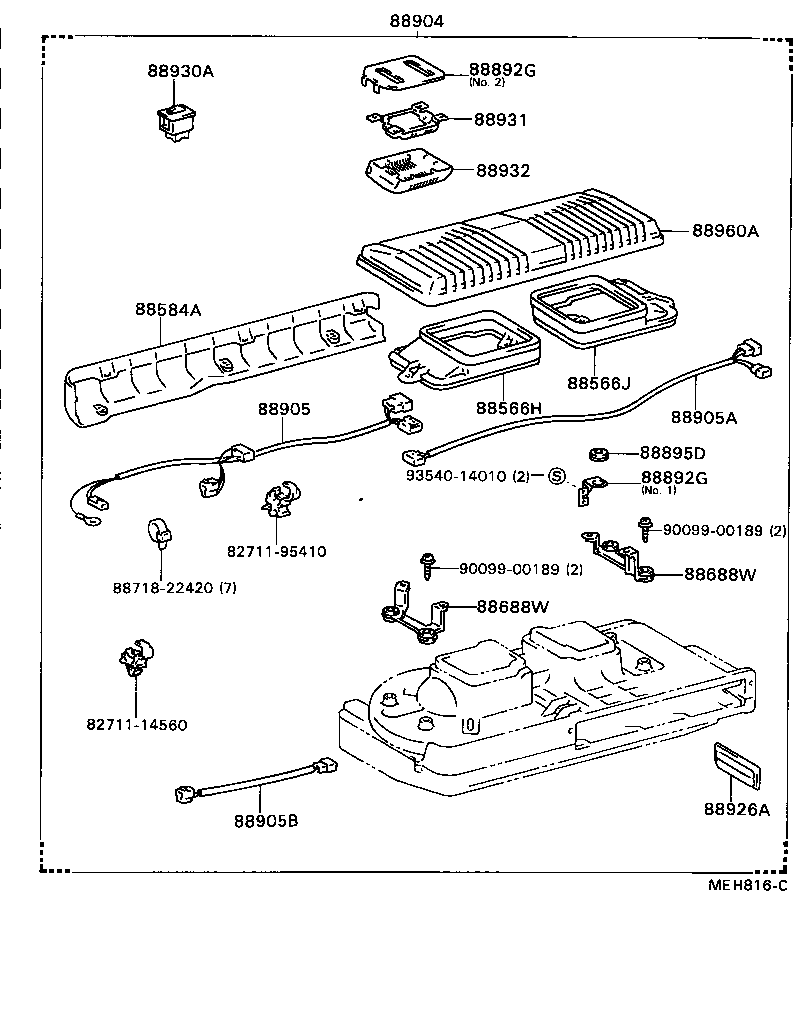

Air Purifier OR Ion Generator
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88566H | Duct, Air, NO.1 |
| 88566J | Duct, Air, NO.2 |
| 88578G | Packing, Air Purifier, NO.1 |
| 88584A | Guide, Air |
| 88688W | Bracket, Air Purifier, NO.1 |
| 88892G | Plate Sub-assy |
| 88895D | Grommet (FOR AIR PURIFIER) |
| 88901 | Motor Sub-assy, Air Purifier |
| 88904 | Fitting Kit, Air Purifier |
| 88905 | Wire Sub-assy, Air Purifier, NO.1 |
| 88905A | Wire Sub-assy, Air Purifier, NO.2 |
| 88905B | Wire Sub-assy, Air Purifier, NO.3 |
| 88905C | Wire Sub-assy, Air Purifier, NO.4 |
| 88905D | Wire Sub-assy, Air Purifier, NO.4 |
| 88912 | Fan, Air Purifier |
| 88915 | Resistor, Air Purifier |
| 88920A | Purifier Assy, Air |
| 88926 | Filter, Air Purifier |
| 88926A | Odor, Cartridge |
| 88930A | Switch Assy, Air Purifier |
| 88931 | Sensor, Smoke |
| 88932 | Cover, Smoke Sensor |
| 88950 | Amplifier Assy, Air Purifier |
| 88960A | Grille Assy, Air Purifier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
