Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

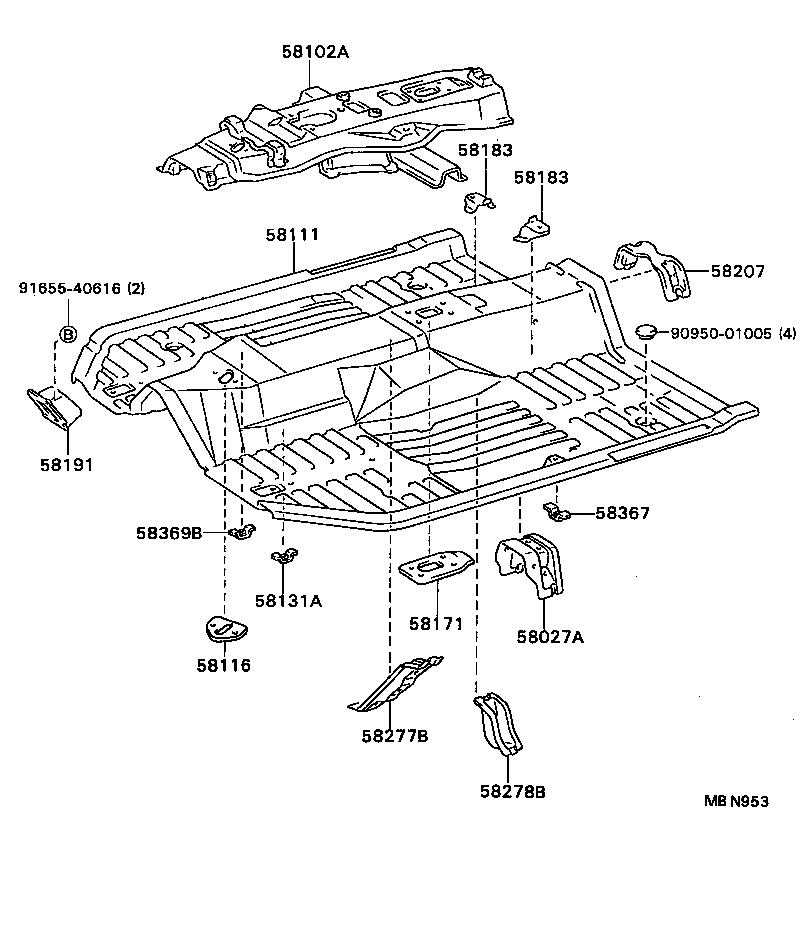

Exploded illustration MBN953 58102A — REINFORCEMENT SUB-ASSY, FRONT FLOOR (2 parts) 58183 — BRACKET, FRONT SEAT MOUNTING, INNER (2 parts) 58183 — BRACKET, FRONT SEAT MOUNTING, INNER (2 parts) 58111 — PAN, FRONT FLOOR (4 parts) 58207 — BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1 (2 parts) 9165540616 — not listed in this catalogue 9095001005 — not listed in this catalogue 58191 — FOOTREST, FRONT FLOOR (1 parts) 58367 — BRACKET, FUEL TUBE CLAMP (1 parts) 58369B — BRACKET, FUEL TUBE, NO.3 (2 parts) 58131A — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 (2 parts) 58171 — REINFORCEMENT, PARKING BRAKE BASE (2 parts) 58027A — REINFORCE SUB-ASSY, SEAT BELT ANCHOR (2 parts) 58116 — PLATE, SHIFT CABLE MOUNTING (1 parts) 58277B — REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT (1 parts) 58278B — REINFORCE, DRIVE SHAFT CENTER SUPPORT, NO.2 (1 parts)
MBN953 · 14 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
23 parts on this figure
Part number Description Fitment Price
58027A — Reinforce Sub-assy, Seat Belt Anchor
58027-32030 Reinforce Sub-assy, Seat Belt Anchor
1988-08 → 1990-07 ended
CV20,SV21,22,VZV20 ¥2,370
58027-32040 Reinforce Sub-assy, Seat Belt Anchor
1988-08 → 1990-07 ended
SV25 ¥3,130
58102A — Reinforcement Sub-assy, Front Floor
58102-32040 Reinforcement Sub-assy, Front Floor
1988-08 → 1990-07 ended
SV25 ¥14,000
58102-32900 Reinforcement Sub-assy, Front Floor
1988-08 → 1990-07 ended
CV20,SV21,22,VZV20 ¥10,100
58111 — Pan, Front Floor
58111-32020 Pan, Front Floor
1988-08 → 1990-07 ended
CV20,SV21,22,VZV20 4FC ¥39,400
58111-32030 Pan, Front Floor
1988-08 → 1990-07 ended
CV20,SV21,22,VZV20 5F ¥39,400
58111-32040 Pan, Front Floor
1988-08 → 1990-07 ended
SV25 4FC ¥52,500
58111-32050 Pan, Front Floor
1988-08 → 1990-07 ended
SV25 5F ¥52,500
58116 — Plate, Shift Cable Mounting
58116-32010 Plate, Shift Cable Mounting
1988-08 → 1990-07 ended
SV25 4FC ¥520
58131A — Bracket, Front Floor Heat Insulator, NO.1
58131-32010 Bracket, Front Floor Heat Insulator, NO.1
1988-08 → 1990-07 ended
SV25 ¥310
58131-32010 Bracket, Front Floor Heat Insulator, NO.1
1988-08 → 1990-07 ended
CV20,SV21,22,VZV20 ¥310
58171 — Reinforcement, Parking Brake Base
58107-32010 Reinforcement, Parking Brake Base
1988-08 → 1990-07 ended
SV21,VZV20 GT,PRO ¥1,680
58171-32010 Reinforcement, Parking Brake Base
1988-08 → 1990-07 ended
CV20,SV2# LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX ¥1,430
58183 — Bracket, Front Seat Mounting, Inner
58183-32030 note Bracket, Front Seat Mounting, Inner
1988-08 → 1990-07 ended
SV25 ¥740
58184-32030 note Bracket, Front Seat Mounting, Inner
1988-08 → 1990-07 ended
SV25 ¥1,030
58191 — Footrest, Front Floor
58191-32030 Footrest, Front Floor
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥2,380
58207 — Bracket Sub-assy, Parking Brake Cable, NO.1
58207-32020 Bracket Sub-assy, Parking Brake Cable, NO.1
1988-08 → 1990-07 ended
CV20,SV21,22,VZV20 ¥1,980
58207-32030 Bracket Sub-assy, Parking Brake Cable, NO.1
1988-08 → 1990-07 ended
SV25 ¥1,840
58277B — Reinforcement, Drive Shaft Center Support
58277-32010 Reinforcement, Drive Shaft Center Support
1988-08 → 1990-07 ended
SV25 ¥2,490
58278B — Reinforce, Drive Shaft Center Support, NO.2
58278-32030 Reinforce, Drive Shaft Center Support, NO.2
1988-08 → 1990-07 ended
SV25 ¥1,830
58367 — Bracket, Fuel Tube Clamp
58266-22040 Bracket, Fuel Tube Clamp
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥310
58369B — Bracket, Fuel Tube, NO.3
58369-32010 Bracket, Fuel Tube, NO.3
1988-08 → 1990-07 ended
CV20,SV21,22,VZV20 ¥320
58369-32010 Bracket, Fuel Tube, NO.3
1988-08 → 1990-07 ended
SV25 ¥320
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
