Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

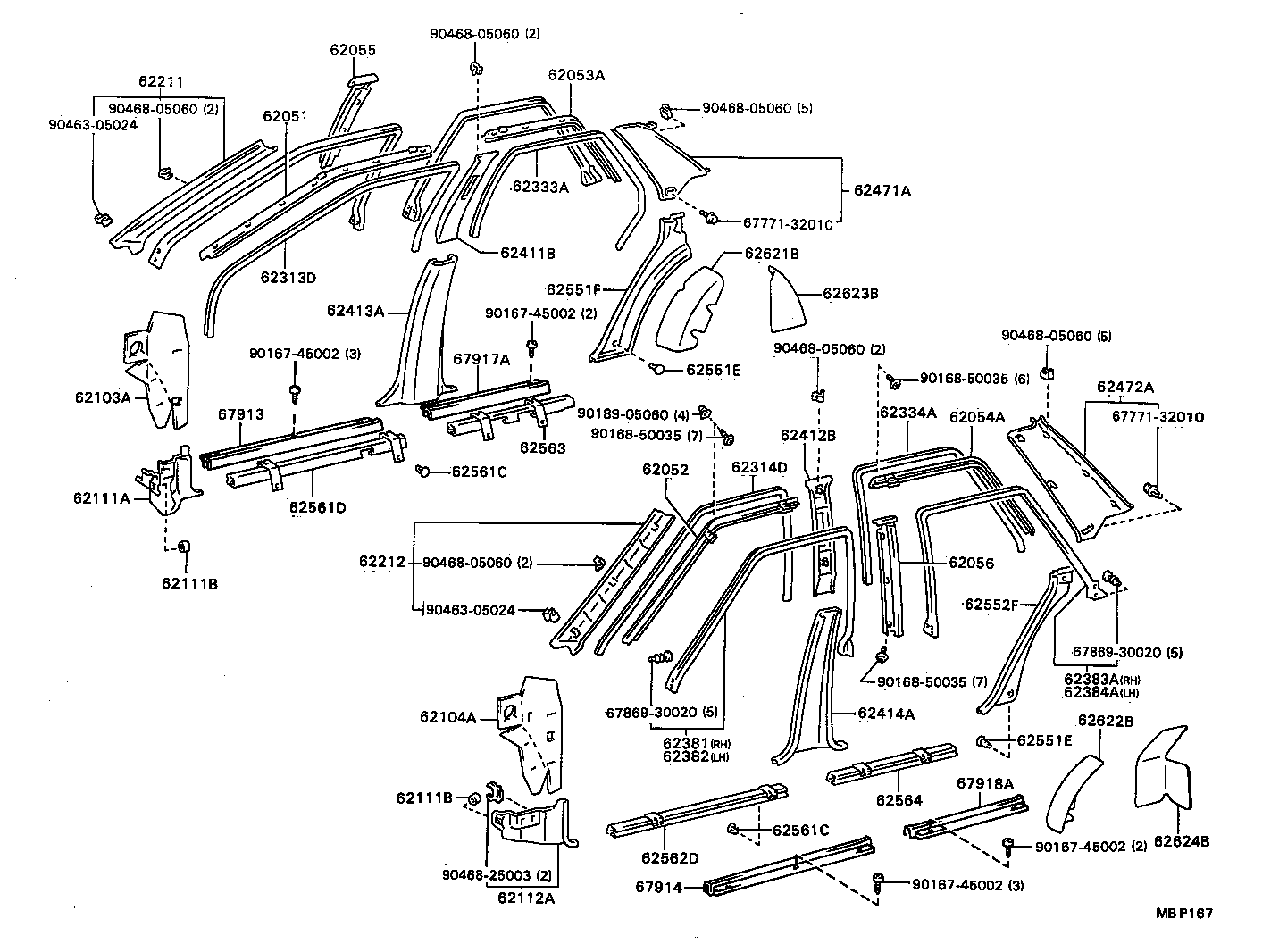

Exploded illustration MBP167 9046805060 — not listed in this catalogue 62055 — RETAINER SUB-ASSY, CENTER PILLAR WEATHERSTRIP, RH (1 parts) 62053A — RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR RH (2 parts) 62211 — GARNISH, FRONT PILLAR, RH (12 parts) 9046805060 — not listed in this catalogue 9046805060 — not listed in this catalogue 62051 — RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, FRONT RH (2 parts) 9046305024 — not listed in this catalogue 62333A — TRIM, REAR DOOR OPENING, RH (12 parts) 62471A — GARNISH, ROOF SIDE, INNER RH (21 parts) 6777132010 — not listed in this catalogue 62411B — GARNISH, CENTER PILLAR, UPPER RH (12 parts) 62621B — PAD, QUARTER WHEEL HOUSE, INNER FRONT RH (1 parts) 62313D — TRIM, FRONT DOOR OPENING, RH (6 parts) 62551F — GARNISH, REAR SEAT SIDE, RH (6 parts) 62623B — PAD, QUARTER WHEEL HOUSE, INNER REAR RH (1 parts) 62413A — GARNISH, CENTER PILLAR, LOWER RH (6 parts) 9016745002 — not listed in this catalogue 9046805060 — not listed in this catalogue 9046805060 — not listed in this catalogue 9016745002 — not listed in this catalogue 67917A — PLATE, REAR DOOR SCUFF, RH (3 parts) 62551E — CLIP(FOR REAR SEAT SIDE GARNISH) (1 parts) 9016850035 — not listed in this catalogue 62472A — GARNISH, ROOF SIDE, INNER LH (21 parts) 62103A — INSULATOR SUB-ASSY, COWL SIDE, RH (1 parts) 62334A — TRIM, REAR DOOR OPENING, LH (12 parts) 9018905060 — not listed in this catalogue 67913 — PLATE, FRONT DOOR SCUFF, RH (3 parts) 6777132010 — not listed in this catalogue 62054A — RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR LH (2 parts) 9016850035 — not listed in this catalogue 62412B — GARNISH, CENTER PILLAR, UPPER LH (12 parts) 62563 — PROTECTOR, ROCKER PANEL, INNER REAR RH (2 parts) 62314D — TRIM, FRONT DOOR OPENING, LH (6 parts) 62052 — RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, FRONT LH (2 parts) 62561C — CLIP (FOR ROCKER PANEL INNER PROTECTOR) (1 parts) 62111A — TRIM SUB-ASSY, COWL SIDE, RH (3 parts) 62561D — PROTECTOR, ROCKER PANEL, INNER FRONT RH (1 parts) 62212 — GARNISH, FRONT PILLAR, LH (12 parts) 62056 — RETAINER SUB-ASSY, CENTER PILLAR WEATHERSTRIP, LH (1 parts) 9046805060 — not listed in this catalogue 62111B — CLIP(FOR COWL SIDE TRIM) (1 parts) 62552F — GARNISH, REAR SEAT SIDE, LH (6 parts) 9046305024 — not listed in this catalogue 6786930020 — not listed in this catalogue 62383A — WEATHERSTRIP, ROOF SIDE RAIL, REAR RH (2 parts) 9016850035 — not listed in this catalogue 62384A — WEATHERSTRIP, ROOF SIDE RAIL, REAR LH (2 parts) 6786930020 — not listed in this catalogue 62414A — GARNISH, CENTER PILLAR, LOWER LH (6 parts) 62104A — INSULATOR SUB-ASSY, COWL SIDE, LH (1 parts) 62622B — PAD, QUARTER WHEEL HOUSE, INNER FRONT LH (1 parts) 62551E — CLIP(FOR REAR SEAT SIDE GARNISH) (1 parts) 62381 — WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH (2 parts) 62382 — WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH (2 parts) 67918A — PLATE, REAR DOOR SCUFF, LH (3 parts) 62111B — CLIP(FOR COWL SIDE TRIM) (1 parts) 62564 — PROTECTOR, ROCKER PANEL, INNER REAR LH (2 parts) 62561C — CLIP (FOR ROCKER PANEL INNER PROTECTOR) (1 parts) 62624B — PAD, QUARTER WHEEL HOUSE, INNER REAR LH (2 parts) 9016745002 — not listed in this catalogue 62562D — PROTECTOR, ROCKER PANEL, INNER FRONT LH (1 parts) 9046825003 — not listed in this catalogue 9016745002 — not listed in this catalogue 67914 — PLATE, FRONT DOOR SCUFF, LH (3 parts) 62112A — TRIM SUB-ASSY, COWL SIDE, LH (3 parts)
MBP167 · 46 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
202 parts on this figure
Part number Description Fitment Price
62051 — Retainer Sub-assy, Roof Side Weatherstrip, Front RH
62051-32010 Retainer Sub-assy, Roof Side Weatherstrip, Front RH
1988-08 → 1989-06 ended
CV20,SV2#,VZV20 HT ¥6,600
62051-32020 Retainer Sub-assy, Roof Side Weatherstrip, Front RH
1989-06 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥6,000
62052 — Retainer Sub-assy, Roof Side Weatherstrip, Front LH
62052-32010 Retainer Sub-assy, Roof Side Weatherstrip, Front LH
1988-08 → 1989-06 ended
CV20,SV2#,VZV20 HT ¥6,600
62052-32020 Retainer Sub-assy, Roof Side Weatherstrip, Front LH
1989-06 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥6,000
62053A — Retainer Sub-assy, Roof Side Weatherstrip, Rear RH
62053-32010 Retainer Sub-assy, Roof Side Weatherstrip, Rear RH
1988-08 → 1989-06 ended
CV20,SV2#,VZV20 HT ¥5,900
62053-32020 Retainer Sub-assy, Roof Side Weatherstrip, Rear RH
1989-06 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥5,900
62054A — Retainer Sub-assy, Roof Side Weatherstrip, Rear LH
62054-32010 Retainer Sub-assy, Roof Side Weatherstrip, Rear LH
1988-08 → 1989-06 ended
CV20,SV2#,VZV20 HT ¥5,900
62054-32020 Retainer Sub-assy, Roof Side Weatherstrip, Rear LH
1989-06 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥5,900
62055 — Retainer Sub-assy, Center Pillar Weatherstrip, RH
62055-32010 Retainer Sub-assy, Center Pillar Weatherstrip, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥6,300
62056 — Retainer Sub-assy, Center Pillar Weatherstrip, LH
62056-32010 Retainer Sub-assy, Center Pillar Weatherstrip, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥6,300
62103A — Insulator Sub-assy, Cowl Side, RH
62105-32030 Insulator Sub-assy, Cowl Side, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,870
62104A — Insulator Sub-assy, Cowl Side, LH
62106-32030 Insulator Sub-assy, Cowl Side, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,870
62111A — Trim Sub-assy, Cowl Side, RH
62101-32030-02 note Trim Sub-assy, Cowl Side, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥2,330
62101-32030-03 note Trim Sub-assy, Cowl Side, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥2,330
62101-32030-04 note Trim Sub-assy, Cowl Side, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥2,330
62111B — Clip(FOR COWL SIDE TRIM)
90467-06074 Clip(FOR COWL SIDE TRIM)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥140
62112A — Trim Sub-assy, Cowl Side, LH
62102-32060-02 note Trim Sub-assy, Cowl Side, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥2,330
62102-32060-03 note Trim Sub-assy, Cowl Side, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥2,330
62102-32060-04 note Trim Sub-assy, Cowl Side, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥2,330
62211 — Garnish, Front Pillar, RH
62210-32050-02 note Garnish, Front Pillar, RH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥6,600
62210-32050-03 note Garnish, Front Pillar, RH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥6,600
62210-32050-04 note Garnish, Front Pillar, RH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥6,600
62210-32060-02 note Garnish, Front Pillar, RH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥9,300
62210-32060-03 note Garnish, Front Pillar, RH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥9,300
62210-32060-04 note Garnish, Front Pillar, RH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥9,300
62210-32080-02 note Garnish, Front Pillar, RH
1988-08 → 1990-07 ended
CV20,SV2# HT ¥5,900
62210-32080-03 note Garnish, Front Pillar, RH
1988-08 → 1990-07 ended
CV20,SV2# HT ¥5,900
62210-32080-04 note Garnish, Front Pillar, RH
1988-08 → 1990-07 ended
CV20,SV2# HT ¥5,900
62210-32090-02 note Garnish, Front Pillar, RH
1988-08 → 1990-07 ended
VZV20 HT ¥7,100
62210-32090-03 note Garnish, Front Pillar, RH
1988-08 → 1990-07 ended
VZV20 HT ¥7,100
62210-32090-04 note Garnish, Front Pillar, RH
1988-08 → 1990-07 ended
VZV20 HT ¥7,100
62212 — Garnish, Front Pillar, LH
62220-32050-02 note Garnish, Front Pillar, LH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥6,600
62220-32050-03 note Garnish, Front Pillar, LH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥6,600
62220-32050-04 note Garnish, Front Pillar, LH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥6,600
62220-32060-02 note Garnish, Front Pillar, LH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥9,300
62220-32060-03 note Garnish, Front Pillar, LH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥9,300
62220-32060-04 note Garnish, Front Pillar, LH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥9,300
62220-32080-02 note Garnish, Front Pillar, LH
1988-08 → 1990-07 ended
CV20,SV2# HT ¥5,900
62220-32080-03 note Garnish, Front Pillar, LH
1988-08 → 1990-07 ended
CV20,SV2# HT ¥5,900
62220-32080-04 note Garnish, Front Pillar, LH
1988-08 → 1990-07 ended
CV20,SV2# HT ¥5,900
62220-32090-02 note Garnish, Front Pillar, LH
1988-08 → 1990-07 ended
VZV20 HT ¥7,100
62220-32090-03 note Garnish, Front Pillar, LH
1988-08 → 1990-07 ended
VZV20 HT ¥7,100
62220-32090-04 note Garnish, Front Pillar, LH
1988-08 → 1990-07 ended
VZV20 HT ¥7,100
62313D — Trim, Front Door Opening, RH
62313-32010-02 note Trim, Front Door Opening, RH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥2,520
62313-32010-03 note Trim, Front Door Opening, RH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥2,520
62313-32010-04 note Trim, Front Door Opening, RH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥2,520
62313-32020-02 note Trim, Front Door Opening, RH
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥2,710
62313-32020-03 note Trim, Front Door Opening, RH
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥2,710
62313-32020-04 note Trim, Front Door Opening, RH
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥2,710
62314D — Trim, Front Door Opening, LH
62313-32010-02 note Trim, Front Door Opening, LH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥2,520
62313-32010-03 note Trim, Front Door Opening, LH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥2,520
62313-32010-04 note Trim, Front Door Opening, LH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥2,520
62313-32020-02 note Trim, Front Door Opening, LH
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥2,710
62313-32020-03 note Trim, Front Door Opening, LH
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥2,710
62313-32020-04 note Trim, Front Door Opening, LH
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥2,710
62333A — Trim, Rear Door Opening, RH
62333-32030-02 note Trim, Rear Door Opening, RH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥2,520
62333-32030-03 note Trim, Rear Door Opening, RH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥2,520
62333-32030-04 note Trim, Rear Door Opening, RH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥2,520
62333-32040-02 note Trim, Rear Door Opening, RH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥2,710
62333-32040-03 note Trim, Rear Door Opening, RH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥2,710
62333-32040-04 note Trim, Rear Door Opening, RH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥2,710
62333-32050-02 note Trim, Rear Door Opening, RH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥2,050
62333-32050-03 note Trim, Rear Door Opening, RH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥2,050
62333-32050-04 note Trim, Rear Door Opening, RH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥2,050
62333-32060-02 note Trim, Rear Door Opening, RH
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥2,300
62333-32060-03 note Trim, Rear Door Opening, RH
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥2,300
62333-32060-04 note Trim, Rear Door Opening, RH
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥2,300
62334A — Trim, Rear Door Opening, LH
62333-32050-02 note Trim, Rear Door Opening, LH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥2,050
62333-32050-03 note Trim, Rear Door Opening, LH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥2,050
62333-32050-04 note Trim, Rear Door Opening, LH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥2,050
62333-32060-02 note Trim, Rear Door Opening, LH
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥2,300
62333-32060-03 note Trim, Rear Door Opening, LH
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥2,300
62333-32060-04 note Trim, Rear Door Opening, LH
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥2,300
62334-32010-02 note Trim, Rear Door Opening, LH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥2,520
62334-32010-03 note Trim, Rear Door Opening, LH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥2,520
62334-32010-04 note Trim, Rear Door Opening, LH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥2,520
62334-32020-02 note Trim, Rear Door Opening, LH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥2,710
62334-32020-03 note Trim, Rear Door Opening, LH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥2,710
62334-32020-04 note Trim, Rear Door Opening, LH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥2,710
62381 — Weatherstrip, Roof Side Rail, Front RH
62381-32010 Weatherstrip, Roof Side Rail, Front RH
1988-08 → 1989-06 ended
CV20,SV2#,VZV20 HT ¥9,100
62381-32030 Weatherstrip, Roof Side Rail, Front RH
1989-06 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥7,500
62382 — Weatherstrip, Roof Side Rail, Front LH
62382-32010 Weatherstrip, Roof Side Rail, Front LH
1988-08 → 1989-06 ended
CV20,SV2#,VZV20 HT ¥9,100
62382-32030 Weatherstrip, Roof Side Rail, Front LH
1989-06 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥7,500
62383A — Weatherstrip, Roof Side Rail, Rear RH
62383-32010 Weatherstrip, Roof Side Rail, Rear RH
1988-08 → 1989-06 ended
CV20,SV2#,VZV20 HT ¥7,900
62383-32030 Weatherstrip, Roof Side Rail, Rear RH
1989-06 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥7,500
62384A — Weatherstrip, Roof Side Rail, Rear LH
62384-32010 Weatherstrip, Roof Side Rail, Rear LH
1988-08 → 1989-06 ended
CV20,SV2#,VZV20 HT ¥7,900
62384-32030 Weatherstrip, Roof Side Rail, Rear LH
1989-06 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥7,500
62411B — Garnish, Center Pillar, Upper RH
62411-32100-02 note Garnish, Center Pillar, Upper RH
1988-08 → 1990-07 ended
VZV20 HT ¥3,400
62411-32100-03 note Garnish, Center Pillar, Upper RH
1988-08 → 1990-07 ended
VZV20 HT ¥3,400
62411-32100-04 note Garnish, Center Pillar, Upper RH
1988-08 → 1990-07 ended
VZV20 HT ¥3,400
62411-32130-02 note Garnish, Center Pillar, Upper RH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥2,030
62411-32130-03 note Garnish, Center Pillar, Upper RH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥2,030
62411-32130-04 note Garnish, Center Pillar, Upper RH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥2,030
62411-32140-02 note Garnish, Center Pillar, Upper RH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥2,860
62411-32140-03 note Garnish, Center Pillar, Upper RH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥2,860
62411-32140-04 note Garnish, Center Pillar, Upper RH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥2,860
62411-32160-02 note Garnish, Center Pillar, Upper RH
1988-08 → 1990-07 ended
CV20,SV2# HT ¥1,950
62411-32160-03 note Garnish, Center Pillar, Upper RH
1988-08 → 1990-07 ended
CV20,SV2# HT ¥1,950
62411-32160-04 note Garnish, Center Pillar, Upper RH
1988-08 → 1990-07 ended
CV20,SV2# HT ¥1,950
62412B — Garnish, Center Pillar, Upper LH
62412-32100-02 note Garnish, Center Pillar, Upper LH
1988-08 → 1990-07 ended
VZV20 HT ¥3,400
62412-32100-03 note Garnish, Center Pillar, Upper LH
1988-08 → 1990-07 ended
VZV20 HT ¥3,400
62412-32100-04 note Garnish, Center Pillar, Upper LH
1988-08 → 1990-07 ended
VZV20 HT ¥3,400
62412-32130-02 note Garnish, Center Pillar, Upper LH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥2,030
62412-32130-03 note Garnish, Center Pillar, Upper LH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥2,030
62412-32130-04 note Garnish, Center Pillar, Upper LH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥2,030
62412-32140-02 note Garnish, Center Pillar, Upper LH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥2,860
62412-32140-03 note Garnish, Center Pillar, Upper LH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥2,860
62412-32140-04 note Garnish, Center Pillar, Upper LH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥2,860
62412-32160-02 note Garnish, Center Pillar, Upper LH
1988-08 → 1990-07 ended
CV20,SV2# HT ¥1,950
62412-32160-03 note Garnish, Center Pillar, Upper LH
1988-08 → 1990-07 ended
CV20,SV2# HT ¥1,950
62412-32160-04 note Garnish, Center Pillar, Upper LH
1988-08 → 1990-07 ended
CV20,SV2# HT ¥1,950
62413A — Garnish, Center Pillar, Lower RH
62413-32020-02 note Garnish, Center Pillar, Lower RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED ¥2,530
62413-32020-03 note Garnish, Center Pillar, Lower RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED ¥2,530
62413-32020-04 note Garnish, Center Pillar, Lower RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED ¥2,530
62413-32040-02 note Garnish, Center Pillar, Lower RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥2,530
62413-32040-03 note Garnish, Center Pillar, Lower RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥2,530
62413-32040-04 note Garnish, Center Pillar, Lower RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥2,530
62414A — Garnish, Center Pillar, Lower LH
62414-32020-02 note Garnish, Center Pillar, Lower LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED ¥2,530
62414-32020-03 note Garnish, Center Pillar, Lower LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED ¥2,530
62414-32020-04 note Garnish, Center Pillar, Lower LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED ¥2,530
62414-32040-02 note Garnish, Center Pillar, Lower LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥2,530
62414-32040-03 note Garnish, Center Pillar, Lower LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥2,530
62414-32040-04 note Garnish, Center Pillar, Lower LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥2,530
62471A — Garnish, Roof Side, Inner RH
62470-32110-02 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
SV21 HT (GT,VX) ¥11,200
62470-32110-03 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
SV21 HT (GT,VX) ¥11,200
62470-32110-04 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
SV21 HT (GT,VX) ¥11,200
62470-32140-02 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥13,600
62470-32140-03 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥13,600
62470-32140-04 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥13,600
62470-32170-02 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥18,300
62470-32170-03 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥18,300
62470-32170-04 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥18,300
62470-32180-02 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥11,800
62470-32180-03 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥11,800
62470-32180-04 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥11,800
62470-32190-02 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
VZV20 HT ¥16,800
62470-32190-03 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
VZV20 HT ¥16,800
62470-32190-04 note Garnish, Roof Side, Inner RH
1988-08 → 1990-07 ended
VZV20 HT ¥16,800
62470-32200-02 note Garnish, Roof Side, Inner RH
1988-08 → 1989-05 ended
VZV20 HT ¥17,800
62470-32200-02 note Garnish, Roof Side, Inner RH
1989-05 → 1990-07 ended
VZV20 HT ¥17,800
62470-32200-03 note Garnish, Roof Side, Inner RH
1989-05 → 1990-07 ended
VZV20 HT ¥17,800
62470-32200-03 note Garnish, Roof Side, Inner RH
1988-08 → 1989-05 ended
VZV20 HT ¥17,800
62470-32200-04 note Garnish, Roof Side, Inner RH
1988-08 → 1989-05 ended
VZV20 HT ¥17,800
62470-32200-04 note Garnish, Roof Side, Inner RH
1989-05 → 1990-07 ended
VZV20 HT ¥17,800
62472A — Garnish, Roof Side, Inner LH
62480-32110-02 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
SV21 HT (GT,VX) ¥11,200
62480-32110-03 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
SV21 HT (GT,VX) ¥11,200
62480-32110-04 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
SV21 HT (GT,VX) ¥11,200
62480-32130-02 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
VZV20 HT ¥16,800
62480-32130-03 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
VZV20 HT ¥16,800
62480-32130-04 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
VZV20 HT ¥16,800
62480-32140-02 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥13,600
62480-32140-03 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥13,600
62480-32140-04 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
CV20,SV2# SED (LT,LUM,VC,VE,VL,VR,XT,ZE) ¥13,600
62480-32170-02 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥18,300
62480-32170-03 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥18,300
62480-32170-04 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
SV21,VZV20 SED (GT,PRO,VX,ZX) ¥18,300
62480-32180-02 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥11,800
62480-32180-03 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥11,800
62480-32180-04 note Garnish, Roof Side, Inner LH
1988-08 → 1990-07 ended
CV20,SV2# HT (VE,VL,VR) ¥11,800
62480-32190-02 note Garnish, Roof Side, Inner LH
1988-08 → 1989-05 ended
VZV20 HT ¥17,800
62480-32190-02 note Garnish, Roof Side, Inner LH
1989-05 → 1990-07 ended
VZV20 HT ¥17,800
62480-32190-03 note Garnish, Roof Side, Inner LH
1988-08 → 1989-05 ended
VZV20 HT ¥17,800
62480-32190-03 note Garnish, Roof Side, Inner LH
1989-05 → 1990-07 ended
VZV20 HT ¥17,800
62480-32190-04 note Garnish, Roof Side, Inner LH
1989-05 → 1990-07 ended
VZV20 HT ¥17,800
62480-32190-04 note Garnish, Roof Side, Inner LH
1988-08 → 1989-05 ended
VZV20 HT ¥17,800
62551E — Clip(FOR REAR SEAT SIDE GARNISH)
90467-06018-01 note Clip(FOR REAR SEAT SIDE GARNISH)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥90
62551F — Garnish, Rear Seat Side, RH
62551-32020-02 note Garnish, Rear Seat Side, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED ¥4,080
62551-32020-03 note Garnish, Rear Seat Side, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED ¥4,080
62551-32020-04 note Garnish, Rear Seat Side, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED ¥4,080
62551-32030-02 note Garnish, Rear Seat Side, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥4,080
62551-32030-03 note Garnish, Rear Seat Side, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥4,080
62551-32030-04 note Garnish, Rear Seat Side, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥4,080
62552F — Garnish, Rear Seat Side, LH
62552-32020-02 note Garnish, Rear Seat Side, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED ¥4,080
62552-32020-03 note Garnish, Rear Seat Side, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED ¥4,080
62552-32020-04 note Garnish, Rear Seat Side, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED ¥4,080
62552-32030-02 note Garnish, Rear Seat Side, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥4,080
62552-32030-03 note Garnish, Rear Seat Side, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥4,080
62552-32030-04 note Garnish, Rear Seat Side, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT ¥4,080
62561C — Clip (FOR ROCKER PANEL INNER PROTECTOR)
90467-11021-01 note Clip (FOR ROCKER PANEL INNER PROTECTOR)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥300
62561D — Protector, Rocker Panel, Inner Front RH
62561-32020 Protector, Rocker Panel, Inner Front RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,950
62562D — Protector, Rocker Panel, Inner Front LH
62562-32020 Protector, Rocker Panel, Inner Front LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,950
62563 — Protector, Rocker Panel, Inner Rear RH
62563-03010 Protector, Rocker Panel, Inner Rear RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥850
62563-32020 Protector, Rocker Panel, Inner Rear RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,480
62564 — Protector, Rocker Panel, Inner Rear LH
62564-03010 Protector, Rocker Panel, Inner Rear LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥850
62564-32020 Protector, Rocker Panel, Inner Rear LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,480
62621B — Pad, Quarter Wheel House, Inner Front RH
67812-12010 Pad, Quarter Wheel House, Inner Front RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥640
62622B — Pad, Quarter Wheel House, Inner Front LH
67812-12010 Pad, Quarter Wheel House, Inner Front LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥640
62623B — Pad, Quarter Wheel House, Inner Rear RH
62623-32010 Pad, Quarter Wheel House, Inner Rear RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,540
62624B — Pad, Quarter Wheel House, Inner Rear LH
62624-20030 Pad, Quarter Wheel House, Inner Rear LH
1988-08 → 1990-07 ended
SV25 ¥1,120
62624-32010 Pad, Quarter Wheel House, Inner Rear LH
1988-08 → 1990-07 ended
CV20,SV21,22,VZV20 ¥2,470
67913 — Plate, Front Door Scuff, RH
67913-32020-02 note Plate, Front Door Scuff, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥3,190
67913-32020-03 note Plate, Front Door Scuff, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥3,190
67913-32020-04 note Plate, Front Door Scuff, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥3,190
67914 — Plate, Front Door Scuff, LH
67913-32020-02 note Plate, Front Door Scuff, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥3,190
67913-32020-03 note Plate, Front Door Scuff, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥3,190
67913-32020-04 note Plate, Front Door Scuff, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥3,190
67917A — Plate, Rear Door Scuff, RH
67917-32020-02 note Plate, Rear Door Scuff, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,880
67917-32020-03 note Plate, Rear Door Scuff, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,880
67917-32020-04 note Plate, Rear Door Scuff, RH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,880
67918A — Plate, Rear Door Scuff, LH
67917-32020-02 note Plate, Rear Door Scuff, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,880
67917-32020-03 note Plate, Rear Door Scuff, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,880
67917-32020-04 note Plate, Rear Door Scuff, LH
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 ¥1,880
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
