Toyota Camry/Vista
1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan
Discontinued model
Data version 1991-03

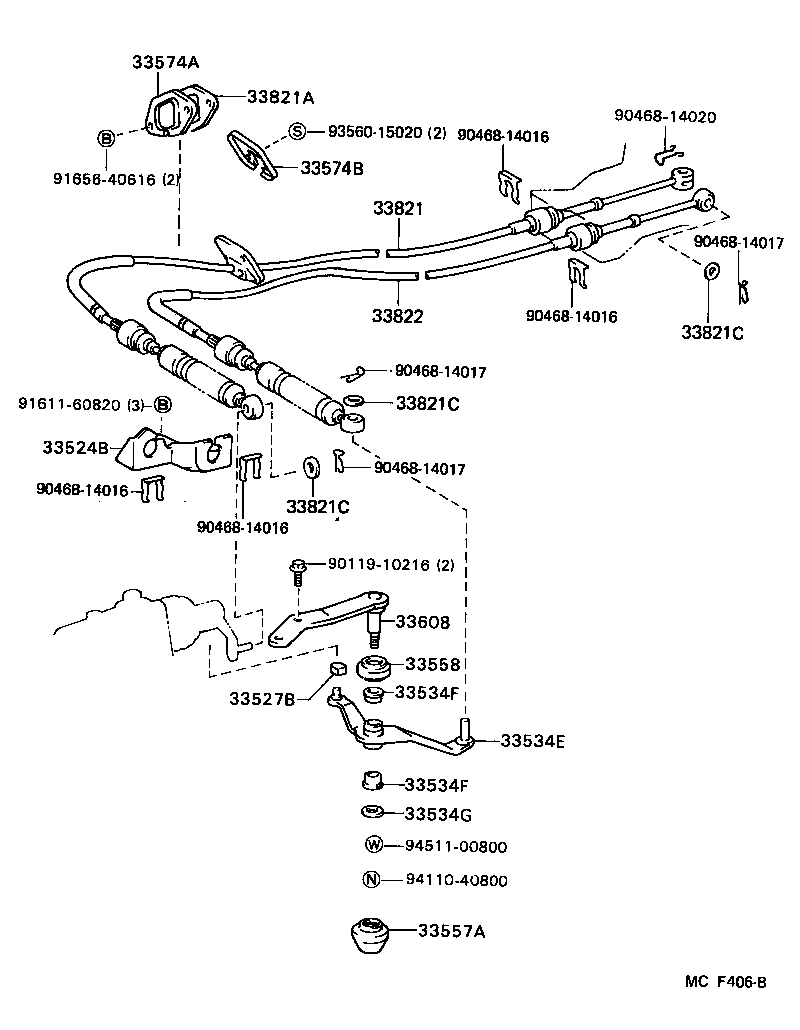

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33524B — Bracket, Control Cable | ||||
| 33524-20010 |
Bracket, Control Cable
1988-08 → 1990-07
ended
|
SV25 5F | ¥1,050 | |
| 33524-32010 |
Bracket, Control Cable
1988-08 → 1990-07
ended
|
VZV20 5F | ¥1,460 | |
| 33527B — Bush (FOR CONTROL SHIFT LEVER) | ||||
| 90389-10009 |
Bush (FOR CONTROL SHIFT LEVER)
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 5F | ¥620 | |
| 33534E — Crank, Selecting Bell, NO.2 | ||||
| 33534-20020 |
Crank, Selecting Bell, NO.2
1988-08 → 1990-07
ended
|
SV25,VZV20 5F | ¥3,110 | |
| 33534-32030 |
Crank, Selecting Bell, NO.2
1988-08 → 1990-07
ended
|
CV20,SV21,22 5F | ¥1,880 | |
| 33534F — Bush (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
Bush (FOR SELECTING BELLCRANK NO.2)
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 5F | ¥130 | |
| 33534G — Washer, Plate (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
Washer, Plate (FOR SELECTING BELLCRANK NO.2)
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 5F | ¥100 | |
| 33557A — Cover, Selecting Bellcrank Dust, NO.1 | ||||
| 33557-32010 |
Cover, Selecting Bellcrank Dust, NO.1
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 5F | ¥280 | |
| 33558 — Cover, Selecting Bellcrank Dust, NO.2 | ||||
| 33558-12010 |
Cover, Selecting Bellcrank Dust, NO.2
1988-08 → 1990-07
ended
|
SV25,VZV20 5F | ¥460 | |
| 33558-32010 |
Cover, Selecting Bellcrank Dust, NO.2
1988-08 → 1990-07
ended
|
CV20,SV21,22 5F | ¥440 | |
| 33574A — Retainer, Shift Cable Grommet, NO.1 | ||||
| 33574-32110 |
Retainer, Shift Cable Grommet, NO.1
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 5F | ¥600 | |
| 33574-32120 |
Retainer, Shift Cable Grommet, NO.1
1988-08 → 1990-07
ended
|
CV20,SV21,22,VZV20 4FC | ¥600 | |
| 33574-32130 |
Retainer, Shift Cable Grommet, NO.1
1988-08 → 1990-07
ended
|
SV25 4FC | ¥640 | |
| 33574B — Retainer, Shift Cable Grommet, NO.2 | ||||
| 33574-32090 |
Retainer, Shift Cable Grommet, NO.2
1988-08 → 1990-07
ended
|
CV20,SV21,22,VZV20 5F | ¥510 | |
| 33608 — Support Sub-assy, Selecting Bellcrank | ||||
| 33608-20010 |
Support Sub-assy, Selecting Bellcrank
1988-08 → 1990-07
ended
|
SV25,VZV20 5F | ¥1,280 | |
| 33608-32020 |
Support Sub-assy, Selecting Bellcrank
1988-08 → 1989-11
ended
|
CV20,SV21,22 5F | ¥940 | |
| 33608-32021 |
Support Sub-assy, Selecting Bellcrank
1989-11 → 1990-07
ended
|
CV20,SV21,22 5F | ¥930 | |
| 33821 — Cable Transmission Control Shift (FOR FLOOR SHIFT) | ||||
| 33821-32182 |
Cable Transmission Control Shift (FOR FLOOR SHIFT)
1988-08 → 1988-11
ended
|
VZV20 5F | ¥15,100 | |
| 33821-32182 |
Cable Transmission Control Shift (FOR FLOOR SHIFT)
1988-11 → 1990-07
ended
|
VZV20 5F | ¥15,100 | |
| 33821-32202 |
Cable Transmission Control Shift (FOR FLOOR SHIFT)
1988-08 → 1988-11
ended
|
SV25 5F | — | |
| 33821-32203 |
Cable Transmission Control Shift (FOR FLOOR SHIFT)
1988-11 → 1990-07
ended
|
SV25 5F | ¥19,700 | |
| 33821-32260 |
Cable Transmission Control Shift (FOR FLOOR SHIFT)
1988-08 → 1989-06
ended
|
CV20,SV21,22 5F | ¥15,400 | |
| 33821-32261 |
Cable Transmission Control Shift (FOR FLOOR SHIFT)
1989-06 → 1990-07
ended
|
CV20,SV21,22 5F | ¥15,400 | |
| 33821A — Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01357 |
Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE)
1988-08 → 1990-07
ended
|
CV20,SV21,22,VZV20 4FC | ¥330 | |
| 90480-01366 |
Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE)
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 5F (GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) | ¥330 | |
| 90480-01367 |
Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE)
1988-08 → 1990-07
ended
|
SV22 LT,VC | ¥330 | |
| 33821C — Washer, Plate (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 note |
Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 5F | ¥100 | |
| 90201-10042 note |
Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 5F | ¥90 | |
| 33822 — Cable Transmission Control Select (FOR FLOOR SHIFT) | ||||
| 33822-32102 |
Cable Transmission Control Select (FOR FLOOR SHIFT)
1988-08 → 1988-11
ended
|
VZV20 5F | ¥14,900 | |
| 33822-32102 |
Cable Transmission Control Select (FOR FLOOR SHIFT)
1988-11 → 1990-07
ended
|
VZV20 5F | ¥14,900 | |
| 33822-32121 |
Cable Transmission Control Select (FOR FLOOR SHIFT)
1988-08 → 1988-11
ended
|
SV25 5F | — | |
| 33822-32122 |
Cable Transmission Control Select (FOR FLOOR SHIFT)
1988-11 → 1990-07
ended
|
SV25 5F | ¥15,400 | |
| 33822-32160 |
Cable Transmission Control Select (FOR FLOOR SHIFT)
1988-08 → 1989-06
ended
|
CV20,SV21,22 5F | ¥13,200 | |
| 33822-32161 |
Cable Transmission Control Select (FOR FLOOR SHIFT)
1989-06 → 1990-07
ended
|
CV20,SV21,22 5F | ¥13,300 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
