Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

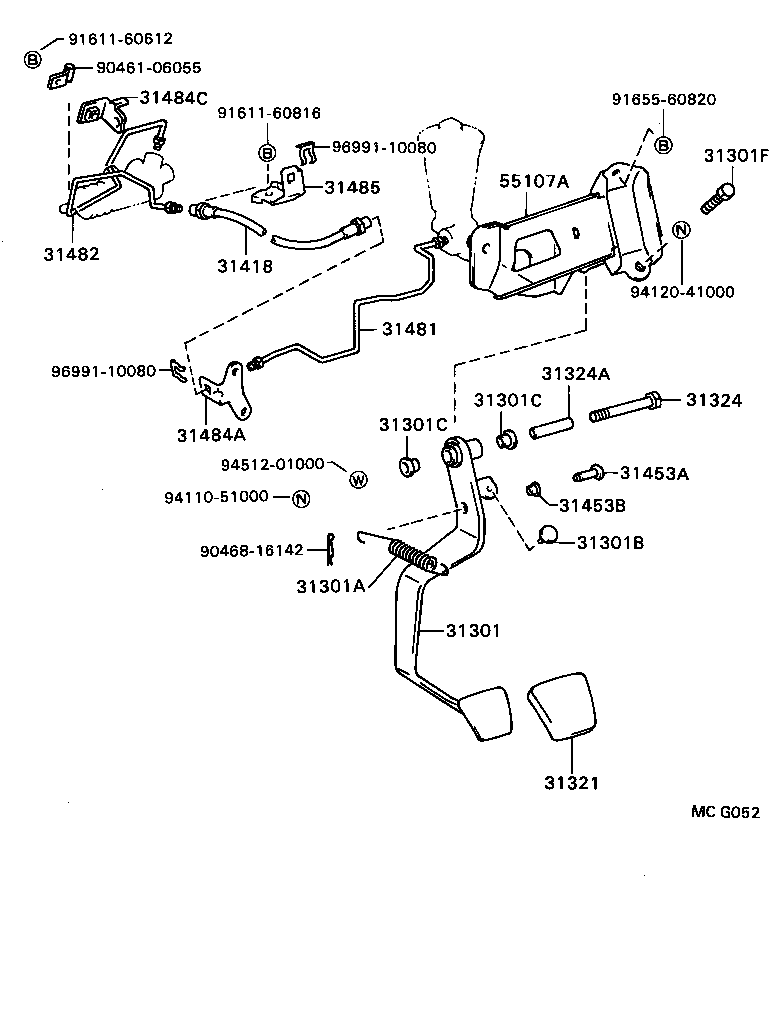

Exploded illustration MCG052 9161160612 — not listed in this catalogue 9046106055 — not listed in this catalogue 31484C — BRACKET, CLUTCH TUBE, NO.1 (2 parts) 9165560820 — not listed in this catalogue 9161160816 — not listed in this catalogue 9699110080 — not listed in this catalogue 31301F — BOLT(FOR CLUTCH PEDAL STOPPER) (1 parts) 55107A — SUPPORT SUB-ASSY, CLUTCH PEDAL (2 parts) 31485 — BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) (2 parts) 31482 — TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE (3 parts) 31418 — HOSE, CLUTCH (4 parts) 9412041000 — not listed in this catalogue 31481 — TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE (4 parts) 9699110080 — not listed in this catalogue 31324A — COLLAR, CLUTCH PEDAL SHAFT (1 parts) 31301C — BUSH(FOR CLUTCH PEDAL) (1 parts) 31324 — SHAFT, CLUTCH PEDAL (2 parts) 31301C — BUSH(FOR CLUTCH PEDAL) (1 parts) 31484A — BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) (1 parts) 9451201000 — not listed in this catalogue 31453A — PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) (1 parts) 9411051000 — not listed in this catalogue 31453B — BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) (1 parts) 31301B — CUSHION, NO.1(FOR CLUTCH PEDAL) (2 parts) 9046816142 — not listed in this catalogue 31301A — SPRING(FOR CLUTCH PEDAL) (1 parts) 31301 — PEDAL SUB-ASSY, CLUTCH (2 parts) 31321 — PAD, CLUTCH PEDAL (1 parts)
MCG052 · 18 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
31 parts on this figure
Part number Description Fitment Price
31301 — Pedal Sub-assy, Clutch
31301-32050 Pedal Sub-assy, Clutch
1988-08 → 1990-07 ended
SV22 5F ¥2,550
31301-32060 Pedal Sub-assy, Clutch
1988-08 → 1990-07 ended
CV20,SV21,25,VZV20 5F ¥2,550
31301A — Spring(FOR CLUTCH PEDAL)
90507-14024 Spring(FOR CLUTCH PEDAL)
1988-08 → 1990-07 ended
SV22 5F ¥260
31301B — Cushion, NO.1(FOR CLUTCH PEDAL)
90541-06008 Cushion, NO.1(FOR CLUTCH PEDAL)
1988-08 → 1990-07 ended
SV22 5F ¥230
90541-07020 Cushion, NO.1(FOR CLUTCH PEDAL)
1988-08 → 1990-07 ended
CV20,SV21,25,VZV20 5F ¥200
31301C — Bush(FOR CLUTCH PEDAL)
90386-13015 Bush(FOR CLUTCH PEDAL)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 5F ¥120
31301F — Bolt(FOR CLUTCH PEDAL STOPPER)
90101-10369 Bolt(FOR CLUTCH PEDAL STOPPER)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 5F ¥110
31321 — Pad, Clutch Pedal
31321-14020 Pad, Clutch Pedal
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 5F ¥200
31324 — Shaft, Clutch Pedal
90101-10039 Shaft, Clutch Pedal
1988-08 → 1990-07 ended
SV22 5F ¥160
90101-10273 Shaft, Clutch Pedal
1988-08 → 1990-07 ended
CV20,SV21,25,VZV20 5F ¥300
31324A — Collar, Clutch Pedal Shaft
90387-10003 Collar, Clutch Pedal Shaft
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 5F ¥370
31418 — Hose, Clutch
90931-01048 Hose, Clutch
1988-08 → 1990-07 ended
CV20 5F ¥2,030
90931-01049 Hose, Clutch
1988-08 → 1990-07 ended
SV22 5F ¥2,030
90931-01050 Hose, Clutch
1988-08 → 1990-07 ended
SV21 5F GT ¥2,020
90931-01055 Hose, Clutch
1988-08 → 1990-07 ended
SV21,25,VZV20 5F (LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) ¥1,810
31453A — Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143 note Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 5F ¥230
31453B — Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08036 Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 5F ¥120
31481 — Tube, Clutch Master Cylinder TO Flexible Hose
31481-32100 Tube, Clutch Master Cylinder TO Flexible Hose
1988-08 → 1988-09 ended
VZV20 5F ¥860
31481-32100 Tube, Clutch Master Cylinder TO Flexible Hose
1988-09 → 1990-07 ended
CV20,VZV20 5F ¥860
31481-32110 Tube, Clutch Master Cylinder TO Flexible Hose
1988-08 → 1988-09 ended
CV20,SV2# 5F ¥1,080
31481-32110 Tube, Clutch Master Cylinder TO Flexible Hose
1988-09 → 1990-07 ended
SV2# 5F ¥1,080
31482 — Tube, Clutch Release Cylinder TO Flexible Hose
31482-32070 Tube, Clutch Release Cylinder TO Flexible Hose
1988-08 → 1990-07 ended
CV20 5F;SV21 5F GT ¥730
31482-32081 Tube, Clutch Release Cylinder TO Flexible Hose
1988-08 → 1990-07 ended
SV21,25,VZV20 5F (LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) ¥780
31482-32090 Tube, Clutch Release Cylinder TO Flexible Hose
1988-08 → 1990-07 ended
SV22 5F ¥750
31484A — Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31484-32080 Bracket, Flexible Hose, NO.1(FOR CLUTCH)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 5F ¥600
31484C — Bracket, Clutch Tube, NO.1
31484-20320 Bracket, Clutch Tube, NO.1
1988-08 → 1990-07 ended
SV25,VZV20 5F ¥500
31484-32050 Bracket, Clutch Tube, NO.1
1988-08 → 1990-07 ended
CV20,SV21,22 5F ¥480
31485 — Bracket, Flexible Hose, NO.2(FOR CLUTCH)
31484-32090 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
1988-08 → 1990-07 ended
SV21 5F GT;CV20,SV22 5F ¥600
31484-32101 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
1988-08 → 1990-07 ended
SV21,25,VZV20 5F (LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX) ¥600
55107A — Support Sub-assy, Clutch Pedal
55107-32050 Support Sub-assy, Clutch Pedal
1988-08 → 1990-07 ended
SV22 5F ¥2,300
55107-32060 Support Sub-assy, Clutch Pedal
1988-08 → 1990-07 ended
CV20,SV21,25,VZV20 5F ¥2,690
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
