Toyota Camry/Vista
1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan
Discontinued model
Data version 1991-03

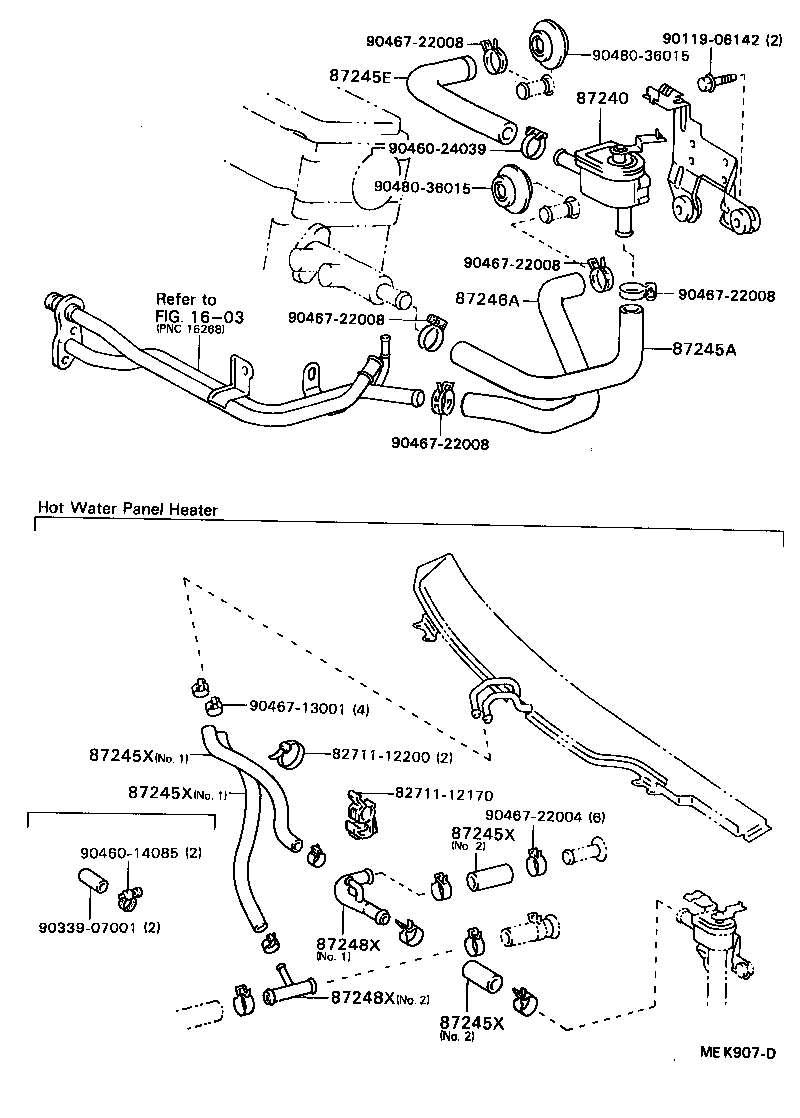

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87240 — Valve Assy, Heater Water | ||||
| 87240-32040 |
Valve Assy, Heater Water
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 | ¥3,230 | |
| 87245A — Hose, Heater Water, Inlet A | ||||
| 87245-32160 |
Hose, Heater Water, Inlet A
1988-08 → 1990-07
ended
|
CV20,SV21,25 | ¥880 | |
| 87245-32170 |
Hose, Heater Water, Inlet A
1988-08 → 1990-07
ended
|
VZV20 | ¥2,910 | |
| 87245-32200 |
Hose, Heater Water, Inlet A
1988-08 → 1990-07
ended
|
SV22 | ¥2,410 | |
| 87245E — Hose, Heater Water, Inlet E | ||||
| 87245-32150 |
Hose, Heater Water, Inlet E
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 | ¥870 | |
| 87245X — Hose, Heater Water | ||||
| 99556-12500 note |
Hose, Heater Water
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 | ¥2,820 | |
| 99556-30100 note |
Hose, Heater Water
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 | ¥220 | |
| 87246A — Hose, Heater Water, Outlet A | ||||
| 87245-32090 |
Hose, Heater Water, Outlet A
1988-08 → 1990-07
ended
|
CV20 | ¥1,960 | |
| 87245-32110 |
Hose, Heater Water, Outlet A
1988-08 → 1990-07
ended
|
SV2# LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX | ¥1,800 | |
| 87245-32130 |
Hose, Heater Water, Outlet A
1988-08 → 1990-07
ended
|
SV21 GT | ¥1,730 | |
| 87245-32180 |
Hose, Heater Water, Outlet A
1988-08 → 1990-07
ended
|
VZV20 | ¥2,410 | |
| 87248X — Pipe, Heater Water | ||||
| 87248-20300 note |
Pipe, Heater Water
1988-08 → 1990-07
ended
|
CV20,SV2#,VZV20 | ¥0 | |
| 87248-32020 note |
Pipe, Heater Water
1988-08 → 1990-07
ended
|
CV20,SV22,VZV20 | — | |
| 87248-32030 note |
Pipe, Heater Water
1988-08 → 1990-07
ended
|
SV21,25 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
