Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

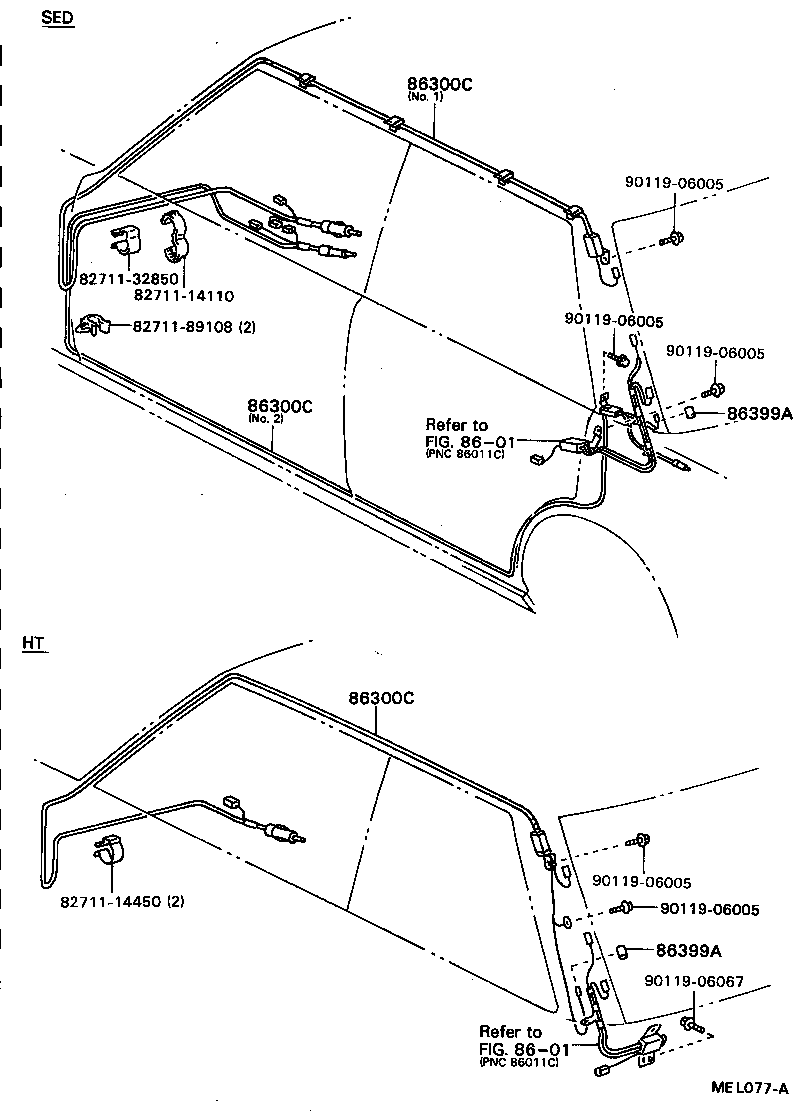

Exploded illustration MEL077A 86300C — ANTENNA ASSY, AMPLIFIER, NO.2 (28 parts) 9011906005 — not listed in this catalogue 8271132850 — not listed in this catalogue 8271114110 — not listed in this catalogue 9011906005 — not listed in this catalogue 8271189108 — not listed in this catalogue 9011906005 — not listed in this catalogue 86300C — ANTENNA ASSY, AMPLIFIER, NO.2 (28 parts) 86399A — CAP, ANTENNA (11 parts) 8601 — not listed in this catalogue 86300C — ANTENNA ASSY, AMPLIFIER, NO.2 (28 parts) 9011906005 — not listed in this catalogue 8271114450 — not listed in this catalogue 9011906005 — not listed in this catalogue 86399A — CAP, ANTENNA (11 parts) 9011906067 — not listed in this catalogue 8601 — not listed in this catalogue
MEL077A · 5 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
86300C — Antenna Assy, Amplifier, NO.2
86300-32091 Antenna Assy, Amplifier, NO.2
1989-05 → 1990-07 ended
CV20,SV22 HT VL ¥11,900
86300-32091 Antenna Assy, Amplifier, NO.2
1988-08 → 1989-05 ended
CV20,SV22 HT VL ¥11,900
86300-32091 Antenna Assy, Amplifier, NO.2
1989-10 → 1990-07 ended
SV25 HT VL ¥11,900
86300-32091 Antenna Assy, Amplifier, NO.2
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 HT (GT,PRO,VE,VR,VX) ¥11,900
86300-32110 note Antenna Assy, Amplifier, NO.2
1989-10 → 1990-07 ended
SV25 XT ¥11,900
86300-32110 note Antenna Assy, Amplifier, NO.2
1989-10 → 1990-07 ended
SV21 SED GT ¥11,900
86300-32110 note Antenna Assy, Amplifier, NO.2
1989-10 → 1990-07 ended
CV20,SV22 SED VL ¥11,900
86300-32110 note Antenna Assy, Amplifier, NO.2
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 SED (GT,LUM,PRO,VE,VR,VX,ZE,ZX) ¥11,900
86300-32110 note Antenna Assy, Amplifier, NO.2
1988-08 → 1990-07 ended
SV21 ZX;SV21 SED 5F +1 ¥11,900
86300-32110 note Antenna Assy, Amplifier, NO.2
1988-08 → 1990-07 ended
VZV20 SED ¥11,900
86300-32110 note Antenna Assy, Amplifier, NO.2
1989-05 → 1989-10 ended
SV25 4FC XT ¥11,900
86300-32110 note Antenna Assy, Amplifier, NO.2
1989-05 → 1989-10 ended
CV20 SED VL ¥11,900
86300-32110 note Antenna Assy, Amplifier, NO.2
1989-05 → 1989-10 ended
SV22 SED VL ¥11,900
86300-32110 note Antenna Assy, Amplifier, NO.2
1989-10 → 1990-07 ended
SV25 SED VL ¥11,900
86300-32110 note Antenna Assy, Amplifier, NO.2
1988-08 → 1989-10 ended
SV21 SED GT ¥11,900
86300-32110 note Antenna Assy, Amplifier, NO.2
1988-08 → 1989-05 ended
CV20,SV22 SED VL ¥11,900
86300-32150 note Antenna Assy, Amplifier, NO.2
1988-08 → 1990-07 ended
SV21 ZX;SV21 SED 5F +1 ¥11,900
86300-32150 note Antenna Assy, Amplifier, NO.2
1989-10 → 1990-07 ended
VZV20 SED ¥11,900
86300-32150 note Antenna Assy, Amplifier, NO.2
1988-08 → 1989-10 ended
SV21,VZV20 SED (GT,PRO) ¥11,900
86300-32160 note Antenna Assy, Amplifier, NO.2
1988-08 → 1990-07 ended
SV21 HT (GT,VX) ¥11,900
86300-32160 note Antenna Assy, Amplifier, NO.2
1988-08 → 1990-07 ended
VZV20 HT ¥11,900
86300-32170 note Antenna Assy, Amplifier, NO.2
1988-10 → 1988-12 ended
SV21 ZX ¥11,900
86300-32170 note Antenna Assy, Amplifier, NO.2
1988-08 → 1990-07 ended
SV21 SED 5F VX;SV21 +2 ¥11,900
86300-32170 note Antenna Assy, Amplifier, NO.2
1988-08 → 1990-07 ended
VZV20 SED ¥11,900
86300-32170 note Antenna Assy, Amplifier, NO.2
1988-10 → 1988-12 ended
SV21 ZX ¥11,900
86300-32180 note Antenna Assy, Amplifier, NO.2
1988-08 → 1990-07 ended
SV21,VZV20 HT (GT,PRO,VX) ¥11,900
86300-32190 note Antenna Assy, Amplifier, NO.2
1988-08 → 1990-07 ended
VZV20 HT ¥11,900
86300-32190 note Antenna Assy, Amplifier, NO.2
1988-08 → 1990-07 ended
SV21 HT (GT,VX) ¥11,900
86399A — Cap, Antenna
86399-22010 Cap, Antenna
1988-08 → 1989-05 ended
CV20,SV22 HT VL ¥170
86399-22010 Cap, Antenna
1988-08 → 1989-05 ended
CV20,SV22 SED VL ¥170
86399-22010 Cap, Antenna
1989-05 → 1989-10 ended
SV22 SED VL ¥170
86399-22010 Cap, Antenna
1989-05 → 1989-10 ended
CV20 SED VL ¥170
86399-22010 Cap, Antenna
1989-05 → 1989-10 ended
SV25 4FC XT ¥170
86399-22010 Cap, Antenna
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 GT,LUM,PRO,VE,VR,VX,ZE,ZX ¥170
86399-22010 Cap, Antenna
1989-05 → 1990-07 ended
CV20,SV22 HT VL ¥170
86399-22010 Cap, Antenna
1989-10 → 1990-07 ended
CV20,SV22 SED VL ¥170
86399-22010 Cap, Antenna
1989-10 → 1990-07 ended
SV25 SED VL ¥170
86399-22010 Cap, Antenna
1989-10 → 1990-07 ended
SV25 XT ¥170
86399-22010 Cap, Antenna
1989-10 → 1990-07 ended
SV25 HT VL ¥170
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
