Toyota Camry/Vista
1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan
Discontinued model
Data version 1991-03

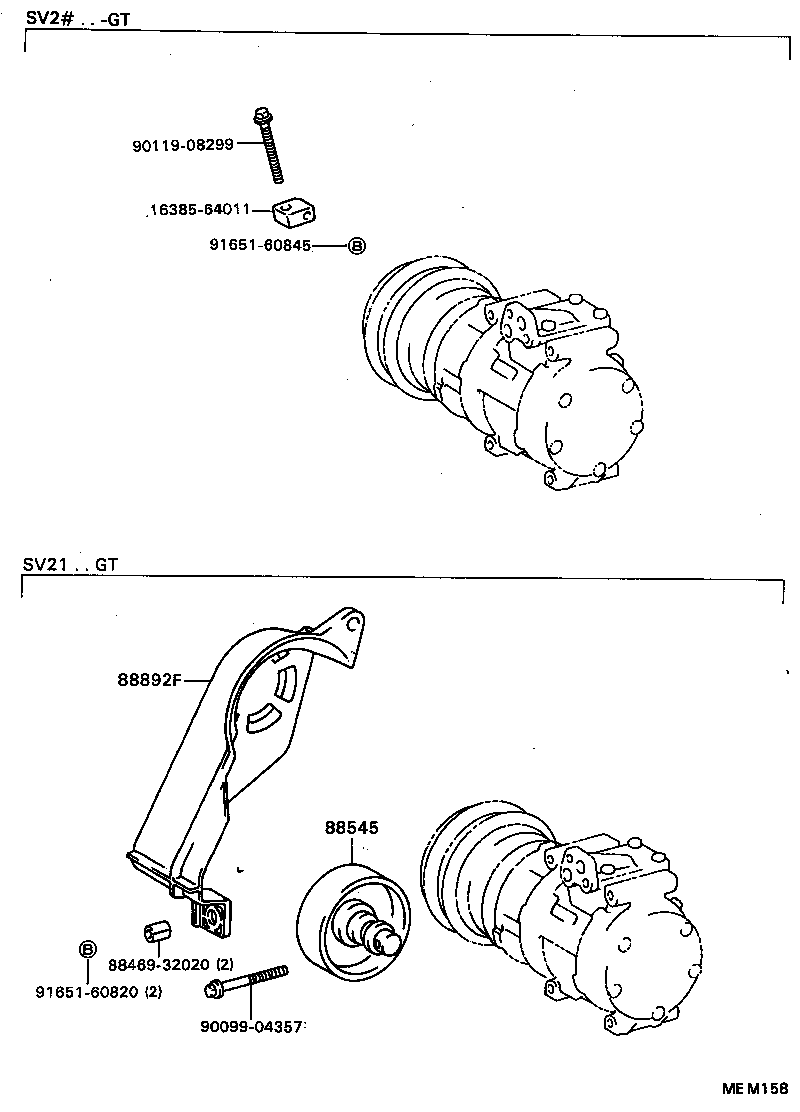

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88545 — Pulley Assy, Idle | ||||
| 88440-20110 |
Pulley Assy, Idle
1988-08 → —
|
SV21 GT | ¥5,400 | |
| 88892F — Cover, Cooler Compressor | ||||
| 88892-32051 |
Cover, Cooler Compressor
1988-08 → —
|
SV21 GT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
