Toyota Camry/Vista
1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan
Discontinued model
Data version 1991-03

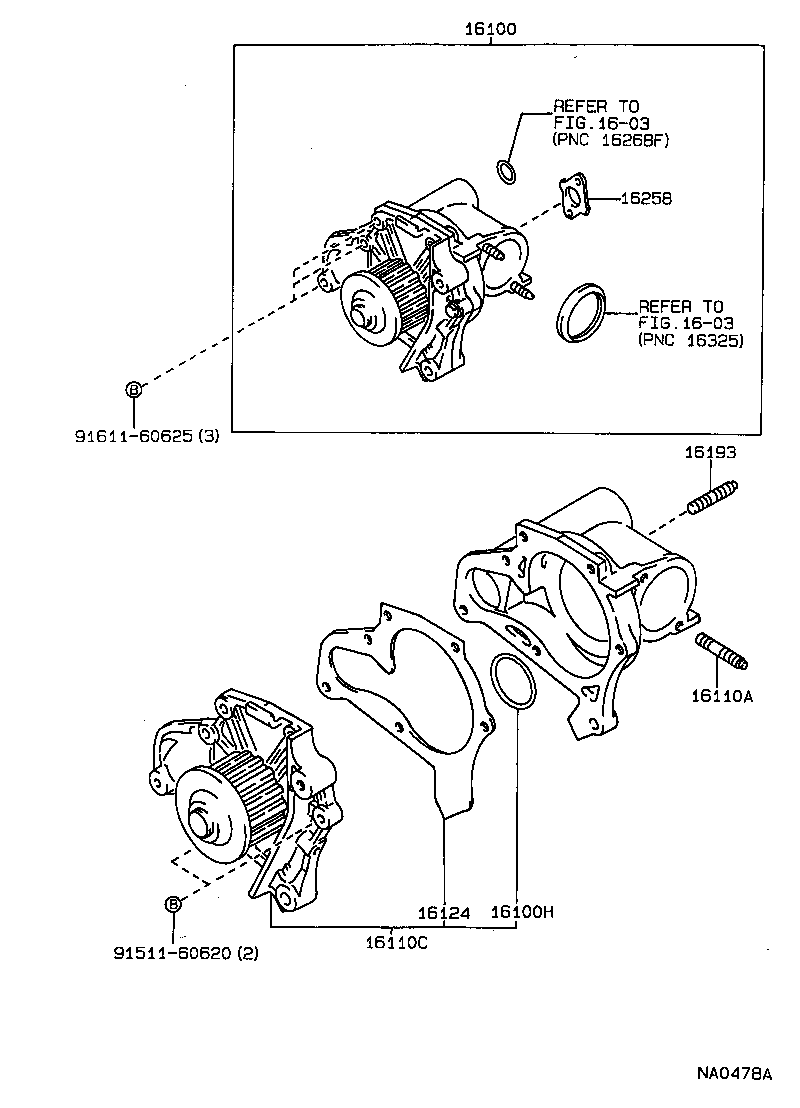

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-69085 |
Pump Assy, Engine Water
1988-08 → 1989-12
ended
|
2CT CV20 | ¥12,800 | |
| 16100-69206 |
Pump Assy, Engine Water
1988-08 → 1990-07
ended
|
1VZFE VZV20 | ¥11,700 | |
| 16100-69275 |
Pump Assy, Engine Water
1989-12 → 1990-05
ended
|
2CT CV20 | ¥12,800 | |
| 16100-69295 |
Pump Assy, Engine Water
1990-05 → 1990-07
ended
|
2CT CV20 | ¥13,600 | |
| 16100-79075 |
Pump Assy, Engine Water
1988-08 → 1990-07
ended
|
3SFE,4SFI SV2# | ¥14,500 | |
| 16100-79095 |
Pump Assy, Engine Water
1988-08 → 1990-07
ended
|
3SGE SV21 | ¥14,500 | |
| 16100H — Ring, O(FOR WATER PUMP) | ||||
| 90301-37005 |
Ring, O(FOR WATER PUMP)
1988-08 → 1990-07
ended
|
3S#,4SFI SV2# | ¥260 | |
| 16110A — Bolt, Stud(FOR WATER OUTLET SETTING) | ||||
| 16193-63010 |
Bolt, Stud(FOR WATER OUTLET SETTING)
1988-08 → 1990-07
ended
|
3S#,4SFI SV2# | ¥350 | |
| 16110C — Pump Assy, Water, W/O Cover | ||||
| 16110-79025 |
Pump Assy, Water, W/O Cover
1988-08 → 1990-07
ended
|
3SFE,4SFI SV2# | ¥10,300 | |
| 16110-79095 |
Pump Assy, Water, W/O Cover
1988-08 → 1990-07
ended
|
3SGE SV21 | ¥10,000 | |
| 16124 — Gasket, Water Pump Cover | ||||
| 16124-74010 |
Gasket, Water Pump Cover
1988-08 → 1988-09
ended
|
3S#,4SFI SV2# | ¥480 | |
| 16124-74020 |
Gasket, Water Pump Cover
1988-09 → 1989-09
ended
|
3S#,4SFI SV2# | ¥520 | |
| 16124-74020 |
Gasket, Water Pump Cover
1989-09 → 1990-07
ended
|
3S#,4SFI SV2# | ¥520 | |
| 16193 — Bolt, Stud(FOR WATER PUMP COVER) | ||||
| 90029-01500 |
Bolt, Stud(FOR WATER PUMP COVER)
1988-08 → 1990-07
ended
|
3S#,4SFI SV2# | ¥170 | |
| 16258 — Gasket(FOR HEATER RETURN) | ||||
| 16258-15011 |
Gasket(FOR HEATER RETURN)
1988-08 → 1989-07
ended
|
3S#,4SFI SV2# | ¥500 | |
| 16258-15011 |
Gasket(FOR HEATER RETURN)
1989-07 → 1989-11
ended
|
3SGE SV21 | ¥500 | |
| 16258-74020 |
Gasket(FOR HEATER RETURN)
1989-07 → 1990-07
ended
|
3S#,4SFI SV2# | ¥580 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
