Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

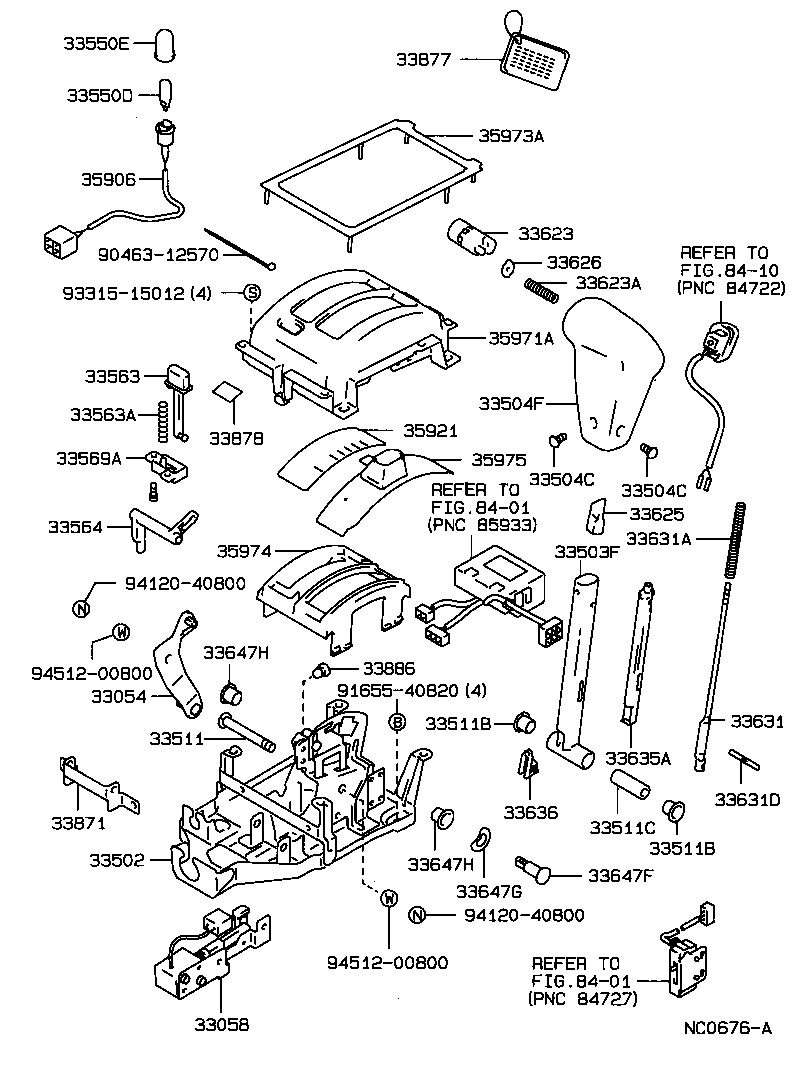

Exploded illustration NC0676A 33550E — CAP, POSITION INDICATOR LAMP (1 parts) 33877 — LABEL, SHIFT LOCK INFORMATION, NO.1 (1 parts) 33550D — BULB, POSITION INDICATOR LAMP (1 parts) 35973A — ATTACHMENT, POSITION INDICATOR HOUSING COVER (3 parts) 35906 — WIRE SUB-ASSY, INDICATOR LAMP (1 parts) 33623 — BUTTON, SHIFT LEVER KNOB (3 parts) 9046312570 — not listed in this catalogue 33626 — STOPPER, SHIFT LEVER BUTTON (1 parts) 8410 — not listed in this catalogue 33623A — SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) (1 parts) 9331515012 — not listed in this catalogue 35971A — HOUSING, POSITION INDICATOR, UPPER (3 parts) 33563 — BUTTON, SHIFT LOCK RELEASE (3 parts) 33504F — KNOB SUB-ASSY, SHIFT LEVER (25 parts) 33563A — SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) (1 parts) 35921 — PLATE, CONTROL POSITION INDICATOR (1 parts) 33878 — LABEL, SHIFT LOCK INFORMATION, NO.2 (1 parts) 33569A — GUIDE, SHIFT LOCK RELEASE BUTTON (1 parts) 35975 — COVER, SLIDE (FOR POSITION INDICATOR) (3 parts) 33504C — SCREW (FOR SHIFT LEVER KNOB SETTING) (1 parts) 33504C — SCREW (FOR SHIFT LEVER KNOB SETTING) (1 parts) 8401 — not listed in this catalogue 33625 — SLEEVE, SHIFT LEVER KNOB (1 parts) 33564 — LINK, SHIFT LOCK RELEASE, NO.1 (1 parts) 33631A — SPRING, COMPRESSION (FOR DETENT ROD) (1 parts) 35974 — HOUSING, POSITION INDICATOR, LOWER (1 parts) 33503F — LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) (4 parts) 9412040800 — not listed in this catalogue 33647H — BUSH (FOR CONTROL LINK SHAFT) (1 parts) 33886 — STOPPER, SHIFT LEVER (1 parts) 9451200800 — not listed in this catalogue 9165540820 — not listed in this catalogue 33054 — LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) (1 parts) 33631 — ROD, DETENT (1 parts) 33511B — BUSH (FOR CONTROL SHAFT) (1 parts) 33511 — SHAFT, CONTROL (FOR FLOOR SHIFT) (1 parts) 33635A — GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) (1 parts) 33631D — PIN, GROOVED (FOR DETENT ROD) (1 parts) 33636 — GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) (1 parts) 33871 — BRACKET, SHIFT LOCK RELEASE LINK (FOR FLOOR SHIFT) (1 parts) 33511C — COLLAR (FOR CONTROL SHAFT) (1 parts) 33511B — BUSH (FOR CONTROL SHAFT) (1 parts) 33502 — PLATE SUB-ASSY, SHIFT LEVER (1 parts) 33647H — BUSH (FOR CONTROL LINK SHAFT) (1 parts) 33647F — SHAFT, CONTROL LINK (FOR FLOOR SHIFT) (1 parts) 33647G — WASHER, WAVE (FOR CONTROL LINK SHAFT) (1 parts) 9412040800 — not listed in this catalogue 9451200800 — not listed in this catalogue 8401 — not listed in this catalogue 33058 — BRACKET SUB-ASSY, SHIFT LOCK SOLENOID (1 parts)
NC0676A · 40 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
74 parts on this figure
Part number Description Fitment Price
33054 — Lever Sub-assy, Shift, NO.2(FOR FLOOR SHIFT)
33054-32070 Lever Sub-assy, Shift, NO.2(FOR FLOOR SHIFT)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥1,460
33058 — Bracket Sub-assy, Shift Lock Solenoid
33058-32010 Bracket Sub-assy, Shift Lock Solenoid
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥4,080
33502 — Plate Sub-assy, Shift Lever
33502-32090 Plate Sub-assy, Shift Lever
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥5,800
33503F — Lever Sub-assy, Shift(FOR FLOOR SHIFT)
33055-32020 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1988-08 → 1990-07 ended
CV20,SV21,22 5F ¥2,550
33055-32050 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥6,100
33503-32131 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1988-08 → 1988-11 ended
SV25,VZV20 5F ¥2,530
33503-32132 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1988-11 → 1990-07 ended
SV25,VZV20 5F ¥2,550
33504C — Screw (FOR SHIFT LEVER KNOB SETTING)
90159-40109 Screw (FOR SHIFT LEVER KNOB SETTING)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥80
33504F — Knob Sub-assy, Shift Lever
33504-12150-02 note Knob Sub-assy, Shift Lever
1988-08 → 1989-08 ended
SV21,VZV20 5F (GT,PRO) ¥7,400
33504-12150-04 note Knob Sub-assy, Shift Lever
1988-08 → 1990-07 ended
SV21,VZV20 5F (GT,PRO) ¥7,400
33504-12150-13 note Knob Sub-assy, Shift Lever
1988-08 → 1989-04 ended
SV21,VZV20 5F (GT,PRO) ¥7,400
33504-12150-22 note Knob Sub-assy, Shift Lever
1989-12 → 1990-07 ended
SV21,VZV20 5F (GT,PRO) ¥7,400
33504-12150-33 note Knob Sub-assy, Shift Lever
1989-12 → 1990-07 ended
SV21,VZV20 5F (GT,PRO) ¥7,400
33504-14050-J0 note Knob Sub-assy, Shift Lever
1989-05 → 1990-07 ended
SV22 SED 5F (LT,VC,VL,XT) ¥2,960
33504-14070-33 note Knob Sub-assy, Shift Lever
1988-08 → 1990-07 ended
SV22 SED 5F (LT,VC,VL,XT) ¥2,730
33504-24010-B0 note Knob Sub-assy, Shift Lever
1988-08 → 1989-05 ended
SV22 SED 5F VL ¥3,000
33504-24010-B0 note Knob Sub-assy, Shift Lever
1989-05 → 1990-07 ended
SV22 SED 5F VL ¥3,000
33504-24010-B0 note Knob Sub-assy, Shift Lever
1988-08 → 1990-01 ended
SV22 5F XT ¥3,000
33504-24010-B0 note Knob Sub-assy, Shift Lever
1988-08 → 1990-07 ended
SV22 E,ZX) HT 5F;SV22 +5 ¥3,000
33504-24010-B0 note Knob Sub-assy, Shift Lever
1990-01 → 1990-07 ended
SV22 5F XT ¥3,000
33504-24010-D0 note Knob Sub-assy, Shift Lever
1989-05 → 1990-07 ended
SV22 SED 5F VL ¥3,000
33504-24010-D0 note Knob Sub-assy, Shift Lever
1988-08 → 1990-07 ended
SV22 E,ZX) HT 5F;SV22 +5 ¥3,000
33504-24010-D0 note Knob Sub-assy, Shift Lever
1990-01 → 1990-07 ended
SV22 5F XT ¥3,000
33504-24010-D0 note Knob Sub-assy, Shift Lever
1988-08 → 1990-01 ended
SV22 5F XT ¥3,000
33504-24010-D0 note Knob Sub-assy, Shift Lever
1988-08 → 1989-05 ended
SV22 SED 5F VL ¥3,000
33504-24010-J0 note Knob Sub-assy, Shift Lever
1990-01 → 1990-07 ended
SV22 5F XT ¥3,000
33504-24010-J0 note Knob Sub-assy, Shift Lever
1988-08 → 1990-07 ended
SV22 E,ZX) HT 5F;SV22 +5 ¥3,000
33504-24010-J0 note Knob Sub-assy, Shift Lever
1989-05 → 1990-07 ended
SV22 SED 5F VL ¥3,000
33504-24010-J0 note Knob Sub-assy, Shift Lever
1988-08 → 1990-01 ended
SV22 5F XT ¥3,000
33504-24010-J0 note Knob Sub-assy, Shift Lever
1988-08 → 1989-05 ended
SV22 SED 5F VL ¥3,000
33542-32080-02 note Knob Sub-assy, Shift Lever
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥6,100
33542-32080-03 note Knob Sub-assy, Shift Lever
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥6,100
33542-32080-04 note Knob Sub-assy, Shift Lever
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥6,100
33511 — Shaft, Control (FOR FLOOR SHIFT)
33511-32020 Shaft, Control (FOR FLOOR SHIFT)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥380
33511B — Bush (FOR CONTROL SHAFT)
90386-11012 Bush (FOR CONTROL SHAFT)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥200
33511C — Collar (FOR CONTROL SHAFT)
90387-08091 Collar (FOR CONTROL SHAFT)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥160
33550D — Bulb, Position Indicator Lamp
90981-11018 note Bulb, Position Indicator Lamp
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥140
33550E — Cap, Position Indicator Lamp
90339-04023 Cap, Position Indicator Lamp
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥270
33563 — Button, Shift Lock Release
33563-32010-02 note Button, Shift Lock Release
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥990
33563-32010-03 note Button, Shift Lock Release
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥990
33563-32010-04 note Button, Shift Lock Release
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥990
33563A — Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
90501-06058 Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥140
33564 — Link, Shift Lock Release, NO.1
33564-32010 Link, Shift Lock Release, NO.1
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥480
33569A — Guide, Shift Lock Release Button
33569-32010 Guide, Shift Lock Release Button
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥440
33623 — Button, Shift Lever Knob
33623-32050-02 note Button, Shift Lever Knob
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥2,640
33623-32050-03 note Button, Shift Lever Knob
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥2,640
33623-32050-04 note Button, Shift Lever Knob
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥2,640
33623A — Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
90501-07009 Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥350
33625 — Sleeve, Shift Lever Knob
33625-32010 Sleeve, Shift Lever Knob
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥750
33626 — Stopper, Shift Lever Button
33626-32010 Stopper, Shift Lever Button
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥220
33631 — Rod, Detent
33631-32030 Rod, Detent
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥1,140
33631A — Spring, Compression (FOR DETENT ROD)
90501-07005 Spring, Compression (FOR DETENT ROD)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥550
33631D — Pin, Grooved (FOR DETENT ROD)
90256-04003 Pin, Grooved (FOR DETENT ROD)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥210
33635A — Guide, Wire, NO.1 (FOR SHIFT LEVER)
33635-32030 Guide, Wire, NO.1 (FOR SHIFT LEVER)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥930
33636 — Guide, Wire, NO.2 (FOR SHIFT LEVER)
33636-35010 Guide, Wire, NO.2 (FOR SHIFT LEVER)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥160
33647F — Shaft, Control Link (FOR FLOOR SHIFT)
33647-32010 Shaft, Control Link (FOR FLOOR SHIFT)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥780
33647G — Washer, Wave (FOR CONTROL LINK SHAFT)
90206-10003 Washer, Wave (FOR CONTROL LINK SHAFT)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥220
33647H — Bush (FOR CONTROL LINK SHAFT)
90386-10012 Bush (FOR CONTROL LINK SHAFT)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥430
33871 — Bracket, Shift Lock Release Link (FOR FLOOR SHIFT)
33871-32010 Bracket, Shift Lock Release Link (FOR FLOOR SHIFT)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥330
33877 — Label, Shift Lock Information, NO.1
33877-20010 Label, Shift Lock Information, NO.1
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC —
33878 — Label, Shift Lock Information, NO.2
33878-20010 Label, Shift Lock Information, NO.2
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥90
33886 — Stopper, Shift Lever
33886-16010 Stopper, Shift Lever
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥110
35906 — Wire Sub-assy, Indicator Lamp
35906-35051 Wire Sub-assy, Indicator Lamp
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥1,180
35921 — Plate, Control Position Indicator
35921-32080 Plate, Control Position Indicator
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥2,080
35971A — Housing, Position Indicator, Upper
35971-32090-02 note Housing, Position Indicator, Upper
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥3,240
35971-32090-03 note Housing, Position Indicator, Upper
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥3,240
35971-32090-04 note Housing, Position Indicator, Upper
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥3,240
35973A — Attachment, Position Indicator Housing Cover
35973-32010-B0 note Attachment, Position Indicator Housing Cover
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥530
35973-32010-D0 note Attachment, Position Indicator Housing Cover
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥480
35973-32010-J0 note Attachment, Position Indicator Housing Cover
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥530
35974 — Housing, Position Indicator, Lower
35974-32050 Housing, Position Indicator, Lower
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥1,550
35975 — Cover, Slide (FOR POSITION INDICATOR)
35975-32100-02 note Cover, Slide (FOR POSITION INDICATOR)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥2,800
35975-32100-03 note Cover, Slide (FOR POSITION INDICATOR)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥2,800
35975-32100-04 note Cover, Slide (FOR POSITION INDICATOR)
1988-08 → 1990-07 ended
CV20,SV2#,VZV20 4FC ¥2,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
