Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 8 illustrations

Illustrations

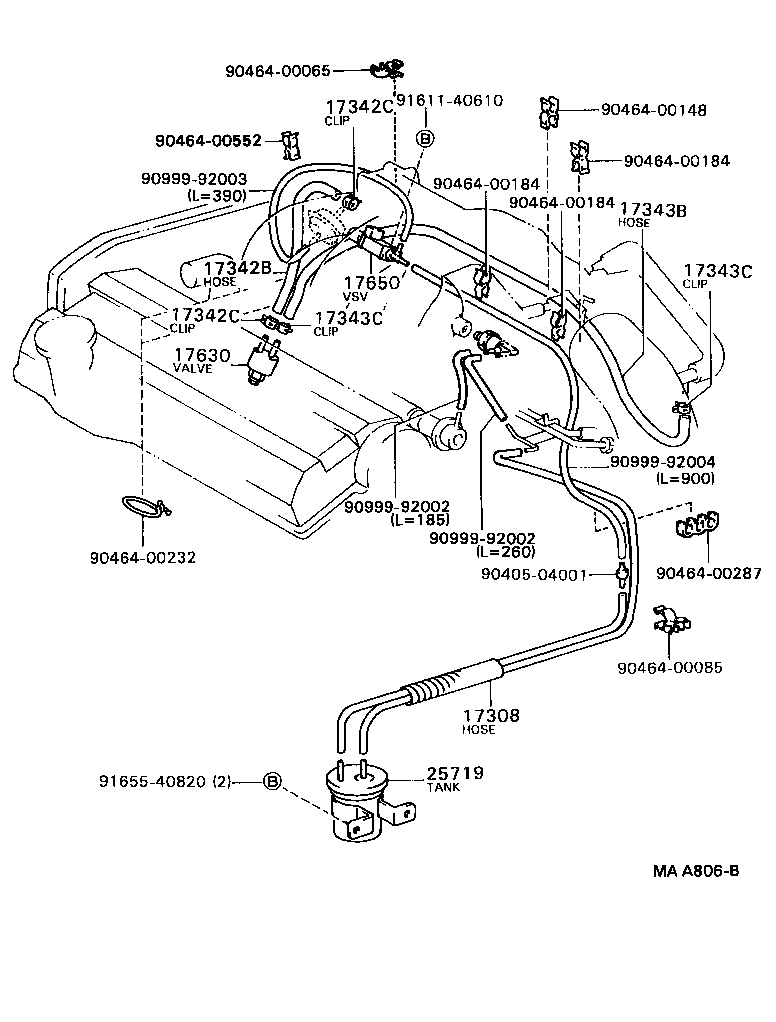

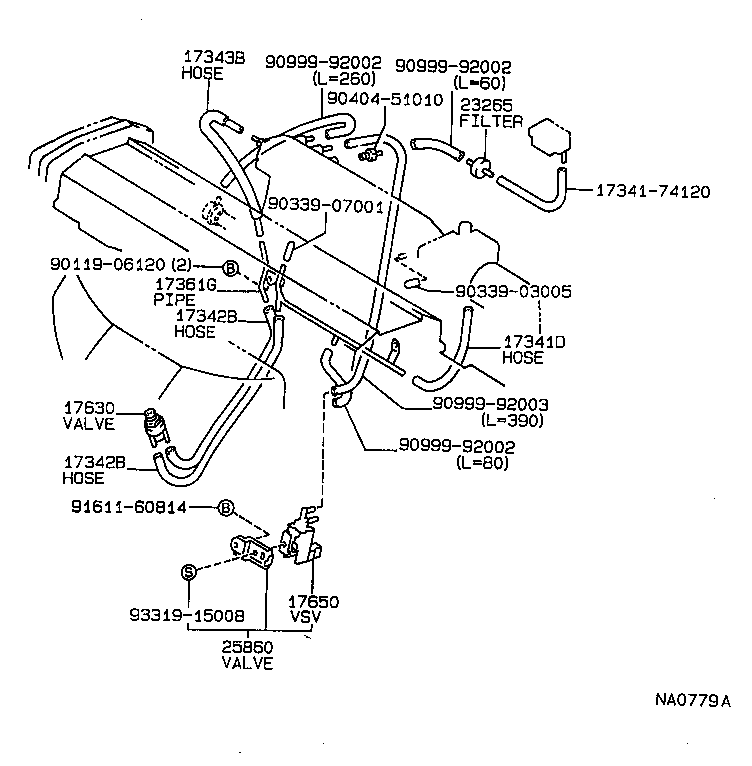

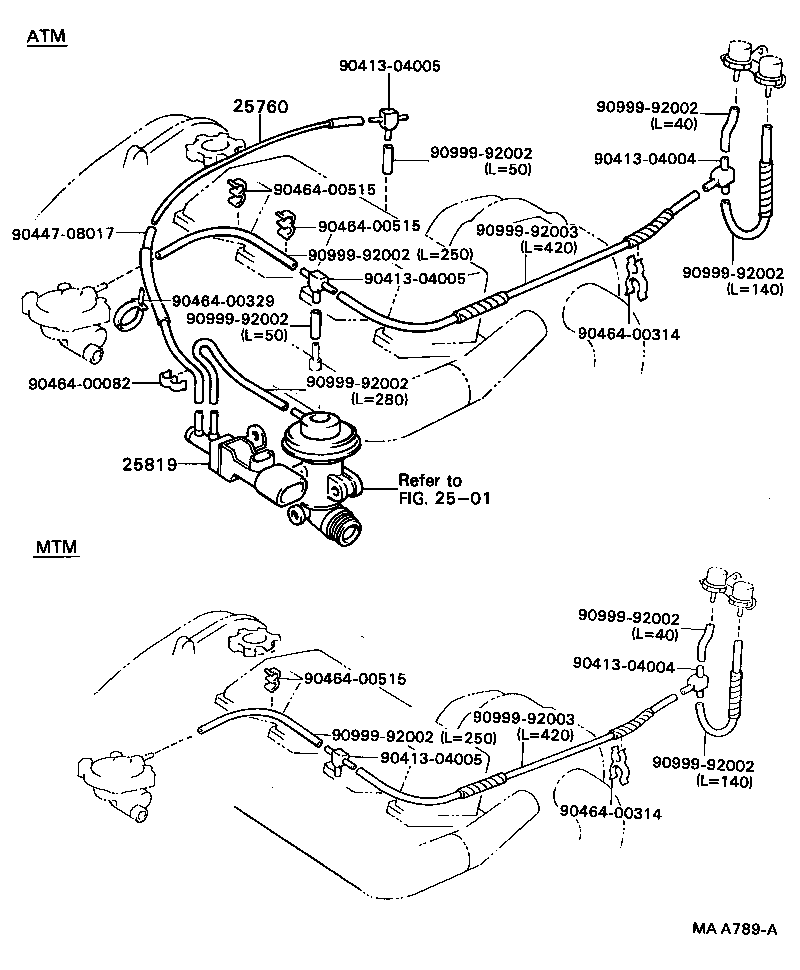

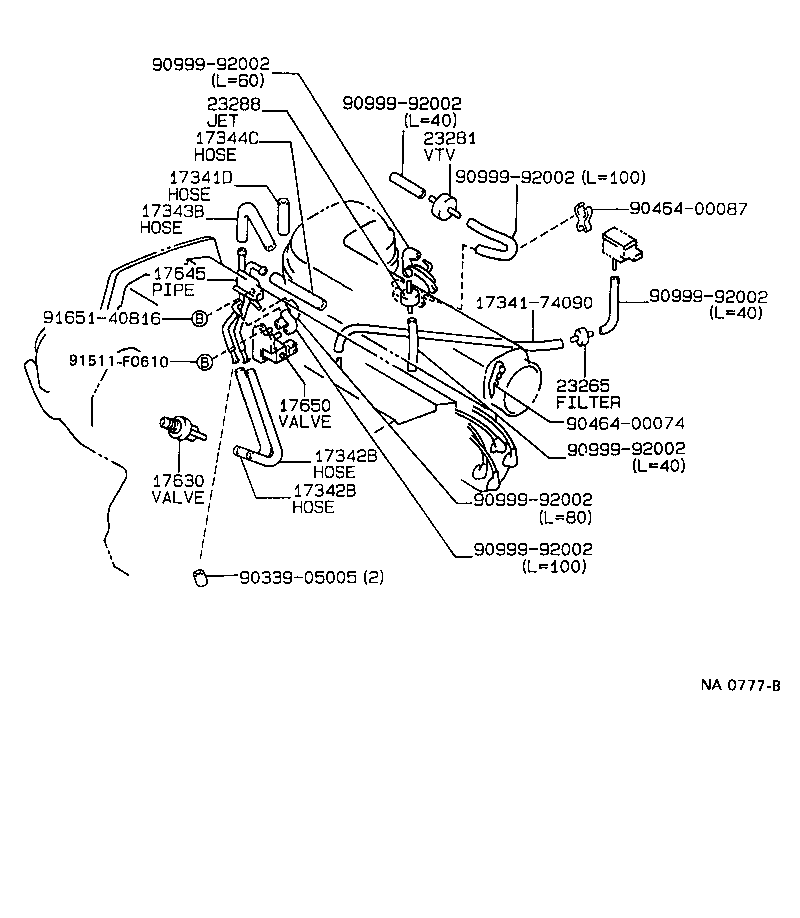

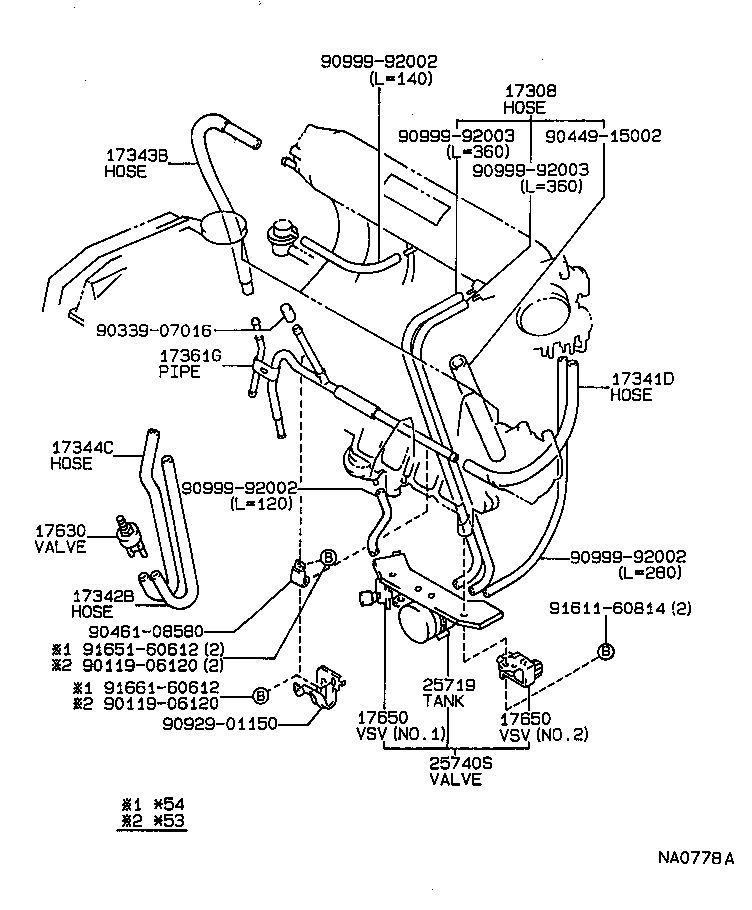

Figure MA9503A MA9503A 1988-08 → — Figure MAA789A MAA789A 1988-08 → — Figure MA9503A MA9503A 1988-08 → — Figure NA0777B NA0777B 1988-08 → — Figure NA0778A NA0778A 1988-08 → — Figure NA0779A NA0779A 1988-08 → — Figure MA9503A MA9503A 1988-08 → — Figure MAA806B MAA806B 1988-08 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17645 Pipe, Idle UP
17650 Valve Assy, Vacuum Switching
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23288 Jet, NO.1
25719 Tank, Vacuum Surge
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25760 Hose Assy, Vacuum Transmitting
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
