Toyota Camry/Vista
1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan
Discontinued model
Data version 1991-03

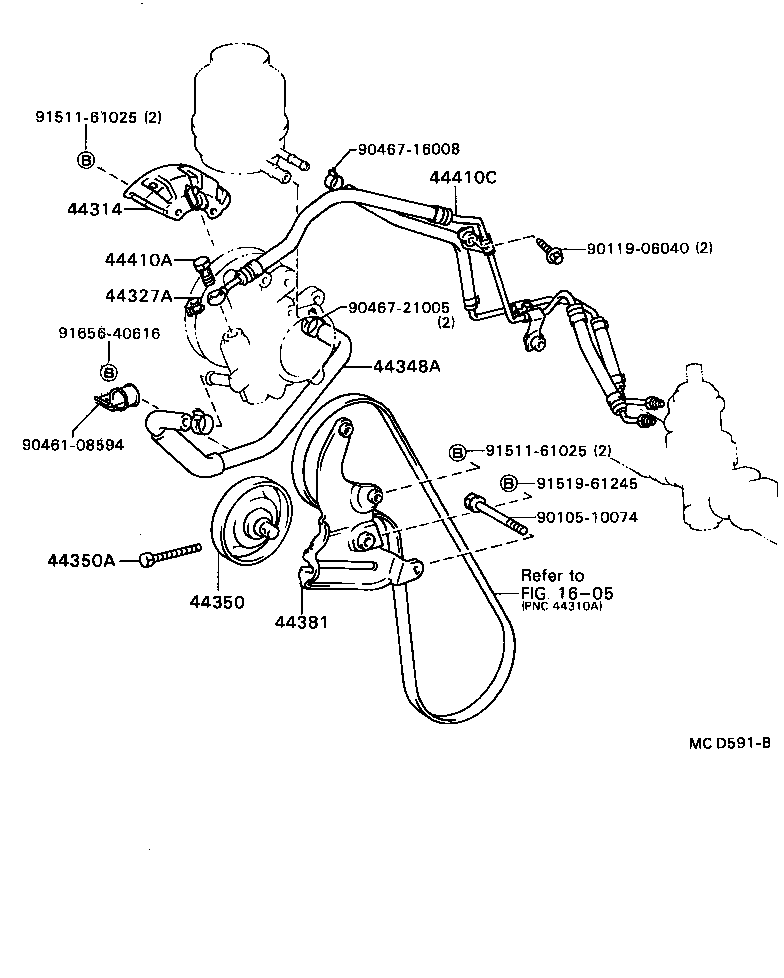

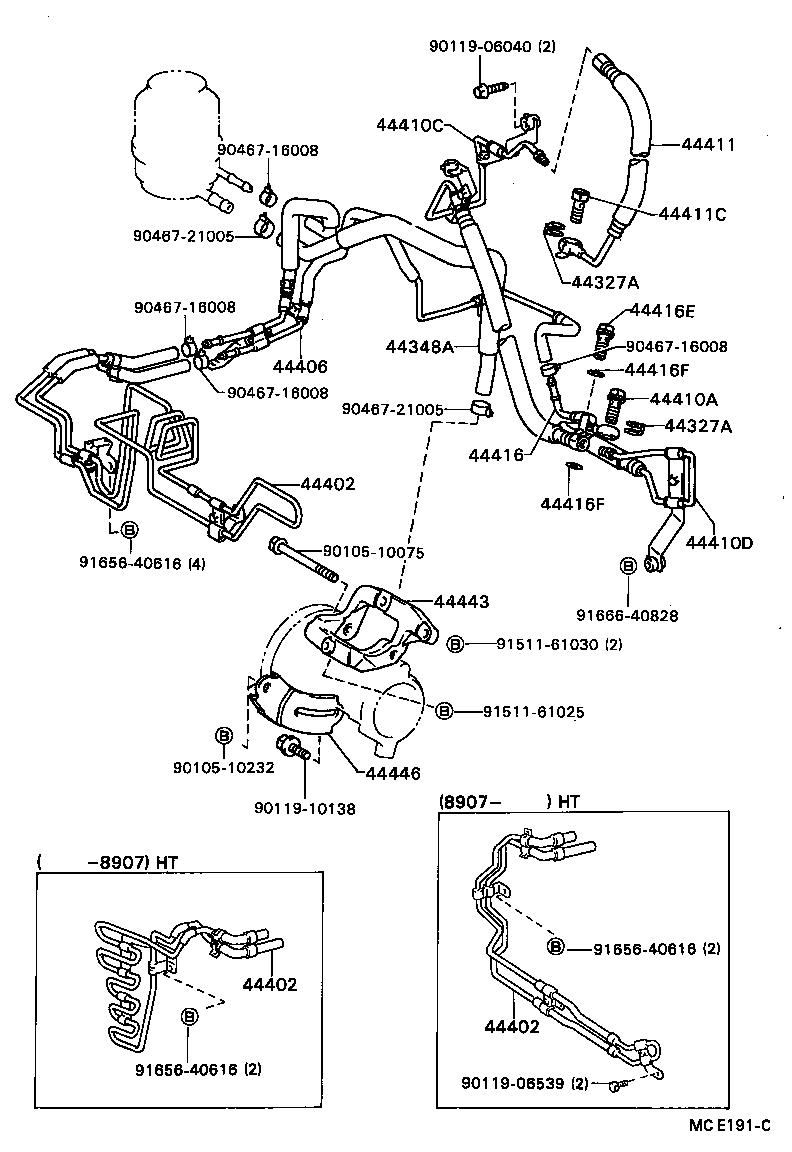

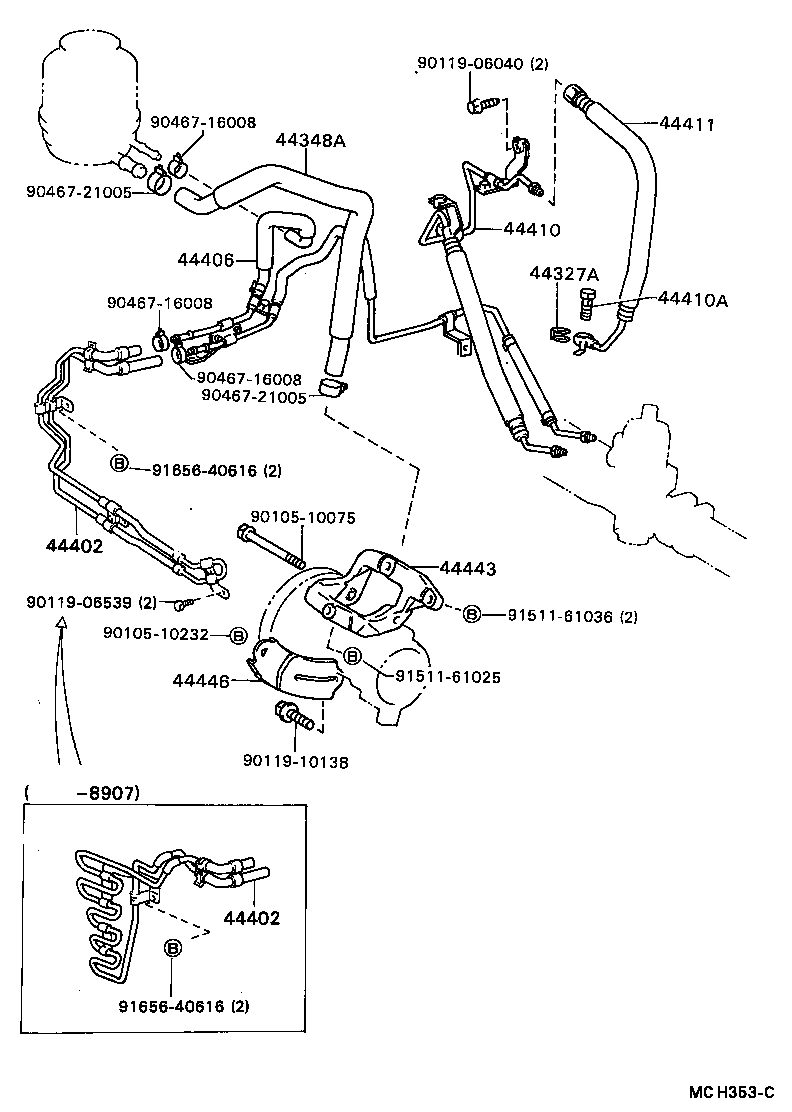

Power Steering Tube
21 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 44314 | Cover, Pulley |
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44350 | Pulley Assy, Power Steering Idle |
| 44350A | Bolt(FOR POWER STEERING IDLE PULLEY) |
| 44381 | Bracket, Power Steering Idle Pulley |
| 44402 | Cooler Sub-assy, Power Steering Oil, NO.1 |
| 44406 | Tube Sub-assy, Return |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44410C | Tube Assy, Pressure Feed, NO.1 |
| 44410D | Tube Assy, Pressure Feed, NO.2 |
| 44411 | Hose, Pressure Feed |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44416E | Bolt, Union(FOR RETURN TUBE) |
| 44416F | Gasket(FOR RETURN TUBE) |
| 44441 | Bracket, Pump, Front |
| 44443 | Bracket, Pump |
| 44444 | Stay, Pump, Rear |
| 44446 | Strut, Adjusting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
