Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 5 illustrations

Illustrations

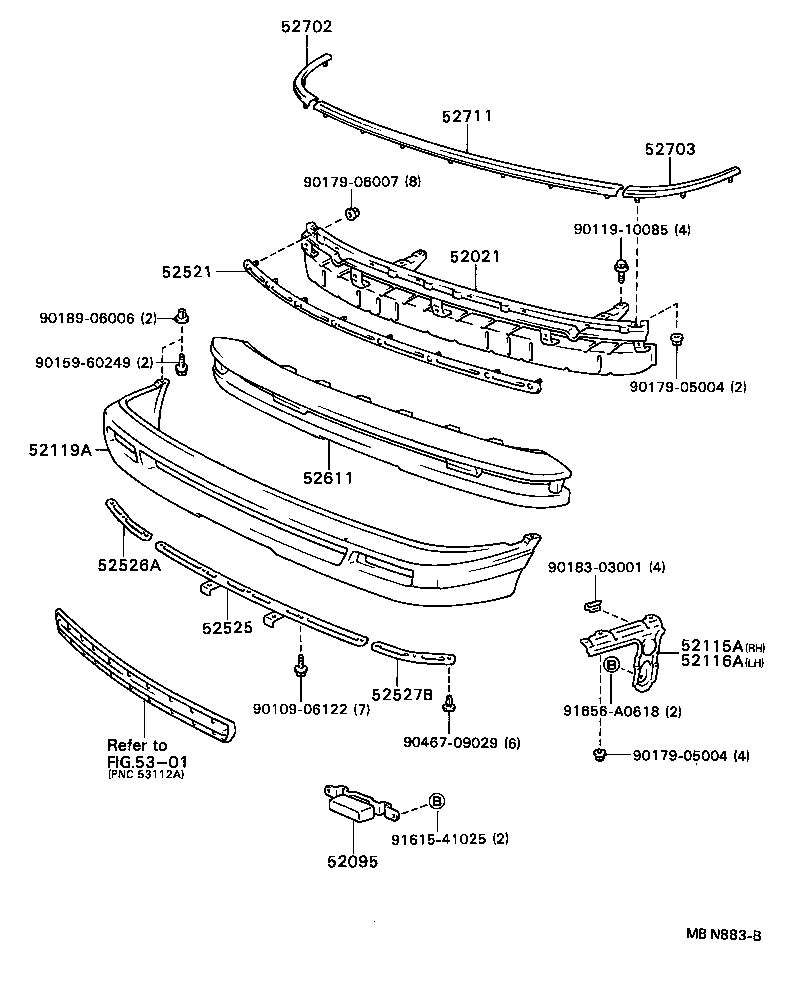

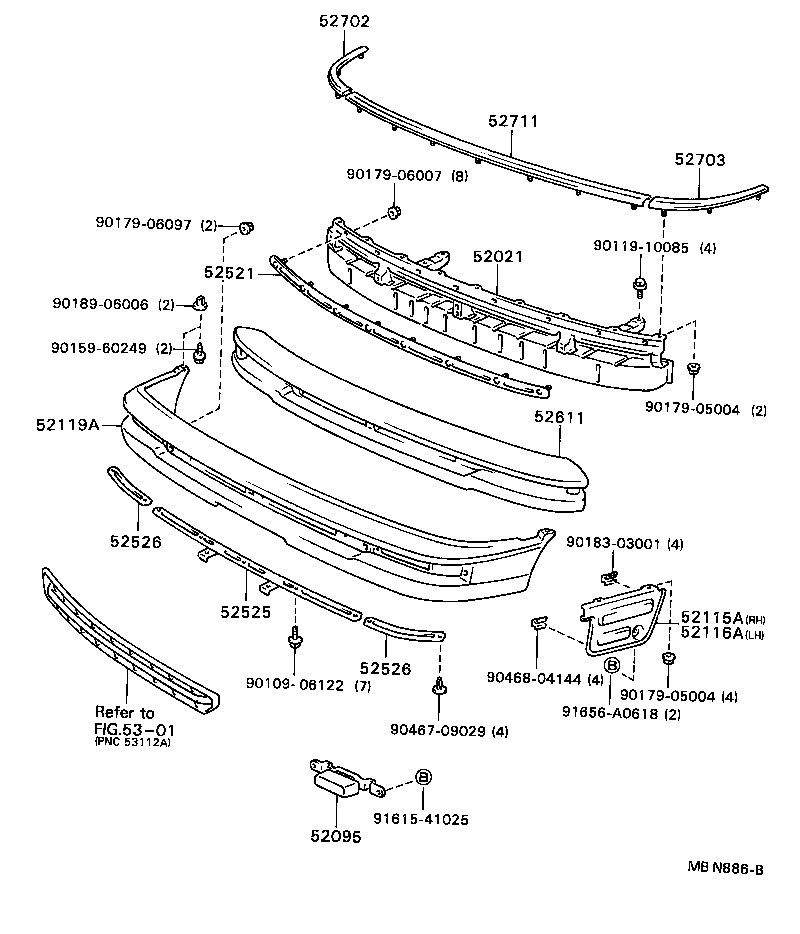

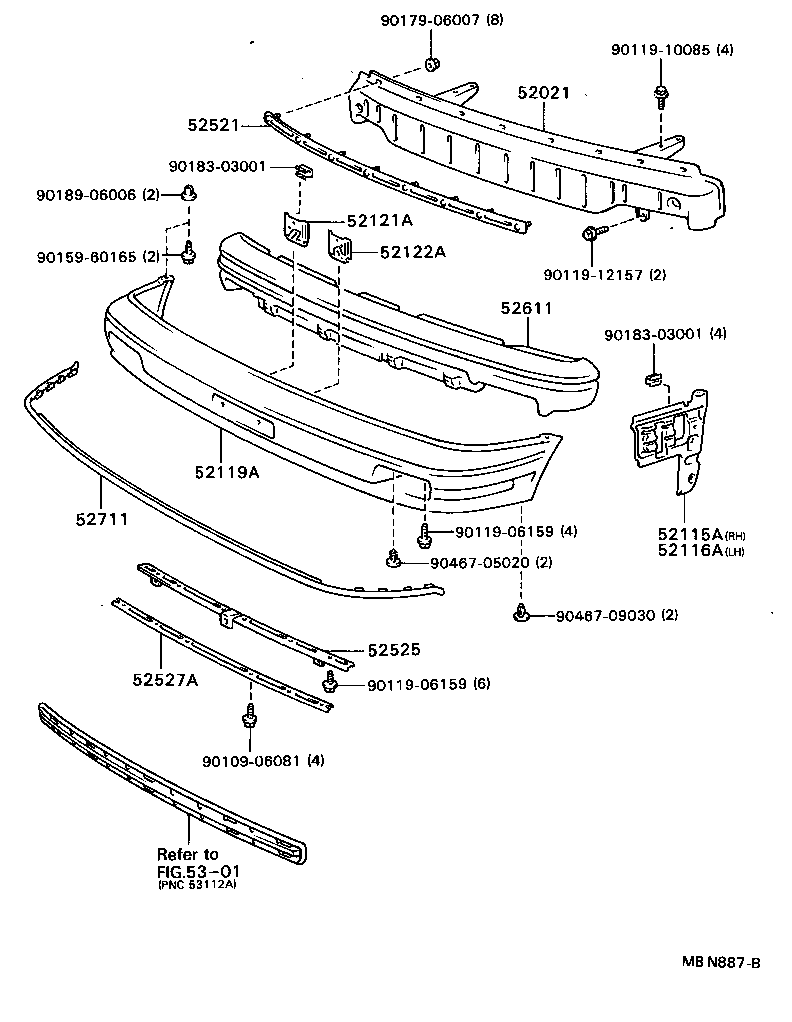

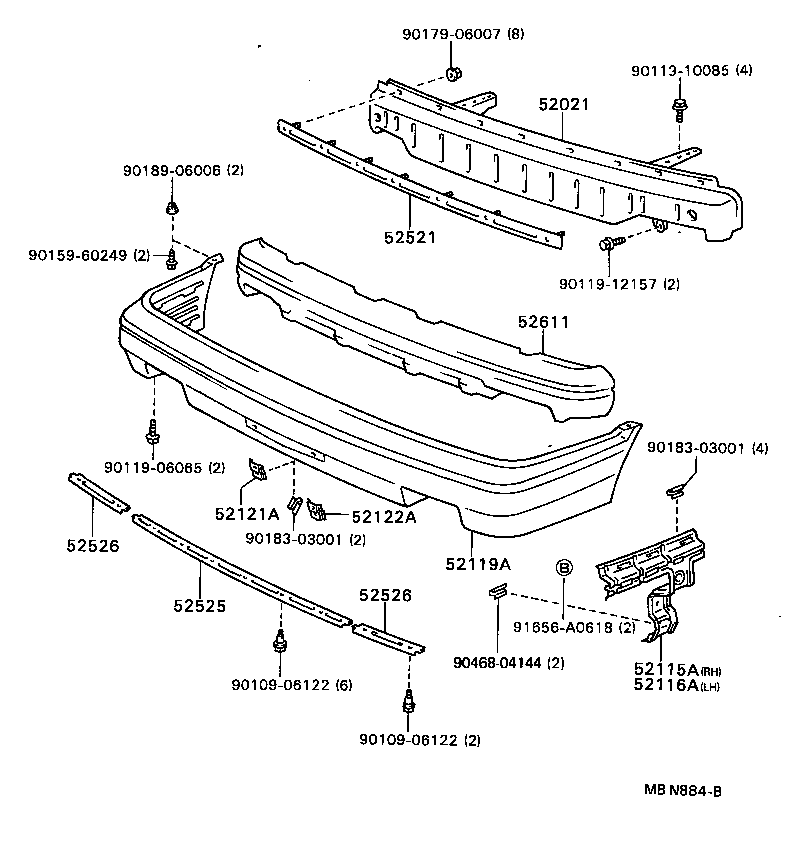

Figure MBN907A MBN907A 1988-08 → — Figure MBN883B MBN883B 1988-08 → — Figure MBN884B MBN884B 1988-08 → — Figure MBN886B MBN886B 1988-08 → — Figure MBN887B MBN887B 1988-08 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52095 Dumper Sub-assy, Front Bumper, RH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121A Bracket, Front License Plate Mounting, RH
52122A Bracket, Front License Plate Mounting, LH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52526A Retainer, Front Bumper, Lower NO.1
52527A Retainer, Front Bumper, Lower Center NO.2
52527B Retainer, Front Bumper, Lower NO.2
52611 Absorber, Front Bumper Energy
52702 Moulding Sub-assy, Front Bumper Side, RH
52703 Moulding Sub-assy, Front Bumper Side, LH
52711 Moulding, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
