Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

24 part groups · 4 illustrations

Illustrations

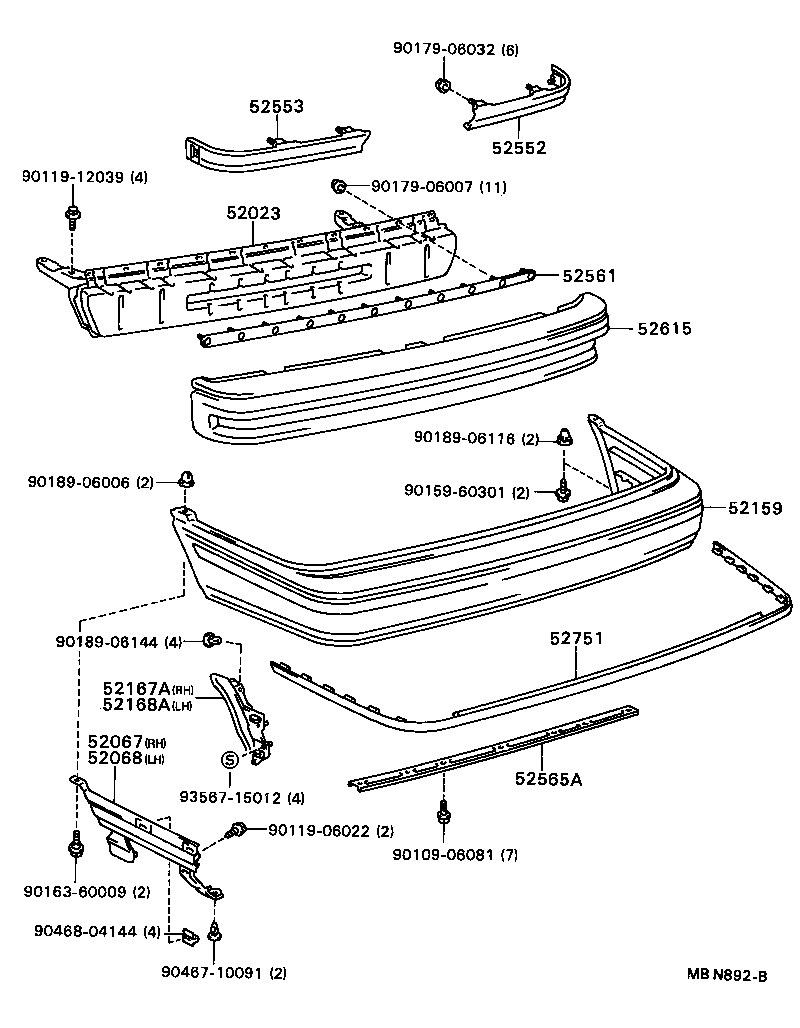

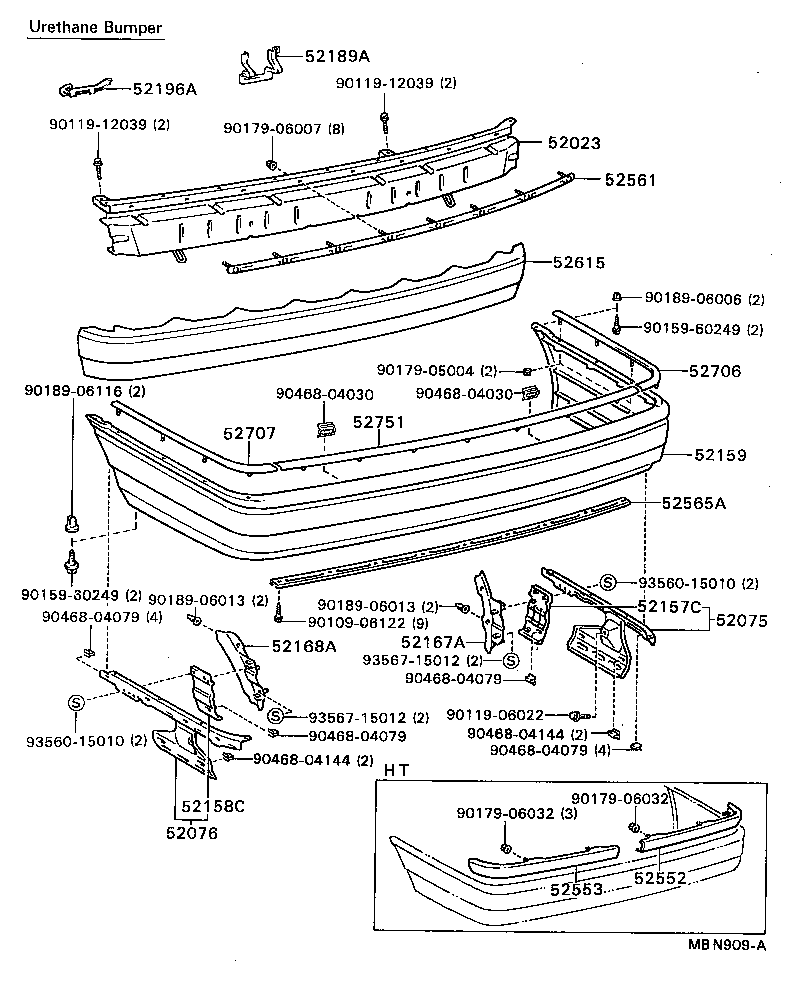

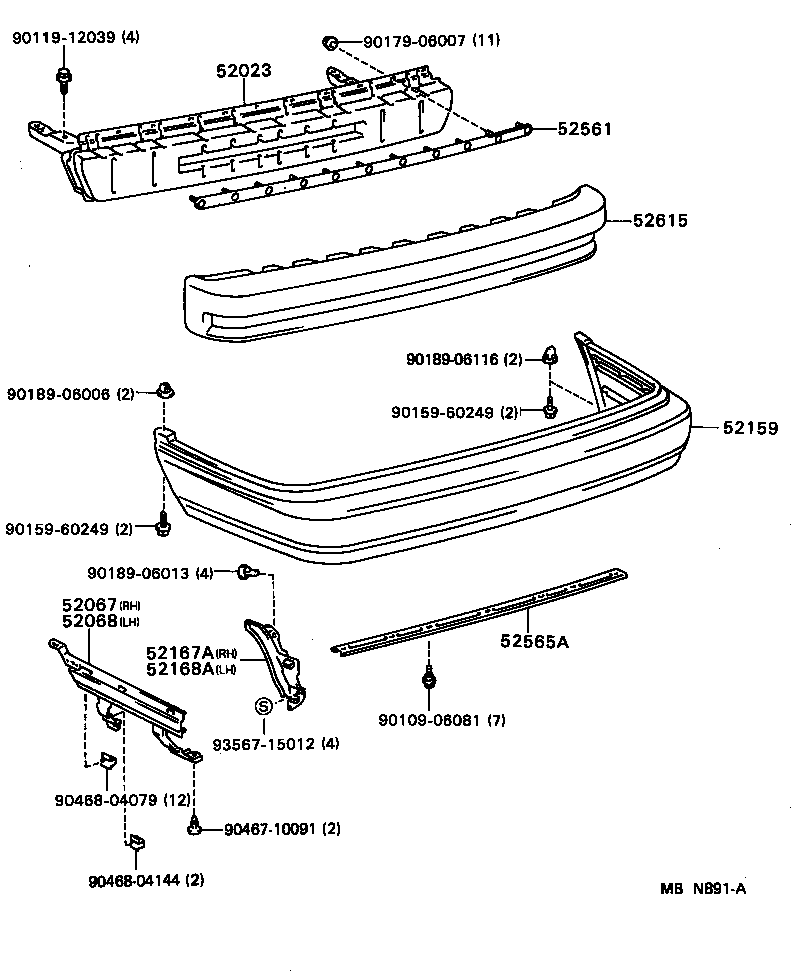

Figure MBN908A MBN908A 1988-08 → — Figure MBN909A MBN909A 1988-08 → — Figure MBN891A MBN891A 1988-08 → — Figure MBN892B MBN892B 1988-08 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52023 Reinforcement Sub-assy, Rear Bumper
52067 Support Sub-assy, Rear Bumper Side, RH
52068 Support Sub-assy, Rear Bumper Side, LH
52075 Retainer Sub-assy, Rear Bumper Side, RH
52076 Retainer Sub-assy, Rear Bumper Side, LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52167A Support, Rear Bumper Side, NO.4 RH
52168A Support, Rear Bumper Side, NO.4 LH
52189A Protector, Rear Bumper Arm Edge, RH
52196A Protector, Rear Bumper Arm Edge, LH
52552 Filler, Rear Bumper, RH
52553 Filler, Rear Bumper, LH
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52577 Retainer, Rear Bumper Side, NO.2 RH
52578 Retainer, Rear Bumper Side, NO.2 LH
52615 Absorber, Rear Bumper Energy
52706 Moulding Sub-assy, Rear Bumper Side, RH
52707 Moulding Sub-assy, Rear Bumper Side, LH
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
