Factory parts data · Europe

Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 3 illustrations

Illustrations

Figure MBN894

MBN894 1988-08 → —

Figure MBN910

MBN910 1988-08 → —

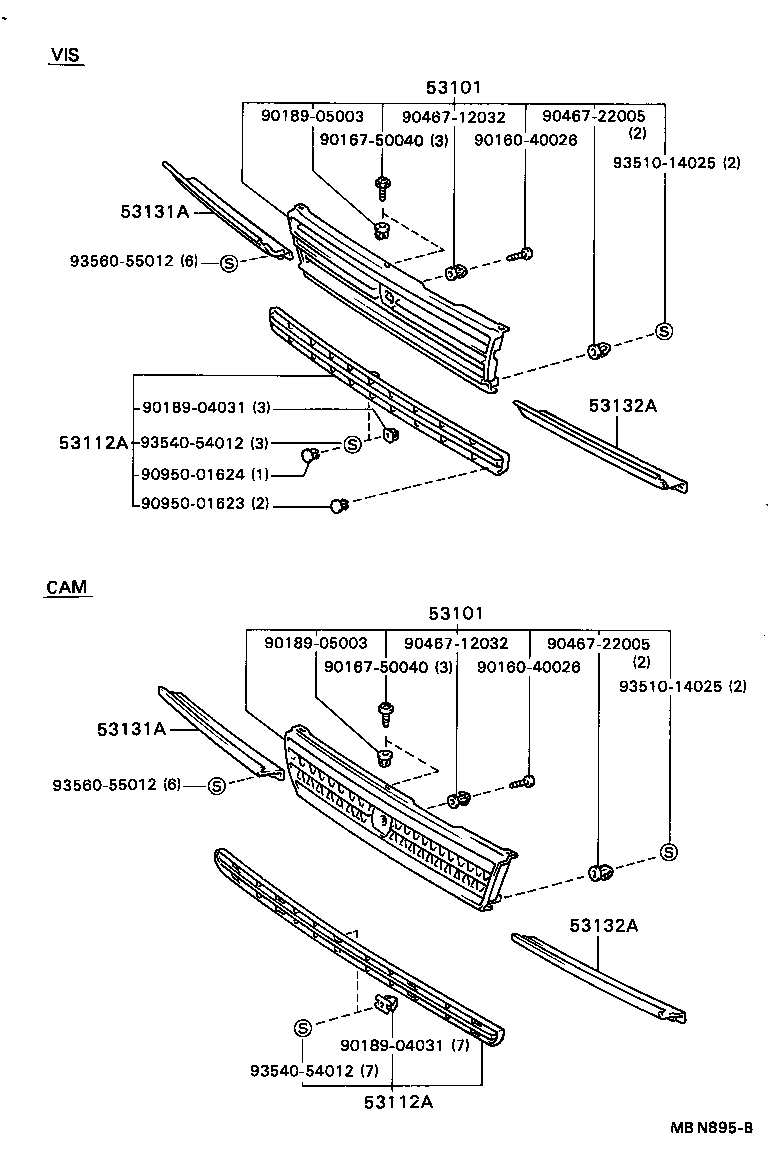

Figure MBN895B

MBN895B 1988-08 → —

Part groups

PNC	Description
53101	Grille Sub-assy, Radiator
53112A	Grille, Radiator, Lower
53115B	Bracket, Radiator Grille
53131A	Door, Headlamp, RH
53132A	Door, Headlamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
