Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

24 part groups · 2 illustrations

Illustrations

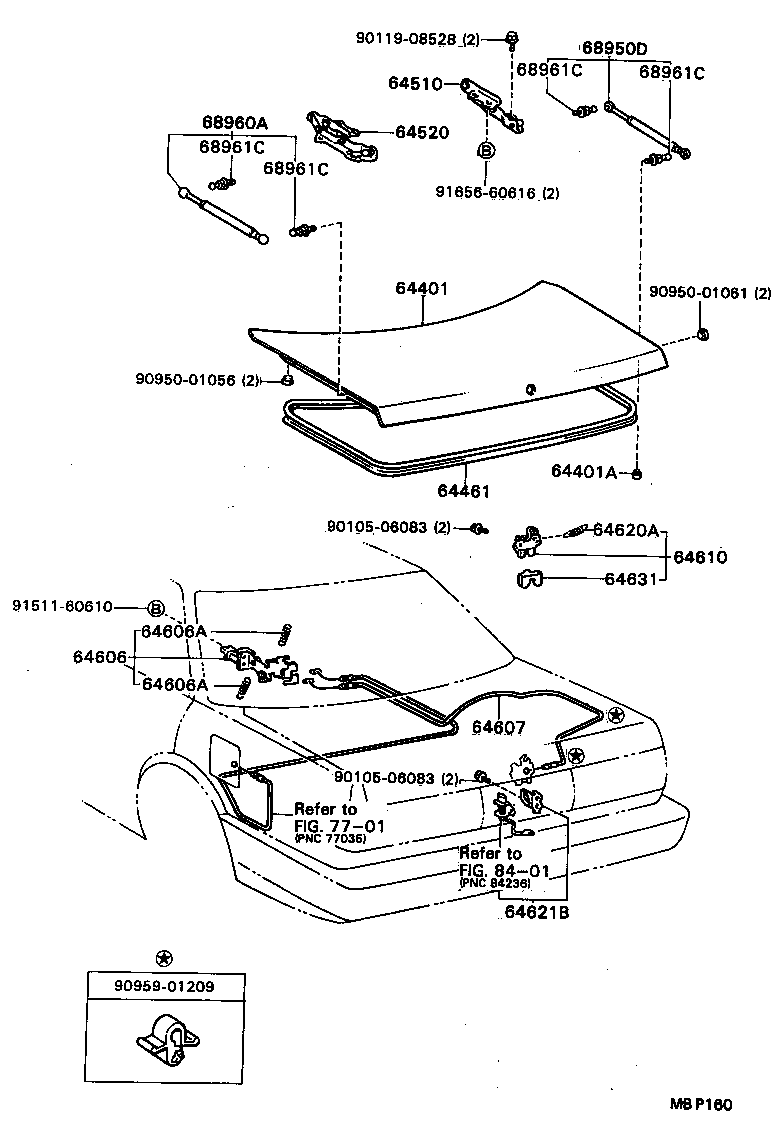

Figure MBP159 MBP159 1988-08 → — Figure MBP160 MBP160 1988-08 → —

Part groups

PNCDescription
64401 Panel Sub-assy, Luggage Compartment Door
64401A Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461 Weatherstrip, Luggage Compartment Door
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64510 Hinge Assy, Luggage Compartment Door, RH
64511 Support, Luggage Compartment Door Hinge, RH
64512 Support, Luggage Compartment Door Hinge, LH
64520 Hinge Assy, Luggage Compartment Door, LH
64529 Spacer, Luggage Compartment Door Hinge
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64559 Pin, Luggage Door Hinge
64571 Cover, Luggage Compartment Door Hinge
64606 Lever Sub-assy, Luggage Door Lock Open
64606A Spring, Tension(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607 Cable Sub-assy, Luggage Door Lock Control
64610 Lock Assy, Luggage Compartment Door
64620A Spring, Tension(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64621B Striker, Luggage Compartment Door Lock
64631 Protector, Luggage Door Lock
68950D Stay Assy, Luggage Door, RH
68960A Stay Assy, Luggage Door, LH
68961C Bolt, Luggage Door Stay
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
