Toyota Camry/Vista
1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan
Discontinued model
Data version 1991-03
Front Door Panel & Glass
44 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

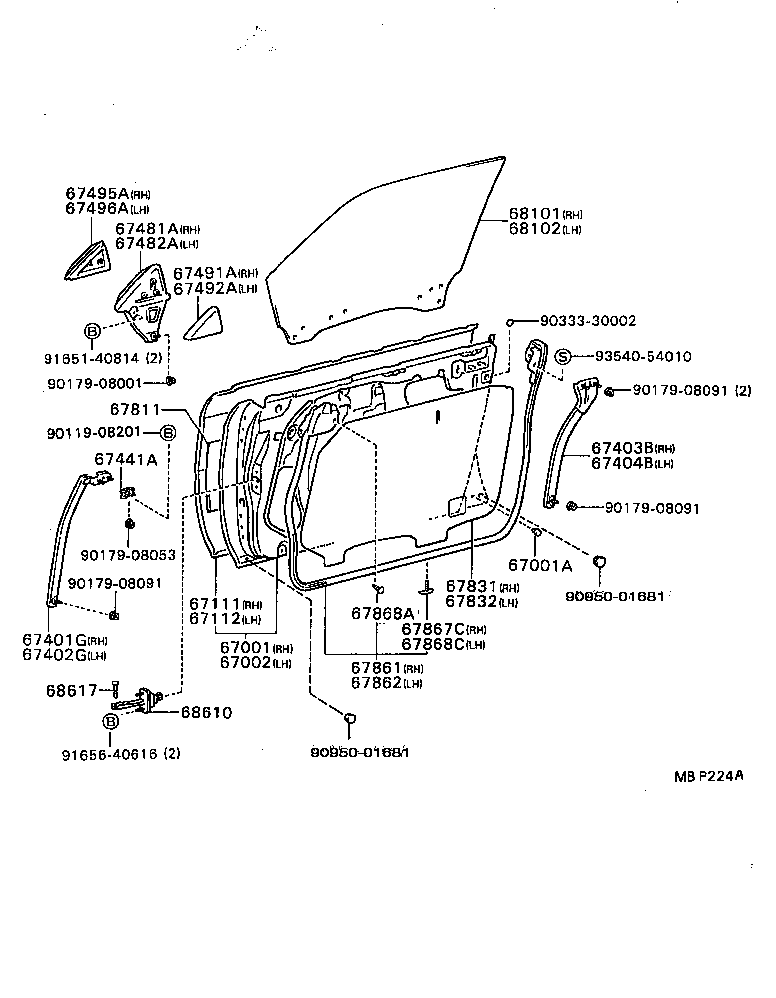

| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67401G | Guide Sub-assy, Front Door Window, Front RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67402G | Guide Sub-assy, Front Door Window, Front LH |
| 67403B | Guide Sub-assy, Front Door Window, Rear RH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404B | Guide Sub-assy, Front Door Window, Rear LH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67441A | Plate, Front Door Front Guide, Upper |
| 67481A | Seal, Front Door Front Lower Frame, RH |
| 67482A | Seal, Front Door Front Lower Frame, LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67495A | Cover, Front Door Front Lower Frame, Upper RH |
| 67496A | Cover, Front Door Front Lower Frame, Upper LH |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |

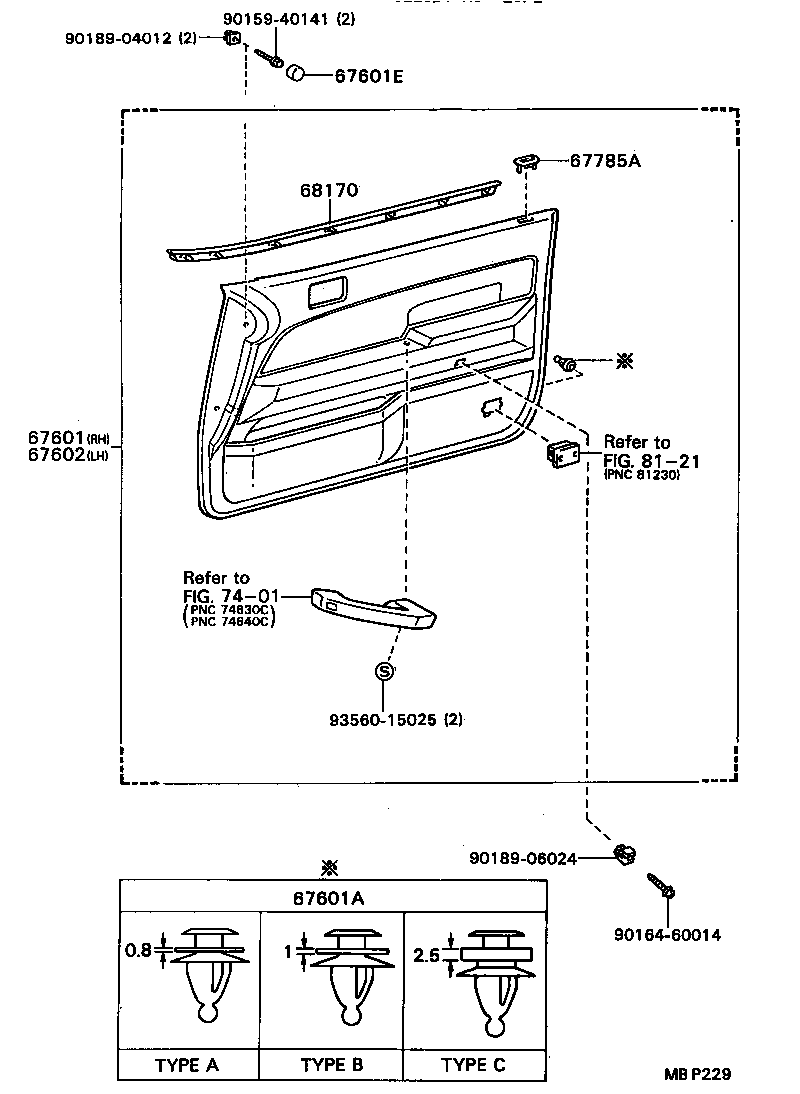

| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601E | Cap(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67785A | Holder, Door Locking Button Collar(FOR FRONT DOOR) |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67863B | Weatherstrip, Front Door, NO.2 RH |
| 67863D | Retainer, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) |
| 67864B | Weatherstrip, Front Door, NO.2 LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868A | Clip, Door Glass Weatherstrip(FOR FRONT DOOR) |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68143A | Run, Front Door Glass, NO.2 |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68610 | Check Assy, Front Door |
| 68617 | Pin, Front Door Check |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
