Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

10 part groups · 2 illustrations

Illustrations

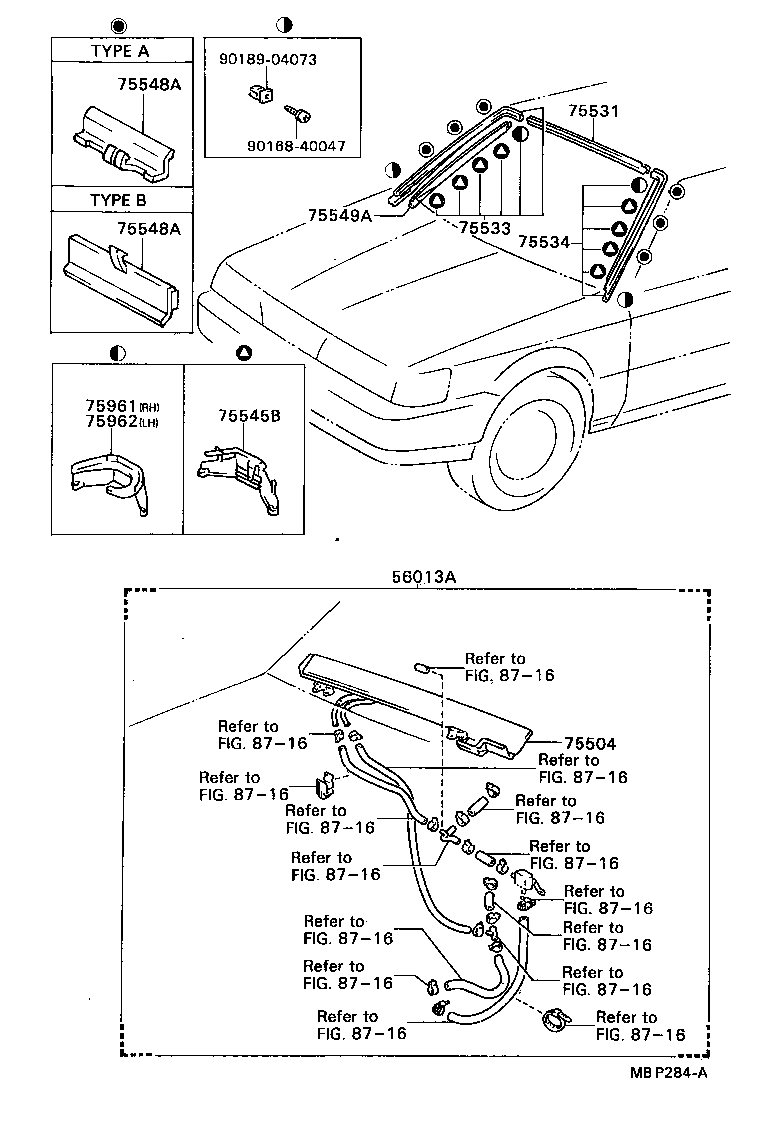

Figure MBP283 MBP283 1988-08 → — Figure MBP284A MBP284A 1988-08 → —

Part groups

PNCDescription
56013A Moulding Sub-assy, Front Window, Inner Center
75504 Moulding Sub-assy, Windshild, Outside Lower
75531 Moulding, Windshield, Outer Upper
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75545B Clip, Windshield Outside Moulding, NO.1
75548A Fastener, Windshield Outside Moulding, NO.1
75549A Moulding, Windshield Outside Sub
75961 Clip, Windshield Outside Moulding, NO.4
75962 Clip, Windshield Outside Moulding, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
