Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

24 part groups · 2 illustrations

Illustrations

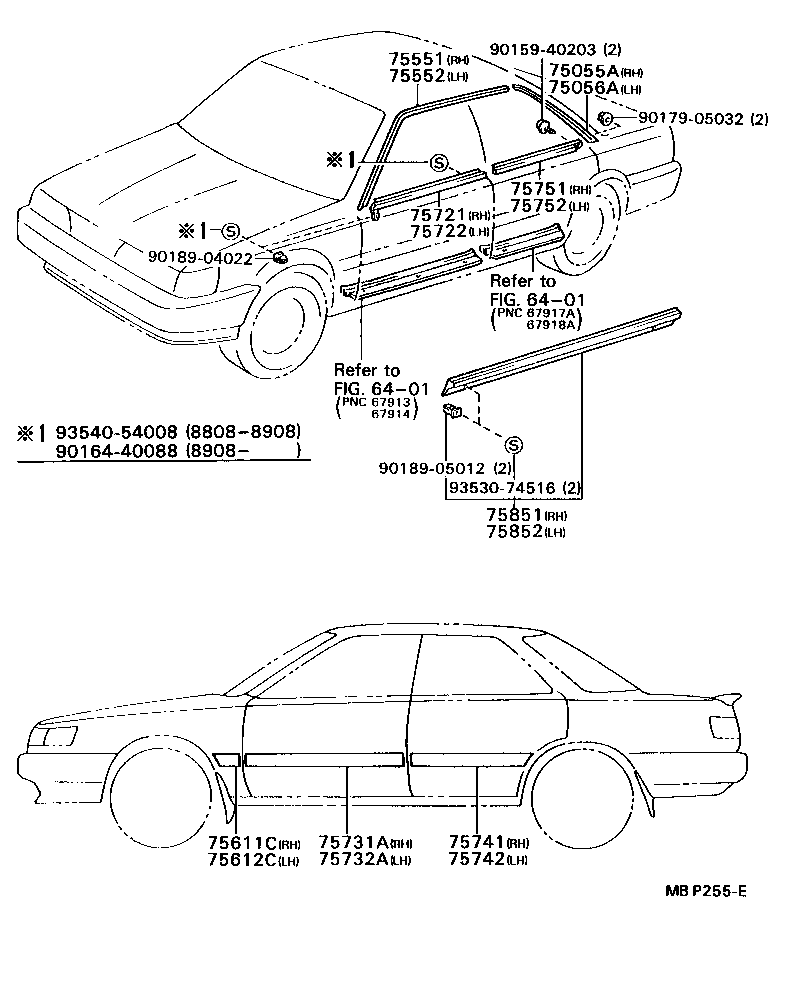

Figure MBP254B MBP254B 1988-08 → — Figure MBP255E MBP255E 1988-08 → —

Part groups

PNCDescription
75055A Garnish Sub-assy, Quarter, Outer RH
75056A Garnish Sub-assy, Quarter, Outer LH
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75611C Moulding, Front Fender, Outside RH
75612C Moulding, Front Fender, Outside LH
75613A Moulding, Front Fender, Front RH
75614A Moulding, Front Fender, Front LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75721 Moulding, Front Door Belt, RH
75722 Moulding, Front Door Belt, LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75751 Moulding, Rear Door Belt, RH
75752 Moulding, Rear Door Belt, LH
75813A Moulding, Luggage Compartment Door, RH
75814A Moulding, Luggage Compartment Door, LH
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
