Toyota Camry/Vista
1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan
Discontinued model
Data version 1991-03

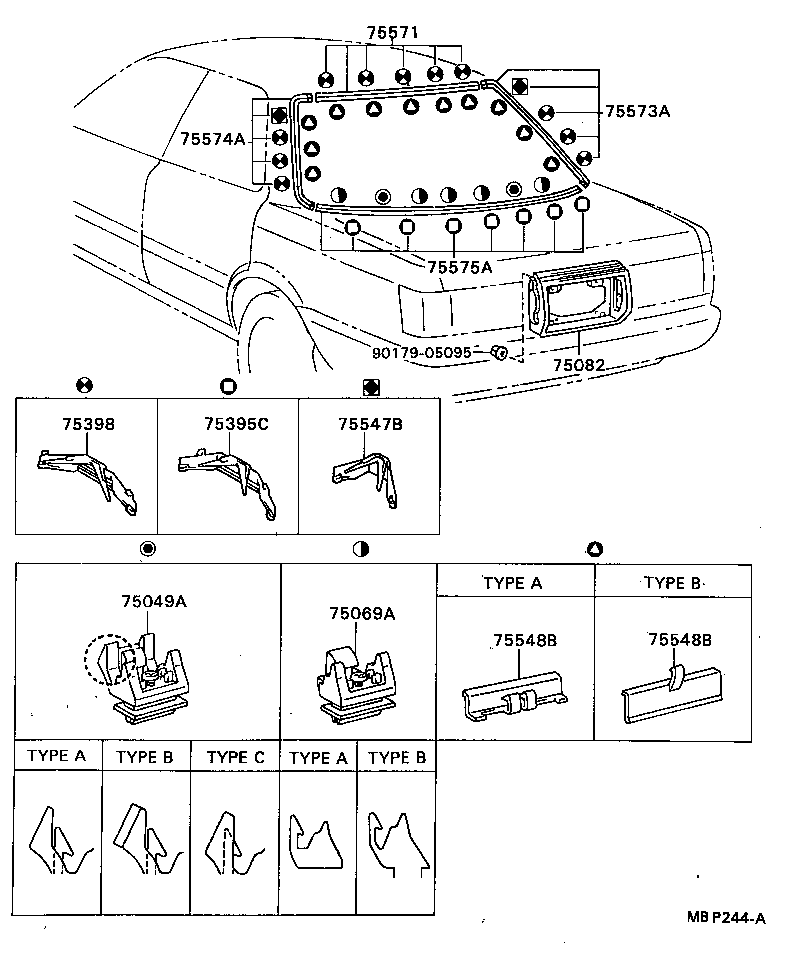

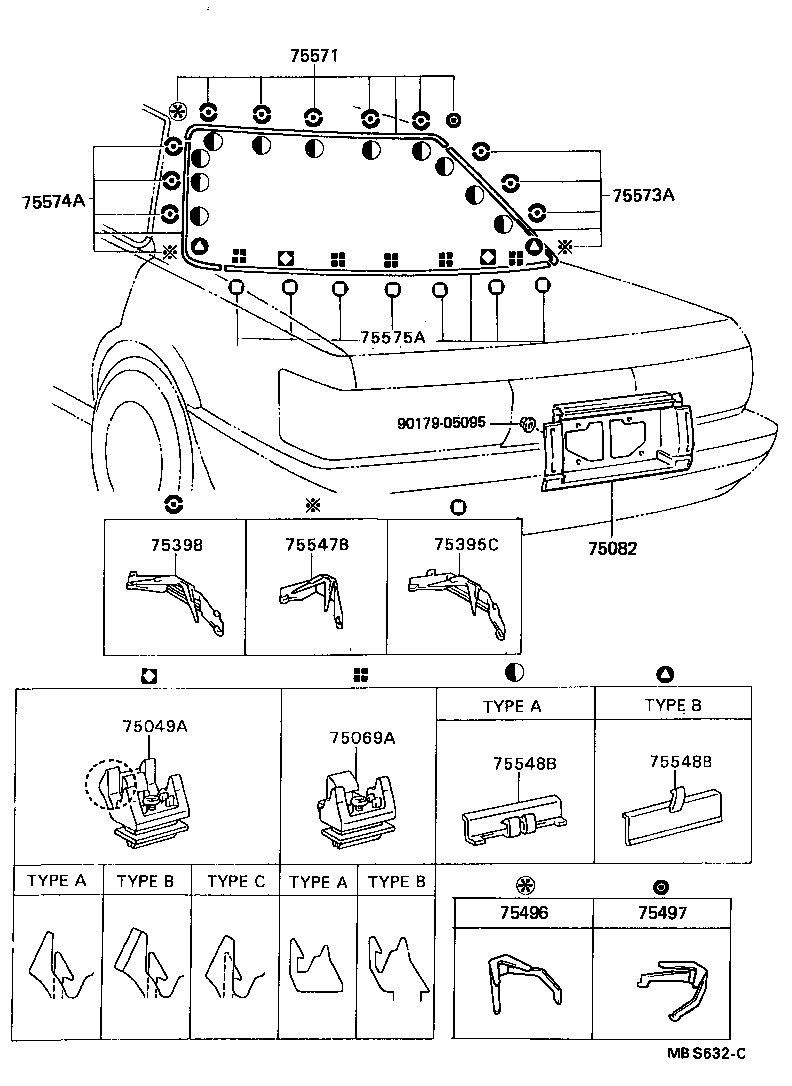

Rear Moulding
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 75049A | Clip Sub-assy, Outside Moulding, NO.2 |
| 75059D | Clip Sub-assy, Outside Moulding, NO.3 |
| 75069A | Clip Sub-assy, Outside Moulding, NO.4 |
| 75082 | Panel Sub-assy, Lower Back Finish, Center |
| 75082A | Panel Sub-assy, Luggage Door Finish |
| 75395C | Clip, Outside Moulding, NO.1 |
| 75397B | Clip, Back Window Moulding, NO.3 |
| 75398 | Clip, Outside Moulding, NO.5 |
| 75496 | Clip, Back Window Outside Moulding, NO.1 |
| 75497 | Clip, Back Window Outside Moulding, NO.2 |
| 75547B | Clip, Windshield Outside Moulding, NO.3 |
| 75548B | Fastener, Back Window Outside Moulding |
| 75571 | Moulding, Back Window, Outside Upper |
| 75573A | Moulding, Back Window, Outside RH |
| 75574A | Moulding, Back Window, Outside LH |
| 75575A | Moulding, Back Window, Outside Lower |
| 75834A | Moulding, Lower Back Finish Panel |
| 75893 | Retainer, Luggage Door Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
