Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

7 part groups · 4 illustrations

Illustrations

Figure MEK855A

MEK855A 1988-08 → —

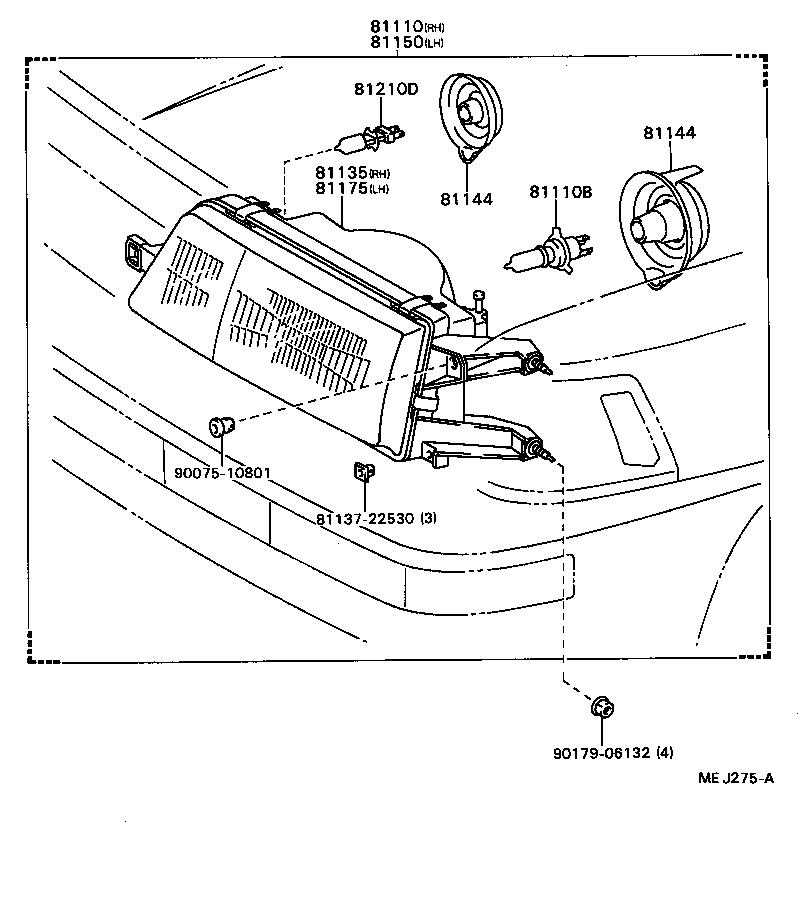

Figure MEJ275A

MEJ275A 1988-08 → —

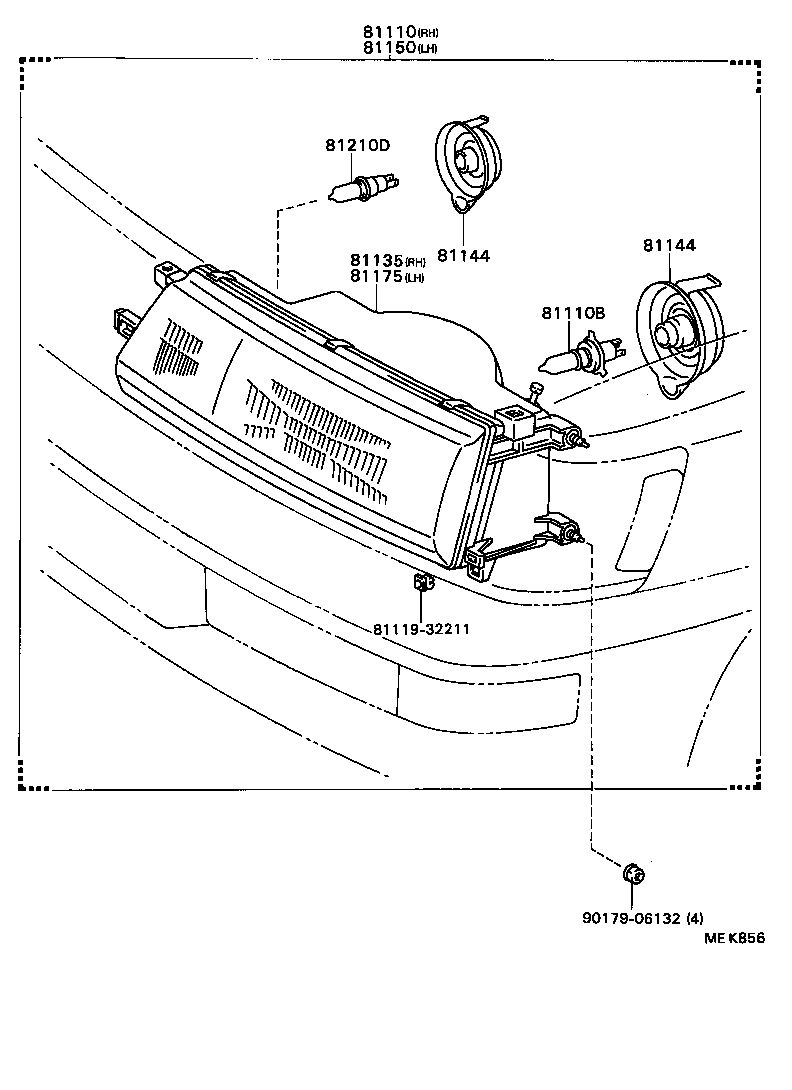

Figure MEK856

MEK856 1988-08 → —

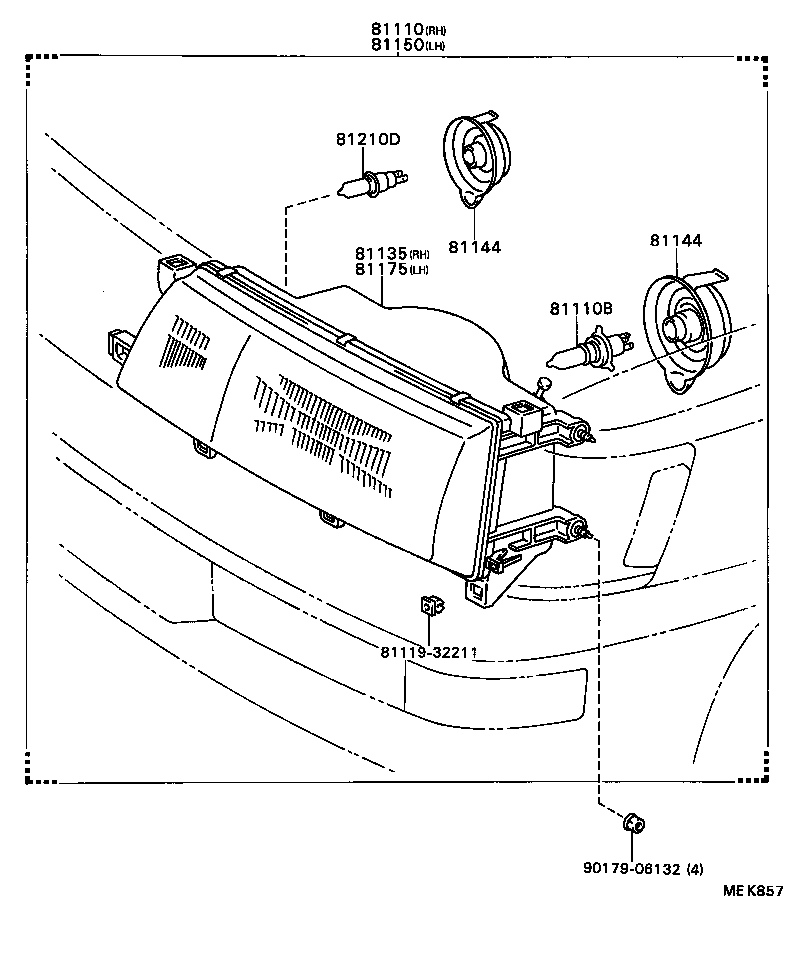

Figure MEK857

MEK857 1988-08 → —

Part groups

PNC	Description
81110	Headlamp Assy, RH
81110B	Bulb(FOR HEADLAMP, NO.1)
81135	Unit Assy, Headlamp, RH
81144	Cover, Headlamp, NO.1
81150	Headlamp Assy, LH
81175	Unit Assy, Headlamp, LH
81210D	Bulb, Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
