Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

13 part groups · 3 illustrations

Illustrations

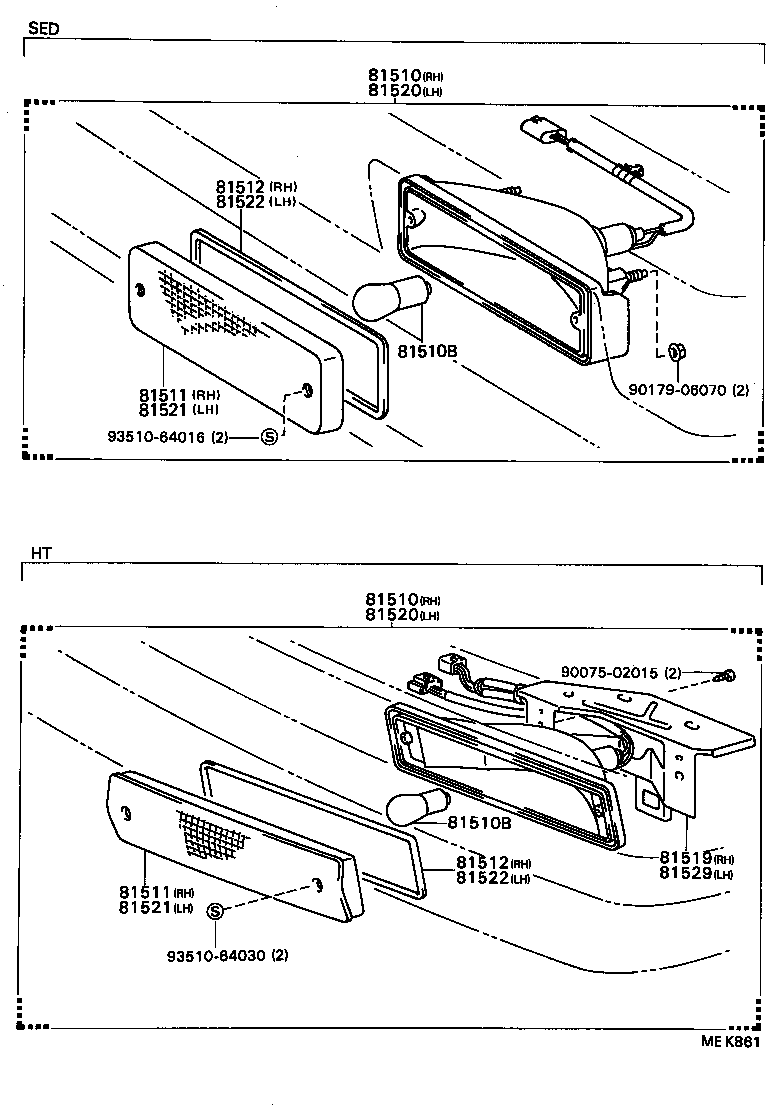

Figure MEK860 MEK860 1988-08 → — Figure MEK861 MEK861 1988-08 → — Figure MEK862A MEK862A 1988-08 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81512 Gasket, Front Turn Signal Lamp Lens, RH
81514 Gasket, Front Turn Signal Lamp Body, RH
81517C Lens, Front Turn Signal Lamp Side, RH
81519 Bracket, Front Turn Signal Lamp, RH
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
81522 Gasket, Front Turn Signal Lamp Lens, LH
81524 Gasket, Front Turn Signal Lamp Body, LH
81527 Lens, Front Turn Signal
81529 Bracket, Front Turn Signal Lamp Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
