Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

35 part groups · 11 illustrations

Illustrations

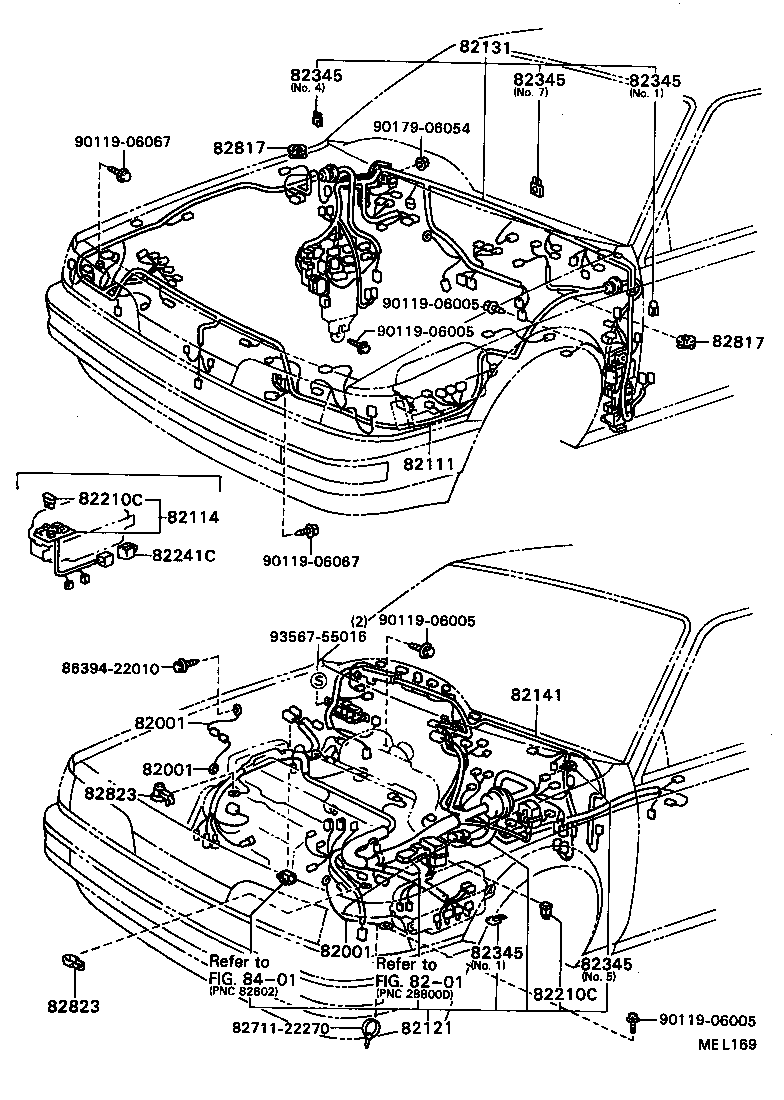

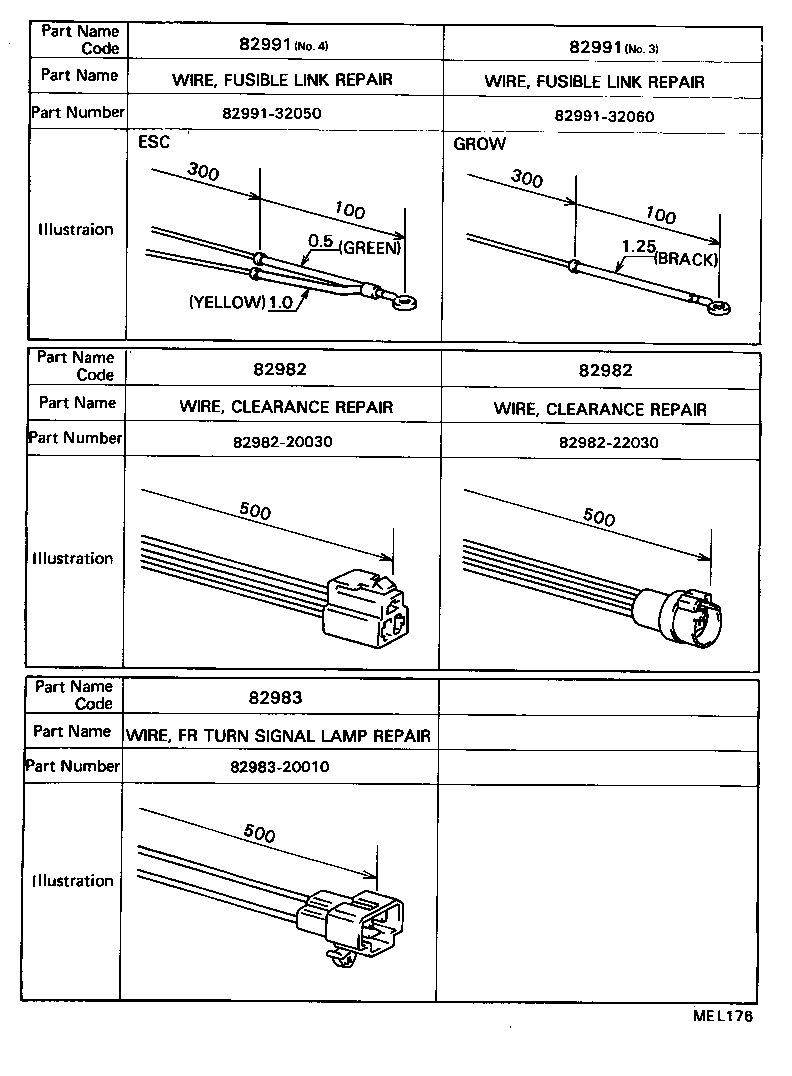

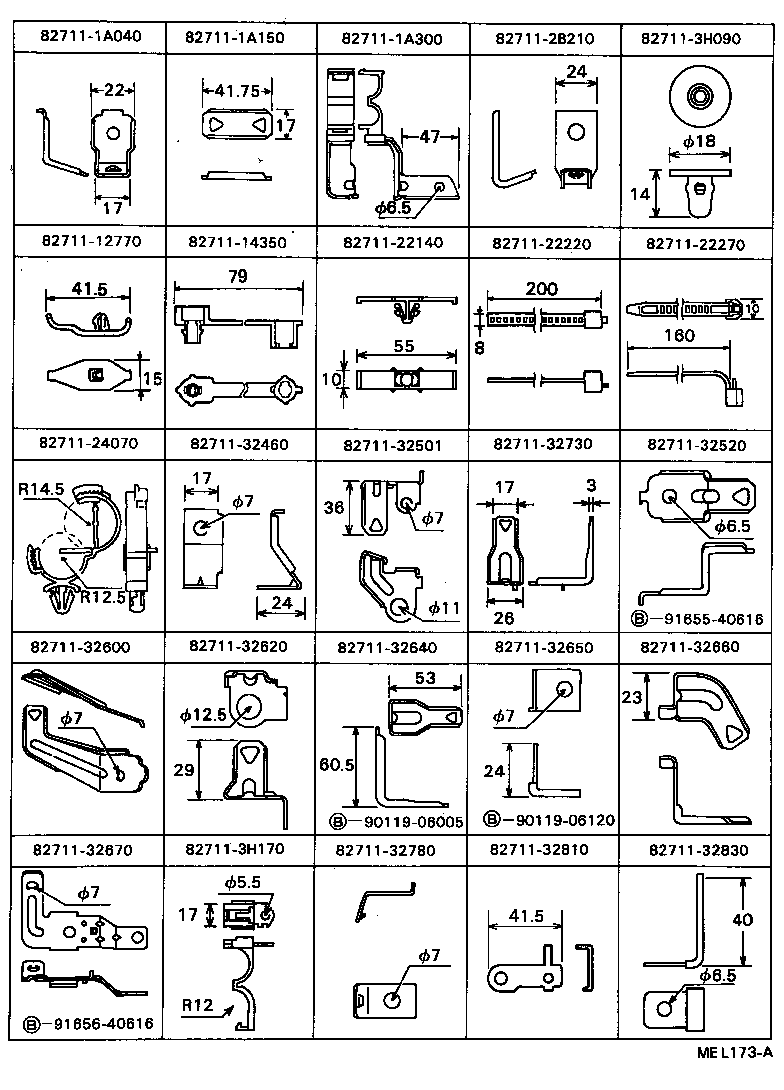

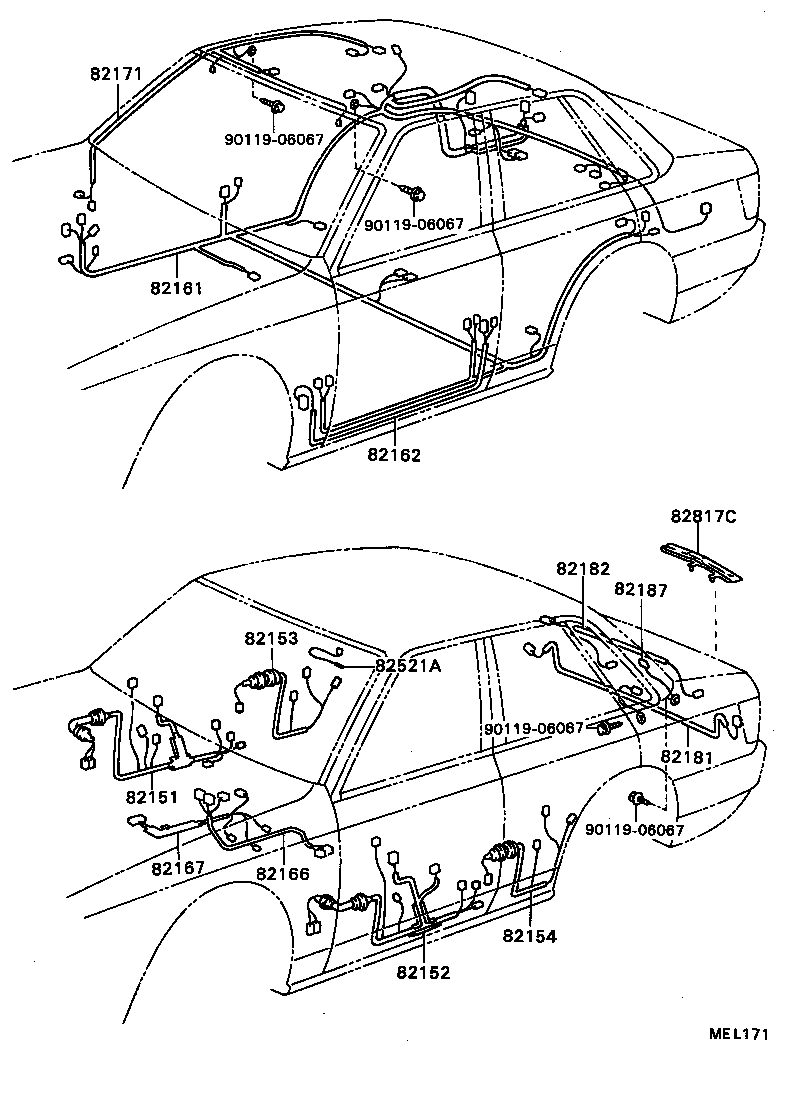

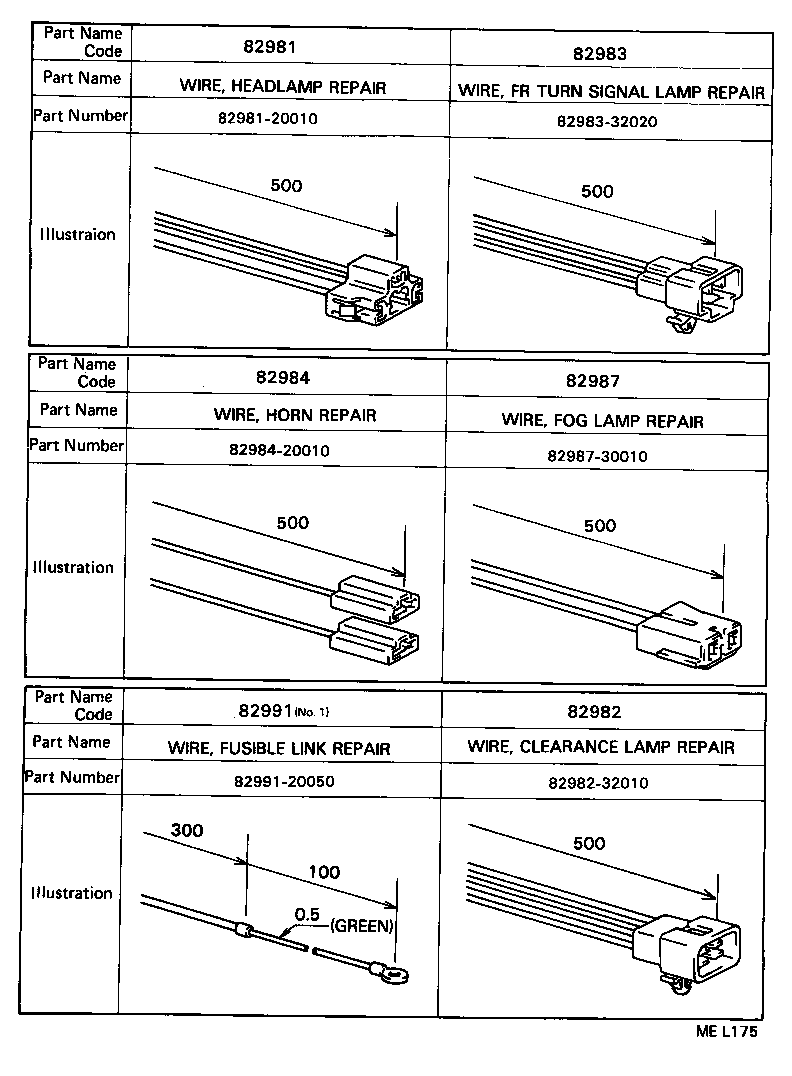

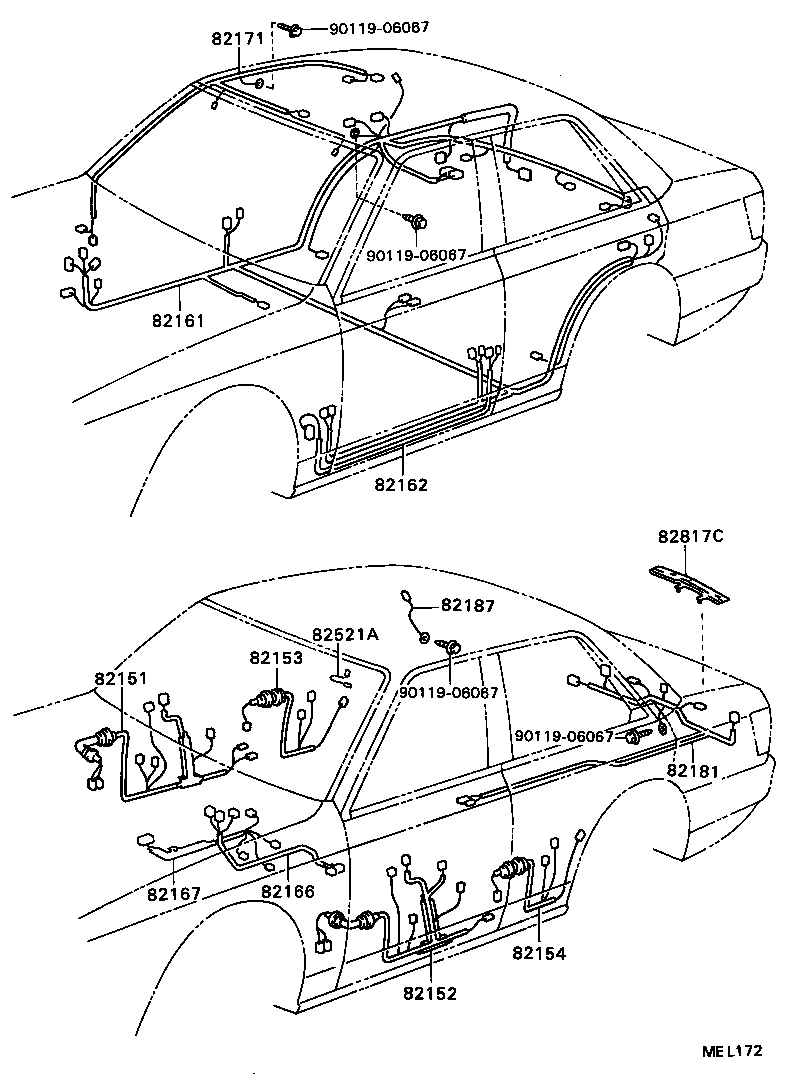

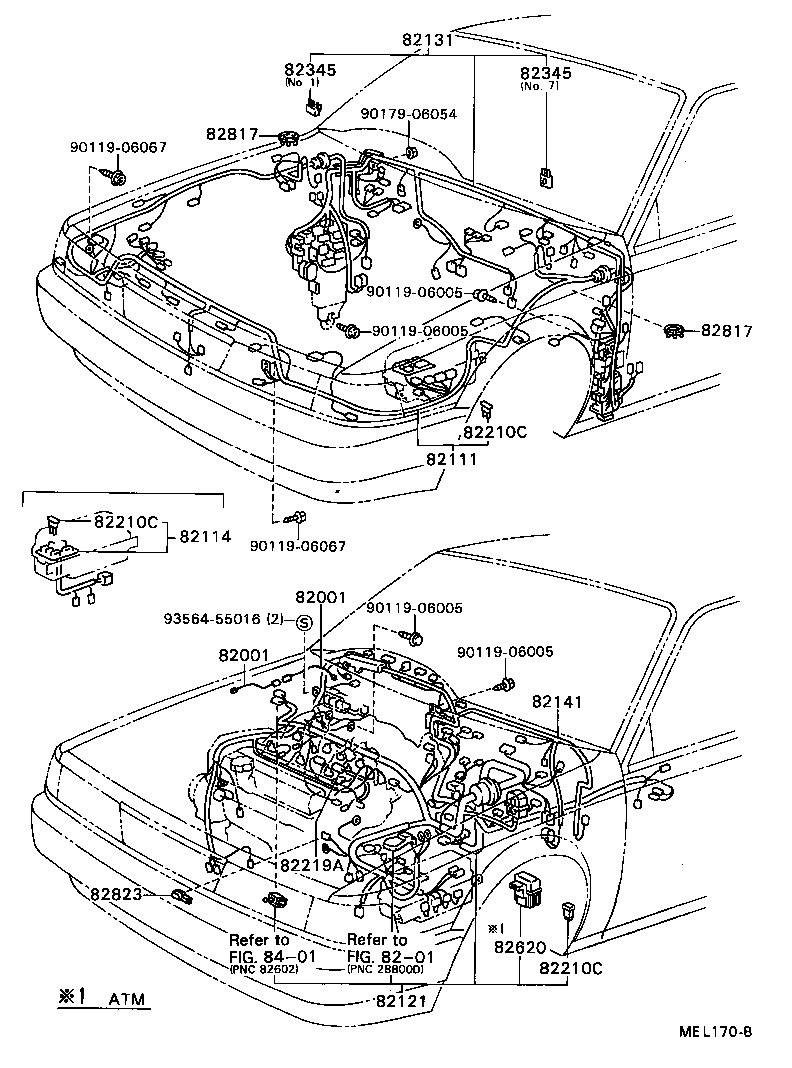

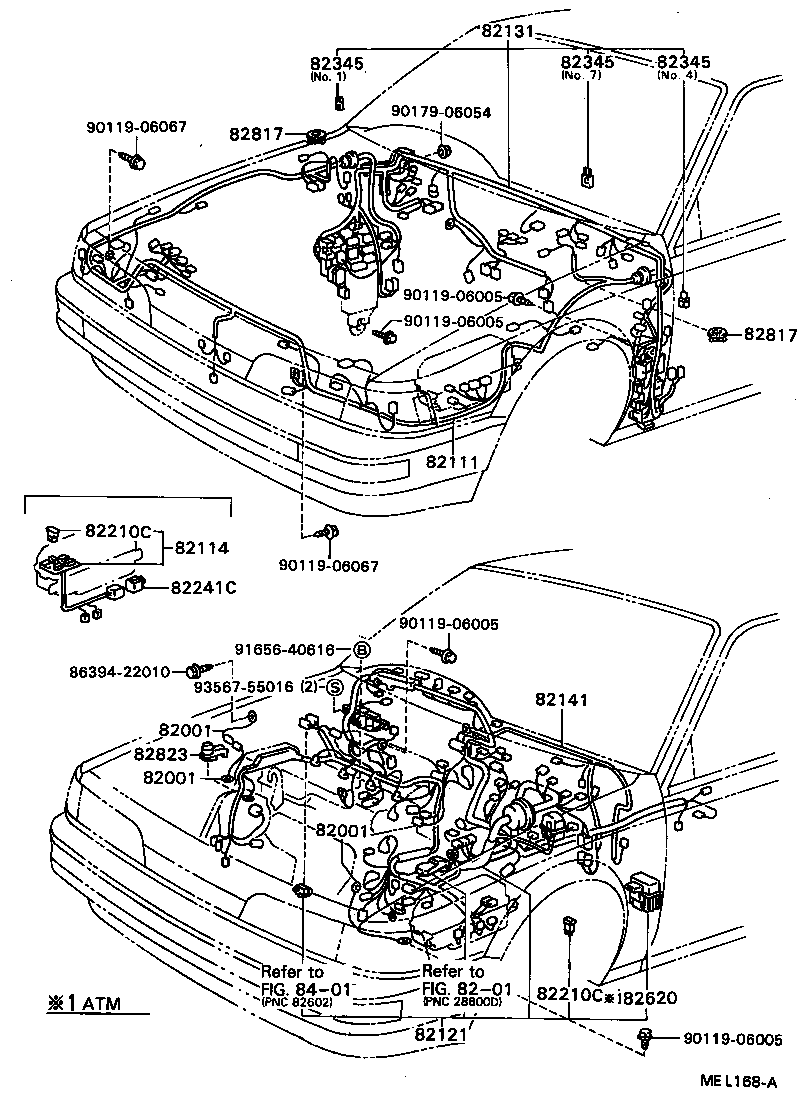

Figure MEL167 MEL167 1988-08 → — Figure MEL168A MEL168A 1988-08 → — Figure MEL169 MEL169 1988-08 → — Figure MEL170B MEL170B 1988-08 → — Figure MEL171 MEL171 1988-08 → — Figure MEL172 MEL172 1988-08 → — Figure MEL173A MEL173A 1988-08 → — Figure MEL174C MEL174C 1988-08 → — Figure MEL175 MEL175 1988-08 → — Figure MEL176 MEL176 1988-08 → — Figure MEL177 MEL177 1988-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82219A Wire, Sensor
82241C Wire, Relay
82345 Diode
82521A Wire, Vanity Lamp
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817C Protector, Wiring Harness, NO.4
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82987 Wire, Fog Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
