Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

13 part groups · 3 illustrations

Illustrations

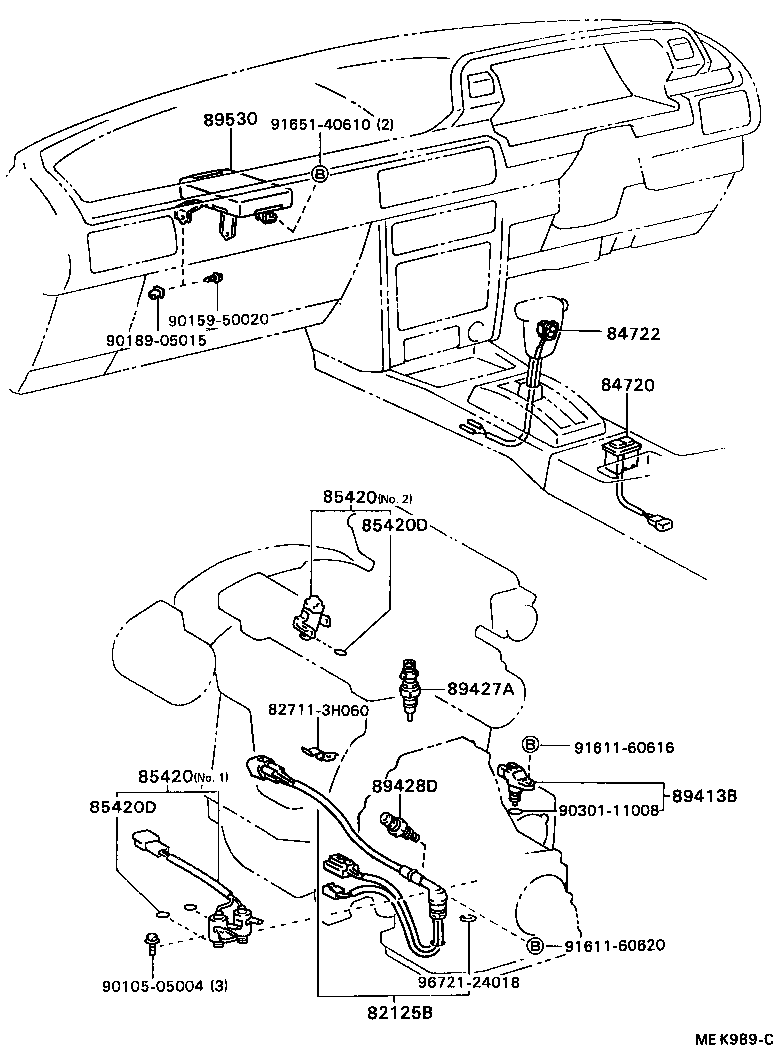

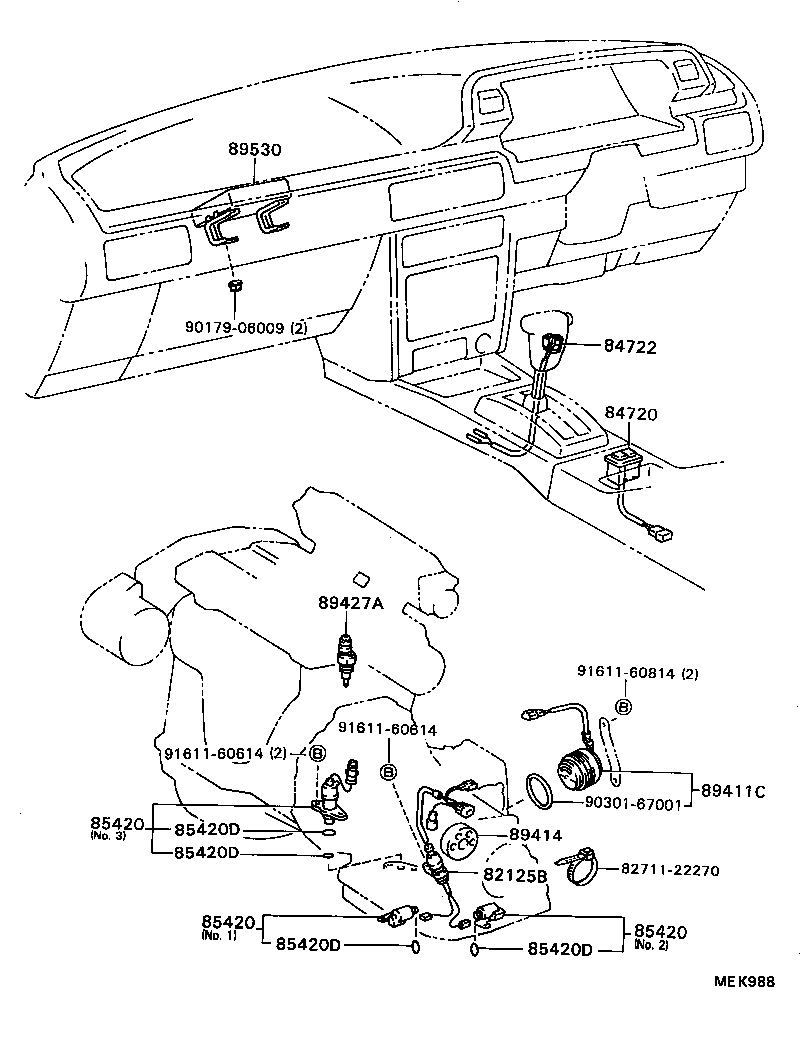

Figure MEK987 MEK987 1988-08 → — Figure MEK988 MEK988 1988-08 → — Figure MEK989C MEK989C 1988-08 → —

Part groups

PNCDescription
82125B Wire, Transmission
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
85425A Ring, O (FOR OVERDRIVE SOLENOID)
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89414 Rotor, Sensor
89427A Switch, Temperature
89428D Switch, Temperature, NO.2
89530 Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
