Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

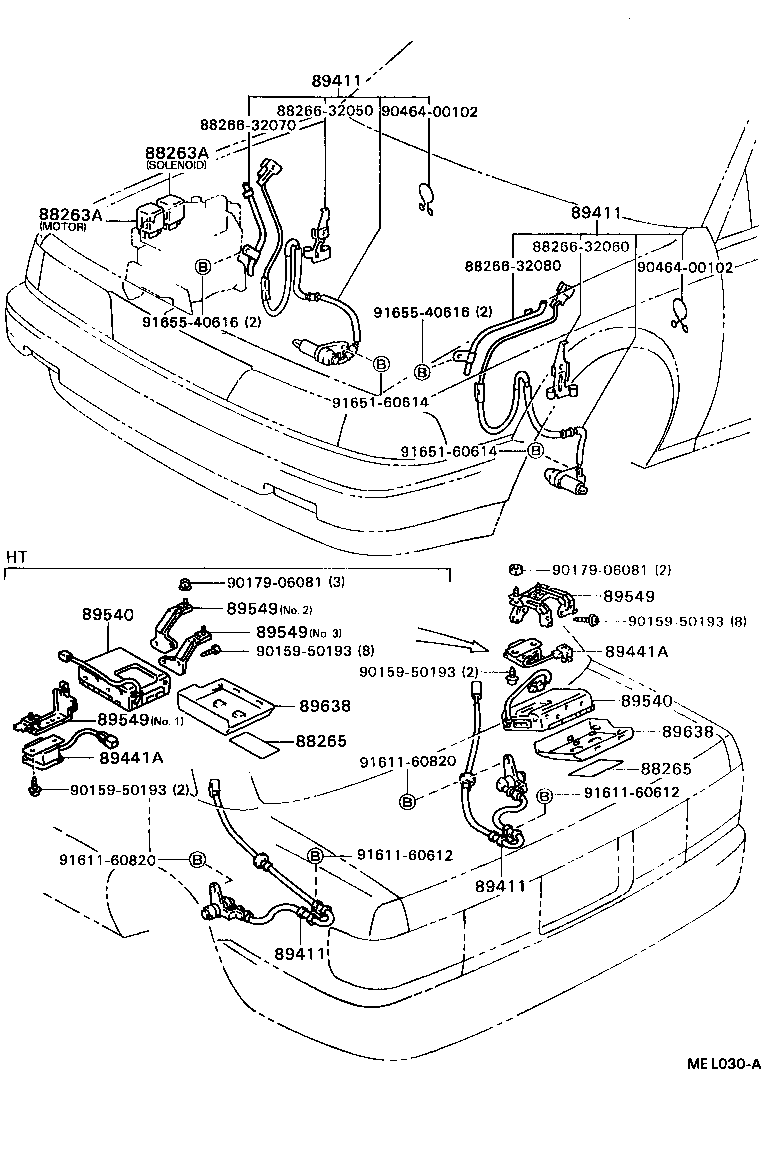

Figure MEL029A MEL029A 1988-08 → — Figure MEL030A MEL030A 1988-08 → —

Part groups

PNCDescription
88263A Relay, Skid Control
88265 Label, Skid Control Caution
89411 Sensor, Speed
89441A Sensor, Deceleration
89540 Computer Assy, Skid Control
89549 Bracket, Skid Control Computer
89638 Cover, Brake Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
