Toyota Camry/Vista

1988-08 → 1990-07 · chassis SV2#,VZV20,CV20 · catalogue 281140 · Japan

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

7 part groups · 2 illustrations

Illustrations

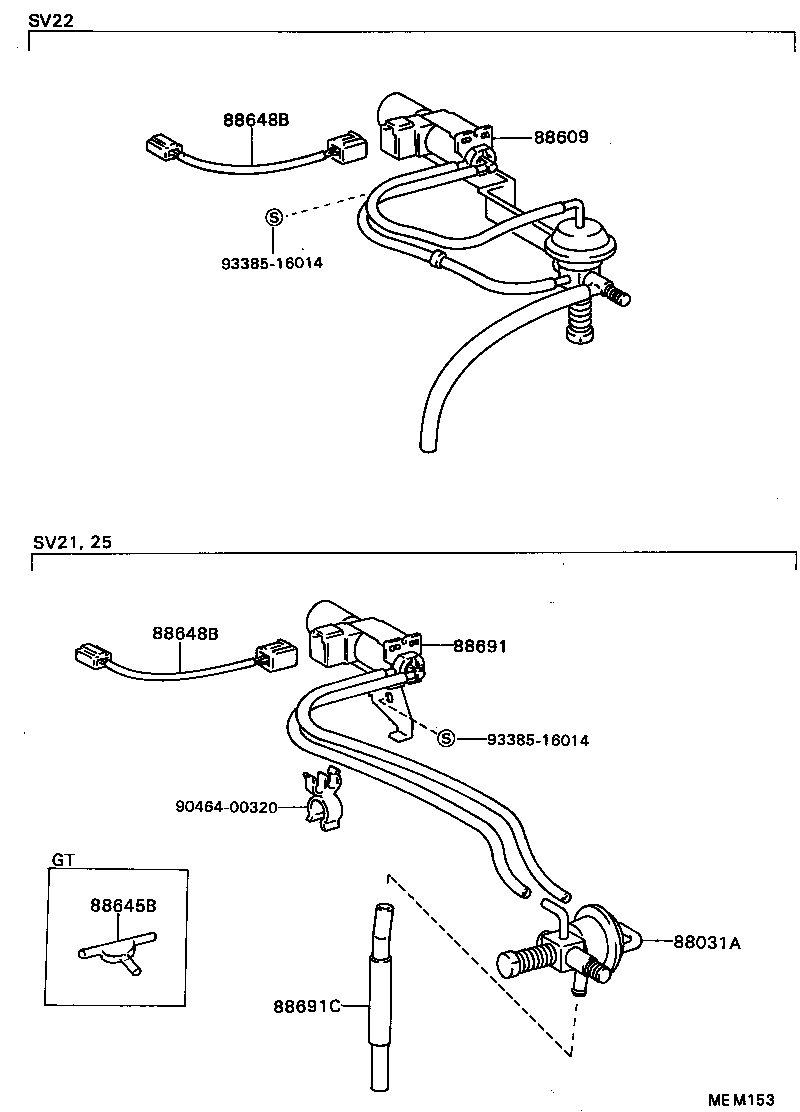

Figure MEK940A MEK940A 1988-08 → — Figure MEM153 MEM153 1988-08 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88609 Device Sub-assy, Idle UP
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88648B Wiring, Cooler, NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
