Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

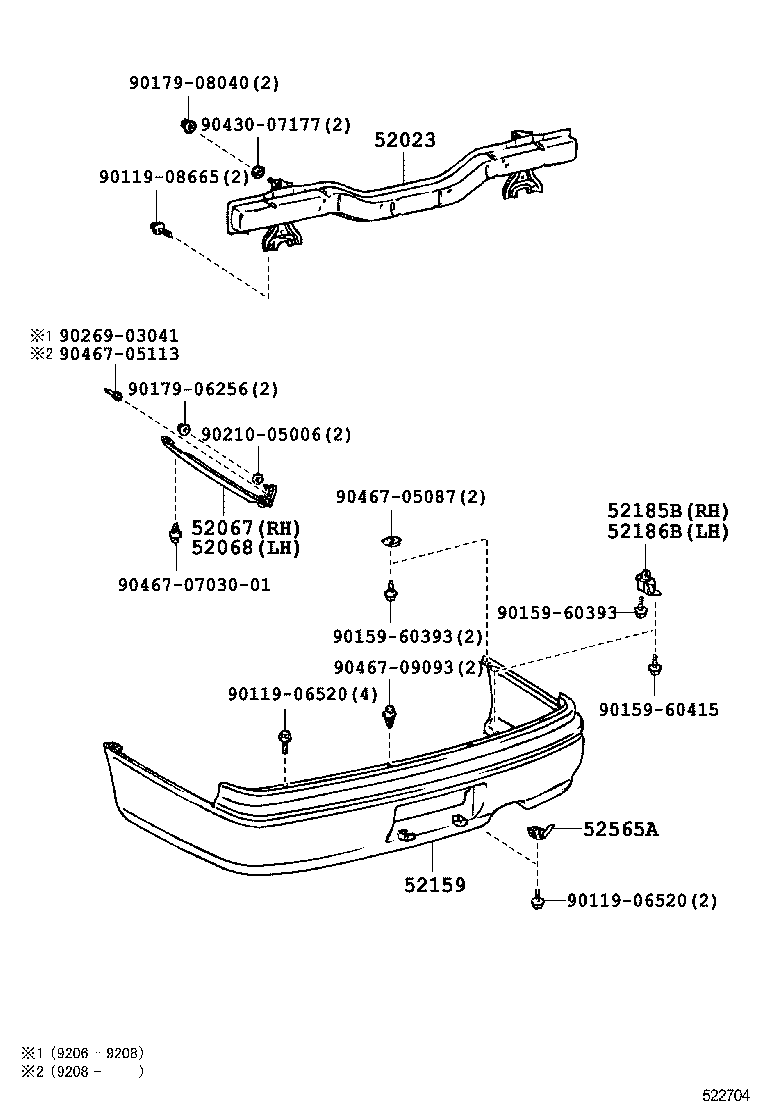

Exploded illustration 522704 9017908040 — not listed in this catalogue 9043007177 — not listed in this catalogue 9011908665 — not listed in this catalogue 9026903041 — not listed in this catalogue 9046705113 — not listed in this catalogue 9017906256 — not listed in this catalogue 9021005006 — not listed in this catalogue 904670703001 — not listed in this catalogue 52023 — REINFORCEMENT SUB-ASSY, REAR BUMPER (2 parts) 52067 — SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH (2 parts) 52068 — SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH (2 parts) 9046705087 — not listed in this catalogue 9015960393 — not listed in this catalogue 9011906520 — not listed in this catalogue 52185B — BRACKET, REAR BUMPER SIDE MOUNTING, RH (2 parts) 52186B — BRACKET, REAR BUMPER SIDE MOUNTING, LH (2 parts) 52565A — RETAINER, REAR BUMPER, LOWER (4 parts) 52159 — COVER, REAR BUMPER (73 parts) 9015960415 — not listed in this catalogue 9015960393 — not listed in this catalogue 9046709093 — not listed in this catalogue 9011906520 — not listed in this catalogue
522704 · 7 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
87 parts on this figure
Part number Description Fitment Price
52023 — Reinforcement Sub-assy, Rear Bumper
52023-32150 Reinforcement Sub-assy, Rear Bumper
1990-07 → 1994-06 ended
CV30,SV3# SED ¥25,400
52023-32160 Reinforcement Sub-assy, Rear Bumper
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# HT ¥29,800
52067 — Support Sub-assy, Rear Bumper Side, RH
52067-32050 Support Sub-assy, Rear Bumper Side, RH
1990-07 → 1994-06 ended
CV30,SV3# SED ¥2,390
52067-32060 Support Sub-assy, Rear Bumper Side, RH
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# HT ¥2,390
52068 — Support Sub-assy, Rear Bumper Side, LH
52068-32050 Support Sub-assy, Rear Bumper Side, LH
1990-07 → 1994-06 ended
CV30,SV3# SED ¥2,390
52068-32060 Support Sub-assy, Rear Bumper Side, LH
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# HT ¥2,390
52159 — Cover, Rear Bumper
52159-32270-02 note Cover, Rear Bumper
1990-07 → 1991-01 ended
CV30,SV3# SED ¥64,200
52159-32270-03 note Cover, Rear Bumper
1990-07 → 1992-06 ended
CV30,SV3# SED ¥64,200
52159-32270-07 note Cover, Rear Bumper
1990-07 → 1992-06 ended
CV30,SV3# SED ¥64,200
52159-32270-08 note Cover, Rear Bumper
1990-07 → 1992-06 ended
CV30,SV3# SED ¥64,200
52159-32270-13 note Cover, Rear Bumper
1990-07 → 1992-06 ended
CV30,SV3# SED ¥64,200
52159-32270-17 note Cover, Rear Bumper
1991-01 → 1992-06 ended
CV30,SV3# SED ¥64,200
52159-32280-A0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3# SED ¥73,500
52159-32280-B0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3# SED ¥73,500
52159-32280-E0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3# SED ¥73,500
52159-32280-G0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3# SED ¥73,500
52159-32280-G1 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3# SED ¥73,500
52159-32280-K0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3# SED ¥73,500
52159-32281-A0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3# SED ¥75,400
52159-32281-B0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3# SED ¥75,400
52159-32281-E0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3# SED ¥75,400
52159-32281-G0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3# SED ¥75,400
52159-32281-G1 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3# SED ¥75,400
52159-32281-K0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3# SED ¥75,400
52159-32290-A0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35 SED (VX,ZX) ¥73,500
52159-32290-B0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35 SED (VX,ZX) ¥73,500
52159-32290-E0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35 SED (VX,ZX) ¥73,500
52159-32290-G0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35 SED (VX,ZX) ¥73,500
52159-32290-G1 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35 SED (VX,ZX) ¥73,500
52159-32290-K0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35 SED (VX,ZX) ¥73,500
52159-32291-A0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35 SED (VX,ZX) ¥78,200
52159-32291-B0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35 SED (VX,ZX) ¥78,200
52159-32291-E0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35 SED (VX,ZX) ¥78,200
52159-32291-G0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35 SED (VX,ZX) ¥78,200
52159-32291-G1 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35 SED (VX,ZX) ¥78,200
52159-32291-K0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35 SED (VX,ZX) ¥78,200
52159-32300-02 note Cover, Rear Bumper
1990-07 → 1991-01 ended
CV30,SV3#,VZV3# HT ¥73,500
52159-32300-03 note Cover, Rear Bumper
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# HT ¥73,700
52159-32300-04 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3#,VZV3# HT ¥73,500
52159-32300-07 note Cover, Rear Bumper
1990-07 → 1992-06 ended
CV30,SV3# HT ¥73,700
52159-32300-08 note Cover, Rear Bumper
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# HT ¥64,200
52159-32300-13 note Cover, Rear Bumper
1990-07 → 1992-06 ended
VZV3# ¥73,700
52159-32300-17 note Cover, Rear Bumper
1991-01 → 1992-06 ended
CV30,SV3#,VZV3# HT ¥64,200
52159-32300-19 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3#,VZV3# HT ¥73,500
52159-32300-23 note Cover, Rear Bumper
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# HT ¥64,200
52159-32300-E0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3#,VZV3# HT ¥73,500
52159-32300-G0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3#,VZV3# HT ¥73,500
52159-32300-G2 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3#,VZV3# HT ¥73,500
52159-32300-K0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3#,VZV3# HT ¥73,500
52159-32301-04 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3#,VZV3# HT ¥79,800
52159-32301-19 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3#,VZV3# HT ¥79,800
52159-32301-E0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3#,VZV3# HT ¥79,800
52159-32301-G0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3#,VZV3# HT ¥79,800
52159-32301-G2 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3#,VZV3# HT ¥79,800
52159-32301-K0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3#,VZV3# HT ¥79,800
52159-32310-03 note Cover, Rear Bumper
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# HT (GT,PRO,VR,VX) ¥73,700
52159-32310-08 note Cover, Rear Bumper
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# HT (GT,PRO,VR,VX) ¥64,200
52159-32310-A0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3#,VZV3# HT (PRO,VR,VX) ¥73,500
52159-32310-G3 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV3#,VZV3# HT (PRO,VR,VX) ¥73,500
52159-32311-A0 note Cover, Rear Bumper
1992-12 → 1993-03 ended
CV30,SV30 HT ETO ¥83,500
52159-32311-A0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3#,VZV3# HT (PRO,VR,VX) ¥83,500
52159-32311-A0 note Cover, Rear Bumper
1993-08 → 1994-06 ended
CV30,SV30,35 ETO ¥83,500
52159-32311-G3 note Cover, Rear Bumper
1992-12 → 1993-03 ended
CV30,SV30 HT ETO ¥83,500
52159-32311-G3 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV3#,VZV3# HT (PRO,VR,VX) ¥83,500
52159-32320-A1 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥73,500
52159-32320-B0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥73,500
52159-32320-E0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥73,500
52159-32320-G0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥73,500
52159-32320-G2 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥73,500
52159-32320-K0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥73,500
52159-32321-A1 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥82,400
52159-32321-B0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥82,400
52159-32321-E0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥82,400
52159-32321-G0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥82,400
52159-32321-G2 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥82,400
52159-32321-K0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥82,400
52159-32330-A0 note Cover, Rear Bumper
1992-06 → 1992-08 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥73,500
52159-32331-A0 note Cover, Rear Bumper
1992-08 → 1994-06 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥86,400
52159-32331-G3 note Cover, Rear Bumper
1992-06 → 1994-06 ended
CV30,SV32,33,35,VZV3# HT (PRO,VX) ¥86,400
52185B — Bracket, Rear Bumper Side Mounting, RH
52185-32020 Bracket, Rear Bumper Side Mounting, RH
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# HT ¥910
52185-32030 Bracket, Rear Bumper Side Mounting, RH
1990-07 → 1994-06 ended
CV30,SV3# SED ¥910
52186B — Bracket, Rear Bumper Side Mounting, LH
52186-32020 Bracket, Rear Bumper Side Mounting, LH
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# HT ¥910
52186-32030 Bracket, Rear Bumper Side Mounting, LH
1990-07 → 1994-06 ended
CV30,SV3# SED ¥910
52565A — Retainer, Rear Bumper, Lower
52565-32050 Retainer, Rear Bumper, Lower
1990-07 → 1993-09 ended
CV30,SV3#,VZV3# ¥650
52565-32050 Retainer, Rear Bumper, Lower
1993-09 → 1993-10 ended
CV30,SV3# SED ¥650
52565-32050 Retainer, Rear Bumper, Lower
1993-09 → 1993-10 ended
CV30,SV3#,VZV3# HT ¥650
52565-32050 Retainer, Rear Bumper, Lower
1993-10 → 1994-06 ended
CV30,SV3#,VZV3# ¥650
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
