Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

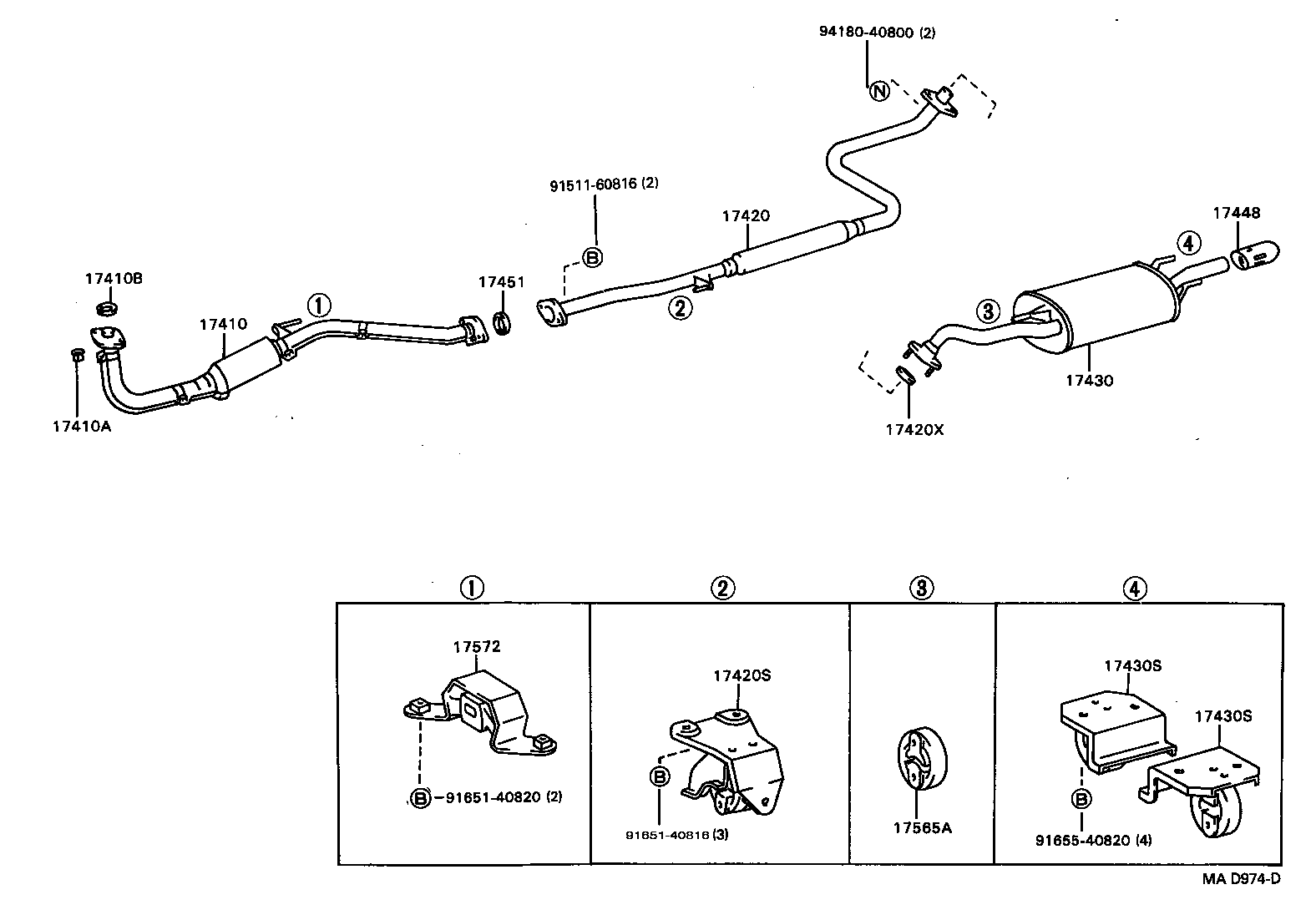

54 parts on this figure

Part number	Description	Fitment	Price
17410 — Pipe Assy, Exhaust, Front
17410-62050	Pipe Assy, Exhaust, Front 1990-07 → 1994-06 ended	1VZFE,4VZFE VZV3#	¥34,700
17410-64431	Pipe Assy, Exhaust, Front 1990-07 → 1991-08 ended	2CT CV30	¥28,200
17410-64432	Pipe Assy, Exhaust, Front 1991-08 → 1994-06 ended	2CT CV30	¥27,800
17410-74770	Pipe Assy, Exhaust, Front 1990-07 → 1992-06 ended	4SFE SV30	¥20,200
17410-74780	Pipe Assy, Exhaust, Front 1990-07 → 1994-06 ended	3SFE SV32,33	¥41,800
17410-74810	Pipe Assy, Exhaust, Front 1990-07 → 1994-06 ended	3SFE SV35	¥27,900
17410-74820	Pipe Assy, Exhaust, Front 1990-07 → 1992-06 ended	3SGE SV32,33	¥35,900
17410-7A140	Pipe Assy, Exhaust, Front 1992-06 → 1994-06 ended	4SFE SV30	¥14,100
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070	Nut, Exhaust Pipe Set Stud Bolt 1990-07 → 1992-06 ended	4SFE SV30	¥120
90179-10070	Nut, Exhaust Pipe Set Stud Bolt 1990-07 → 1994-06 ended	2CT,3S# CV30,SV32,33,35	¥120
90179-10070	Nut, Exhaust Pipe Set Stud Bolt 1990-07 → 1994-06 ended	1VZFE,4VZFE VZV3#	¥120
90179-10070	Nut, Exhaust Pipe Set Stud Bolt 1992-06 → 1994-06 ended	4SFE SV30	¥120
17410B — Gasket, Exhaust Pipe
90917-06039	Gasket, Exhaust Pipe 1990-07 → 1994-06 ended	3SFE SV32,33	¥240
90917-06042	Gasket, Exhaust Pipe 1990-07 → 1994-06 ended	2CT,3SFE CV30,SV35	¥570
90917-06045	Gasket, Exhaust Pipe 1990-07 → 1994-06 ended	1VZFE,4VZFE VZV3#	¥580
90917-06045	Gasket, Exhaust Pipe 1990-07 → 1994-06 ended	4SFE SV30	¥580
90917-06055	Gasket, Exhaust Pipe 1990-07 → 1992-06 ended	3SGE SV32,33	¥550
17420 — Pipe Assy, Exhaust, Center
17420-62070	Pipe Assy, Exhaust, Center 1990-07 → 1994-06 ended	1VZFE,4VZFE VZV3#	¥27,400
17420-64120	Pipe Assy, Exhaust, Center 1990-07 → 1994-06 ended	2CT CV30	¥33,200
17420-74530	Pipe Assy, Exhaust, Center 1990-07 → 1994-06 ended	4SFE SV30	¥20,600
17420-74540	Pipe Assy, Exhaust, Center 1990-07 → 1994-06 ended	3SFE SV32,33	¥32,300
17420-74550	Pipe Assy, Exhaust, Center 1990-07 → 1992-06 ended	3SGE SV32,33	¥32,300
17420-74561	Pipe Assy, Exhaust, Center 1990-07 → 1991-03 ended	3SFE SV35	¥33,300
17420-74562	Pipe Assy, Exhaust, Center 1991-03 → 1994-06 ended	3SFE SV35	¥33,200
17420S — Bracket, Exhaust Pipe Center, Rear
17507-74050	Bracket, Exhaust Pipe Center, Rear 1990-07 → 1994-06 ended	2CT,3SGE,4SFE,1VZFE,4VZFE CV30,SV30,32,33,VZV3#	¥1,730
17507-74070	Bracket, Exhaust Pipe Center, Rear 1990-07 → 1994-06 ended	3SFE SV32,33	¥1,730
17420X — Gasket, Exhaust Pipe, Center
90917-06039	Gasket, Exhaust Pipe, Center 1990-07 → 1994-06 ended	4SFE SV30	¥240
90917-06042	Gasket, Exhaust Pipe, Center 1990-07 → 1994-06 ended	3SGE,1VZFE,4VZFE SV32,33,VZV3#	¥570
90917-06045	Gasket, Exhaust Pipe, Center 1990-07 → 1994-06 ended	2CT,3SFE CV30,SV32,33,35	¥580
17430 — Pipe Assy, Exhaust, Tail
17430-64600	Pipe Assy, Exhaust, Tail 1990-07 → 1992-06 ended	2CT CV30	¥35,100
17430-64780	Pipe Assy, Exhaust, Tail 1992-06 → 1994-06 ended	2CT CV30	¥35,100
17430-74880	Pipe Assy, Exhaust, Tail 1990-07 → 1992-06 ended	4SFE SV30 ETO,VL,XT,ZV	¥35,100
17430-74890	Pipe Assy, Exhaust, Tail 1990-07 → 1994-06 ended	3SFE SV32,33	¥35,100
17430-7A011	Pipe Assy, Exhaust, Tail 1990-07 → 1994-06 ended	3SFE SV35	¥38,500
17430-7A080	Pipe Assy, Exhaust, Tail 1990-07 → 1992-06 ended	4SFE SV30 LUM,VE,VR,ZE	¥35,100
17430-7A240	Pipe Assy, Exhaust, Tail 1992-06 → 1994-06 ended	4SFE SV30 ETO,VL,XT	¥35,100
17430-7A250	Pipe Assy, Exhaust, Tail 1992-06 → 1994-06 ended	4SFE SV30 LUM,VR,ZE	¥35,100
17440-62012	Pipe Assy, Exhaust, Tail 1990-07 → 1991-11 ended	3SGE,1VZFE,4VZFE SV32,33,VZV3#	¥78,800
17440-62013	Pipe Assy, Exhaust, Tail 1991-11 → 1994-06 ended	3SGE,1VZFE,4VZFE SV32,33,VZV3#	¥78,800
17430S — Bracket, Exhaust Tailpipe (FOR REAR)
17509-74100	Bracket, Exhaust Tailpipe (FOR REAR) 1990-07 → 1994-06 ended	2CT,3S#,4SFE,1VZFE,4VZFE CV30,SV3#,VZV3#	¥1,730
17448 — Baffle, Tailpipe
17408-50010	Baffle, Tailpipe 1990-07 → 1993-05 ended	3SFE SV32,33,35;4SFE SV30 LUM,VE,VR,ZE	¥4,760
17408-74040	Baffle, Tailpipe 1993-05 → 1994-06 ended	3SFE SV32,33,35;4SFE SV30 LUM,VR,ZE	¥4,910
17448-79025	Baffle, Tailpipe 1992-06 → 1992-10 ended	4VZFE VZV3#	¥4,100
17448-79025	Baffle, Tailpipe 1990-07 → 1992-06 ended	3SGE,1VZFE,4VZFE SV32,33,VZV3#	¥4,100
17448-79026	Baffle, Tailpipe 1992-10 → 1994-06 ended	4VZFE VZV3#	¥4,350
17451 — Gasket, Exhaust Pipe
90917-06039	Gasket, Exhaust Pipe 1990-07 → 1994-06 ended	4SFE SV30	¥240
90917-06043 note	Gasket, Exhaust Pipe 1990-07 → 1994-06 ended	3SFE,1VZFE,4VZFE SV32,33,VZV3#	¥550
90917-06045	Gasket, Exhaust Pipe 1990-07 → 1994-06 ended	2CT,3SFE CV30,SV35	¥580
90917-06054	Gasket, Exhaust Pipe 1990-07 → 1992-06 ended	3SGE SV32,33	¥350
90917-06054 note	Gasket, Exhaust Pipe 1990-07 → 1994-06 ended	3SFE,1VZFE,4VZFE SV32,33,VZV3#	¥350
17565A — Support, Exhaust Pipe, NO.4
17565-11100 note	Support, Exhaust Pipe, NO.4 1990-07 → 1994-06 ended	2CT CV30	¥1,300
17565-74280 note	Support, Exhaust Pipe, NO.4 1990-07 → 1994-06 ended	2CT CV30	¥570
17565-74280	Support, Exhaust Pipe, NO.4 1990-07 → 1994-06 ended	3S#,4SFE,1VZFE,4VZFE SV3#,VZV3#	¥570
17572 — Bracket, Exhaust Pipe NO.1 Support
17572-74080	Bracket, Exhaust Pipe NO.1 Support 1990-07 → 1994-06 ended	3S#,4SFE,1VZFE,4VZFE SV3#,VZV3#	¥980

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
