Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

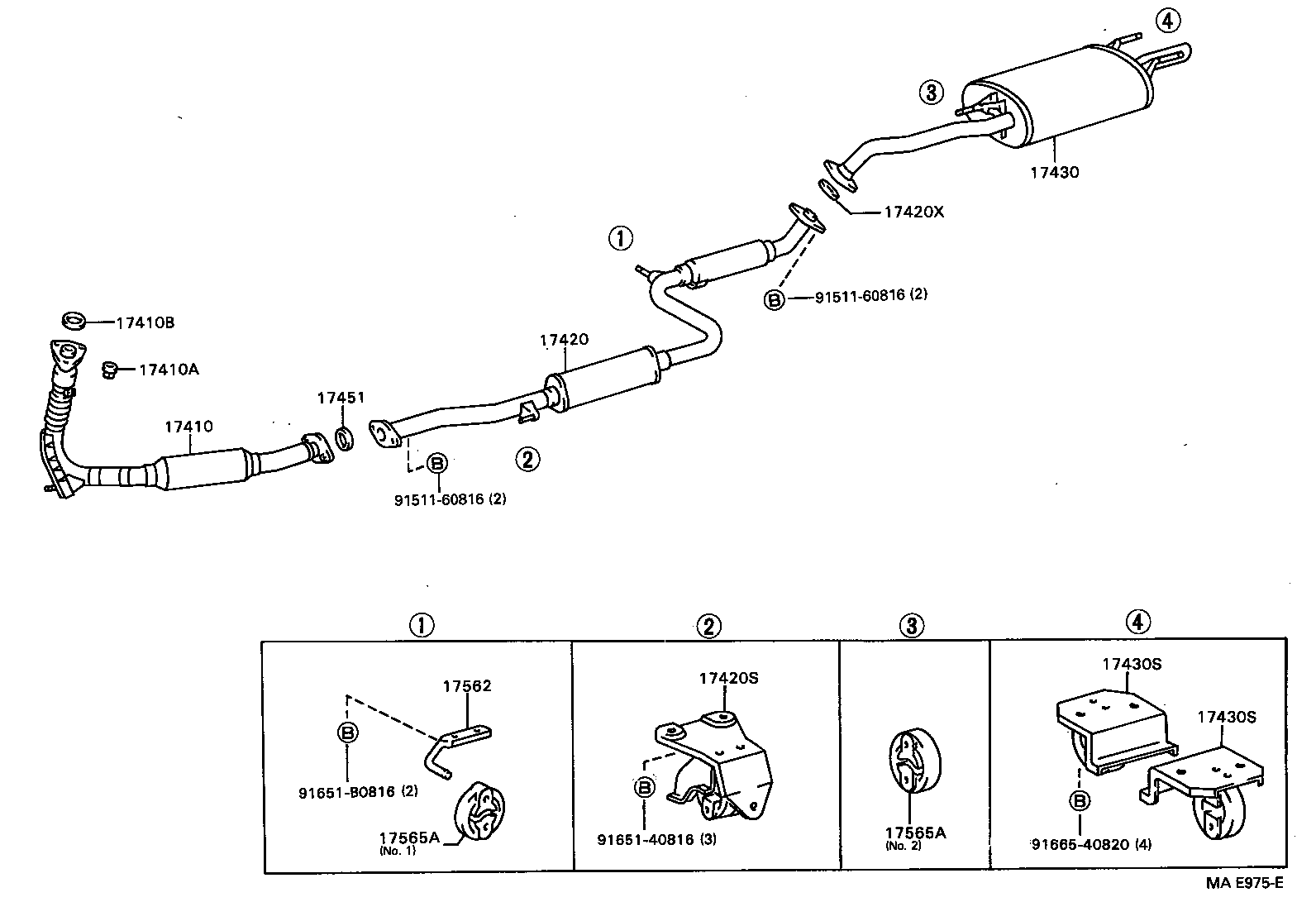

Exploded illustration MAD975E 17430 — PIPE ASSY, EXHAUST, TAIL (10 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (3 parts) 9151160816 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (5 parts) 17420 — PIPE ASSY, EXHAUST, CENTER (7 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (4 parts) 17451 — GASKET, EXHAUST PIPE (5 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (8 parts) 9151160816 — not listed in this catalogue 17430S — BRACKET, EXHAUST TAILPIPE (FOR REAR) (1 parts) 17420S — BRACKET, EXHAUST PIPE CENTER, REAR (2 parts) 17562 — SUPPORT, EXHAUST PIPE, NO.2 (1 parts) 17430S — BRACKET, EXHAUST TAILPIPE (FOR REAR) (1 parts) 91651B0816 — not listed in this catalogue 17565A — SUPPORT, EXHAUST PIPE, NO.4 (3 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (3 parts) 9165140816 — not listed in this catalogue 9166540820 — not listed in this catalogue
MAD975E · 13 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
49 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-62050 Pipe Assy, Exhaust, Front
1990-07 → 1994-06 ended
1VZFE,4VZFE VZV3# ¥34,700
17410-64431 Pipe Assy, Exhaust, Front
1990-07 → 1991-08 ended
2CT CV30 ¥28,200
17410-64432 Pipe Assy, Exhaust, Front
1991-08 → 1994-06 ended
2CT CV30 ¥27,800
17410-74770 Pipe Assy, Exhaust, Front
1990-07 → 1992-06 ended
4SFE SV30 ¥20,200
17410-74780 Pipe Assy, Exhaust, Front
1990-07 → 1994-06 ended
3SFE SV32,33 ¥41,800
17410-74810 Pipe Assy, Exhaust, Front
1990-07 → 1994-06 ended
3SFE SV35 ¥27,900
17410-74820 Pipe Assy, Exhaust, Front
1990-07 → 1992-06 ended
3SGE SV32,33 ¥35,900
17410-7A140 Pipe Assy, Exhaust, Front
1992-06 → 1994-06 ended
4SFE SV30 ¥14,100
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1990-07 → 1992-06 ended
4SFE SV30 ¥120
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1990-07 → 1994-06 ended
2CT,3S# CV30,SV32,33,35 ¥120
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1990-07 → 1994-06 ended
1VZFE,4VZFE VZV3# ¥120
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1992-06 → 1994-06 ended
4SFE SV30 ¥120
17410B — Gasket, Exhaust Pipe
90917-06039 Gasket, Exhaust Pipe
1990-07 → 1994-06 ended
3SFE SV32,33 ¥240
90917-06042 Gasket, Exhaust Pipe
1990-07 → 1994-06 ended
2CT,3SFE CV30,SV35 ¥570
90917-06045 Gasket, Exhaust Pipe
1990-07 → 1994-06 ended
4SFE SV30 ¥580
90917-06045 Gasket, Exhaust Pipe
1990-07 → 1994-06 ended
1VZFE,4VZFE VZV3# ¥580
90917-06055 Gasket, Exhaust Pipe
1990-07 → 1992-06 ended
3SGE SV32,33 ¥550
17420 — Pipe Assy, Exhaust, Center
17420-62070 Pipe Assy, Exhaust, Center
1990-07 → 1994-06 ended
1VZFE,4VZFE VZV3# ¥27,400
17420-64120 Pipe Assy, Exhaust, Center
1990-07 → 1994-06 ended
2CT CV30 ¥33,200
17420-74530 Pipe Assy, Exhaust, Center
1990-07 → 1994-06 ended
4SFE SV30 ¥20,600
17420-74540 Pipe Assy, Exhaust, Center
1990-07 → 1994-06 ended
3SFE SV32,33 ¥32,300
17420-74550 Pipe Assy, Exhaust, Center
1990-07 → 1992-06 ended
3SGE SV32,33 ¥32,300
17420-74561 Pipe Assy, Exhaust, Center
1990-07 → 1991-03 ended
3SFE SV35 ¥33,300
17420-74562 Pipe Assy, Exhaust, Center
1991-03 → 1994-06 ended
3SFE SV35 ¥33,200
17420S — Bracket, Exhaust Pipe Center, Rear
17507-74050 Bracket, Exhaust Pipe Center, Rear
1990-07 → 1994-06 ended
2CT,3SGE,4SFE,1VZFE,4VZFE CV30,SV30,32,33,VZV3# ¥1,730
17507-74070 Bracket, Exhaust Pipe Center, Rear
1990-07 → 1994-06 ended
3SFE SV32,33 ¥1,730
17420X — Gasket, Exhaust Pipe, Center
90917-06039 Gasket, Exhaust Pipe, Center
1990-07 → 1994-06 ended
4SFE SV30 ¥240
90917-06042 Gasket, Exhaust Pipe, Center
1990-07 → 1994-06 ended
3SGE,1VZFE,4VZFE SV32,33,VZV3# ¥570
90917-06045 Gasket, Exhaust Pipe, Center
1990-07 → 1994-06 ended
2CT,3SFE CV30,SV32,33,35 ¥580
17430 — Pipe Assy, Exhaust, Tail
17430-64600 Pipe Assy, Exhaust, Tail
1990-07 → 1992-06 ended
2CT CV30 ¥35,100
17430-64780 Pipe Assy, Exhaust, Tail
1992-06 → 1994-06 ended
2CT CV30 ¥35,100
17430-74880 Pipe Assy, Exhaust, Tail
1990-07 → 1992-06 ended
4SFE SV30 ETO,VL,XT,ZV ¥35,100
17430-74890 Pipe Assy, Exhaust, Tail
1990-07 → 1994-06 ended
3SFE SV32,33 ¥35,100
17430-7A011 Pipe Assy, Exhaust, Tail
1990-07 → 1994-06 ended
3SFE SV35 ¥38,500
17430-7A080 Pipe Assy, Exhaust, Tail
1990-07 → 1992-06 ended
4SFE SV30 LUM,VE,VR,ZE ¥35,100
17430-7A240 Pipe Assy, Exhaust, Tail
1992-06 → 1994-06 ended
4SFE SV30 ETO,VL,XT ¥35,100
17430-7A250 Pipe Assy, Exhaust, Tail
1992-06 → 1994-06 ended
4SFE SV30 LUM,VR,ZE ¥35,100
17440-62012 Pipe Assy, Exhaust, Tail
1990-07 → 1991-11 ended
3SGE,1VZFE,4VZFE SV32,33,VZV3# ¥78,800
17440-62013 Pipe Assy, Exhaust, Tail
1991-11 → 1994-06 ended
3SGE,1VZFE,4VZFE SV32,33,VZV3# ¥78,800
17430S — Bracket, Exhaust Tailpipe (FOR REAR)
17509-74100 Bracket, Exhaust Tailpipe (FOR REAR)
1990-07 → 1994-06 ended
2CT,3S#,4SFE,1VZFE,4VZFE CV30,SV3#,VZV3# ¥1,730
17451 — Gasket, Exhaust Pipe
90917-06039 Gasket, Exhaust Pipe
1990-07 → 1994-06 ended
4SFE SV30 ¥240
90917-06043 note Gasket, Exhaust Pipe
1990-07 → 1994-06 ended
3SFE,1VZFE,4VZFE SV32,33,VZV3# ¥550
90917-06045 Gasket, Exhaust Pipe
1990-07 → 1994-06 ended
2CT,3SFE CV30,SV35 ¥580
90917-06054 Gasket, Exhaust Pipe
1990-07 → 1992-06 ended
3SGE SV32,33 ¥350
90917-06054 note Gasket, Exhaust Pipe
1990-07 → 1994-06 ended
3SFE,1VZFE,4VZFE SV32,33,VZV3# ¥350
17562 — Support, Exhaust Pipe, NO.2
17562-64210 Support, Exhaust Pipe, NO.2
1990-07 → 1994-06 ended
2CT CV30 ¥980
17565A — Support, Exhaust Pipe, NO.4
17565-11100 note Support, Exhaust Pipe, NO.4
1990-07 → 1994-06 ended
2CT CV30 ¥1,300
17565-74280 note Support, Exhaust Pipe, NO.4
1990-07 → 1994-06 ended
2CT CV30 ¥570
17565-74280 Support, Exhaust Pipe, NO.4
1990-07 → 1994-06 ended
3S#,4SFE,1VZFE,4VZFE SV3#,VZV3# ¥570
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
