Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

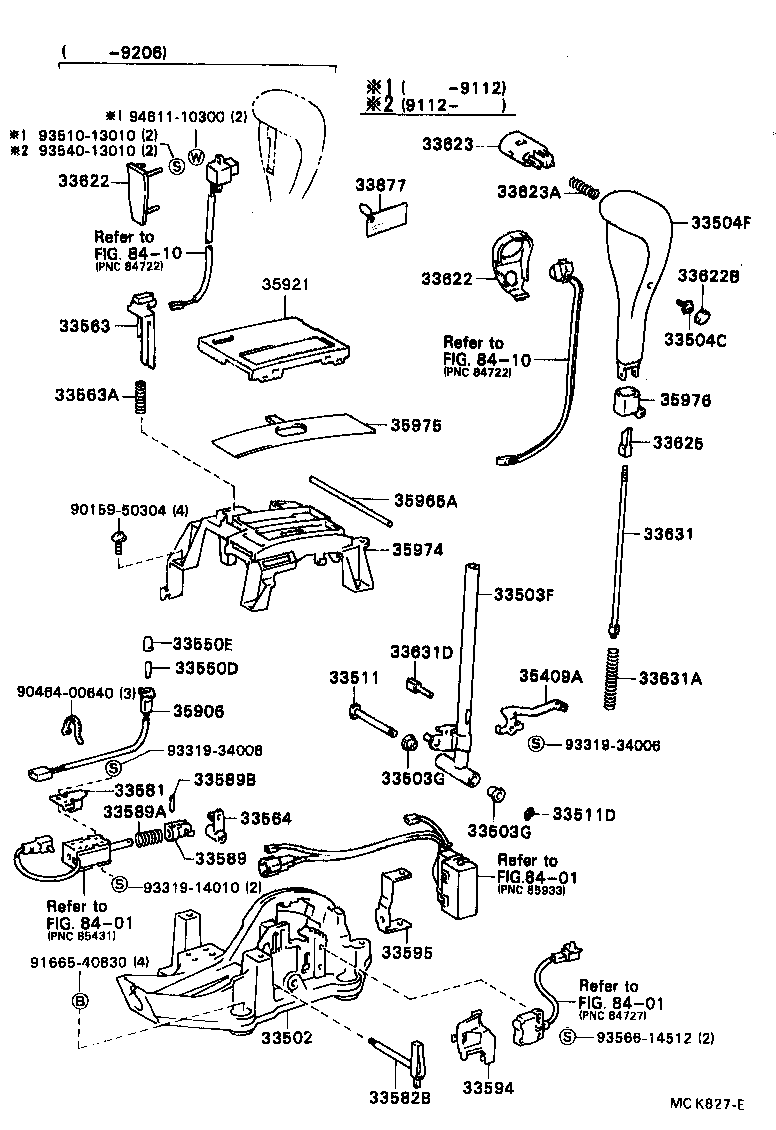

Exploded illustration MCK827E 9461110300 — not listed in this catalogue 9351013010 — not listed in this catalogue 33623 — BUTTON, SHIFT LEVER KNOB (6 parts) 9354013010 — not listed in this catalogue 33622 — COVER, SHIFT LEVER KNOB, NO.1 (6 parts) 33877 — LABEL, SHIFT LOCK INFORMATION, NO.1 (2 parts) 33623A — SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) (2 parts) 33504F — KNOB SUB-ASSY, SHIFT LEVER (46 parts) 8410 — not listed in this catalogue 33622B — PLUG, SHIFT LEVER KNOB (5 parts) 33622 — COVER, SHIFT LEVER KNOB, NO.1 (6 parts) 35921 — PLATE, CONTROL POSITION INDICATOR (1 parts) 33563 — BUTTON, SHIFT LOCK RELEASE (1 parts) 33504C — SCREW (FOR SHIFT LEVER KNOB SETTING) (1 parts) 8410 — not listed in this catalogue 33563A — SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) (1 parts) 35976 — COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) (7 parts) 35975 — COVER, SLIDE (FOR POSITION INDICATOR) (1 parts) 33625 — SLEEVE, SHIFT LEVER KNOB (2 parts) 35965A — GUIDE, SHIFT LEVER SLIDE COVER (1 parts) 9015950304 — not listed in this catalogue 33631 — ROD, DETENT (2 parts) 35974 — HOUSING, POSITION INDICATOR, LOWER (1 parts) 33503F — LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) (7 parts) 33550E — CAP, POSITION INDICATOR LAMP (1 parts) 33631D — PIN, GROOVED (FOR DETENT ROD) (1 parts) 33550D — BULB, POSITION INDICATOR LAMP (1 parts) 35409A — SPRING SUB-ASSY, MANUAL DETENT (FOR FLOOR SHIFT) (1 parts) 33511 — SHAFT, CONTROL (FOR FLOOR SHIFT) (1 parts) 33631A — SPRING, COMPRESSION (FOR DETENT ROD) (1 parts) 9046400640 — not listed in this catalogue 35906 — WIRE SUB-ASSY, INDICATOR LAMP (1 parts) 9331934006 — not listed in this catalogue 9331934006 — not listed in this catalogue 33503G — BUSH(FOR SHIFT LEVER) (1 parts) 33589B — PIN, SLOTTED SPRING (FOR SHIFT LOCK SOLENOID LINK) (1 parts) 33581 — BRACKET, SHIFT LOCK SOLENOID (1 parts) 33589A — SPRING, COMPRESSION (FOR SHIFT LOCK SOLENOID LINK) (1 parts) 33511D — RING, E (FOR FLOOR SHIFT CONTROL SHAFT) (1 parts) 33564 — LINK, SHIFT LOCK RELEASE, NO.1 (1 parts) 33503G — BUSH(FOR SHIFT LEVER) (1 parts) 33589 — LINK, SHIFT LOCK SOLENOID (1 parts) 8401 — not listed in this catalogue 9331914010 — not listed in this catalogue 8401 — not listed in this catalogue 33595 — BRACKET, SHIFT LOCK COMPUTER (1 parts) 9166540830 — not listed in this catalogue 8401 — not listed in this catalogue 33502 — PLATE SUB-ASSY, SHIFT LEVER (2 parts) 9356614512 — not listed in this catalogue 33594 — PLATE, SHIFT LOCK (FOR FLOOR SHIFT) (1 parts) 33582B — STOPPER, SHIFT LOCK PLATE (FOR FLOOR SHIFT) (1 parts)
MCK827E · 37 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
111 parts on this figure
Part number Description Fitment Price
33502 — Plate Sub-assy, Shift Lever
33502-32130 Plate Sub-assy, Shift Lever
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥14,700
33521-32070 Plate Sub-assy, Shift Lever
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥2,840
33503F — Lever Sub-assy, Shift(FOR FLOOR SHIFT)
33055-32070 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1990-07 → 1991-05 ended
SV35,VZV3# 5F ¥9,200
33055-32080 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥6,800
33055-32091 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1991-06 → 1992-01 ended
CV30,SV30,32,33 5F ¥3,500
33055-32100 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1990-07 → 1991-06 ended
CV30,SV30,32,33 5F ¥3,500
33055-32101 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1992-01 → 1992-06 ended
CV30,SV30,32,33 5F ¥3,500
33055-32110 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1991-05 → 1994-06 ended
SV35,VZV30,31 5F ¥8,800
33055-32120 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥6,800
33503G — Bush(FOR SHIFT LEVER)
90386-08048 Bush(FOR SHIFT LEVER)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥190
33504C — Screw (FOR SHIFT LEVER KNOB SETTING)
90159-40221 Screw (FOR SHIFT LEVER KNOB SETTING)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥120
33504F — Knob Sub-assy, Shift Lever
33504-12180-B0 note Knob Sub-assy, Shift Lever
1991-05 → 1994-06 ended
CV30,SV3#,VZV30,31 5F (ETO,LUM,PRO,VE,VR,VX,ZE,ZV,ZX) ¥3,820
33504-12180-E0 note Knob Sub-assy, Shift Lever
1991-05 → 1992-06 ended
CV30,SV3#,VZV30,31 HT 5F (ETO,PRO,VE,VR,VX) ¥3,810
33504-12180-E3 note Knob Sub-assy, Shift Lever
1992-09 → 1994-06 ended
CV30,SV3# 5F (ETO,LUM,VR,VX,ZE,ZX) ¥3,810
33504-12180-K0 note Knob Sub-assy, Shift Lever
1991-05 → 1994-06 ended
CV30,SV3#,VZV30,31 5F (ETO,LUM,PRO,VE,VR,VX,ZE,ZV,ZX) ¥3,810
33504-12200-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV32,33 5F ZX ¥7,400
33504-12200-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV32,33 HT 5F VX ¥7,400
33504-12200-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV35 HT 5F VX ¥7,400
33504-12200-B0 note Knob Sub-assy, Shift Lever
1991-05 → 1992-06 ended
SV32,33,35 HT 5F VX ¥7,400
33504-12200-B0 note Knob Sub-assy, Shift Lever
1991-05 → 1992-06 ended
SV32,33 5F GT ¥7,400
33504-12200-E0 note Knob Sub-assy, Shift Lever
1991-08 → 1992-06 ended
SV32,33,35 HT 5F VX ¥7,300
33504-12200-E0 note Knob Sub-assy, Shift Lever
1991-08 → 1992-06 ended
SV32,33 HT 5F GT ¥7,300
33504-12200-E3 note Knob Sub-assy, Shift Lever
1992-08 → 1994-06 ended
SV32,33 HT 5F VX ¥7,400
33504-12200-E3 note Knob Sub-assy, Shift Lever
1992-08 → 1994-06 ended
SV35 HT 5F VX ¥7,400
33504-12200-E3 note Knob Sub-assy, Shift Lever
1992-08 → 1994-06 ended
SV32,33 5F ZX ¥7,400
33504-12200-K0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV32,33 5F ZX ¥7,300
33504-12200-K0 note Knob Sub-assy, Shift Lever
1991-06 → 1992-06 ended
SV32,33 5F GT ¥7,300
33504-12200-K0 note Knob Sub-assy, Shift Lever
1991-06 → 1992-06 ended
SV32,33,35 HT 5F VX ¥7,300
33504-12200-K0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV32,33 HT 5F VX ¥7,300
33504-12200-K0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV35 HT 5F VX ¥7,300
33504-14050-33 note Knob Sub-assy, Shift Lever
1990-07 → 1991-09 ended
SV30 5F (VL,XT) ¥2,960
33504-14050-52 note Knob Sub-assy, Shift Lever
1990-07 → 1992-06 ended
SV30 5F (VL,XT) ¥3,000
33504-14050-E2 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV30 5F (VL,XT) ¥3,000
33504-14050-K0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV30 5F (VL,XT) ¥3,000
33504-14050-S4 note Knob Sub-assy, Shift Lever
1991-10 → 1994-06 ended
SV30 5F (VL,XT) ¥3,000
33504-14070-E1 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV30 5F (VL,XT) ¥2,730
33504-14070-K0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV30 5F (VL,XT) ¥2,730
33504-14070-S4 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV30 5F (VL,XT) ¥2,730
33504-20110-16 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
VZV30 5F ¥3,000
33504-20110-16 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
CV30,SV3# HT 5F (ETO,VE,VR,VX) ¥3,000
33504-20110-22 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
CV30,SV3# 5F (ETO,LUM,VE,VR,VX,ZE,ZV,ZX) ¥3,000
33504-20110-22 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
VZV30 5F ¥3,000
33504-20110-33 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
VZV30 5F ¥3,000
33504-20110-33 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
CV30,SV3# 5F (ETO,LUM,VE,VR,VX,ZE,ZV,ZX) ¥3,000
33504-20120-13 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
SV32,33,VZV3# 5F (GT,PRO) ¥7,300
33504-20120-16 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
SV32,33,VZV3# HT 5F (GT,PRO) ¥7,300
33504-20120-22 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
SV32,33,VZV3# 5F (GT,PRO) ¥7,300
33542-32110-02 note Knob Sub-assy, Shift Lever
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥5,900
33542-32110-03 note Knob Sub-assy, Shift Lever
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥5,900
33542-32110-06 note Knob Sub-assy, Shift Lever
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# HT 4FC ¥5,900
33542-32120-03 note Knob Sub-assy, Shift Lever
1991-06 → 1992-06 ended
SV32,33,35,VZV32,33 HT 4FC (PRO,VX) ¥15,400
33542-32130-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥15,400
33542-32130-E0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥15,400
33542-32130-K0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥15,400
33542-32140-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV32,33 HT 4FC VX ¥15,400
33542-32140-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV32,33 4FC ZX ¥15,400
33542-32140-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV35,VZV3# HT 4FC (PRO,VX) ¥15,400
33511 — Shaft, Control (FOR FLOOR SHIFT)
33511-32050 Shaft, Control (FOR FLOOR SHIFT)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥2,010
33511D — Ring, E (FOR FLOOR SHIFT CONTROL SHAFT)
96160-00600 Ring, E (FOR FLOOR SHIFT CONTROL SHAFT)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥80
33550D — Bulb, Position Indicator Lamp
90981-11014 note Bulb, Position Indicator Lamp
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥120
33550E — Cap, Position Indicator Lamp
90339-04041 Cap, Position Indicator Lamp
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥180
33563 — Button, Shift Lock Release
33563-32030 Button, Shift Lock Release
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥590
33563A — Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
90501-08126 Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥140
33564 — Link, Shift Lock Release, NO.1
33564-32040 Link, Shift Lock Release, NO.1
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥400
33581 — Bracket, Shift Lock Solenoid
33581-32030 Bracket, Shift Lock Solenoid
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥710
33582B — Stopper, Shift Lock Plate (FOR FLOOR SHIFT)
33582-32020 Stopper, Shift Lock Plate (FOR FLOOR SHIFT)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥400
33589 — Link, Shift Lock Solenoid
33589-32030 Link, Shift Lock Solenoid
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥400
33589A — Spring, Compression (FOR SHIFT LOCK SOLENOID LINK)
90501-06071 Spring, Compression (FOR SHIFT LOCK SOLENOID LINK)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥170
33589B — Pin, Slotted Spring (FOR SHIFT LOCK SOLENOID LINK)
90254-02010 Pin, Slotted Spring (FOR SHIFT LOCK SOLENOID LINK)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥120
33594 — Plate, Shift Lock (FOR FLOOR SHIFT)
33594-32030 Plate, Shift Lock (FOR FLOOR SHIFT)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥790
33595 — Bracket, Shift Lock Computer
33595-32070 Bracket, Shift Lock Computer
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥440
33622 — Cover, Shift Lever Knob, NO.1
33622-32070-02 note Cover, Shift Lever Knob, NO.1
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥1,280
33622-32070-03 note Cover, Shift Lever Knob, NO.1
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥1,280
33622-32070-06 note Cover, Shift Lever Knob, NO.1
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# HT 4FC ¥1,280
33622-32100-B0 note Cover, Shift Lever Knob, NO.1
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥670
33622-32100-E0 note Cover, Shift Lever Knob, NO.1
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥670
33622-32100-K0 note Cover, Shift Lever Knob, NO.1
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥670
33622B — Plug, Shift Lever Knob
33622-32080 note Plug, Shift Lever Knob
1991-05 → 1991-06 ended
VZV32,33 —
33622-32080-03 note Plug, Shift Lever Knob
1991-06 → 1992-06 ended
SV32,33,35,VZV32,33 HT 4FC (PRO,VX) ¥230
33622-32110-B0 note Plug, Shift Lever Knob
1992-06 → 1994-06 ended
SV32,33 4FC ZX ¥230
33622-32110-B0 note Plug, Shift Lever Knob
1992-06 → 1994-06 ended
SV32,33 HT 4FC VX ¥230
33622-32110-B0 note Plug, Shift Lever Knob
1992-06 → 1994-06 ended
SV35,VZV3# HT 4FC (PRO,VX) ¥230
33623 — Button, Shift Lever Knob
33623-32070-02 note Button, Shift Lever Knob
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥1,550
33623-32070-03 note Button, Shift Lever Knob
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥1,550
33623-32070-06 note Button, Shift Lever Knob
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# HT 4FC ¥1,550
33623-32080-B0 note Button, Shift Lever Knob
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥1,530
33623-32080-E0 note Button, Shift Lever Knob
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥1,530
33623-32080-K0 note Button, Shift Lever Knob
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥1,530
33623A — Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
90501-06078 Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥170
90504-07001 Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥170
33625 — Sleeve, Shift Lever Knob
33625-32020 Sleeve, Shift Lever Knob
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥400
33625-32030 Sleeve, Shift Lever Knob
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥400
33631 — Rod, Detent
33631-32040 Rod, Detent
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥400
33631-32050 Rod, Detent
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥740
33631A — Spring, Compression (FOR DETENT ROD)
90501-09105 Spring, Compression (FOR DETENT ROD)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥160
33631D — Pin, Grooved (FOR DETENT ROD)
90249-04051 Pin, Grooved (FOR DETENT ROD)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥180
33877 — Label, Shift Lock Information, NO.1
33877-30030 Label, Shift Lock Information, NO.1
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC —
33877-32010 Label, Shift Lock Information, NO.1
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC —
35409A — Spring Sub-assy, Manual Detent (FOR FLOOR SHIFT)
35409-32040 Spring Sub-assy, Manual Detent (FOR FLOOR SHIFT)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥400
35906 — Wire Sub-assy, Indicator Lamp
35906-32020 Wire Sub-assy, Indicator Lamp
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥860
35921 — Plate, Control Position Indicator
35921-32110 Plate, Control Position Indicator
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥9,900
35965A — Guide, Shift Lever Slide Cover
35965-32010 Guide, Shift Lever Slide Cover
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥250
35974 — Housing, Position Indicator, Lower
35974-32070 Housing, Position Indicator, Lower
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥3,610
35975 — Cover, Slide (FOR POSITION INDICATOR)
35975-32130 Cover, Slide (FOR POSITION INDICATOR)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥3,680
35976 — Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35976-32010-02 note Cover, Slide, NO.2 (FOR POSITION INDICATOR)
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥1,260
35976-32010-03 note Cover, Slide, NO.2 (FOR POSITION INDICATOR)
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥1,260
35976-32010-06 note Cover, Slide, NO.2 (FOR POSITION INDICATOR)
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# HT 4FC ¥1,260
35976-32020-03 note Cover, Slide, NO.2 (FOR POSITION INDICATOR)
1991-06 → 1992-06 ended
SV32,33,35,VZV32,33 HT 4FC (PRO,VX) ¥1,440
35976-32020-B0 note Cover, Slide, NO.2 (FOR POSITION INDICATOR)
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥1,440
35976-32020-E0 note Cover, Slide, NO.2 (FOR POSITION INDICATOR)
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥1,440
35976-32020-K0 note Cover, Slide, NO.2 (FOR POSITION INDICATOR)
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥1,440
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
